Cisco 300-510 Exam covers a wide range of advanced routing technologies, including Border Gateway Protocol (BGP), Multiprotocol Label Switching (MPLS), and Virtual Private Network (VPN) technologies. It also tests the candidate's knowledge of advanced routing policies, route redistribution, and route filtering techniques. Successful candidates are expected to have a deep understanding of how these technologies work and how they can be configured and optimized in a service provider network.
Cisco 300-510 (Implementing Cisco Service Provider Advanced Routing Solutions) exam is a certification test that validates the skills and knowledge of IT professionals in implementing advanced routing solutions in a service provider network environment. Implementing Cisco Service Provider Advanced Routing Solutions certification exam is designed for individuals who work in the service provider industry and are responsible for configuring, implementing, and troubleshooting advanced routing protocols and technologies.
Implementing Cisco Service Provider Advanced Routing Solutions exam is one of the top-rated Cisco 300-510 Exams. This Implementing Cisco Service Provider Advanced Routing Solutions exam offers an industrial-recognized way to validate a candidate's skills and knowledge. Everyone can participate in Implementing Cisco Service Provider Advanced Routing Solutions exam requirements after completing the Implementing Cisco Service Provider Advanced Routing Solutions exam. With the Implementing Cisco Service Provider Advanced Routing Solutions exam you can learn in-demand skills and upgrade your knowledge. You can enhance your salary package and you can get a promotion in your company instantly.
These core topics of 310-510 SPRI practice test listed below are general recommendations for the material that is likely to be used for the examination. However, on any delivery of the test, other similar topics could also appear. The guidelines below can update at any time without notice to better represent the contents of the 310-510 SPRI exam dumps pdf and for clarity purposes.
It is recommended that, where possible, the applicant use these courses and/or other resources to provide background information on the exam objectives. The syllabus for the Implementing Cisco Service Provider Advanced Routing Solutions (300-510 SPRI) examination is listed below in detail for each section of 300-510 SPRI exam dumps:
NEW QUESTION # 124
SIMULATION
Guidelines
This is a lab item in which tasks will be performed on virtual devices.
- Refer to the Tasks tab to view the tasks for this lab item.
- Refer to the Topology tab to access the device console(s) and perform the tasks.
- Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window.
- All necessary preconfigurations have been applied.
- Do not change the enable password or hostname for any device.
- Save your configurations to NVRAM before moving to the next item.
- Click Next at the bottom of the screen to submit this lab and move to the next question.
- When Next is clicked, the lab closes and cannot be reopened.

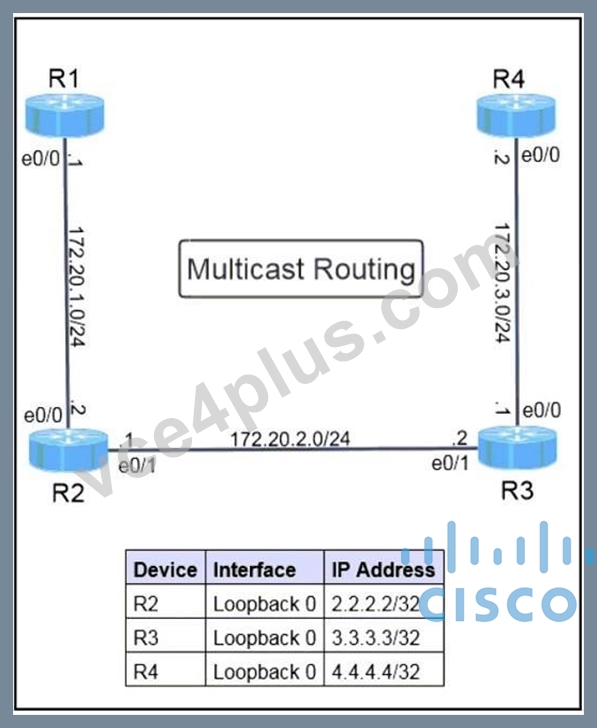

Topology
Tasks
R2 and R3 are routers that perform multicast operations. Candidates are required to perform the below configuration and verification tasks on R1 and R2.
1. Configure R2 and R3 to be able to process, route and forward multicast packets.
2. Configure R3 as the root of the shared tree for the any source multicast domain.
3. Configure R1 as the receiver for group 239.100.100.1 and ensure a ping to that group from R4 is successful.
Initial configuration with IP addressing has been completed. The candidate must not make any changes to the configurations except to fulfill the tasks listed above. Use non-proprietary protocol where needed. Only use the provided logical interface for the applicable task.
Answer:
Explanation:
1. Enable Multicast Routing on R2 and R3
To process, route, and forward multicast packets, multicast routing must be enabled globally, and PIM (Protocol Independent Multicast) must be configured on the appropriate interfaces.
Commands on R2 and R3:
R2(config)# ip multicast-routing
R2(config)# interface e0/0
R2(config-if)# ip pim sparse-mode
R2(config)# interface e0/1
R2(config-if)# ip pim sparse-mode
R2(config)# interface loopback 0
R2(config-if)# ip pim sparse-mode
R3(config)# ip multicast-routing
R3(config)# interface e0/0
R3(config-if)# ip pim sparse-mode
R3(config)# interface e0/1
R3(config-if)# ip pim sparse-mode
R3(config)# interface loopback 0
R3(config-if)# ip pim sparse-mode
ip multicast-routingenables multicast routing globally.
ip pim sparse-modeenables PIM in Sparse Mode on interfaces.
2. Configure R3 as the Root of the Shared Tree (Rendezvous Point - RP)
To configure R3 as the RP for the multicast domain, use Auto-RP or Static RP. Here, we configure Static RP for group 239.100.100.1.
Commands on R2 and R3:
R2(config)# ip pim rp-address 3.3.3.3
R3(config)# ip pim rp-address 3.3.3.3
ip pim rp-address <RP-IP>: Configures R3's Loopback0 IP (3.3.3.3) as the RP for the multicast domain.
Task 3: Configure R1 as the Receiver for Group 239.100.100.1
To configure R1 as a multicast receiver, enable IGMP (Internet Group Management Protocol) on R1's e0/0 interface.
Commands on R1:
R1(config)# interface e0/0
R1(config-if)# ip igmp join-group 239.100.100.1
ip igmp join-group <group>: Forces R1 to join the multicast group 239.100.100.1.
Verification: Ensure Ping to Group 239.100.100.1 is Successful from R4
To verify multicast group reachability:
1. Send Multicast Traffic from R4:
R4# ping 239.100.100.1 repeat 5
2. Verify Multicast Routing Table on R2 and R3:
R2# show ip mroute
R3# show ip mroute
3. Verify IGMP Group Membership on R1:
R1# show ip igmp groups
Complete Summary of Configurations:
1. R2 Configuration:
ip multicast-routing
interface e0/0
ip pim sparse-mode
interface e0/1
ip pim sparse-mode
interface loopback 0
ip pim sparse-mode
ip pim rp-address 3.3.3.3
2. R3 Configuration:
ip multicast-routing
interface e0/0
ip pim sparse-mode
interface e0/1
ip pim sparse-mode
interface loopback 0
ip pim sparse-mode
ip pim rp-address 3.3.3.3
3. R1 Configuration:
interface e0/0
ip igmp join-group 239.100.100.1
Verification Checklist:
1. R3 is the RP: Use show ip pim rp mapping..
2. R1 is a Group Member: Verify with show ip igmp groups.
3. Multicast Traffic Flows: Use ping 239.100.100.1from R4 and verify success.
NEW QUESTION # 125
The engineering team at ISP_1 must improve network stability time and minimize the impact of routing instabilities from other domains to unicast transit services in the backbone R1 is part of an OSPF- enabled network, and acts as an ASBR connected via interface GiO/1 to the external domain The OSPF exponential backoff algorithm RFC 3623 with helper mode is already implemented on R1 Which additional configuration must the ISP_1 team apply to suppress routing instability for 3 minutes'?
Answer: B
NEW QUESTION # 126

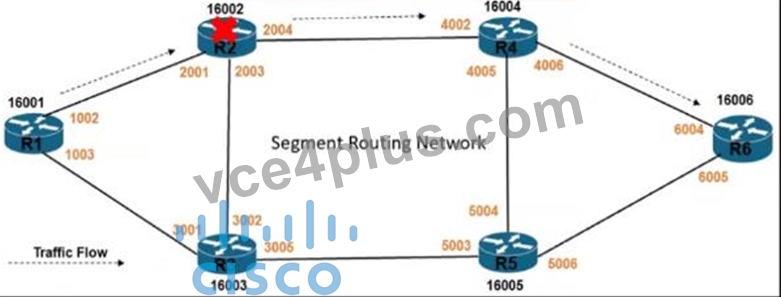

Refer to the exhibit.

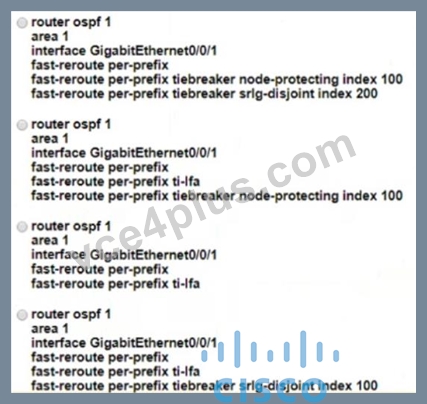

Traffic flow from router R1 to router R6 is delay-sensitive It must consider potential link-failure and node-failure conditions Which configuration must an engineer apply to router R1 to route traffic to router R6 if router R2 fails?
Answer: C
NEW QUESTION # 127

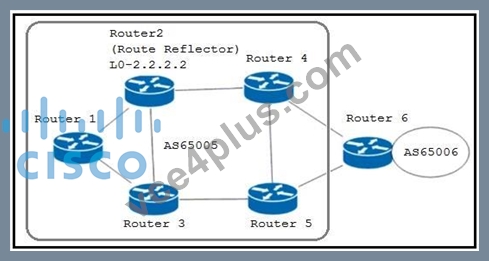

Refer to the exhibit. The initial BGP configuration of the network is complete, and all the routers have established BGP neighborship. The engineer configured Router 2 with additional BGP paths to install and advertise more paths to Router 1 and Router 3. Which configuration must the engineer apply to Router 1 and Router 3 so that they will use and install all additional paths?
Answer: A
NEW QUESTION # 128

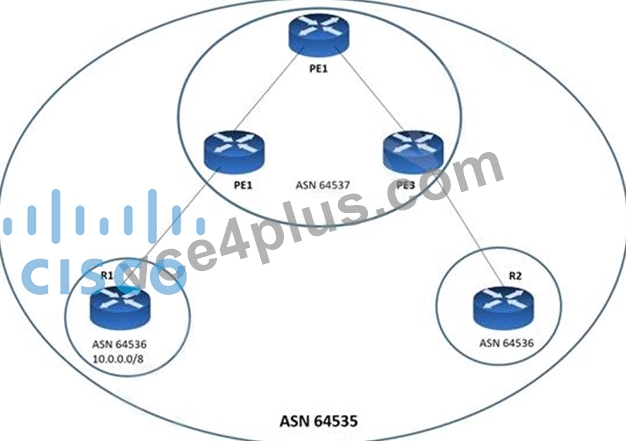

Refer to the exhibit.
A network engineer has divided AS into confederations. Due to repeated ASN, when the 10.0 0.0/8 prefix from R1 arrives to R2, BGP automatically rejects it. What should the engineer do to fix the problem so that BGP allows that prefix on R2?
Answer: A
