NEW QUESTION # 67

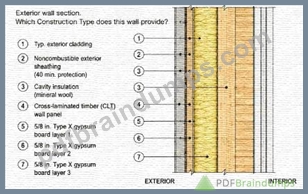

Refer to the figure by clicking on the EXHIBIT button above.
The exterior wall section shown in the Figure provides the prescribed noncombustible protection required by which Construction Type?
Answer: C
Explanation:
The illustrated wall corresponds to Type IV-A construction , making option A correct. The key indicator is the extensive Type X gypsum protection provided on the interior face of the CLT wall. Figure 63 shows multiple layers of 5/8-inch Type X gypsum board protecting the interior mass timber, together with the required exterior-side protection.
Type IV-A is the most comprehensively protected of the three tall mass timber construction classifications.
IBC Section 602.4.1.2 requires the interior faces of all mass timber elements , including the inside face of exterior mass timber walls, to be protected with qualifying noncombustible material. Section 602.4.1.2.1 requires the protection contribution to satisfy Table 722.7.1(1) and never be less than 80 minutes. Type IV-A exterior walls also require at least 40 minutes of noncombustible protection on the outside face.
The three interior layers shown are consistent with a heavily protected Type IV-A rated wall. By contrast, Type IV-B permits limited exposed interior mass timber, while Type IV-C expressly permits mass timber interior elements to remain unprotected. Type IV-HT operates under fundamentally different heavy-timber provisions.
References/Topics: 2021 IBC Sections 602.4.1.1, 602.4.1.2 and 602.4.1.2.1; Tables 601 and 722.7.1(1)-(2).
NEW QUESTION # 68
One code-recognized method for calculating the fire-resistance rating of exposed wood members and decking is:
Answer: B
Explanation:
The intended answer is ANSI/AWC NDS Chapter 16. The video option uses "AWS," but the correct standards organization is the American Wood Council-AWC . Option D is therefore correct based on its intended reference.
IBC Section 722.1 expressly permits exposed wood members and wood decking to have their calculated fire resistance determined in accordance with Chapter 16 of the ANSI/AWC National Design Specification for Wood Construction. The method evaluates charring, the effective char depth, the reduced residual cross section, elevated-temperature effects, loading, and the remaining structural capacity for the required exposure period.
ACI 216.1 applies to concrete and masonry fire resistance. TMS 0216 addresses masonry assemblies. ASCE
29 Chapter 5 provides procedures for calculating the fire resistance of structural steel assemblies. Those references are code-recognized methods, but they apply to different construction materials.
For mass timber inspection, the approved calculations should identify the exposed surfaces, required rating, timber species or product, member dimensions, design loads, protective contribution, and connection treatment. Field reductions in member dimensions can invalidate the calculated fire resistance.
References/Topics: 2021 IBC Section 722.1; ANSI/AWC NDS Chapter 16; calculated fire resistance of exposed wood members and decking.
NEW QUESTION # 69
In Type IV-C construction, a connection between two members of the primary structural frame supporting a floor is required to be protected to achieve a minimum fire-resistance rating of:
Answer: A
Explanation:
The required minimum fire-resistance rating is two hours , making option C correct. Table 601 assigns a two- hour fire-resistance rating to the primary structural frame in Type IV-C construction. The structural connection between members of that rated frame cannot become a premature failure point in the load path.
IBC Section 2304.10.1 specifically addresses structural connections in Types IV-A, IV-B, and IV-C mass timber construction. Connection protection must provide the fire-resistance performance required for the connected building element. This can be accomplished through protected connection configurations, approved fire testing, or engineering analysis satisfying the applicable code criteria.
The connection includes more than the visible steel plate or bolt. Fasteners, connectors, concealed steel, bearing zones, and portions of the timber participating structurally in the connection must collectively maintain the required performance. A one-hour or 1ยฝ-hour connection would undermine a structural frame required to remain functional for two hours. Three hours is the primary-frame rating associated with Type IV- A, not the Type IV-C condition specified here.
The inspector should verify protection thickness, wood cover, gypsum layers, hardware embedment, edge conditions, and approved connection geometry before concealment.
References/Topics: 2021 IBC Table 601; Section 2304.10.1; fire-resistant structural connections in Types IV- A, IV-B, and IV-C.
NEW QUESTION # 70
Buildings of Types IV-A, IV-B, and IV-C construction designed to be greater than six stories above grade plane shall meet which of the following requirements for fire safety practices during construction?
Answer: C
Explanation:
The 2021 IFC specifically requires standpipes to be provided in accordance with Section 3313 for Type IV-A, IV-B, and IV-C buildings designed to exceed six stories above grade plane. Therefore, option A is correct.
The code also requires a water supply for fire department operations, but it must be approved by the fire code official and fire chief; it is not described as a mandatory "portable water supply." This makes option B inaccurate. Where noncombustible protection is required, at least one layer-not two layers-must be installed on applicable building elements more than four levels below active mass timber construction before additional levels are erected. Option D therefore overstates the number of layers.
Required exterior wall coverings must similarly be installed more than four levels below active mass timber construction. Option C incorrectly substitutes two levels for the prescribed four-level threshold.
These provisions limit the amount of unprotected combustible construction exposed at one time and provide the fire department with usable suppression infrastructure as erection progresses. Inspection coordination should verify standpipe extension, hose-connection accessibility, water availability, the progression of passive protection, and exterior-wall covering installation.
References/Topics: 2021 IFC Section 3308.4 and Section 3313; fire safety during construction of tall mass timber buildings.
NEW QUESTION # 71
What fire-resistance rating is required for floors in Type IV-A, IV-B and IV-C construction?
Answer: A
Explanation:
IBC Table 601 requires floor construction and associated secondary structural members in Types IV-A, IV-B, and IV-C construction to have a two-hour fire-resistance rating. Therefore, option B is correct.
This requirement applies to the complete floor assembly, not only the timber panel. The required two-hour performance may be established through the calculated fire resistance of the mass timber, the contribution of approved noncombustible protection, or a permitted combination of both. Any topping, protective membrane, connection protection, and edge condition that forms part of the approved rated design must be installed accordingly.
The ratings for other building elements should not be transferred to the floor. A three-hour rating applies to the primary structural frame and bearing walls of Type IV-A, but its floor construction remains two hours.
Type IV-B and Type IV-C floors also require two hours, even though those construction types permit different degrees of exposed mass timber.
The special inspector must verify panel dimensions, approved layup, protection layers, joints, penetrations, connections, topping thickness, and other details that influence the floor's rated performance.
References/Topics: 2021 IBC Sections 601 and 602.4; Table 601, floor construction and associated secondary structural members.
