now our H12-831_V1.0-ENU training materials have become the most popular H12-831_V1.0-ENU practice materials in the international market. There are so many advantages of our study materials, and will show you some of them for your reference. First and foremost, our company has prepared H12-831_V1.0-ENU free demo in this website for our customers. Second, it is convenient for you to read and make notes with our PDF version. So let our H12-831_V1.0-ENU practice materials to be your learning partner in the course of preparing for the H12-831_V1.0-ENU exam, especially the PDF version is really a wise choice for you.
| Section | Objectives |
|---|---|
| Network Design and Troubleshooting | - Enterprise network design
|
| BGP and Internet Routing | - Advanced BGP features
|
| MPLS and VPN Technologies | - MPLS fundamentals
|
| Advanced Routing Protocols | - IS-IS Routing Protocol
|
| IPv6 and Network Services | - IPv6 routing technologies
|
>> Valid H12-831_V1.0-ENU Test Camp <<
It is our promissory announcement on our H12-831_V1.0-ENU exam questions that you will get striking by these viable ways. So do not feel giddy among tremendous materials in the market ridden-ed by false materials. With great outcomes of the passing rate upon to 98-100 percent, our H12-831_V1.0-ENU Preparation braindumps are totally the perfect one. And you can find the comments and feedbacks on our website to see that how popular and excellent our H12-831_V1.0-ENU study materials are.
NEW QUESTION # 164

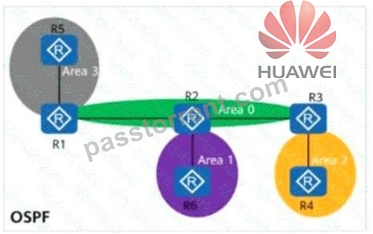

On the OSPF network shown in the figure:
* Area 1 is a common area .
* Area 2 is a totally NSSA (Not-So-Stubby Area) .
* Area 3 is an NSSA .
* R5 imports the external route 10.0.5.5/32 into OSPF .
Which of the following routers have the route 10.0.5.5/32 in their routing tables?
Answer: A,C,D
Explanation:
Comprehensive and Detailed In-Depth Explanation:
Understanding OSPF Areas and Route Propagation in the Network:
* OSPF Area Types in the Question:
* Area 0 (Backbone Area) : Connects all areas and distributes routing information.
* Area 1 (Standard Area) : Regular OSPF area that can receive and forward external routes.
* Area 2 (Totally NSSA - Totally Not-So-Stubby Area) :
* Does not allow external routes except for a default route injected by the ABR.
* Area 3 (NSSA - Not-So-Stubby Area) :
* Allows external routes as Type 7 LSAs but does not accept Type 5 LSAs.
* How External Routes Are Advertised in This Scenario:
* R5 (in Area 3) imports 10.0.5.5/32 as an external route into OSPF.
* Since Area 3 is an NSSA , the external route is advertised as a Type 7 LSA (not Type 5).
* The ABR (R1) converts the Type 7 LSA into a Type 5 LSA and advertises it into Area 0.
* Once in Area 0 , this Type 5 LSA can be distributed to other areas except totally stubby or totally NSSA areas .
Route Distribution Analysis:
* R5 (Area 3) # R1 (Area 0, ABR) :
* R5 generates a Type 7 LSA for 10.0.5.5/32 .
* R1 (ABR) converts this Type 7 LSA into a Type 5 LSA and injects it into Area 0 .
* R2 (Area 0) # R3 (Area 0) :
* Since Area 0 allows external Type 5 LSAs , R2 and R3 receive 10.0.5.5/32 . # R2 and R3 have the route.
* R6 (Area 1) # Connected to Area 0 :
* Area 1 is a common area , meaning it can receive external Type 5 LSAs. # R6 has the route.
* R4 (Area 2 - Totally NSSA) :
* Totally NSSA areas do NOT accept Type 5 or Type 7 LSAs .
* Instead, they receive only a default route from the ABR (R3).
* Since R4 does not receive external routes explicitly, it does NOT have 10.0.5.5/32 . # R4 does NOT have the route.
Final Conclusion:
* # R2, R3, and R6 have the route 10.0.5.5/32 .
* # R4 does not have the route because Area 2 is a Totally NSSA and only gets a default route .
Thus, the correct answer is:
# R2, R3, and R6 have the route 10.0.5.5/32 in their routing tables.
Reference:
HCIP-Datacom-Advanced Routing & Switching Technology V1.0 - OSPF Route Types and Area Behavior Huawei Official HCIP-Datacom Study Guide - OSPF LSA Types and Route Filtering in NSSA & Totally NSSA Areas Huawei Documentation on Type 7 to Type 5 LSA Conversion in NSSA Areas
NEW QUESTION # 165
Regarding multi-instance CE (Mlulti-VPN-Instance CE, MCE), which of the following description is wrong?
Answer: C
NEW QUESTION # 166

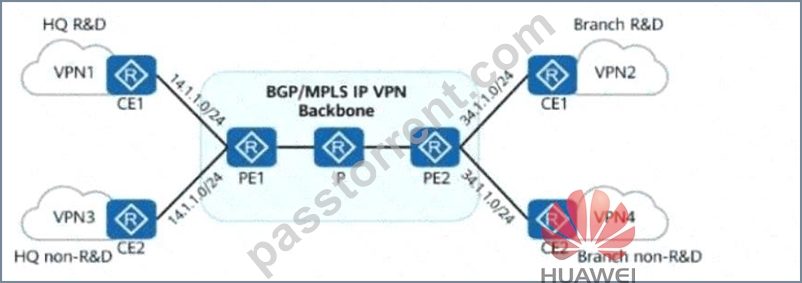

In the figure, the company wants to ensure secure communication between the headquarters and branch , and isolate the R & D areas from non-R & D areas , without changing the current network deployment.
To meet this requirement, an administrator deploys BGP/MPLS IP VPN on the network .
Which of the following statements are true?
Answer: A,C
Explanation:
Comprehensive and Detailed In-Depth Explanation:
To verify the correct answers, let ' s analyze how BGP/MPLS IP VPN is used for secure communication and isolation in an enterprise network.
1. Understanding BGP/MPLS IP VPN Concepts
MPLS VPN (Multiprotocol Label Switching Virtual Private Network) is used to:
* Allow communication between specific sites by using Route Targets (RTs) .
* Ensure isolation of specific areas (e.g., R & D vs. non-R & D) by controlling RT import/export policies .
* Utilize Route Distinguisher (RD) to make overlapping IP addresses unique within the VPN.
2. Analyzing the Answer Choices
# A. " To enable communication between the headquarters and branch R & D areas, both the ERT and IRT of VPN1 and VPN2 can be set to 100:100. " # TRUE
* Explanation:
* ERT (Export Route Target) and IRT (Import Route Target) define which VPNs share routing information .
* If VPN1 (HQ R & D) and VPN2 (Branch R & D) use the same RT (100:100), they will exchange routes, enabling communication.
* Correct configuration:
VPN1: ERT 100:100, IRT 100:100
VPN2: ERT 100:100, IRT 100:100
* # This is correct and enables communication between HQ and branch R & D areas.
# B. " To implement communication between the headquarters and branch R & D areas, the RDs of VPN1 and VPN2 need to be set to the same value. " # FALSE
* Explanation:
* RD (Route Distinguisher) is only used to make overlapping IP addresses unique within the MPLS VPN.
* RD does NOT control route exchange between VPNs (RTs control route exchange).
* VPN1 and VPN2 can have different RDs but still communicate if they share the same RT (100:100).
* # RDs do NOT need to be the same for VPNs to communicate.
* # This statement is false.
# C. " R & D areas and non-R & D areas have overlapping address spaces. Therefore, services in the two areas cannot be isolated. " # FALSE
* Explanation:
* Overlapping address spaces are common in MPLS VPNs and can be isolated using unique Route Targets (RTs).
* As long as VPNs have different RTs, their traffic remains isolated.
* For example:
VPN1 (R & D): RT 100:100
VPN3 (non-R & D): RT 200:200
* Even with overlapping IPs, R & D and non-R & D areas are completely isolated.
* # This statement is false.
# D. " To isolate R & D areas from non-R & D areas at the headquarters, the RTs of VPN1 can all be set to 100:100 and the RTs of VPN3 can all be set to 200:200. " # TRUE
* Explanation:
* Setting different RTs for R & D (100:100) and non-R & D (200:200) ensures complete isolation .
* Correct configuration:
VPN1 (R & D): RT 100:100
VPN3 (non-R & D): RT 200:200
* Since VPN1 and VPN3 do NOT share the same RTs, their routes remain separate.
* # This ensures isolation between R & D and non-R & D areas.
NEW QUESTION # 167
Regarding BGP/MPLS IPVPN data forwarding, which of the following descriptions is wrong?
Answer: C
NEW QUESTION # 168

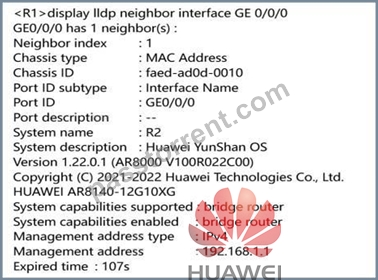

A network engineer is checking LLDP neighbor information on R1. Which of the following descriptions are correct? (Multiple choice)
Answer: A,B,C
NEW QUESTION # 169
......
