| Section | Objectives |
|---|---|
| Layer 2 control and security | - Use ACLs, security profiles, and VLAN security mechanisms on FortiSwitch - Use filtering and antispoofing techniques on FortiSwitch - Use port security options on FortiSwitch |
| Deployment and management | - Configure and provision FortiSwitch - Deploy FortiSwitch supported deployment topologies - Deploy and configure FortiSwitch in a multi-tenancy environment |
| FortiSwitch concepts | - Configure switch ports, split port, and available transceivers - Configure VLANs using FortiSwitch - Configure the ports required for stack deployment - Configure STP to prevent network loops - Configure switching and routing on FortiSwitch - Use QoS and LLDP-MED on FortiSwitch |
| Monitoring and troubleshooting | - Troubleshoot FortiLink issues - Interpret system logs, monitor port statistics, and diagnose connectivity issues - Use tools to view and extract network information from FortiSwitch - Use packet capturing methods to monitor and troubleshoot traffic issues |
>> Latest NSE5_FSW_AD-7.6 Exam Materials <<
We promise during the process of installment and payment of our Fortinet NSE 5 - FortiSwitch 7.6 Administrator prep torrent, the security of your computer or cellphone can be guaranteed, which means that you will be not afraid of virus intrusion and personal information leakage. Besides we have the right to protect your email address and not release your details to the 3rd parties. Moreover if you are not willing to continue our NSE5_FSW_AD-7.6 Test Braindumps service, we would delete all your information instantly without doubt. The main reason why we try our best to protect our customers’ privacy is that we put a high value on the reliable relationship and mutual reliance to create a sustainable business pattern.
NEW QUESTION # 22
You are configuring FortiSwitch to perform layer 3 inter-VLAN routing while managed by FortiGate over FortiLink. On supported hardware models, FortiSwitch can offload routing decisions for better performance.
1How does FortiSwitch perform routing between VLANs? (Choose one answer)
Answer: C
Explanation:
According to theFortiSwitchOS 7.6 FortiLink Guideand theFortiSwitch 7.6 Study Guide, managed FortiSwitch units support a feature calledInter-VLAN Routing Offload. Traditionally, in a FortiLink deployment, traffic between VLANs is " hair-pinned " back to the FortiGate for routing and security inspection. However, to increase performance and reduce latency, the FortiGate can program the managed FortiSwitch to handle Layer 3 routing of trusted traffic locally.
The technical mechanism behind this performance gain is the use of theForwarding Information Base (FIB) programmed directly into the switch ' sASIC (Application-Specific Integrated Circuit). When routing offload is enabled (specifically using the set switch-controller-offload enable command on the VLAN interface), the FortiGate pushes the necessary routing table and gateway information to the switch hardware. This allows the FortiSwitch to perform packet lookups and forwarding decisions at wire speed within the silicon, bypassing the general-purpose CPU and the FortiLink control plane for that specific traffic flow.
The documentation notes that this feature requires anAdvanced Features Licenseon the tier-1 FortiSwitch and is typically applied to the switch closest to the FortiGate.2While dynamic routing (Option B) is supported on FortiSwitch, it is not theonlything offloaded; static routes and inter-VLAN gateway traffic are the primary use cases for this offload mechanism. Therefore, the correct architectural description is that the switch utilizes its hardware-based FIB to accelerate inter-VLAN communication.
NEW QUESTION # 23

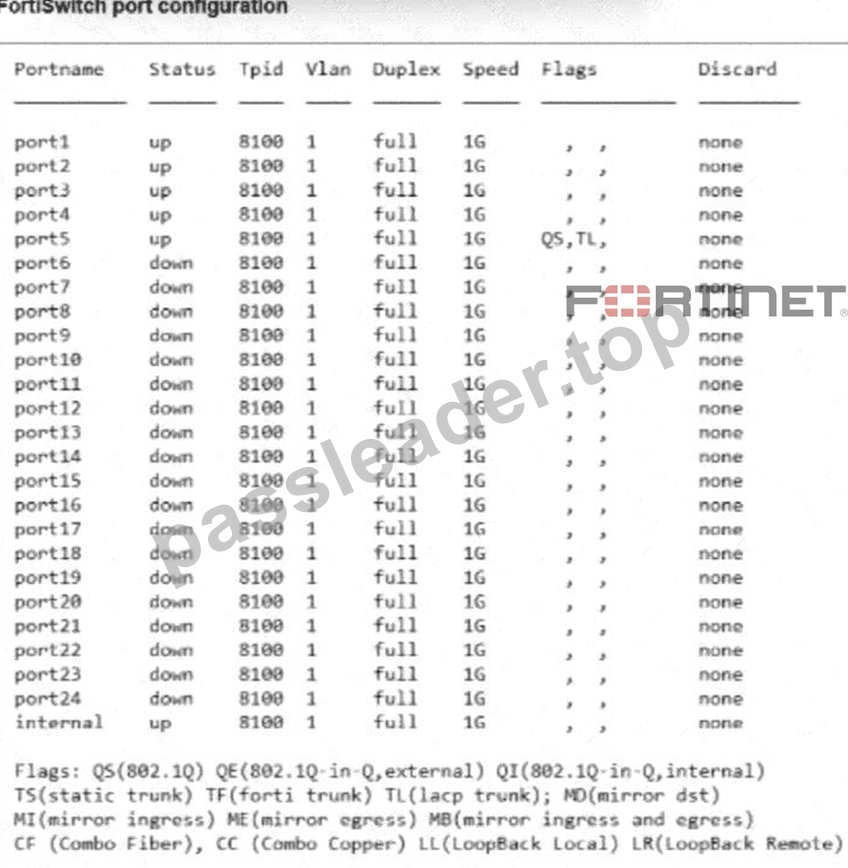

Refer to the exhibit.
You run the command diagnose switch physical-ports summary on FortiSwitch.
Based on exhibit, what does the output indicate to about the FortiSwitch mode? (Choose one answer)
Answer: D
Explanation:
According to the FortiSwitchOS 7.6 Administration Guide and the FortiSwitch 7.6 Study Guide , the diagnose switch physical-ports summary command provides an overview of physical interface states, VLAN memberships, duplex/speed parameters, and port encapsulation flags.
When a FortiSwitch operates in managed mode via FortiLink, two distinct characteristics appear in this command output:
* Management VLAN Assignment: The FortiLink control plane automatically establishes a dedicated management VLAN-by default, VLAN 4094 -and assigns it to the internal discovery interfaces and uplinks.
* Encapsulation Flags: Interfaces participating in the FortiLink fabric or Inter-Switch Links (ISLs) are assigned the TF (Forti Trunk) flag to indicate proprietary FortiLink management framing.
In the provided exhibit, every single interface (from port1 through port24, as well as the virtual internal interface) is assigned to default Vlan 1 . Furthermore, looking at the Flags column, port5 has QS (standard
802.1Q) and TL (standard LACP trunk), but no TF (Forti Trunk) flag is present on any interface. The absence of VLAN 4094, the complete absence of the TF flag, and the presence of the default factory VLAN 1 mapping confirm that this device is operating in standalone mode (Option C) .
Regarding the incorrect options: Option A is incorrect because port5 is bundled into a standard LACP 802.1Q trunk (QS, TL), not configured purely as an access port. Option B is incorrect because this output reflects Layer 2 switchport properties rather than Layer 3 routing interfaces. Option D is incorrect because managed mode would display FortiLink-specific VLANs and TF trunk flags.
NEW QUESTION # 24
On supported FortiSwitch models, which access control list (ACL) stage is recommended for applying actions before the switch performs any layer 2 or layer 3 processing? (Choose one answer)
Answer: D
Explanation:
According to theFortiSwitchOS 7.6 Administration Guideand theNSE 5 FortiSwitch 7.6 Administrator Study Guide, FortiSwitch supports a multi-stage ACL pipeline that allows for granular traffic control at different points in a packet ' s journey through the switch.1The documentation identifies three primary stages for ACL application:Prelookup,Ingress, andEgress.
* Prelookup (Option D):This is the earliest stage in the switching pipeline. The documentation explicitly states thatPrelookup ACLsare processedbefore any Layer 2 or Layer 3 lookupsare performed by the switch hardware. This stage is highly recommended for high-performance security actions, such as dropping unwanted traffic immediately upon arrival, because it prevents the switch from wasting internal resources (CPU and ASIC lookup cycles) on frames that are destined to be discarded anyway.
* Ingress (Option A):This stage occursafterthe switch has completed its Layer 2 (MAC table) and Layer 3 (routing table) lookups butbeforethe packet is queued for the egress port. While powerful, actions here occur after initial processing has already taken place.
* Egress (Option C):This stage is processed just before the frame leaves the switch through the destination port. It is typically used for final modifications or filtering based on the outgoing interface context.
Therefore, to achieve the goal of applying actionsbeforeany Layer 2 or Layer 3 processing occurs, thePrelookupstage is the technically correct and recommended choice in FortiSwitchOS 7.6.Forwarding (Option B)is a general functional stage of a switch but is not a specific ACL stage type in the FortiSwitch configuration hierarchy.
NEW QUESTION # 25

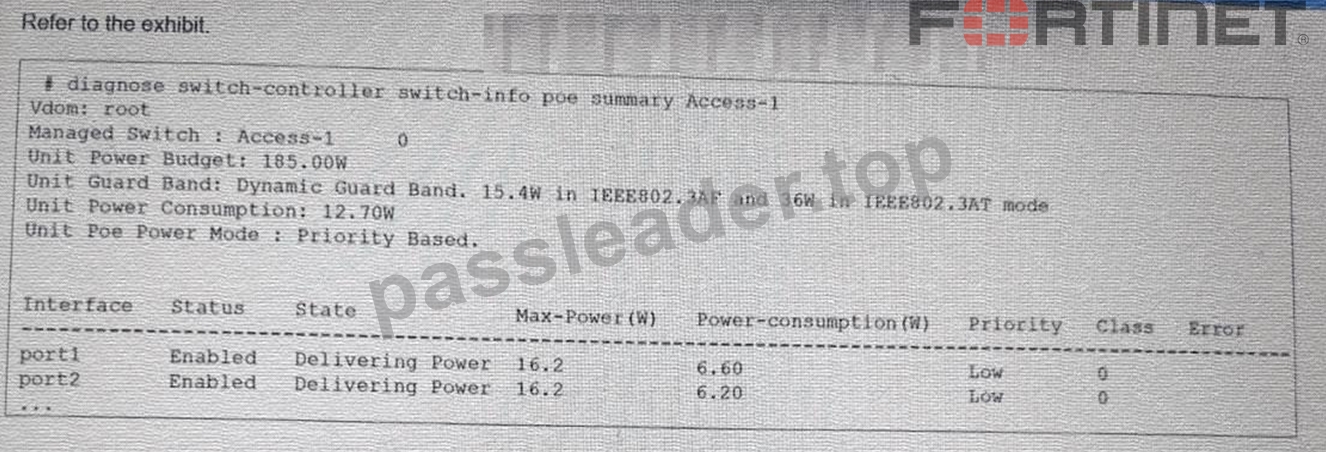

Refer to the exhibit.
The FortiSwitch CLI output of the diagnose switch-controller switch-info poe summary command for the switch Access-1 is shown. It shows that two ports have Power over Ethernet (PoE) enabled and are already in use. What is the most important consideration if you want to connect additional PoE devices to FortiSwitch?
(Choose one answer)
Answer: D
Explanation:
According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, the primary physical constraint when deploying PoE devices is the total power capacity of the switch ' s internal power supply unit (PSU). The provided exhibit shows the PoE status forAccess-1, highlighting three critical metrics:
theUnit Power Budget (185.00W), the currentUnit Power Consumption (12.70W), and theUnit Guard Band.
TheUnit Power Budgetrepresents the maximum amount of power the switch can provide to all connected Powered Devices (PDs) simultaneously. As more devices (such as access points, VoIP phones, or cameras) are connected, the cumulative power draw increases. The most important consideration is ensuring that thetotal PoE consumption does not exceed this budget. If the budget is exceeded, the switch will stop providing power to new devices or, depending on the configuration, may shut down lower-priority ports to protect the system hardware.
In this specific exhibit, theUnit Poe Power Modeis set toPriority Based. This means that if the power consumption approaches the budget limit, the switch will use the configured port priorities (seen as " Low " for port1 and port2) to decide which devices to keep powered. TheGuard Band(set to a dynamic value) also plays a role by reserving a small amount of power to handle spikes when devices initialize, further emphasizing that the power budget is a hard limit that must be actively managed by the administrator.
NEW QUESTION # 26
An administrator must deploy managed FortiSwitch devices in a remote location where multiple VLANs must be used to segment devices. No layer 3 switch or router is present at the site, and the only WAN connectivity is an ISP-provided router connected to the public internet. Which two components are required to enable VLAN segmentation across this remote site? (Choose two answers)
Answer: A,E
Explanation:
According to theFortiOS 7.6 Administration Guideand theFortiSwitch 7.6 FortiLink Guide, deploying managed switches over a Layer 3 underlay-such as the public internet-requires a specific tunneling mechanism to bridge Layer 2 broadcast domains. Traditional FortiLink relies on a direct Layer 2 connection; however, for remote sites,FortiLink over VXLANis the standard solution.
* FortiLink over VXLAN (Option A):Virtual Extensible LAN (VXLAN) is used to encapsulate Layer 2 Ethernet frames into Layer 3 UDP packets, allowing VLAN-tagged traffic to traverse an ISP's routable network. This enables the FortiGate to manage remote FortiSwitch "islands" as if they were locally connected, maintaining full VLAN segmentation across the WAN.
* Layer 3 Termination (Option E):The FortiGate acts as theVirtual Tunnel Endpoint (VTEP). It must have a reachable Layer 3 interface (such as a WAN port with a public IP or an IPsec tunnel interface) to terminate the VXLAN overlay. Once the VXLAN tunnel is terminated at the FortiGate, the encapsulated VLAN traffic is extracted, and the FortiGate can perform inter-VLAN routing and security inspection.
Regarding the incorrect options:Option Bis incorrect because the FortiGate at the central site handles the routing, eliminating the need for a local L3 device.Option Cis a performance consideration but not a functional requirement for basic connectivity.Option Dis often used for security to encrypt the underlay, but IPsec alone does not provide the Layer 2 extension capabilities required for VLAN segmentation; VXLAN is the specific component that handles the MAC-in-UDP encapsulation.
NEW QUESTION # 27
......
