NEW QUESTION # 54
Which two statements describe the function of the Designated Forwarder (DF) in an EVPN- VXLAN all-active multihoming scenario? (Choose two.)
Answer: A,B
Explanation:
In all-active multihoming, multiple PEs can forward known unicast traffic simultaneously, but only one PE, the Designated Forwarder, is responsible for forwarding broadcast, unknown unicast, and multicast (BUM) traffic to the multihomed segment. This prevents duplicate BUM frames from being delivered to the CE device over multiple links, since all attached PEs receive the same BUM traffic from the fabric but only the DF forwards it downstream.
NEW QUESTION # 55

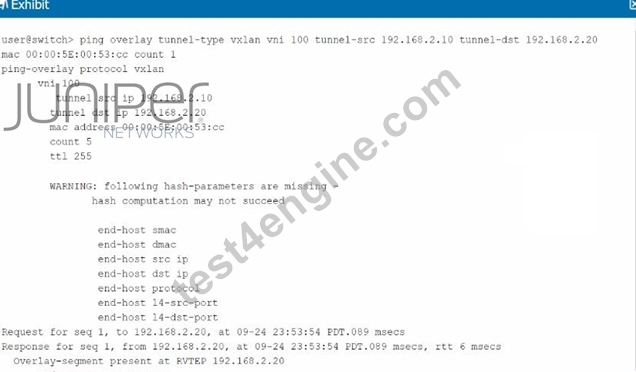

Exhibit.
Referring to the exhibit, which statement is correct?
Answer: A
Explanation:
* Analyzing the Exhibit Output:
* The command ping overlay tunnel-type vxlan is used to test the VXLAN tunnel between two VTEPs (VXLAN Tunnel Endpoints). The output shows a warning about missing hash parameters, but more importantly, it displays the result: End-System Not Present.
* Understanding the Response:
* The message End-System Not Present indicates that the remote VTEP (192.168.2.20) did not find the MAC address 00:00:5E:00:53:CC in its forwarding table. This typically means that the MAC address is unknown to the remote VTEP, and as a result, it could not forward the packet to the intended destination.
Conclusion:
* Option B:Correct-The MAC address is unknown and is not in the forwarding table of the remote VTEP, which is why the system reports that the "End-System" is not present.
NEW QUESTION # 56
You want to ensure that VXLAN traffic from the xe-0/0/12 interface is being encapsulated by logical vtep.32770 and sent to a remote leaf device.
In this scenario, which command would you use to verify that traffic is flowing?
Answer: C
Explanation:
show interfaces vtep.32770 detail: This command shows detailed counters, including encapsulation and decapsulation statistics, allowing you to confirm that VXLAN traffic is being encapsulated and forwarded through the VTEP interface.
https://www.juniper.net/documentation/us/en/software/junos/cli-reference/topics/ref/command/show-interfaces-detail.html
NEW QUESTION # 57
A local VTEP has two ECMP paths to a remote VTEP
Which two statements are correctwhen load balancing is enabled in this scenario? (Choose two.)
Answer: B,D
Explanation:
* Load Balancing in VXLAN:
* VXLAN uses UDP encapsulation to transport Layer 2 frames over an IP network. For load balancing across Equal-Cost Multi-Path (ECMP) links, various fields in the packet can be used to ensure even distribution of traffic.
* Key Load Balancing Fields:
* C. The source port in the UDP header is used to load balance VXLAN traffic:This is correct.
The source UDP port in the VXLAN packet is typically calculated based on a hash of the inner packet's fields. This makes the source port vary between packets, enabling effective load balancing across multiple paths.
* D. The inner packet fields are used in the hash for load balancing:This is also correct. Fields such as the source and destination IP addresses, source and destination MACaddresses, and possibly even higher-layer protocol information from the inner packet can be used to generate the hash that determines the ECMP path.
* Incorrect Statements:
* A. The inner packet fields are not used in the hash for load balancing:This is incorrect as the inner packet fields are indeed critical for generating the hash used in load balancing.
* B. The destination port in the UDP header is used to load balance VXLAN traffic:This is incorrect because the destination UDP port in VXLAN packets is typically fixed (e.g., port 4789 for VXLAN), and therefore cannot be used for effective load balancing.
Data Center References:
* Effective load balancing in VXLAN is crucial for ensuring high throughput and avoiding congestion on specific links. By using a combination of the source UDP port and inner packet fields, the network can distribute traffic evenly across available paths.
NEW QUESTION # 58

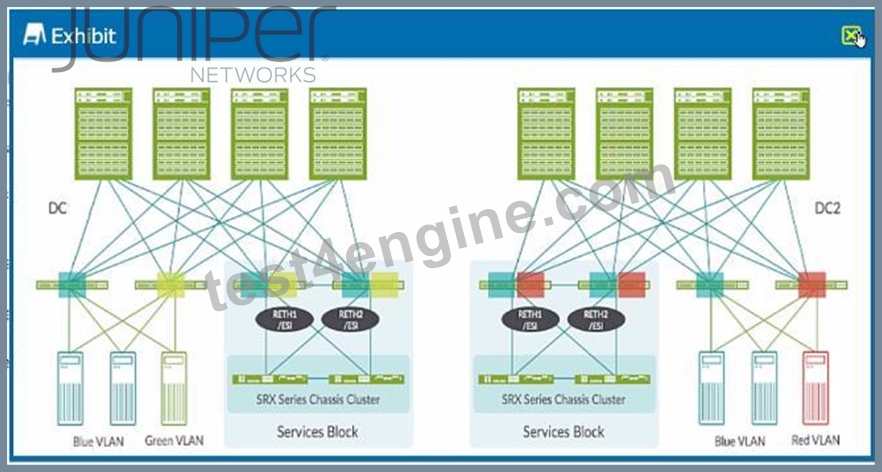

Exhibit.
Both DC and DC2 ate using EVPN-VXLAN technology deployed using an ERB architecture. A server on the Red VLAN must communicate with a server on the Green VLAN. The Blue VLAN in DC and DC2 needs to be the same VLAN.
Which statement is correct in this scenario?
Answer: B
Explanation:
* ERB Architecture in EVPN-VXLAN:
* ERB (Edge Routed Bridging) architecture is commonly used in data center networks where routing decisions are made at the network edge (leaf or border devices), while bridging (Layer 2 forwarding) is extended across the fabric. This architecture allows for efficient L3 routing while still enabling L2 services like VLANs to span across multiple locations.
* VLAN and VNI Configuration:
* The scenario specifies that a server on the Red VLAN needs to communicate with a server on the Green VLAN. Since these VLANs are in different data centers (DC and DC2), and given the use of EVPN-VXLAN, the communication between these VLANs will require atransit VNI(Virtual Network Identifier). This transit VNI will allow traffic to traverse the VXLAN tunnel across the DCI (Data Center Interconnect).
* Interconnect between SRX Series Devices:
* The exhibit shows SRX Series Chassis Clusters used as service devices (likely for firewalling or other security services). These devices need to be interconnected between the two data centers to ensure that VLANs can communicate effectively. The Blue VLAN needs to be stretched between DC and DC2 to maintain the same Layer 2 domain across both data centers.
Conclusion:
* Option B:Correct-Interconnecting the SRX Series devices will ensure the necessary service chaining, while stretching the Blue VLAN and adding a transit VNI for the Red and Green VLANs will enable the required communication across the data centers.
NEW QUESTION # 59
......
