形式に固執することなく、JN0-352学習クイズは5分以内に取得できます。練習資料を入手するために並んだり並んだりする必要はありません。これらのバージョンの使用はすべて、彼らに受け入れられています。これらのバージョンのJN0-352模擬練習の間に大きな格差はありませんが、能力を強化し、レビュープロセスを高速化してJN0-352試験についての知識を習得するのに役立ちます。そのため、レビュープロセスは妨げられません。
| Section | Weight | Objectives |
|---|---|---|
| Protocol Independent Routing | 10-15% | - Routing instances and route selection criteria - Routing tables, static routes and route preference - Basic routing policy and filter operation |
| Tunnels and Overlays | 5-10% | - Tunnel types, encapsulation and operation - Overlay network design and connectivity - GRE, IP-IP and dynamic tunnel configuration |
| Layer 2 Switching and VLANs | 15-20% | - VLAN concepts, configuration, trunking and tagging - Spanning Tree Protocol (STP, RSTP, MSTP) operation and configuration - Link Aggregation Groups (LAG) and Virtual Chassis |
| BGP | 15-20% | - Route advertisement, attributes and path selection - Neighbor relationships and session establishment - Routing policies, filtering and common troubleshooting |
| IS-IS | 10-15% | - Configuration and route exchange - Adjacency establishment, levels and metrics - Scalable enterprise deployment and troubleshooting |
| OSPF | 15-20% | - Configuration, verification and troubleshooting - Neighbor formation, area design and LSA types - Route summarization and redistribution |
| IP Multicast | 5-10% | - PIM Dense Mode, Sparse Mode and RP mechanisms - Multicast routing monitoring and troubleshooting - IGMP operation and configuration |
| Layer 2 Security | 10-15% | - DHCP snooping, Dynamic ARP Inspection and IP Source Guard - Port security, MAC limiting and storm control - Layer 2 firewall filters and security features |
| High Availability and Resiliency | 5-10% | - Network resiliency design and troubleshooting - Graceful restart and non-stop routing - Redundancy protocols and failover mechanisms |
JN0-352試験にすばやく合格できるようにする必要があるため、信頼できる製品を選択する必要があります。 JN0-352試験の教材は当局によって認定されており、ユーザーによってテストされています。これは間違いなく自信を持って使用できる製品です。もちろん、私たちのデータはあなたをもっと安心させるかもしれません。 JN0-352準備準備の合格率は99％に達しました。これは非常に信じられない価値ですが、私たちはそれを行いました。製品について詳しく知りたい場合は、スタッフに相談するか、JN0-352練習エンジンの無料試用版をダウンロードしてください。ご参加をお待ちしております。
質問 # 206
What is the maximum allowable MTU size for a default GRE tunnel without IPv4 traffic fragmentation?
正解：A
解説：
The maximum allowable MTU size for a default GRE tunnel without IPv4 traffic fragmentation is
1476 bytes. This is because GRE packets are formed by the addition of the original packets and the required GRE headers. These headers are 24-bytes in length and since these headers are added to the original frame, depending on the original size of the packet we may run into IP MTU problems. The most common IP MTU is 1500-bytes in length (Ethernet). When the tunnel is created, it deducts the 24-bytes it needs to encapsulate the passenger protocols and that is the IP MTU it will use. For example, if we are forming a tunnel over FastEthernet (IP MTU 1500) the IOS calculates the IP MTU on the tunnel as: 1500-bytes from Ethernet-24-bytes for the GRE encapsulation = 1476-Bytes.
質問 # 207
Which statement describes how nonstop active routing (NSR) maintains routing protocol information during a Routing Engine switchover?
正解：A
解説：
Nonstop active routing's defining architectural feature is that the backup Routing Engine runs a fully live, active instance of the routing protocol daemon (rpd) in parallel with the primary Routing Engine's rpd instance, continuously, from the moment NSR and its prerequisite GRES are established -- not merely at the instant a switchover begins. As protocol adjacencies form, routes are learned, and the RIB is updated on the primary Routing Engine, that same protocol and RIB state is mirrored in real time to the backup Routing Engine's rpd process through an internal synchronization mechanism, so the backup's protocol state remains a live, up-to-date replica of the primary's at essentially every moment during normal operation. When a switchover occurs, the backup Routing Engine simply assumes the primary role with protocol adjacencies, routing tables, and forwarding state already fully populated and current, allowing it to continue operating without re-establishing neighbor relationships or re-learning the network topology, which is what makes the switchover genuinely nonstop and invisible to neighboring routers. This is fundamentally different from graceful restart, where the restarting router must rebuild its state by requesting help from cooperating neighbors after the fact. The Packet Forwarding Engine plays no role in synchronizing protocol-layer information such as LSAs or BGP updates; that is strictly an rpd-to-rpd function coordinated through the Routing Engine synchronization infrastructure.
質問 # 208
Which two types of tunnels are able to be created on all Junos devices? (Choose two.)
正解：C、D
質問 # 209
Which two statements are true about high availability on Junos devices? (Choose two.)
正解：A、D
質問 # 210

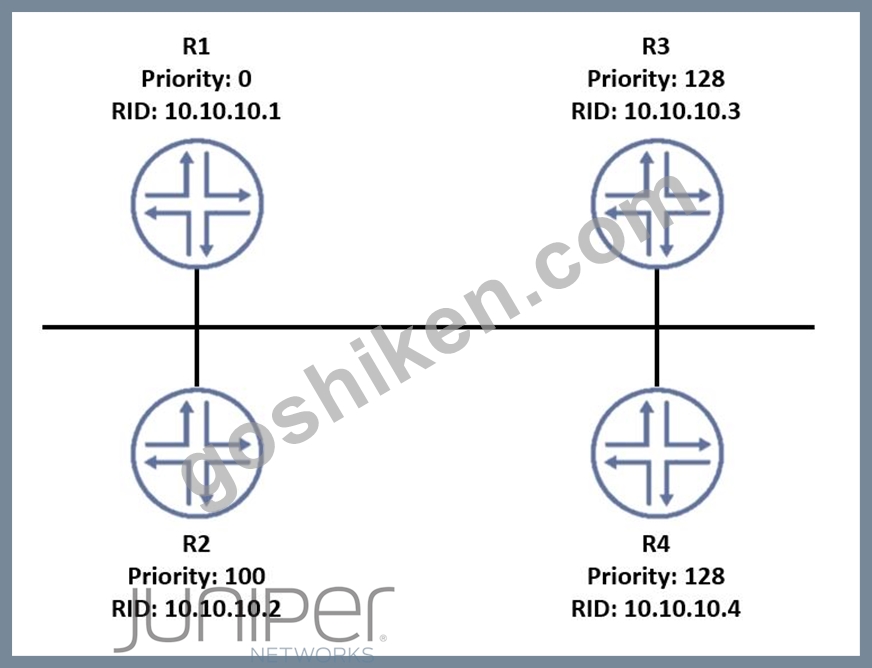

Referring to the exhibit, which router will become the OSPF BDR if all routers are powered on at the same time?
正解：B
解説：
Priority set to 0 will never become DR or BDR so R1 is excluded.
Higher priority is better in OSPF so R2 is lowest than both R3 and R4.
R3 and R4 has the same priority so RID will decide.
R4 has the highest RID so it will become DR and R3 will then become BDR.
質問 # 211
......
