Our top priority is to help every customer in cracking the Implementing Cisco Enterprise Advanced Routing and Services (300-410) test. Therefore, we have created these formats so that every applicant can prepare successfully for the Implementing Cisco Enterprise Advanced Routing and Services (300-410) exam on the first attempt. We are aware that the cost for the registration of the Cisco 300-410 examination is not what everyone can pay. After paying the hefty Implementing Cisco Enterprise Advanced Routing and Services (300-410) test registration fee, applicants usually run on a tight budget. This is why Actual4test provides you with the Implementing Cisco Enterprise Advanced Routing and Services (300-410) real questions with up to 1 year of free updates.
| Section | Objectives |
|---|---|
| Topic 1: Layer 3 Technologies | - OSPF operations and troubleshooting
|
| Topic 2: Infrastructure Security | - Control plane policing and protection
|
| Topic 3: Infrastructure Services | - Network services
|
| Topic 4: VPN Technologies | - GRE and IPsec tunneling
|
Cisco training pdf material is the valid tools which can help you prepare for the 300-410 actual test. 300-410 vce demo gives you the prep hints and important tips, helping you identify areas of weakness and improve both your conceptual knowledge and hands-on skills. With the help of 300-410 study material, you will master the concepts and techniques that ensure you exam success. Whatโs more, you can receive 300-410 updated study material within one year after purchase. Besides, you can rest assured to enjoy the secure shopping for Cisco exam dumps on our site, and your personal information will be
NEW QUESTION # 597
Which group of components works together to create an MPLS VPN?
Answer: C
Explanation:
An MPLS VPN is built by using MP-BGP to carry VPN routes, route targets to control VPN route import and export between VRFs, and MPLS forwarding to transport labeled traffic across the provider core. These components together provide reachability and separation between customer VPNs.
NEW QUESTION # 598

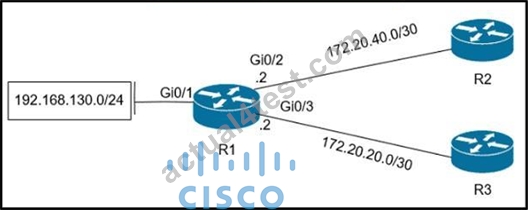

Refer to the exhibit.

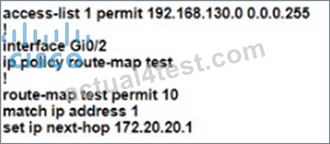

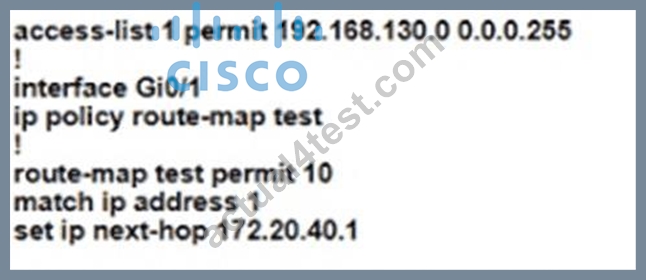

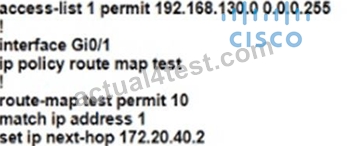

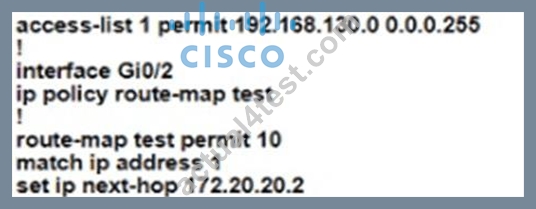

Which policy configuration on R1 forwards any traffic that is sourced from the 192 168 130 0'24 network to R2?
Answer: A
NEW QUESTION # 599

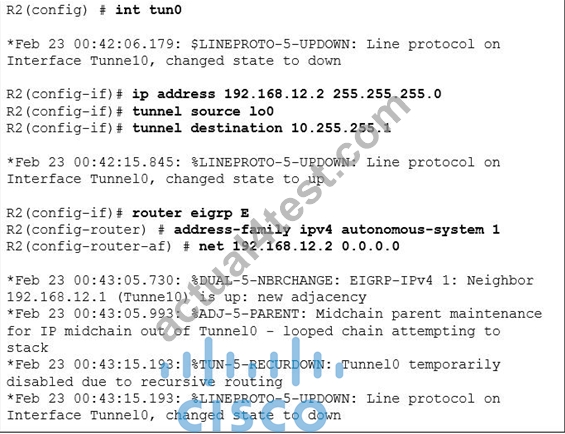

Refer to the exhibit. An administrator is configuring a GRE tunnel to establish an EIGRP neighbor
to a remote router. The other tunnel endpoint is already configured. After applying the
configuration as shown, the tunnel started flapping. Which action resolves the issue?
Answer: D
Explanation:
In this question we are advertising the tunnel IP address 192.168.12.2 to the other side. When
other end receives the EIGRP advertisement, it realizes it can reach the other side of the tunnel
via EIGRP. In other words, it reaches the tunnel destination through the tunnel itself -> This
causes "recursive routing" error.
Note: In order to avoid this error, do not advertise the tunnel destination IP address on the tunnel
interface to other side.
https://networklessons.com/cisco/ccie-routing-switching/gretunnel-recursive-routing-error
NEW QUESTION # 600

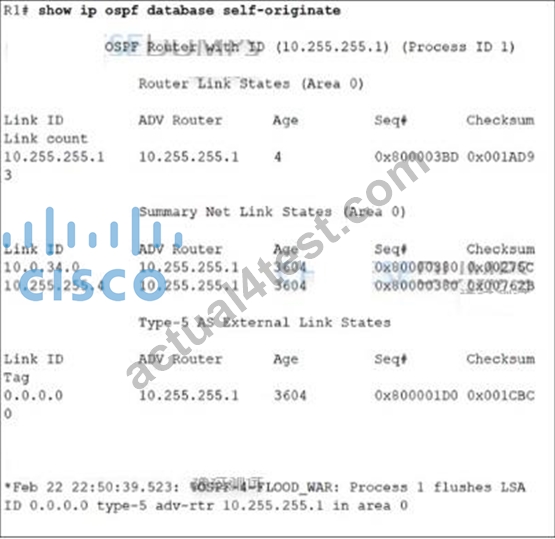

Refer to the exhibit.
After configuring OSPF in R1, some external destinations in the network became unreachable. Which action resolves the issue?
Answer: A
NEW QUESTION # 601

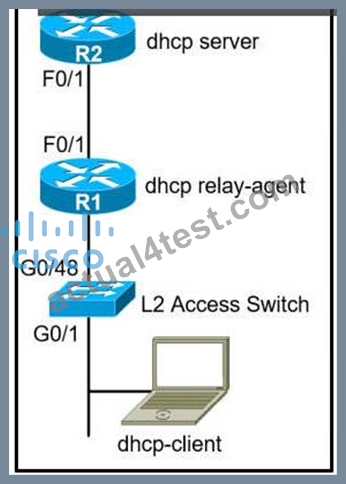

Refer to the exhibit.
The network administrator can see the DHCP discovery packet in R1. but R2 is not replying to the DHCP request. The R1 related interface is configured with the DHCP helper address. If the PC is directly connected to the FaO/1 interface on R2, the DHCP server assigns as IP address from the DHCP pool to the PC. Which two commands resolve this issue? (Choose two.)
Answer: C,D
Explanation:
1. R1 received DHCP packet and its interface was configured with the DHCP helper address. But we are not sure if R1 forward DHCP packet to R2 or not. 2. If we connect PC directly to R2 then this problem will not appear -> DHCP Server function was configured on R2.
From these facts, the most likely problem is related to Option 82. Maybe R2 ignored DHCP request packets because it was receiving these packets with the giant field set to 0.0.0.0.
By default Cisco IOS devices reject packets with zero "giaddr" and by default Cisco Catalyst switches use "giaddr" of zero when configured for DHCP snooping! Reference: https://blog.ine.com/2009/07/22/understanding-dhcp-option-82 If we can run the "debug ip dhcp server packet" on R2, we may see these messages:
*Feb 22 23:54:57.759: IP: s=0.0.0.0 (FastEthernet0/1), d=255.255.255.255, len 34 4, input feature, MCI Check(64), rtype 0, forus FALSE, sendself FALSE, mtu 0, fw dchk FALSE *Feb 22 23:54:57.759: IP: s=0.0.0.0 (FastEthernet0/1), d=255.255.255.255, len 34 4, rcvd 2 *Feb 22 23:54:57.759: IP: s=0.0.0.0 (FastEthernet0/1), d=255.255.255.255, len 34 4, stop process pak for forus packet
*Feb 22 23:54:57.759: DHCPD: inconsistent relay information. *Feb 22 23:54:57.759: DHCPD: relay information option exists, but giaddr is zero We are receiving the DHCP packet from R1, source 0.0.0.0, and destination 255.255.255.255 broadcast, but if you notice from the debug output, R2, our DHCP Server, is complaining that the relay information is inconsistent. Option 82, Information Option, is contained in the packet but the GIADDR is zero. The GIADDR stands for Gateway IP Address, which is the IP Address of the relaying agent. The Option 82, Information Option, would then contain the receiving port and hostname of the Relaying Agent by default.
R2 sees the Option 82 information, signalling that the DHCP packet might have been relayed, BUT there is no relaying IP Address. This is the behavior of DHCP Snooping when enabling it on a switch, and since the switchport does not contain an IP Address, since it's Layer 2, no GIADDR will be added.
Instead, just the Option 82 Information is added and this is the problem we have, but there are options:
1. You could trust all on R2 the DHCP Server, which will cause the server to not be so suspicious: - ip dhcp relay information trust-all - ip dhcp relay information trusted 2. Disable the addition of Option 82 information on SW: - no ip dhcp snooping information option 3. Trust the port that is receiving the DHCP Discover: - ip dhcp snooping trust Any of these options will fix our predicament.
Reference:
But in the answer choices, we only have 1 correct answer which is the command "ip dhcp relay information trust-all". We checked if we need any "service dhcp..." command on both IOS version 12.4 and 15.1:
Therefore we only have the "service dhcp" command, we don't have any "service dhcp-relay" command available. But the description of the "service dhcp" command says that it enables both DHCP server and relay agent so this is the best answer left.
NEW QUESTION # 602
......
If you have been very panic sitting in the examination room, our 300-410 actual exam allows you to pass the exam more calmly and calmly. After you use our products, our 300-410 study materials will provide you with a real test environment before the 300-410 Exam. After the simulation, you will have a clearer understanding of the exam environment, examination process, and exam outline. And our 300-410 learning guide will be your best choice.
