NEW QUESTION # 55

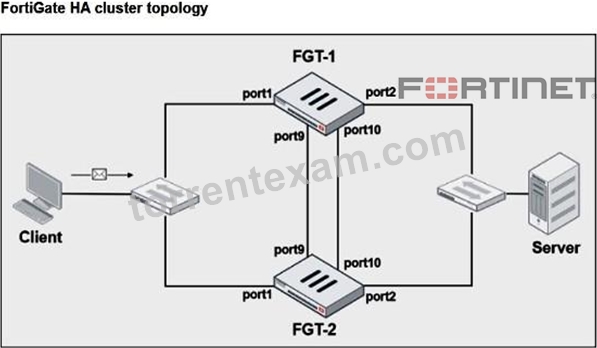

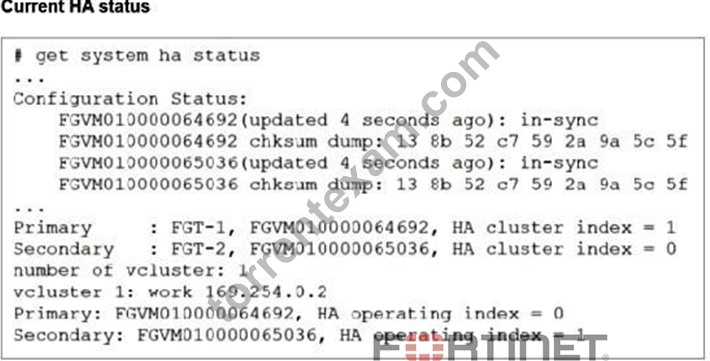

Refer to the exhibits.

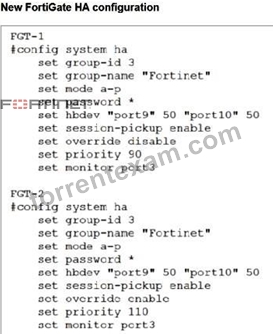

FGT-1 and FGT-2 are updated with HA configuration commands shown in the exhibit.
What would be the expected outcome in the HA cluster?
Answer: A
Explanation:
With override enabled, the primary unit with the highest device priority will always become the primary unit. Whenever an event occurs that may affect primary unit selection, the cluster negotiates. For example, when override is enabled a cluster renegotiates when you change the device priority of any cluster unit or when you add a new unit to a cluster.
Override and primary unit selection
Enabling override changes the order of primary unit selection. As shown below, if override is enabled, primary unit selection considers device priority before age and serial number. This means that if you set the device priority higher on one cluster unit, with override enabled this cluster unit becomes the primary unit even if its age and serial number are lower than other cluster units..
NEW QUESTION # 56
Refer to the exhibit.
As an administrator you have created an IPS profile, but it is not performing as expected. While testing you got the output as shown in the exhibit What could be the possible reason of the diagnose output shown in the exhibit?
Answer: C
Explanation:

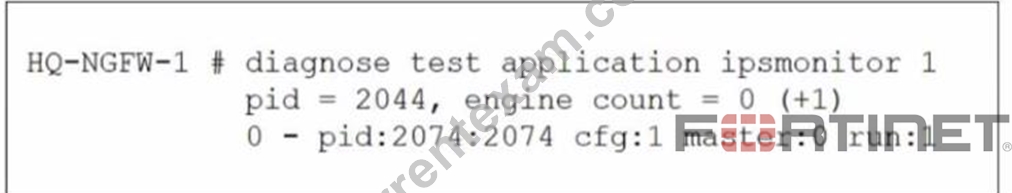

The exhibit shows the output of the following command:
diagnose test application ipsmonitor 1
pid = 2044, engine count = 0 (+1)
0 - pid:2074:2074 cfg:1 master:0 run:1
How to interpret this output (FortiOS 7.6 - IPS internals)
ipsmonitor displays the status of IPS engines running on the FortiGate.
engine count = 0 means:
No IPS scanning engines are currently active
IPS is not processing any traffic
In FortiOS, IPS engines are started on demand.
Critical documented behavior
IPS processes are only spawned when at least one firewall policy is configured with an IPS profile and traffic matches that policy.
If no firewall policy references an IPS profile, the IPS engine:
Does not start
Shows engine count = 0
Appears "not working," even though the IPS profile exists
This is exactly what the diagnose output indicates.
Why option A is correct
A . There is no firewall policy configured with an IPS security profile.
Creating an IPS profile alone is not sufficient
IPS must be applied to an active firewall policy
Traffic must match that policy for the IPS engine to run
Otherwise, ipsmonitor will show engine count = 0
This matches FortiOS 7.6 IPS operational behavior.
Why the other options are incorrect
B . Administrator entered the command diagnose test application ipsmonitor 5.
Incorrect.
The exhibit clearly shows ipsmonitor 1
Using a different argument would not explain engine count = 0
C . FortiGate entered into IPS fail open state.
Incorrect.
In fail-open, IPS engines may be bypassed, but they still initialize
engine count = 0 specifically indicates IPS is not in use at all
D . Administrator entered the command diagnose test application ipsmonitor 99.
Incorrect.
The command argument affects debug level, not engine creation
Again, the exhibit shows ipsmonitor 1
NEW QUESTION # 57

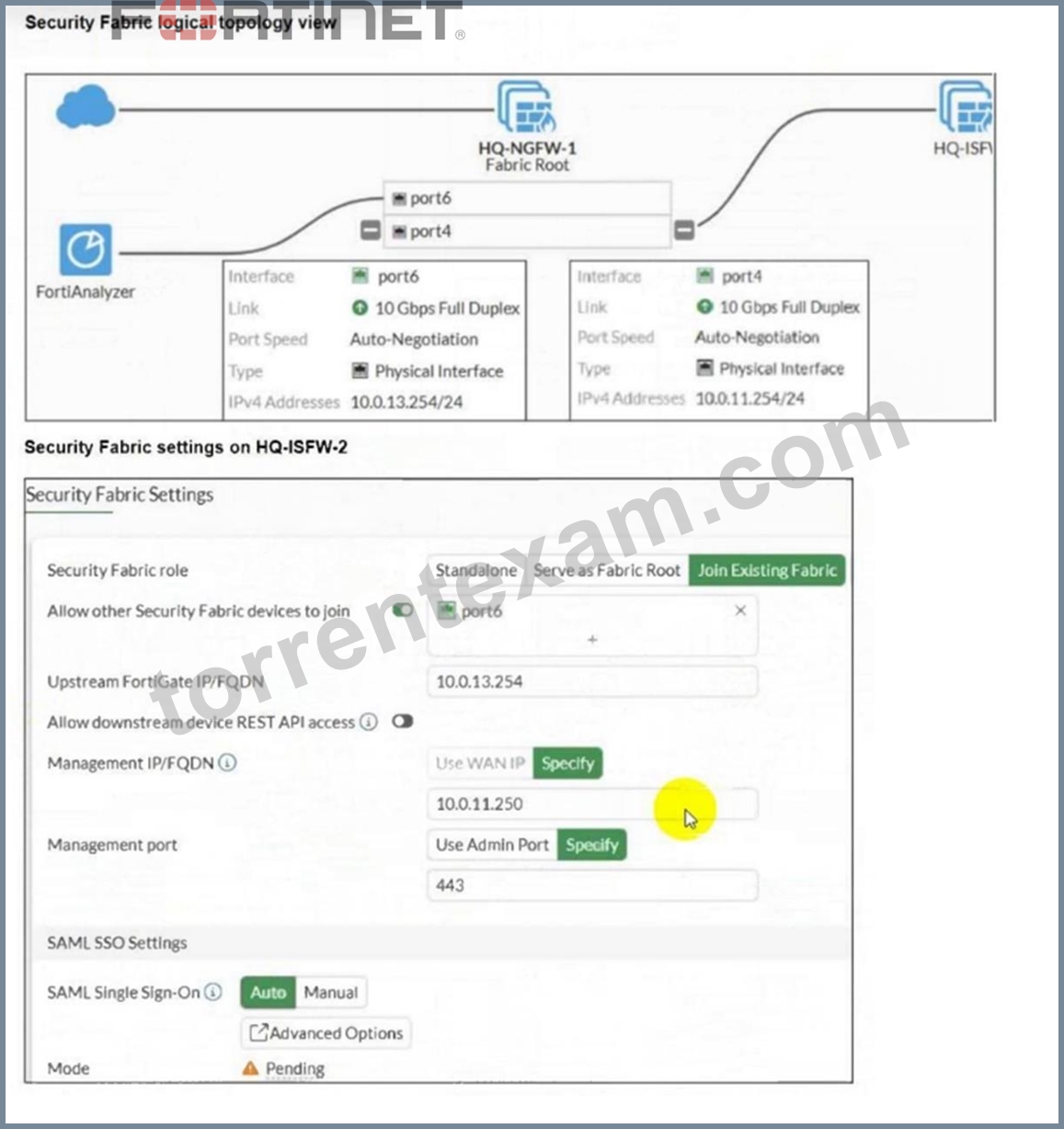

Refer to the exhibits. An administrator wants to add HQ-ISFW-2 in the Security Fabric. HQ-ISFW-
2 is in the same subnet as HQ-ISFW. After configuring the Security Fabric settings on HQ-ISFW-
2, the status stays Pending.
What can be the two possible reasons? (Choose two.)
Answer: B,C
Explanation:
The Upstream FortiGate IP should match the IP address of the Fabric Root interface, which is
10.0.11.254, not 10.0.13.254.
The new device (HQ-ISFW-2) must be authorized on the Fabric Root (HQ-ISFW) before it can join the Security Fabric, otherwise the status remains pending.
NEW QUESTION # 58
Refer to the exhibit.

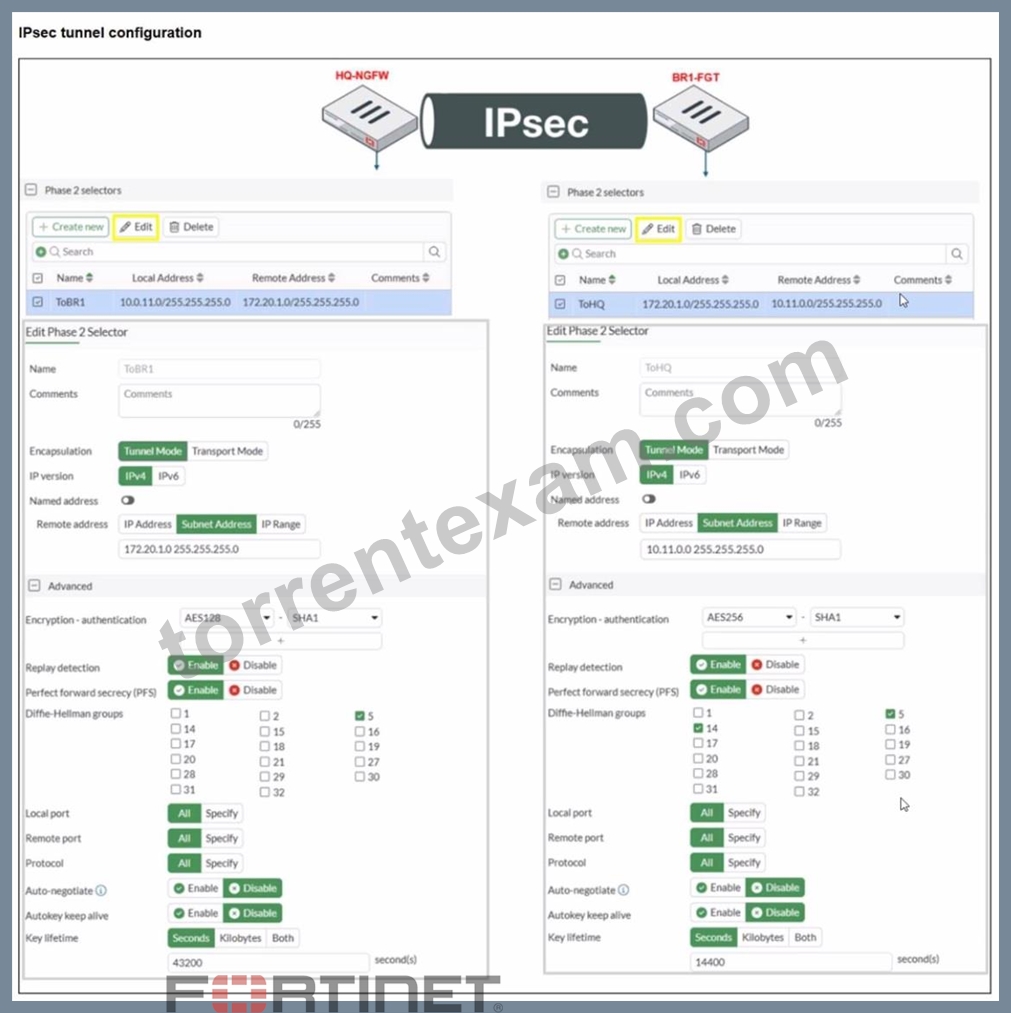

A network administrator is troubleshooting an IPsec tunnel between two FortiGate devices. The administrator has determined that phase 1 status is up, but phase 2 fails to come up.
Based on the phase 2 configuration shown in the exhibit, which two configuration changes will bring phase 2 up? (Choose two.)
Answer: A,D
Explanation:
Phase 1 being up confirms the two FortiGate devices can authenticate and build the IKE SA. Phase 2 failing indicates the IPsec (Quick Mode) SA negotiation is failing due to mismatched Phase 2 parameters.
From the exhibit, the Phase 2 mismatches that would prevent SA establishment are:
1) Phase 2 selectors must mirror each other (Proxy IDs)
HQ-NGFW Phase 2 selector shows:
Local: 10.0.11.0/24
Remote: 172.20.1.0/24
BR1-FGT Phase 2 selector shows:
Local: 172.20.1.0/24
Remote: 10.11.0.0/24 # does not match HQ's local subnet (10.0.11.0/24)
In FortiOS, Phase 2 comes up only when the peers' selectors (proxy IDs) match as opposite pairs (local on one side = remote on the other).
# Fix: A. On BR1-FGT, set Remote Address to 10.0.11.0/255.255.255.0.
2) Phase 2 proposal must match (encryption/authentication)
HQ-NGFW shows encryption AES128 (with SHA1)
BR1-FGT shows encryption AES256 (with SHA1)
For Phase 2 to establish, both peers must have at least one common proposal (same encryption and authentication settings). With one side set to AES128 and the other to AES256, there is no match.
# Fix: D. On HQ-NGFW, set Encryption to AES256.
Why the other options are not correct
B). Enable Diffie-Hellman Group 2: The exhibit's mismatch is not resolved by adding DH group 2, and DH group must match when PFS is enabled. This option does not align the peers based on what's shown.
C). Set Seconds to 43200: Phase 2 lifetime mismatches typically do not prevent Phase 2 from coming up (the negotiated lifetime can be adjusted by the peers). The hard blockers here are the selectors and proposal mismatch.
NEW QUESTION # 59
Refer to the exhibits.

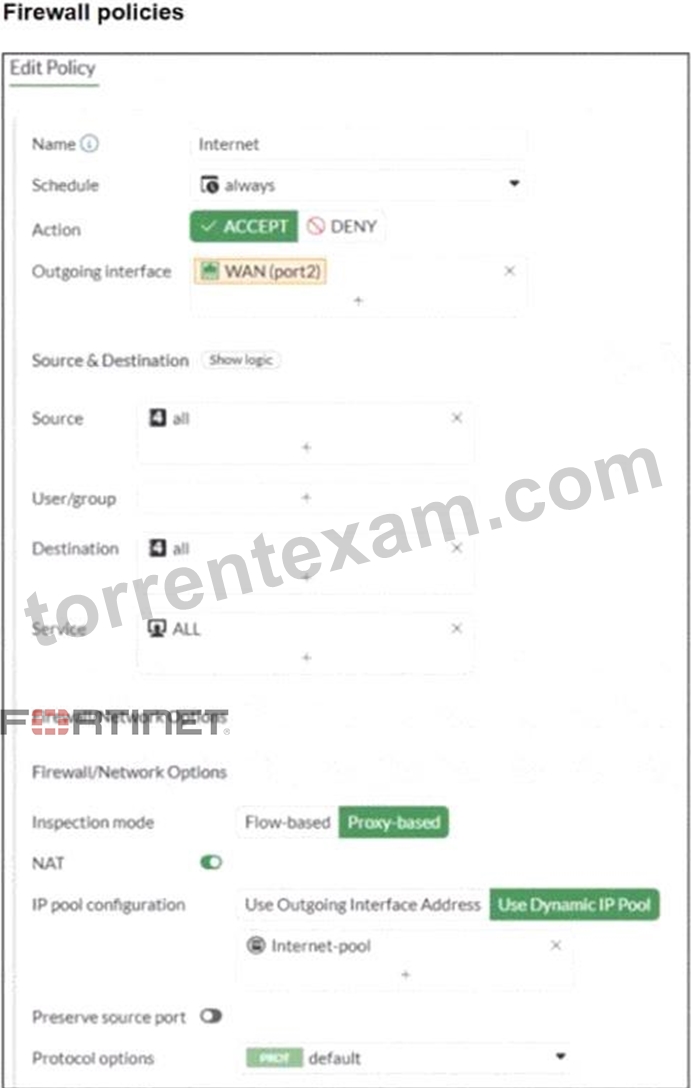

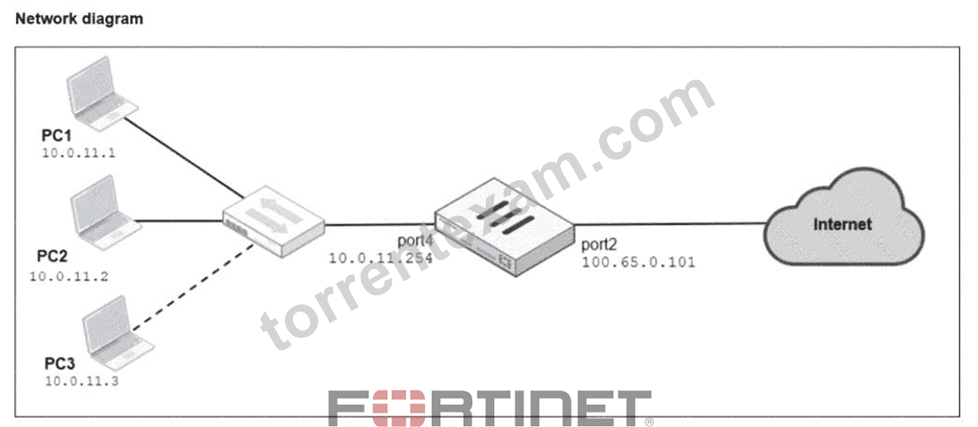

A diagram of a FortiGate device connected to the network, as well as the firewall policy and IP pool configuration on the FortiGate device are shown.
Two PCs. PC1 and PC2, are connected behind FortiGate and can access the internet successfully. However, when the administrator adds a third PC to the network (PC3), the PC cannot connect to the internet.
Based on the information shown in the exhibit, which two configuration options can the administrator use to fix the connectivity issue for PC3? (Choose two.)
Answer: C,D
Explanation:
From the exhibits:
The firewall policy has NAT enabled and is configured to Use Dynamic IP Pool.

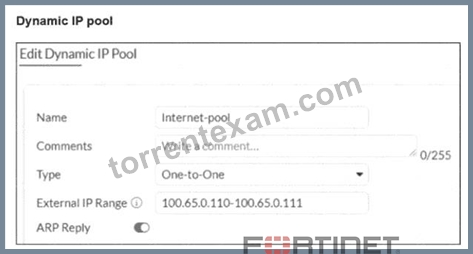

The selected IP pool (Internet-pool) is configured as:
Type: One-to-One
External IP Range: 100.65.0.110-100.65.0.111 (only two public IPs)
PC1 and PC2 can access the internet because each one-to-one NAT mapping consumes one public IP from the pool. When PC3 is added, there is no third public IP available in the pool, so FortiGate cannot allocate a one- to-one mapping for PC3 and the session fails.
FortiOS behavior here is standard: with one-to-one IP pools, the available pool size limits how many distinct internal sources can be translated concurrently (depending on allocation and sessions), and a pool with only two IPs will not reliably support three separate hosts needing translations.
Therefore, the administrator can fix this in two valid ways:
B). In the IP pool configuration, set end ip to 100.65.0.112.
This expands the pool by adding an additional public IP address, making three public IPs available (.110, .
111, .112), so PC3 can be assigned an address for one-to-one NAT.
D). In the IP pool configuration, set type to overload.
Changing the pool type to overload enables PAT (many-to-one), allowing multiple internal hosts (PC1, PC2, PC3) to share the pool address(es) using different source ports. This removes the "one public IP per internal host" limitation inherent to one-to-one pools.
Why the other options are not correct:
A). Multiple Interface Policies is unrelated to IP pool exhaustion and does not solve NAT allocation limits.
C). match-vip affects VIP matching behavior for destination NAT/virtual IP usage and does not address the source NAT pool shortage causing PC3 to fail.
