22. Frage
Which of the following provisions for mass timber used for interior exit and elevator hoistway enclosures is true?
Antwort: C
Begründung:
Option A correctly applies the protection requirements for mass timber used in qualifying interior exit and elevator hoistway enclosures. Where a two-hour, or 120-minute, fire-resistance rating is required, the noncombustible protection must contribute not less than two-thirds of that required rating. Two-thirds of 120 minutes is 80 minutes.
The 2021 IBC provisions for Type IV-A require interior mass timber surfaces to be protected with compliant noncombustible materials. The assigned protection time is determined under Section 722.7 and cannot be less than the applicable minimum. Option B is incorrect because 40 minutes would provide only one-third of a two-hour rating; Type IV-B protected mass timber generally requires at least 80 minutes for a two-hour element. Option C does not correctly describe the special protection path applicable to mass timber exit and hoistway enclosures. Option D is also incorrect because Type IV-HT is not governed by the tall mass timber enclosure provision stated in the question.
The inspector must verify the total assigned protection time, membrane type, number of layers, fastening, joints, corners, penetrations, and continuity on both required faces of the enclosure.
References/Topics: 2021 IBC Sections 602.4, 602.4.1.2 and 722.7.1; protection of mass timber shaft and exit enclosures.
23. Frage

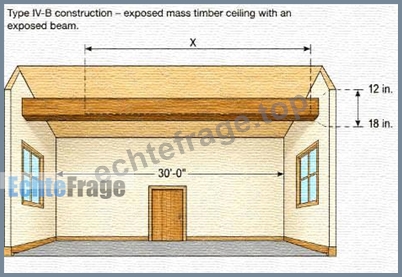

Refer to the figure by clicking on the EXHIBIT button above.
In Type IV-B construction, based on a 900 sq. ft. floor area, a 30 ' room width, and a 12 in. x 18 in. beam as shown in the Figure, the maximum length of the unprotected portion of the mass timber ceiling (dimension X) is _____ feet.
Antwort: A
Begründung:
Section 602.4.2.2.2 permits unprotected mass timber ceilings in Type IV-B construction to equal no more than 20 percent of the floor area , and the code expressly states that attached beams are included when determining that exposed ceiling area.
The floor area is 900 square feet:
20% × 900 = 180 sq. ft. maximum exposed area .
The exposed 12-inch × 18-inch beam extends across the 30-foot room. Its three exposed surfaces consist of the 12-inch-wide bottom and two 18-inch-deep sides:
30 ft × (1 ft + 1.5 ft + 1.5 ft) = 120 sq. ft.
Because the attached beam counts against the ceiling exposure allowance, only:
180 # 120 = 60 sq. ft.
remains available for the exposed ceiling itself.
The exposed ceiling extends across the 30-foot room width, so:
30 ft × X = 60 sq. ft.
Therefore:
X = 2 ft .
Option A is correct. Ignoring the beam surfaces would overstate the permitted ceiling exposure and would contradict the explicit IBC requirement that attached beams be included in the exposed ceiling calculation.
References/Topics: 2021 IBC Section 602.4.2.2.2, Exception 1.1; Type IV-B exposed ceiling and attached- beam area calculations.
24. Frage

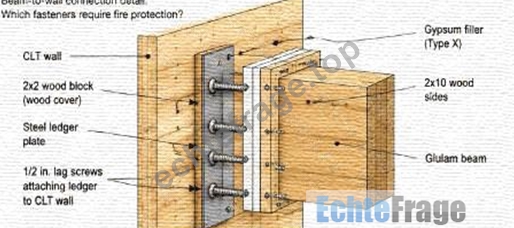

Refer to the exhibit by clicking on the EXHIBIT button above.
In the detail shown, which fasteners require fire protection according to AWC Technical Report 10?
Antwort: D
Begründung:
The 1/2-inch lag screws attaching the structural steel ledger require fire protection, making option D correct. These fasteners are structural components of the ledger-to-CLT connection and therefore form part of the connection whose fire performance must be maintained for the required duration.
AWC Technical Report 10 states that wood structural connections-including their connectors, fasteners, and participating members-must be protected from fire exposure for the required fire-resistance time
. Protection may be provided by wood cover, fire-rated gypsum board, other approved materials, or a combination.
TR10 distinguishes structural connection fasteners from small fasteners used merely to hold sacrificial protection in place. The report specifically explains that fasteners attaching protective wood strips need not themselves be protected, provided they are sufficiently long to keep the protection in position throughout the required exposure.
In the illustrated ledger connection, the 1/2-inch lag screws transfer structural load between the steel ledger and CLT wall. Their thermal protection is therefore integral to maintaining connection capacity.
References/Topics: AWC Technical Report No. 10 Sections 4.5 and connection examples; thermal protection of structural connectors and fasteners.
25. Frage
The fire-resistance of a protected mass timber assembly is equivalent to the fire resistance time of the:
Antwort: B
Begründung:
IBC Section 722.7 establishes the governing calculation principle for protected mass timber. The required fire resistance consists of the inherent fire resistance of the unprotected mass timber element plus the protection time contributed by the noncombustible protection . Therefore, option D is correct.
This approach recognizes two sequential protective mechanisms. First, the noncombustible covering delays heating and charring of the timber. After the credited protection period, the remaining mass timber cross section provides structural fire resistance through predictable charring behavior and residual section capacity.
Section 722.7.1 further requires the contribution of the covering material to comply with the prescribed protection times or to be established under Section 703.6.
Option A ignores the contribution of the protective membrane. Option B ignores the inherent structural fire resistance of the timber. Option C incorrectly substitutes a finish rating for the code-recognized protection contribution. A finish rating is a separate temperature-based performance concept and is not automatically additive as the protection time used by Section 722.7.
References/Topics: 2021 IBC Sections 602.4, 703.6, 722.7 and 722.7.1; calculation of protected mass timber fire resistance.
26. Frage

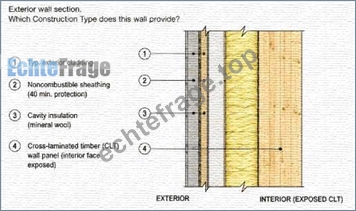

Refer to the figure by clicking on the EXHIBIT button above.
The exterior wall section shown in the Figure provides the prescribed noncombustible protection required by which Construction Type?
Antwort: B
Begründung:
The illustrated configuration represents Type IV-C construction , so option C is correct. The distinguishing feature is the combination of noncombustible protection on the exterior face with an exposed CLT surface toward the interior.
IBC Section 602.4.3.1 requires the exterior side of combustible exterior walls in Type IV-C construction to have noncombustible protection providing a minimum assigned time of 40 minutes . Table 722.7.1(2) assigns exactly 40 minutes to one layer of 5/8-inch Type X gypsum board, matching the protection illustrated in Figure 66.
The decisive distinction is Section 602.4.3.2: mass timber elements in Type IV-C are permitted to be unprotected on the interior . This is fundamentally different from Type IV-A, where essentially all interior mass timber faces must be protected, and Type IV-B, where interior protection is generally required but limited areas may remain exposed under specific area and separation restrictions.
Type IV-HT does not use the Type IV-C protected-exterior/exposed-interior regulatory scheme.
References/Topics: 2021 IBC Sections 602.4.3, 602.4.3.1 and 602.4.3.2; Table 722.7.1(2), 5/8-inch Type X gypsum board = 40 minutes.
27. Frage
......
