NEW QUESTION # 12
Refer to the exhibit, which shows the output o! the BGP database.
Which two statements are correct? (Choose two.)
Answer: A,D
Explanation:
For Option A:In Fortinet BGP (and standard BGP), when a prefix is displayed with an " i " (lowercase i) in the Path column, it represents an internal prefix that originated from the local router, typically configured via the BGP " network " command. In the exhibit, the prefix 10.20.30.0/24 is listed with a Path value of i, indicating it was injected into BGP by the local router using the network statement, not via redistribution from another routing protocol. The same logic applies to i as documented: " Origin code ' i ' means the route was injected via the network command. " For Option D:The get router info bgp network output is a summary table displaying both local and received BGP routes. It lists all known routes to the BGP process, whether received from peers or originated locally.
The exhibit shows all BGP prefixes known to the local router, matching the official admin guide's description of this command's output.
Explanation for B and C:
The phrase "legacy route advertisement" is not formalized in BGP documentation or Fortinet's admin guide; the output uses standard BGP mechanics.
If a route was redistributed into BGP from another routing protocol, the Path field would display a " ? " (question mark) for incomplete (redistributed) origin. Here the /24 route has " i " so it is NOT a redistribution.
References:
FortiOS Administration Guide: BGP Configuration and Route Table Interpretation Official BGP Command Reference: Show BGP Network, Path Codes, Route Origination Indicators
NEW QUESTION # 13

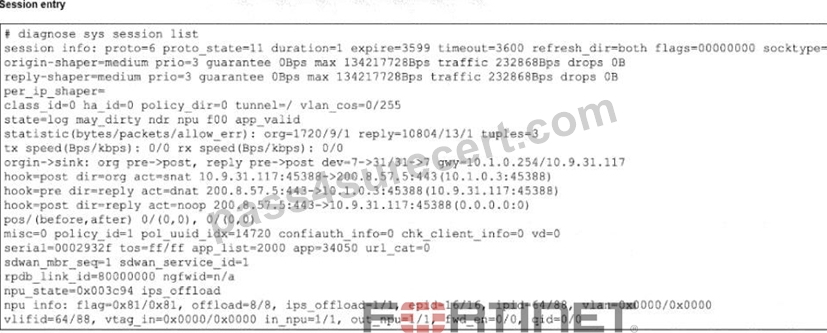

Refer to the exhibit.
The exhibit shows a session entry. Which statement about this TCP session is true?
Answer: D
Explanation:
The correct answer is C. The session is offloaded using NPU.
The exact session example in the study guide shows:
proto=6 # this is a TCP session
expire=3599 # the session will expire in 3599 seconds, not in one second hook=post dir=org act=snat 10.9.31.117:45388- > 200.8.57.5:443(10.1.0.3:45388) hook=pre dir=reply act=dnat 200.8.57.5:443- > 10.1.0.3:45388(10.9.31.117:45388) npu info: ... offload=8/8 ...
and the slide explicitly states: "Offloaded in both directions using NP6" The study guide also explains this exact point clearly:
"Counters for hardware acceleration-The presence of the npu info field indicates the session has been offloaded to hardware acceleration. In this example, traffic is being offloaded in both directions using network processor (NP) 6, which is represented by the value of 8." Why the other options are wrong:
A is wrong because expire=3599, not 1. The duration=1 field means the session has existed for 1 second, not that it will expire in 1 second.
B is wrong because the original session is from 10.9.31.117 to the remote server 200.8.57.5:443. The IP
10.1.0.3 is the SNAT-translated source address, not the final destination.
D is not the best answer for this single-select question. The reply is indeed DNATed back toward the original client, but the exact validated takeaway highlighted by the study guide for this exhibit is the NPU offload state.
NEW QUESTION # 14
You configure the overlay tunnels for an SD-WAN hub-and-spoke topology defined with IPsec tunnels, BGP on loopback, and dynamic BGP.
Which two are recommended IPsec settings for this topology? (Choose two answers.)
Answer: A,C
Explanation:
The SD-WAN 7.6 Enterprise Administrator Study Guide identifies the recommended BGP-on-loopback IPsec settings. For branches, it specifies:
"Static tunnel type (remote end IP address is known)."
"net-device enable."
Enabling net-device on the spoke creates a kernel interface for the tunnel. This assists with tunnel monitoring and management and is required to support ADVPN shortcut tunnels. Dynamic BGP establishes on-demand BGP peerings between spokes after an ADVPN shortcut is created; therefore, the spoke must support those dynamic shortcut interfaces. This makes option C correct.
The spoke should also configure localid. The FortiOS 7.6 Administrator Study Guide explains: "Local ID: if the peer accepts a specific peer ID, type that same peer ID in this field." The local ID supplies the spoke's IKE identity to the dial-up hub, allowing the hub to identify and authenticate the connecting spoke correctly.
Therefore, option D is correct.
Option A reverses the recommended roles. The hub must use a dynamic tunnel type because it operates as the dial-up server and does not require every spoke's changing public gateway address in advance.
Option B is also incorrect. The guide states: "There is no need to configure any tunnel IP address, so the IKE Mode Config is not used." BGP on loopback uses the loopback address and exchange-interface-ip instead of IKE mode configuration.
References: SD-WAN 7.6 Enterprise Administrator Study Guide, SD-WAN Overlay Design and Best Practices, pages 118-119 and 122; FortiOS 7.6 Administrator Study Guide, IPsec VPN - Phase 1 Network Settings, page 375; FortiOS 7.6 - BGP on loopback.
NEW QUESTION # 15

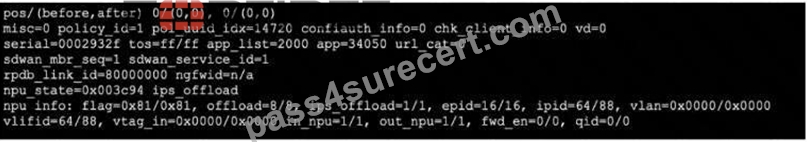

Refer to the exhibit, which shows the omitted output of a session table entry.
Which two statements are true? (Choose two.)
Answer: C,D
Explanation:
In the provided session table output, the following details justify the answers:
Policy ID Match: The line policy_id=1 directly confirms that this session was matched by Firewall Policy ID
1. According to Fortinet's session table documentation, the policy_id field always references the policy that allowed this session, so this is a clear indicator.
Session Offloading: The presence of the strings npu_state, ips_offload, and notably the NPU info section such as offload=8/8, ips_offload=1/1 shows that this session has been offloaded to the Network Processor Unit (NPU). Fortinet technical documentation states that " offload " values greater than zero in both directions (and an NPU info section) affirm that NPU hardware processing (fast path) is handling this traffic, thus the session is not being handled in software only.
Other options:
VLAN Tagging (vlan=0x0000/0x0000): This means no VLAN tag is assigned to this session.
NP7: The actual NPU model handling the session isn't exposed in this snippet-the offload parameters shown are generic and not specific to NP7 hardware, so it cannot be concluded from the session data.
References:
Fortinet Technical Tip: FortiGate Session Table and NPU Offloading
FortiOS Diagnostics Guide: Policy ID, Offload, and VLAN Session Table Fields
NEW QUESTION # 16

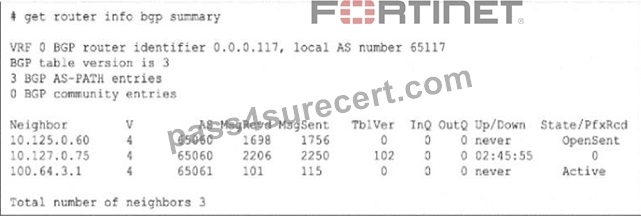

Refer to the exhibit.
The output of a BGO debug command is shown.
What is the most likely reason that the local FortiGate is not receiving any prefixes from its neighbors?
Answer: C
Explanation:
To identify the reason for the lack of prefixes, we must interpret the State/PfxRcd and Up/Down columns in the get router info bgp summary exhibit.
Analyze Neighbor Status:
Neighbor 10.125.0.60: State is OpenSent. This session is not established. It is stuck in the negotiation phase.
Neighbor 100.64.3.1: State is Active. This session is not established. The router is actively trying to initiate a TCP connection.
Neighbor 10.127.0.75:
Up/Down: 02:45:55. This indicates the BGP session has been Up (Established) for almost 3 hours.
State/PfxRcd: 0. This number represents the count of prefixes received. The session is fully established, but the neighbor has sent zero routes.
Determine the Cause:
Since the session with 10.127.0.75 is established, connectivity and handshakes (Options A, B, C) are not the issue for this neighbor.
The fact that it is Up but sending 0 prefixes strongly implies that the neighbor is configured to filter out its routes before sending them to the local FortiGate.
Option D correctly identifies this as a RIB-OUT (Routing Information Base - Outbound) configuration issue on the neighbor (Router 10.127.0.75), which prevents it from advertising its routes.
Reference:
FortiGate Security 7.6 Study Guide (BGP): " In the BGP summary, if the State/PfxRcd shows a number (e.g.,
0), the session is Established. A value of 0 means the peering is up, but no routes have been received, often due to route-map or prefix-list filtering on the remote peer. "
NEW QUESTION # 17
......
