質問 # 34

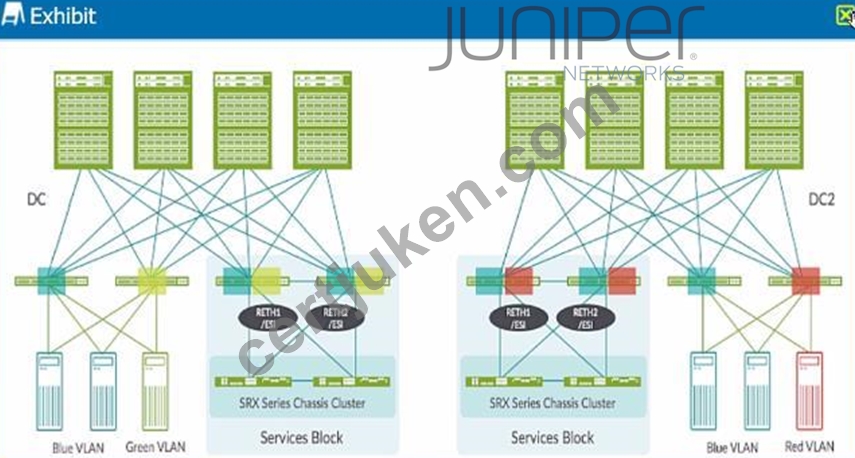

Exhibit.
Both DC and DC2 ate using EVPN-VXLAN technology deployed using an ERB architecture. A server on the Red VLAN must communicate with a server on the Green VLAN. The Blue VLAN in DC and DC2 needs to be the same VLAN.
Which statement is correct in this scenario?
正解：D
解説：
* ERB Architecture in EVPN-VXLAN:
* ERB (Edge Routed Bridging) architecture is commonly used in data center networks where routing decisions are made at the network edge (leaf or border devices), while bridging (Layer 2 forwarding) is extended across the fabric. This architecture allows for efficient L3 routing while still enabling L2 services like VLANs to span across multiple locations.
* VLAN and VNI Configuration:
* The scenario specifies that a server on the Red VLAN needs to communicate with a server on the Green VLAN. Since these VLANs are in different data centers (DC and DC2), and given the use of EVPN-VXLAN, the communication between these VLANs will require atransit VNI(Virtual Network Identifier). This transit VNI will allow traffic to traverse the VXLAN tunnel across the DCI (Data Center Interconnect).
* Interconnect between SRX Series Devices:
* The exhibit shows SRX Series Chassis Clusters used as service devices (likely for firewalling or other security services). These devices need to be interconnected between the two data centers to ensure that VLANs can communicate effectively. The Blue VLAN needs to be stretched between DC and DC2 to maintain the same Layer 2 domain across both data centers.
Conclusion:
* Option B:Correct-Interconnecting the SRX Series devices will ensure the necessary service chaining, while stretching the Blue VLAN and adding a transit VNI for the Red and Green VLANs will enable the required communication across the data centers.
質問 # 35
Which two statements describe the function of the Designated Forwarder (DF) in an EVPN- VXLAN all-active multihoming scenario? (Choose two.)
正解：A、D
解説：
In all-active multihoming, multiple PEs can forward known unicast traffic simultaneously, but only one PE, the Designated Forwarder, is responsible for forwarding broadcast, unknown unicast, and multicast (BUM) traffic to the multihomed segment. This prevents duplicate BUM frames from being delivered to the CE device over multiple links, since all attached PEs receive the same BUM traffic from the fabric but only the DF forwards it downstream.
質問 # 36
You are deploying an IP fabric with an oversubscription ratio of 3:1.
In this scenario, which two statements are correct? (Choose two.)
正解：B、D
解説：
* Understanding Oversubscription Ratio in IP Fabrics:
* The oversubscription ratio in an IP fabric typically refers to the ratio of the available bandwidth at the edge of the network (leaves) to the available bandwidth at the core or spine. A 3:1 oversubscription ratio means that for every 3 units of bandwidth at the leaves, there is 1 unit of bandwidth at the spine.
* Impact of Adding or Removing Leaf Devices:
* Removing Leaf Devices:When you remove leaf devices, the amount of total edge bandwidth decreases while the bandwidth in the spine remains constant. This causes the oversubscription ratio toincreasebecause there is now less total bandwidth to distribute across the same amount of spine bandwidth.
* Adding Leaf Devices:Conversely, when you add leaf devices, the total edge bandwidth increases. Since the spine bandwidth remains the same, the oversubscription ratio would remain the same if the additional leaves consume their share of the available bandwidth proportionally.
Conclusion:
* Option C:Correct-Removing leaf devices increases the oversubscription ratio.
* Option D:Correct-Adding leaf devices typically maintains the oversubscription ratio assuming uniform bandwidth distribution.
質問 # 37

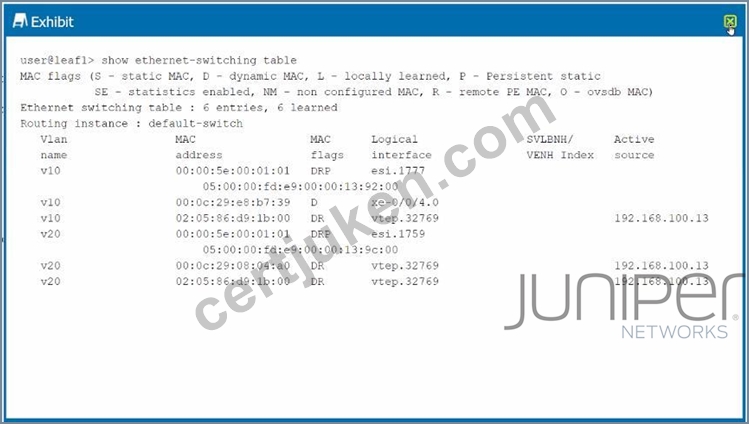

Exhibit.
Referring to the exhibit, why is the active source field blank for the entry that uses the 00:0c:29:e8:b7:39 MAC address?
正解：A
質問 # 38
You need to support an active/active redundant interface configuration. In this scenario, which two commands are required to accomplish this task? (Choose two.)
正解：A、D
解説：
An active/active redundant interface in an EVPN multihoming design requires configuring an Ethernet Segment Identifier on the aggregated interface so both devices advertise the same ESI.
The all-active mode must also be enabled on that Ethernet segment to allow both peers to forward traffic simultaneously for the shared segment.
質問 # 39
......
