FCSS_NST_SE-7.6 training materials are compiled by experienced experts, and therefore they cover most knowledge points of the exam, and you can also improve your ability in the process of learning. FCSS_NST_SE-7.6 exam dumps not only contain quality but also contain certain quantity, and they will be enough for you to pass the exam and get the certificate. In addition, we are pass guarantee and money back guarantee if you fail to pass the exam. We offer you free update for365 days after you purchase the FCSS_NST_SE-7.6 traing materials.
| Topic | Details |
|---|---|
| Topic 1 |
|
| Topic 2 |
|
| Topic 3 |
|
| Topic 4 |
|
| Topic 5 |
|
>> Sample FCSS_NST_SE-7.6 Questions Pdf <<
With the unemployment rising, large numbers of people are forced to live their job. It is hard to find a high salary job than before. Many people are immersed in updating their knowledge. So people are keen on taking part in the FCSS_NST_SE-7.6 exam. As you know, the competition between candidates is fierce. If you want to win out, you must master the knowledge excellently. Now our FCSS_NST_SE-7.6 Study Materials are your best choice. With the assistance of our study materials, you will advance quickly.
NEW QUESTION # 33

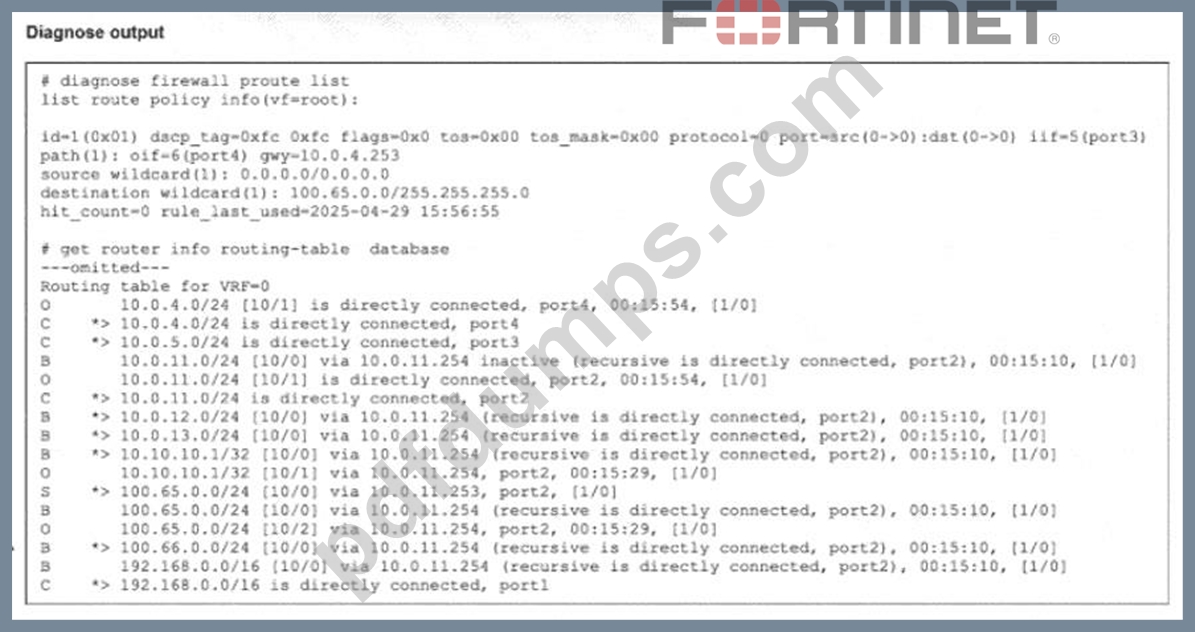

Refer to the exhibit.
Which route will traffic take to get to the 100.65.0.0/24 network considering the routes are all configured with the same distance?
Answer: A
Explanation:
To determine the path the traffic will take, we must look at the FortiGate Route Lookup Precedence (Packet Processing Flow) and the specific configurations shown in the exhibit Analyze the Routing Precedence:
In FortiOS, when a packet arrives (and is not part of an existing session), the FortiGate performs route lookups in a specific order:
Policy Routes: Configured under config router policy (or diagnose firewall proute list). These are checked first. If a packet matches the criteria (Source, Destination, Protocol, Incoming Interface), the Policy Route is used immediately, bypassing the standard routing table.
FIB (Forwarding Information Base): If no Policy Route matches, the device looks at the standard routing table (Static, Connected, Dynamic).
Analyze the Exhibit:
Policy Route Section: The output of diagnose firewall proute list shows an active policy route (id=1).
Destination: 100.65.0.0/255.255.255.0 (Matches the network in the question).
Action: It directs traffic to gateway 10.0.4.253 via oif=6(port4).
Routing Table Section: The output of get router info routing-table database shows multiple routes for
100.65.0.0/24 (Static, OSPF, BGP) all with distance 10. The Static route (S) is currently selected (* > ) in the FIB.
Conclusion:
Because Policy Routes take precedence over the standard routing table (FIB), the FortiGate will forward the traffic using the instructions in Policy Route ID 1. It will not use the Static, BGP, or OSPF routes visible in the routing table for any traffic that matches the policy route ' s criteria (ingress port 3).
Reference:
FortiGate Security 7.6 Study Guide (Routing): " Policy routes take precedence over entries in the routing table. If a packet matches a policy route, the FortiGate routes the packet according to the specified interface and gateway. "
NEW QUESTION # 34
A FortiGate administrator is troubleshooting a VPN that is failing to establish.
As a first step, the administrator is attempting to sniff the traffic using the command:
# diagnose sniffer packet any ''udp port 500 or udp port 4500 or esp'' 4 After several minutes there is still no output. What is the most Likely reason for this?
Answer: C
Explanation:
The administrator is running a packet sniffer with the filter 'udp port 500 or udp port 4500 or esp'. The result is "no output," even though the VPN is attempting to establish (failing).
* A. The VPN is configured to use IKE over TCP:
* Standard IPsec IKE negotiation uses UDP port 500 (IKE) and UDP port 4500 (NAT-T).
* However, if IKEv2 over TCP (RFC 8229) or Fortinet's proprietary IKE over TCP is configured (often used to bypass firewalls that block UDP), the traffic will use TCP (often port 4500 or 443).
* The sniffer filter explicitly looks for udp or esp (IP Protocol 50).
* If the traffic is encapsulated in TCP, it matches tcp protocol, not udp or esp (raw ESP). Therefore, the sniffer sees zero packets matching the filter.
* Why other options are incorrect:
* B: esp is a valid argument for diagnose sniffer packet. It is equivalent to filtering for IP protocol
50.
* C: If the ISP were blocking traffic, the sniffer (running on the local FortiGate) would still see the outbound packets generated by the FortiGate trying to initiate the connection. "No output" implies the local device isn't even generating packets matching that filter.
* D: Mismatched IKE versions would still generate IKE negotiation packets (proposals/errors) that would be captured by the sniffer.
Reference:
FortiGate Security 7.6 Study Guide (IPsec VPN): "IKEv2 over TCP is available for environments where UDP 500/4500 is blocked. When enabled, IKE and ESP packets are encapsulated in TCP headers."
NEW QUESTION # 35
Refer to the exhibit, which shows a partial output of the fssod daemon real-time debug command.
What two conclusions can you draw Itom the output? (Choose two.)
Answer: C,D
NEW QUESTION # 36
Exhibit.

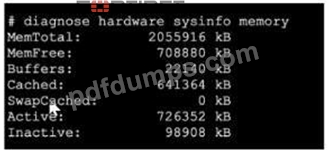

Refer to the exhibit, which shows a partial output of diagnose hardware aysinfo memory.
Which two statements about the output are true? (Choose two.)
Answer: B,D
Explanation:
The partial output from diagnose hardware sysinfo memory provides details on system RAM allocation.
According to Fortinet's technical documentation for memory troubleshooting and Linux memory management (which FortiOS is based on):
MemFree is the portion of physical memory not currently allocated to any running process or kernel function.
Thus, 708880 kB is available and can be immediately used by user-space programs or system operations.
Inactive refers to pages in the memory cache that were previously in use for I/O or file system buffering but are now not actively referenced. These pages are retained in memory for quick access if needed again, but can be reclaimed for other memory operations if demand increases. The value 98908 kB here represents currently unused cache pages (inactive pages), ready for repurposing or deletion if the system requires more RAM.
Cached represents the total amount of system memory allocated to cache, which includes both active and inactive cache pages. It does not, by itself, represent I/O cache exclusively, nor does "inactive" mean memory
"will never be used" as the kernel can re-purpose inactive pages on demand.
References:
Fortinet Technical Tip: Explaining the 'diagnose hard sysinfo memory' command FortiOS System Administration Guide: Linux Memory Reporting, Cached and Inactive Statistics
NEW QUESTION # 37

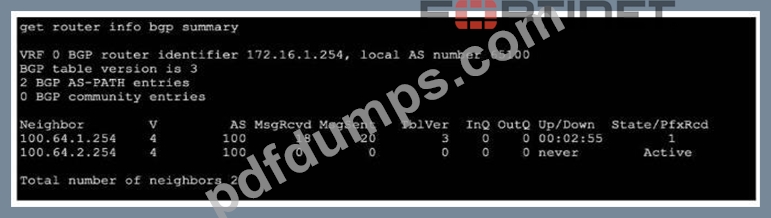

Refer to the exhibit, which shows the output of get router info bgp summary.
Which two statements are true? (Choose two.)
Answer: A,B
Explanation:
The get router info bgp summary output lists BGP neighbor status:
Prefix Reception: The "State/PfxRcd" column shows the number of prefixes received from the neighbor- neighbor 100.64.1.254 has "1", confirming option A.
Received Message Count: Under "MsgRcvd", 18 packets have been received from neighbor 100.64.1.254.
This matches option C.
The second neighbor 100.64.2.254 is in "Active" state and has received/sent 0 packets, indicating that its TCP connection is NOT established, disproving option B.
There is no indication anywhere that the router is "still calculating" prefixes; "Active" just means no session is established, so option D is incorrect.
References:
FortiOS BGP Command Reference: BGP Neighbor States, PfxRcd, and Counters
NEW QUESTION # 38
......
