NEW QUESTION # 10
Task 11: Classify a piece of Equipment
The project team evaluates during the implementation project the classification of Technical Objects in order to use Checklists in SAP S/4HANA Asset Management. The following features need to be checked:
* Assign a class to a Technical Object
* Assign chararcteristic values to a class
* Assign class EQ11 value to Technical Object T-PA## .
* Assign a characteristic value, so that Inspection Plan Q / CL-DE-00 / 1 is automatically found during the checklist process
Answer:
Explanation:
See the Explanation for complete Solution of this Task.
Explanation:
Task 11 Overview
This task involves classifying a piece of equipment so it can be used in the Checklist process . By assigning a specific class and characteristic values, you enable the system to automatically find the correct inspection plan when a maintenance order is created.
Step 1: Access the Equipment Master Record
To classify the equipment, you must first open its master record in "Change" mode.
* Transaction Code : Enter IE02 (Change Equipment) in the command field and press Enter .
* Equipment : Enter T-PA48 .
* Action : Press Enter to open the record.
Step 2: Assign the Class to the Equipment
Now you will link the equipment to a class that contains the required technical characteristics.
* Navigate : Click the Classification button in the top toolbar (or go to the Classes tab if available).
* Class Assignment :
* Class Type : Ensure this is set to 002 (Equipment Class).
* Class : Enter EQ11 .
* Action : Press Enter . The system will now display the characteristics associated with class EQ11 in the bottom half of the screen.
Explanation : Assigning a class is like giving the equipment a "category". Class EQ11 is specifically configured in this system to hold the data needed for checklist processing.
Step 3: Assign Characteristic Values
This is the critical step that tells the system exactly which inspection plan to use for this specific pump.
* Locate the Characteristic : In the values table, look for a characteristic related to "Inspection Plan" or
"Checklist Group."
* Enter the Value : Assign the value so that Inspection Plan CL-DE-00 / 1 is automatically found.
* Note: Typically, you will enter CL-DE-00 in the "Inspection Plan Group" field and 1 in the
"Group Counter" field.
* Action : Press Enter to validate the values.
Explanation : Characteristic values are the specific details for this asset. By entering these values, you "tag" the equipment so that whenever it is added to a maintenance order, the system knows to look for the CL-DE-
00 checklist automatically.
Step 4: Save
* Action : Click the Save (floppy disk) icon.
* Confirmation : The system should display a message at the bottom saying: "Equipment T-PA48 changed."
NEW QUESTION # 11
Create and use a Maintenance Work Center
The project team evaluates during the implementation project the organizational elements in SAP S/4HANA Asset Management. The following features need to be checked:
* Create a Maintenance Work Center
* Create a capacity demand for a Maintenance Work Center
* Create a new Maintenance Work Center master record ZZ-ME## for maintenance plant 1010 similar to maintenance work center T-ME00 and save it. Use the following information:
* Create a capacity demand of 1 hour for the just created Maintentance Work Center ZZ-ME## by creating a new maintenance order of order type PM01 .
Answer:
Explanation:
See the Explanation for complete Solution of this Task.
Explanation:
Task 3: Create and Use a Maintenance Work Center
Objective
In Task 3, the requirement was to:
* create a new maintenance work center ZZ-ME42 for plant 1010 similar to T-ME00
* maintain the required capacity values
* create a 1-hour capacity demand for that work center by creating a maintenance order of type PM01
Part 1: Create the Maintenance Work Center

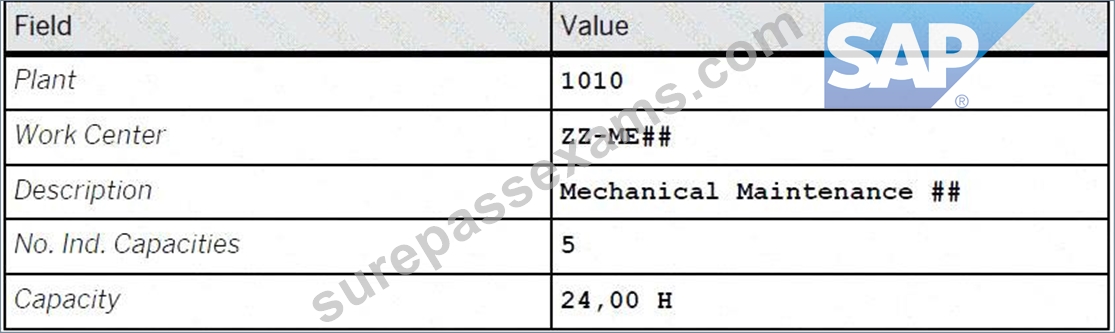

Requirement from task file
The task required the following values for the work center:
* Plant = 1010
* Work Center = ZZ-ME42
* Description = Mechanical Maintenance 42
* No. Ind. Capacities = 5
* Capacity = 24.00 H
The task also stated that the work center must be created similar to maintenance work center T-ME00 .
Step-by-step procedure
Step 1: Open work center creation
* Go to SAP GUI command field
* Enter transaction IR01
* Press Enter
Transaction IR01 is used to create a new work center. This is the correct starting point for creating the maintenance work center required in Task 3.
Step 2: Enter initial work center data
On the Create Work Center: Initial Screen , enter:
* Plant = 1010
* Work Center = ZZ-ME42
* Work Center Category = 0005
* In Copy from :
* Plant = 1010
* Work Center = T-ME00
Then press Enter .
The task explicitly required the work center to be created for plant 1010 and to be created similar to T-ME00.
Work center category 0005 is the maintenance work center category, so this was the correct category to use for a maintenance work center.
Step 3: Include capacity data during copy
When the Copy from popup appeared:
* select Capacities
* continue with the green check
This was important because the task required changing capacity-related data:
* No. Ind. Capacities = 5
* Capacity = 24.00 H Copying the capacity data ensured the new work center inherited the capacity structure from T-ME00 and could then be adjusted correctly.
Step 4: Maintain basic data
On the work center master screen:
* change the description to Mechanical Maintenance 42
This matches the exact description required by the task.
Step 5: Maintain capacity values
Go to the Capacities tab, then open the capacity detail screen.
Maintain or verify:
* No. Ind. Capacities = 5
* Capacity Base Unit = H
* Capacity recalculated to 24.00 H
In our system, the Capacity field was system-calculated and not directly editable.
The final valid values were achieved with:
* Start Time = 08:00:00
* End Time = 17:00:00
* Length of breaks = 01:00:00
* Capacity Utilization = 60
* No. Ind. Capacities = 5
This produced:
* Capacity = 24.00 H
The task required 24.00 H capacity, but SAP calculated it automatically based on operating time, utilization, and number of individual capacities.
The resulting calculation was correct and matched the task requirement exactly.
Step 6: Save the work center
* Click Save
Later, when trying to create the same work center again, SAP displayed the system message:
* "Work center ZZ-ME42 in plant 1010 already exists"
Explanation / Verification:
This system message confirmed that the work center had already been created successfully.
Therefore, the creation of ZZ-ME42 was verified as complete.
Part 2: Create a 1-Hour Capacity Demand
Requirement from task file
The task required:
* create a capacity demand of 1 hour
* for the newly created maintenance work center ZZ-ME42
* by creating a maintenance order of type PM01
Step-by-step procedure
Step 7: Open maintenance order creation
* In the command field, enter /nIW31
* Press Enter
Transaction IW31 is used to create a maintenance order.
The /n ensured SAP exited the previous transaction and opened the new one directly.
Step 8: Enter order header data
On the Create Maintenance Order: Initial Screen , enter:
* Order Type = PM01
* Planning Plant = 1010
Then press Enter .
The task explicitly required the capacity demand to be created by means of a maintenance order of type PM01 .
Step 9: Enter order description
On the order header screen, enter a short text such as:
* Capacity demand ZZ-ME42
The task did not prescribe a specific short text, so a meaningful description was used for traceability.
Step 10: Create the first operation
In the first operation area / operations overview, maintain:
* Operation = 0010
* Work Center = ZZ-ME42
* Plant = 1010
* Control Key = PM01
* Work Duration / Work = 1
* Unit = H
Then press Enter .
This operation is the actual source of the capacity demand .
The capacity demand is not created merely by the order header; it is created by assigning the operation to the work center with a planned work value of 1 hour .
Therefore, these operation entries were the critical part of fulfilling Task 3.
Step 11: Save the maintenance order
* Click Save
SAP displayed the confirmation message:
* "Order saved with number 4000314"
Explanation / Verification:
This was the final confirmation that the maintenance order had been created successfully.
Because the operation was assigned to ZZ-ME42 with 1 H planned work, this verified that the required 1- hour capacity demand had been created for the work center.
Verified completed objects
The following results were verified during execution:
* Maintenance Work Center created
* Work Center = ZZ-ME42
* Plant = 1010
* confirmed by SAP message that the work center already existed when rechecked
* Capacity maintained correctly
* No. Ind. Capacities = 5
* Capacity = 24.00 H
* Capacity demand created
* maintenance order type PM01
* operation assigned to ZZ-ME42
* planned work = 1 H
* Order successfully saved
* SAP confirmation: Order saved with number 4000314
NEW QUESTION # 12
Task: 5
Configure and create a Maintenance Notification
The project team evaluates during the implementation project the Maintenance Notifications in SAP S
/4HANA Asset Management. The following features need to be checked:
* Configure and create a Maintenance Notification
* Assign catalog specific data to a Maintenance Notification
* Create a Maintenance Notification and save it. Use the following information:
* Assign the following data to the just created notification:
Answer:
Explanation:
See the Explanation for complete Solution of this Task.
Explanation:
Task 5 Overview
The project team is evaluating Maintenance Notifications in SAP S/4HANA Asset Management. This task involves creating a notification and assigning catalog-specific data to it.

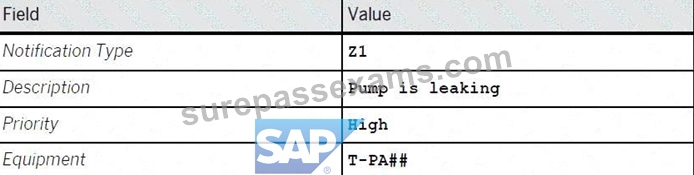

Step 1: Create the Maintenance Notification
In this step, you will record a technical problem in the system.
* Access the Transaction : Use transaction code IW21 (Create Maintenance Notification) in the SAP GUI or the corresponding Fiori app.
* Initial Screen :
* Notification Type : Enter Z1 .
* Press Enter .
* Enter General Data :
* Description : Enter Pump is leaking .
* Priority : Select High .
* Equipment : Enter T-PA48 .
* Save : Click the Save (floppy disk) icon to generate a notification number.
Explanation : Creating a notification is the first step in the maintenance process. It documents the "what" (leaking pump), the "how critical" (high priority), and the "where" (Equipment T-PA48).
Step 2: Assign Catalog Specific Data
Now you must assign technical codes to describe the damage precisely for future reporting and analysis.
* Access the Transaction : Use transaction code IW22 (Change Maintenance Notification) to open your recently created notification.
* Navigate to Item Data : Go to the Items tab or the relevant section for damage and causes.
* Enter Damage Details :
* Damage Code Group : PMP-100 .
* Damage Code : 1000 .
* Description : Leaking .

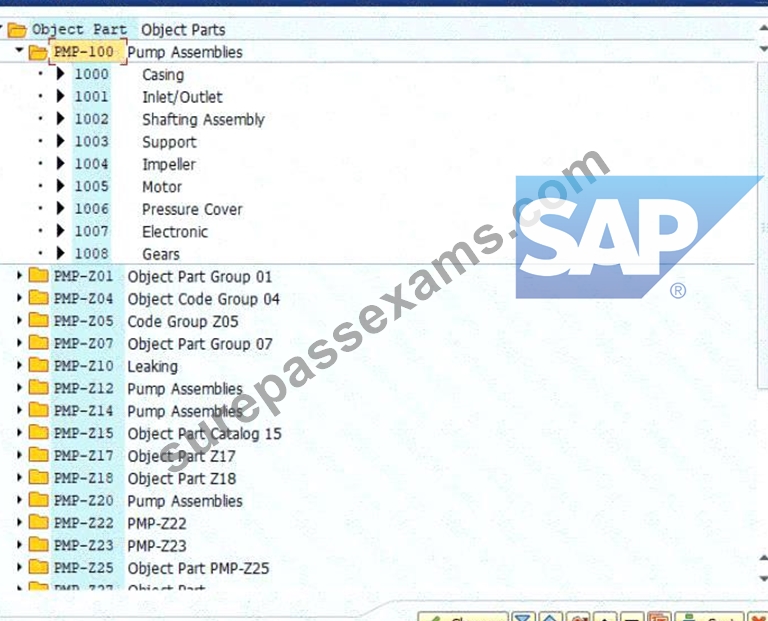

* Enter Object Part Details :
* Object Part Code Group : PMP-Z48 .
* Object Part Code : 1001 .
* Description : Inlet/Outlet .
* Enter Cause Details :
* Cause Code Group : PMP-248 .
* Cause Code : 2000 .
* Description : Material fatigue .
* Save : Click the Save icon to finalize the notification.
Explanation : Assigning catalog data categorizes the issue using standardized codes. This allows the company to run "Bad Actor" reports later to see, for example, how many pumps are failing due to "Material fatigue" versus "Operator error".
NEW QUESTION # 13
Schedule a Maintenance Plan
The project team evaluates during the implementation project the scheduling of Maintenance Plans in SAP S
/4HANA Asset Management. The following features need to be checked:
Schedule a Maintenance Plan
Display a generated Maintenance Order
Schedule the previously created Maintenance Plan. The following prerequisites have to be met:
The next upcoming call is the 4 MON Maintenance Package
Calculate the Completion Date of the last Maintenance Package as follows: Today's date minus 4 weeks (e.g.
today's date: 15th of December > > > Completion Date: 17th of November) The Call Date is always 10 days before the Plan Date.
Note:
Check your Maintenance Plan and adapt it, if necessary, before you schedule it.
Check the following information in the generated Maintenance Order:
number of order operations: 2
Maintenance Plan: number of the previously created Maintenance Plan
Last Included Task List: A / TL-## / 1
Answer:
Explanation:
See the Explanation for complete Solution of this Task.
Explanation:
Task 9 Overview
The goal of this task is to trigger the maintenance schedule you built in Task 8 so that the system generates an actual work order. You must meet specific scheduling conditions to ensure the right maintenance cycle (the 4- month package) is triggered.
Step 1: Adapt Scheduling Parameters (IP02)
Before starting the schedule, you must ensure the "Call Date" rules are correct.
* Transaction : Enter IP02 (Change Maintenance Plan).
* Maintenance Plan : Enter the number you saved in Task 8 and press Enter .
* Scheduling Parameters Tab :
* Call Horizon : Adjust this so that the Call Date occurs exactly 10 days before the Plan Date.
* Note: If your system uses percentages, you will need to calculate the percentage of the 4-month cycle that results in a 10-day lead time.
* Save your changes.
Step 2: Schedule the Plan (IP10)
Now you will "start" the clock for this maintenance schedule.
* Transaction : Enter IP10 (Schedule Maintenance Plan).
* Maintenance Plan : Enter your plan number and press Enter .
* Start Scheduling : Click the Start icon (or go to Maintenance plan > Scheduling > Start ).
* Enter the "Start Date" / "Completion Date" :
* The Rule : You must use Today's date minus 4 weeks .
* Example: If today is April 19, enter March 22.
* Press Enter . The system will calculate the next calls.
* Verify the Package : Ensure the next upcoming call is indeed the 4 MON (4-month) Maintenance Package.
* Save (Floppy Disk icon). This will generate a new Maintenance Order number.
Step 3: Verify the Generated Maintenance Order
You must now check that the order was created correctly based on the rules of your Task List (Task 7) and Maintenance Plan (Task 8).
* Display Order : In IP10 , select the line for the generated call and click the Display Order icon (or use transaction IW33 with the new order number).
* Check the following three items :
* Operations : Verify there are exactly 2 operations in the order (the Monthly and 4-Month tasks).
* Maintenance Plan : Confirm the order shows your specific Maintenance Plan number.
* Task List : Verify the "Last Included Task List" is A / TL-48 / 1 .
NEW QUESTION # 14
Create a Maintenance Order with Checklists
The project team evaluates during the implementation project Maintenance Orders with Checklists in SAP S
/4HANA Asset Management. The following features need to be checked:
* Create a Maintenance Order with Checklist
* Display a Maintenance Order with automatically generated Object List and Checklist.
* Create a Maintenance Order using an Order Type which is already configured for the checklist process.
Use the following data:
* Display the previously created Maintenance Order with automatically generated Object List and Checklist.
Answer:
Explanation:
See the Explanation for complete Solution of this Task.
Explanation:
Task 12 Overview
In this task, you will create a maintenance order using a specific order type configured for the checklist process. The system will then automatically generate an object list and a corresponding checklist based on the equipment and task list assigned.
Step 1: Create a Maintenance Order with Checklist
You need to create a new order using a functional location and a specific task list that triggers the checklist functionality.
* Access the Transaction : Use transaction code IW31 (Create Maintenance Order).
* Initial Screen :
* Order Type : Select an order type already configured for the checklist process (typically PM01 or a specific custom type designated for checklists in your training environment).
* Press Enter .
* Enter Header and Location Data :
* Functional Location : Enter 48-01-PRD-01-03-HD .
* Description : Enter a relevant description (e.g., Pump Checklist Maintenance GR48).
* Assign the Task List :
* Go to the Operations tab or find the task list assignment section.
* General Maintenance Task List : Enter A / T-PMCLEN / 1 .
* Press Enter to validate.
* Save : Click the Save (floppy disk) icon.
Explanation : By assigning this specific functional location and general task list, you are triggering the
"Checklist" integration. The system uses the classification data you set up in Task 11 to determine that a checklist (inspection lot) is required for this job.
Step 2: Display and Verify the Checklist
After saving, you must verify that the system correctly generated the technical components of the checklist.
* Display the Order : Use transaction code IW33 and enter the order number you just created.
* Verify the Object List :
* Navigate to the Object List tab.
* You should see the equipment or functional location listed here with a link to the checklist.
* Verify the Checklist :
* Look for a button or tab labeled Checklists or Inspection Lot within the order.
* The system should show that a checklist has been automatically generated for the repair operations.
Explanation : The goal of this step is to confirm that the "Object List" and "Checklist" were created automatically by the system. This proves the background configuration for QM (Quality Management) integration is working correctly with your maintenance order
NEW QUESTION # 15
......
Practice tests are also a core part of the SurePassExams product. We recognize that retention of information is crucial, and interactive learning tools, such as practice exams are provided to help students retain the information they have learned. These C_S43 Practice Tests simulate the actual exam conditions and provide applicants with an accurate assessment of their readiness for the test.
Frenquent C_S43 Update: https://www.surepassexams.com/C_S43-exam-bootcamp.html
