| Section | Objectives |
|---|---|
| Inspection Duties & Documentation | - Statement of Special Inspections - Inspection Reporting and Compliance Verification |
| General & Construction Types | - Construction Classification — Type IV-A, IV-B, IV-C
|
| Construction Fire Safety | |
| Fire-Resistance & Protection | - Noncombustible Protection & Encapsulation - Fire-Resistance-Rated Assemblies - Concealed Spaces Protection |
| Mass Timber Materials | - CLT, Glulam, NLT, SCL and Engineered Wood Products |
| Structural & Connection Inspection | - Framing and Structural Elements - Connection Design and Protection |
>> International Code Council 93-Tall-Mass-Timber-Buildings퍼펙트 덤프 최신버전 <<
Pass4Test에서 판매하고 있는 International Code Council 93-Tall-Mass-Timber-Buildings인증시험자료는 시중에서 가장 최신버전으로서 시험적중율이 100%에 가깝습니다. International Code Council 93-Tall-Mass-Timber-Buildings덤프자료를 항상 최신버전으로 보장해드리기 위해International Code Council 93-Tall-Mass-Timber-Buildings시험문제가 변경되면 덤프자료를 업데이트하도록 최선을 다하고 있습니다. Pass4Test는 여러분이 자격증을 취득하는 길에서 없어서는 안되는 동반자로 되어드릴것을 약속해드립니다.
질문 # 16
Disregarding footnotes, which of the following is true regarding fire-resistance ratings of building elements per the International Building Code Table 601?
정답：A
설명：
When the footnotes are disregarded, the fire-resistance ratings assigned to the principal building elements of Type IV-A construction correspond to those of Type I-A construction . Option A is therefore correct.
IBC Table 601 assigns both Type I-A and Type IV-A a 3-hour rating for the primary structural frame , 3 hours for exterior and interior bearing walls, 2 hours for floor construction and associated secondary structural members , and 1½ hours for roof construction and associated secondary structural members
. Interior nonbearing walls and partitions are generally rated zero by Table 601 unless another code provision requires a rating. Exterior nonbearing walls are governed separately based on fire separation distance.
The similarity in Table 601 ratings does not mean Type I-A and Type IV-A are otherwise equivalent construction types. Type I-A relies principally on noncombustible structural construction, whereas Type IV-A permits mass timber subject to the substantial noncombustible protection requirements of Section 602.4.1.
Types II-A, III-A, IV-C, and IV-HT have materially different Table 601 requirements, so options B, C, and D do not provide a complete rating match.
References/Topics: 2021 IBC Section 601 and Table 601; Types I-A and IV-A fire-resistance ratings.
질문 # 17

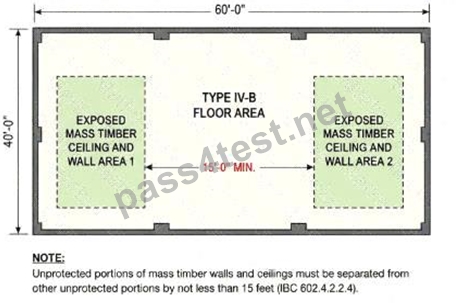

Refer to the figure by clicking on the EXHIBIT button above.
In Type IV-B construction, unprotected portions of mass timber as shown in the Figure are required to be separated by _____ feet.
정답：C
설명：
The required separation is 15 feet , making option B correct. Section 602.4.2.2.4 of the 2021 IBC specifically regulates the separation distance between unprotected mass timber elements in Type IV-B construction.
Within each dwelling unit or fire area, unprotected portions of mass timber walls and ceilings must be separated from other unprotected wall and ceiling portions by not less than 15 feet . For ceiling-related surfaces, the separation is measured horizontally along the ceiling. For wall-to-wall exposure, the applicable separation is measured horizontally along the floor.
This requirement operates in addition to the maximum exposed-area restrictions. A designer therefore cannot merely demonstrate that the exposed ceiling is below 20 percent or that exposed walls are below 40 percent of floor area; the exposed regions must also satisfy the required spatial separation.
The purpose is to prevent multiple exposed mass timber regions from acting as closely spaced fuel packages during a compartment fire. During inspection, dimensions should be checked against the approved documents before required gypsum or other noncombustible protection is completed.
References/Topics: 2021 IBC Section 602.4.2.2.4; separation distance between unprotected Type IV-B mass timber elements.
질문 # 18
For Type IV-A, IV-B, and IV-C construction, each of the following materials on the exterior side of mass timber exterior walls is required to be noncombustible except:
정답：B
설명：
The code provides a specific combustible-material exception for qualifying water-resistive barriers , making option D correct. The exterior-protection provisions for Types IV-A, IV-B, and IV-C require the exterior side of mass timber walls to receive noncombustible protection with at least a 40-minute assigned protection time, and components of the exterior wall covering are generally required to be noncombustible.
A water-resistive barrier may be combustible only where it satisfies stringent fire-performance criteria.
Among those criteria, the 2021 IBC limits peak heat-release rate and total heat release under ASTM E1354 and establishes flame-spread and smoke-developed limits under ASTM E84 or UL 723. The provision therefore does not create a blanket exemption for arbitrary combustible membranes.
Insulation, exterior cladding, and architectural components forming part of the regulated exterior wall covering must comply with the applicable noncombustibility requirements unless some other express code allowance applies. The WRB is the specifically identified exception tested by this question.
During inspection, product identification and fire-test documentation should be checked rather than assuming that a membrane qualifies merely because it is marketed as a water-resistive barrier.
References/Topics: 2021 IBC Sections 602.4.1.1, 602.4.2.1 and 602.4.3.1; exterior wall protection and qualifying water-resistive barriers.
질문 # 19
Refer to the exhibit by clicking on the EXHIBIT button above.
In the detail shown, what is the required screw spacing in inches for the CLT to glulam connection?
정답：A
설명：
The connection detail specifies the CLT-to-glulam screws at 24 inches on center , so option D is correct. This is a construction-document interpretation question rather than a universal prescriptive screw-spacing requirement imposed by the IBC.
The approved structural detail controls the required spacing for this particular connection because the registered design professional has established the connection geometry and fastener schedule based on the applicable structural loads, CLT panel configuration, glulam member, fastener properties, and required load transfer. The 24-inch dimension must therefore be maintained in the field unless an approved revision changes the connection design.
IBC Table 1705.5.3 is directly relevant to the special inspector's responsibilities. For screws used in Type IV- A, IV-B, or IV-C mass timber connections, periodic special inspection includes verification of diameter, length, head type, spacing, installation angle, and installation depth . The special inspector is therefore expected to compare actual field installation against precisely this type of approved connection detail.
Substituting 12-, 16-, or 20-inch spacing without design authorization would constitute a deviation from the approved documents, even if the alternate spacing appeared more conservative.
References/Topics: Approved structural connection detail shown in the exhibit; 2021 IBC Section 1705.5.3 and Table 1705.5.3, inspection of screw spacing and installation.
질문 # 20
All of the following combustible elements may be used in mass timber buildings except:
정답：B
질문 # 21
......
