F5 F5CAB3 Exam Syllabus Topics:

TopicDetails
Topic 1
  • Apply procedural concepts required to modify and manage pools: This domain addresses managing server pools including health monitors, load balancing methods, priority groups, and service port configurations.
Topic 2
  • Apply procedural concepts required to modify and manage virtual servers: This domain covers managing virtual servers including applying persistence, encryption, and protocol profiles, identifying iApp objects, reporting iRules, and showing pool configurations.

>> Free F5CAB3 Exam Dumps <<

Latest F5CAB3 Study Materials | Latest F5CAB3 Demo

Having a good command of processional knowledge in this line, they devised our high quality and high effective F5CAB3 study materials by unremitting effort and studious research. They are meritorious and unsuspecting experts with professional background. By concluding quintessential points into F5CAB3 Preparation engine, you can pass the exam with the least time while huge progress. And our pass rate of the F5CAB3 exam questions is high as 98% to 100%.

F5 BIG-IP Administration Data Plane Configuration Sample Questions (Q50-Q55):

NEW QUESTION # 50
Which of the following has iApp configured objects?

Answer: C

Explanation:
An F5 iApp is a template-driven system used to deploy complex applications by grouping all necessary BIG- IP objects (Virtual Servers, Pools, Profiles) into a single management entity. Objects created by an iApp are distinguished by their naming convention and metadata. In the provided exhibit, the Virtual Server configuration in Option A is clearly identified as an iApp-managed object through two primary indicators.
First, the object resides within a sub-directory or partition ending in .app (/Common/vmware_test.app/).
Second, the configuration explicitly includes the attribute app-service /Common/vmware_test.app
/vmware_test, which serves as the system's internal pointer linking the LTM object back to the parent iApp Application Service. Furthermore, several profiles associated with this virtual server also reside within the same .app container, such as /Common/vmware_test.app/vmware_test_http.
In contrast, Options B, C, and D represent standard, manually created Virtual Servers. While they may have complex configurations (such as the APM profiles in app2_vs and app1_vs), they lack the folder-based naming hierarchy and the app-service metadata attribute that denotes iApp ownership. Standard objects like app1_vs are managed individually, whereas the objects within vmware_test.app are typically protected by
"Strict Updates." This means their configuration is controlled by the iApp's template logic; any manual attempt to modify these specific parameters directly via the Virtual Server menu would result in an error message stating the service must be updated via the application management interface. Identifying these objects is a critical procedural step for administrators to determine whether a configuration should be edited through the standard LTM menus or through the iApp's "Reconfigure" tab to ensure consistency and prevent manual changes from being overwritten by the template.


NEW QUESTION # 51
Refer to the exhibit.

A BIG-IP Administrator needs to configure health monitors for a newly configured server pool named Pool_B. Which health monitor settings will ensure that all pool members will be accurately marked as available or unavailable?

Answer: B

Explanation:

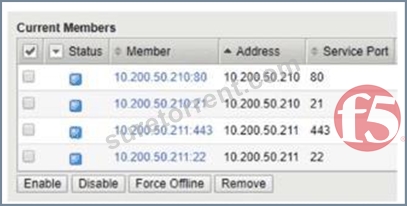

The pool member list in the exhibit shows servers listening on four distinct service ports: 80 (HTTP), 21 (FTP), 443 (HTTPS), and 22 (SSH). To accurately monitor a pool where members provide different services, the administrator must apply monitors that correspond to each of those specific services.
The key to this configuration is the Availability Requirement (also known as "Monitor Rule"). If the administrator sets the requirement to "All health monitors," every single monitor (HTTP, HTTPS, FTP, and SSH) must pass for a member to be marked "Up." This would cause an immediate failure: for example, a server listening only on port 80 would fail the HTTPS, FTP, and SSH checks, resulting in the member being marked "Down" even if the HTTP service is healthy.
To ensure accuracy, the administrator should apply all four relevant monitors and set the Availability Requirement to at least one monitor. With this setting, the BIG-IP marks a member as "Up" if any of the assigned monitors return a successful response. Therefore, the member at 10.200.50.210:80 will stay "Up" as long as the HTTP monitor passes, even though it fails the FTP, HTTPS, and SSH monitors. This configuration allows a single pool to contain diverse service types while ensuring that the specific port defined for each member is verified correctly. Option C is incorrect because ICMP only checks if the IP is alive, not if the specific service port is functioning.


NEW QUESTION # 52
A Standard Virtual Server for a web application is configured with SNAT Automap. The original client IP must be known by backend servers.
What should the BIG-IP Administrator configure?

Answer: A

Explanation:
X-Forwarded-For inserts the original client IP into HTTP headers while SNAT is enabled.


NEW QUESTION # 53
How will the BIG-IP system distribute the traffic based on the configuration below?
pool my_pool {
lb_mode fastest
min_active_members 2
member 10.12.10.7:80 priority 3
member 10.12.10.8:80 priority 3
member 10.12.10.9:80 priority 3
member 10.12.10.4:80 priority 2
member 10.12.10.5:80 priority 2
member 10.12.10.6:80 priority 2
member 10.12.10.1:80 priority 1
member 10.12.10.2:80 priority 1
member 10.12.10.3:80 priority 1
}
(Pick the 2 correct responses below)

Answer: A,B

Explanation:
The configuration provided utilizes Priority Group Activation in conjunction with the min_active_members setting. Priority groups allow an administrator to define primary servers and "backup" servers within the same pool. The BIG-IP prioritizes traffic based on the assigned priority number, with the highest number receiving traffic first.
In this specific configuration, the priority 3 group is the primary group. Therefore, connections are first distributed to all pool members with priority 3 as long as they are available. The system will continue to use only the priority 3 group unless the number of available members in that group falls below the min_active_members value, which is set to 2.
If the priority 3 group has fewer than two active members, the BIG-IP "activates" the next available priority group (priority 2) and distributes traffic among the remaining members of priority 3 and all members of priority 2. This cascading logic continues down the list. Consequently, if both the priority 3 group and the priority 2 group have fewer than two members available, traffic is directed to the priority 1 group. This ensures that even in a multi-server failure scenario, the system has a last-resort group of servers to handle the traffic.
Option D is incorrect because if only one member of priority 3 goes down, there are still two members active (10.12.10.8 and 10.12.10.9). Since 2 is not less than the min_active_members threshold of 2, the priority 2 group will not yet be activated. Option B is incorrect because traffic flows from high priority to low priority, not the other way around.


NEW QUESTION # 54
During high-demand traffic events, the BIG-IP Administrator needs to limit new connections per second.
What should be applied?

Answer: D

Explanation:
Connection rate limiting controls how many new connections per second are accepted, protecting backend resources.


NEW QUESTION # 55
......
