NSE7_FSN_AR-7.6 考題寶典由 Testpdf 在世界各地的資深IT工程師組成的專業團隊製作完成，Fortinet 的 NSE7_FSN_AR-7.6 考題寶典內包含最新的 NSE7_FSN_AR-7.6 考試試題，並附有全部正確答案，保證一次輕鬆通過 NSE7_FSN_AR-7.6 考試，完全無需購買其他額外的NSE7_FSN_AR-7.6 複習資料。並且購買 NSE7_FSN_AR-7.6 考題後，享有一年的免費更新服務。
| Section | Objectives |
|---|---|
| SD-WAN | - Centralized management
|
| Enterprise Firewall | - Authentication and Access Control
|
>> 最新Fortinet NSE7_FSN_AR-7.6題庫資源 <<
也許在其他的網站或書籍上，你也可以沒瞭解到相關的培訓資料。但是只要你把Testpdf的產品和哪些資料做比較，你就會發現我們的產品覆蓋面更廣。你也可以在Testpdf的網站上免費下載關於Fortinet NSE7_FSN_AR-7.6 認證考試的部分考試練習題和答案來為試用，來檢測我們產品的品質。Testpdf之所以能夠獨一無二地提供全面和高品質的資料的原因是我們擁有專業的專家團隊。他們不斷利用自己的IT知識和豐富的經驗來研究Fortinet NSE7_FSN_AR-7.6 認證考試的往年的考題而推出了Fortinet NSE7_FSN_AR-7.6 認證考試的考試練習題和答案。所以Testpdf的Fortinet NSE7_FSN_AR-7.6 認證考試的最新考試練習題和答案深受參加Fortinet NSE7_FSN_AR-7.6 認證考試的考生的歡迎。
問題 #40
Refer to the exhibits.
How does FortiGate handle traffic with the source IP address 10.0.1.125 and the destination IP address
128.66.0.125?
答案：B
解題說明：
The traffic matches service 2's address criteria: 10.0.1.125 belongs to the configured source range 10.0.1.0-
10.0.1.255, and 128.66.0.125 belongs to the destination range 128.66.0.0-128.66.255.255. Service 2 lists port7 and port8 as selected SLA members and uses round-robin load balancing.
However, the SD-WAN guide states: "SD-WAN requires a valid route in the forwarding information base (FIB) so the member can be used to steer traffic." The routing table contains routes through port7 and port8 only for 10.0.1.0/24. It contains no route to 128.66.0.125 through either member.
The only route covering the destination is the default route, which has equal-cost paths through port1 and port2. Consequently, port7 and port8 cannot be used for this flow despite being SLA-selected. FortiGate skips the unusable explicit SD-WAN rule and processes the traffic through the implicit rule using standard FIB routing. Therefore, option A is correct. Options B and C incorrectly assume that selected overrides route availability, while option D is incorrect because valid default routes exist.
問題 #41
Refer to the exhibit, which contains partial output from an IKE real-time debug.
The administrator does not have access to the remote gateway.
Based on the debug output, which configuration change the administrator make to the local gateway to resolve the phase 1 negotiation error?
答案：C
問題 #42
What are two reasons you might see iprope_in_check() check failed, drop when using the debug flow?
(Choose two.)
答案：A,C
解題說明：
The Network Security Support Engineer 7.6 Study Guide explicitly explains this debug message:
"iprope_in_check() check failed, drop" means the packet is destined to a FortiGate IP address and one of these conditions applies:
The service is not enabled
The service is using a different TCP port
The source IP address is not included in the trusted host list
The packet matches a local-in policy with action deny
That directly confirms C. Trusted host list misconfiguration.
Why D is the second valid choice:
The FortiOS administration guide explains that:
"IP pools and VIPs are considered local IP addresses if responding to ARP requests on these external IP addresses is enabled ... the FortiGate is considered a destination for those IP addresses ... once an IP pool or VIP has been configured ... the FortiGate considers it as a local address and will not forward traffic based on the routing table." Because iprope_in_check() is a local-in/local-destination type failure, a VIP or IP pool misconfiguration can cause traffic to be treated as destined for the FortiGate itself, which can then trigger this drop condition if the matching local service/local-in handling is not valid. So D is the closest supported second answer from the available choices.
Why the other options are wrong:
A is wrong because policy route problems are not the documented meaning of this specific debug message.
The study guide instead ties iprope_in_check() check failed, drop to management/local-in conditions.
B is wrong because the study guide says traffic shaping drops appear as: "Denied by quota check"
問題 #43

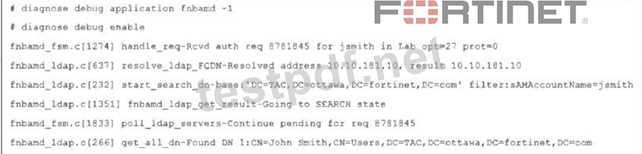

Refer to the exhibit, which shows a partial output of a real-time LDAP debug.
What two conclusions can you draw from the output? (Choose two.)
答案：C,D
解題說明：
The exhibit includes these key debug lines:
start_search_dn-base: ' DC=TAC,DC=ottawa,DC=fortinet,DC=com ' filter:sAMAccountName=jsmith get_all_dn-Found DN 1:CN=John Smith,CN=Users,DC=TAC,DC=ottawa,DC=fortinet,DC=com The study guide explains that in regular bind, LDAP authentication has four steps, and that during step 2, FortiGate searches the LDAP tree to find the user's DN:
"During the second step, FortiGate does a search query in the LDAP database to find the user's location-in other words, the user's DN. If the user is found, the server replies with the user's DN." It also states for the real-time debug of step 2:
"An fnbamd_ldap_build_dn_search_req-base message indicates that FortiGate is performing step two:
searching for the user in the LDAP tree. This message includes the base branch (distinguished name setting) and the name of the attribute used to locate the user... If the LDAP server finds the user, the output shows the user's full DN." That directly proves:
D is correct because the debug is showing step 2: Search Request
A is correct because the base DN and found DN are under DC=TAC,DC=ottawa,DC=fortinet,DC=com, which corresponds to the LDAP domain/tree root TAC.ottawa.fortinet.com Why the other options are wrong:
B is wrong because binding with the user's credentials is step 3, not the step shown here. The study guide says: "Step 3 - Bind user credentials" and shows that this happens later with fnbamd_ldap_build_userbind_req / __ldap_build_bind_req-Binding to ' CN=John Smith... ' C is wrong because collecting user group information is step 4, not the step shown in the exhibit. The study guide says: "The last step is to get the user group information" and shows step 4 with Attr query / memberOf search
問題 #44
Refer to the exhibit.

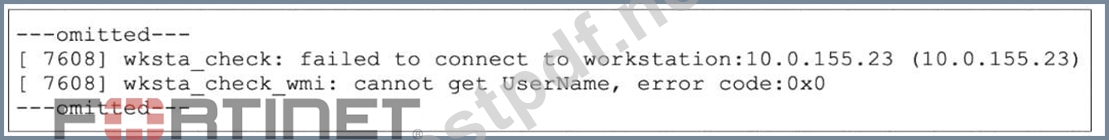

The output from a collector agent log is shown. The collector agent is showing the status of a workstation as Not Verified . What are two common causes for this message? (Choose two.)
答案：B,C
解題說明：
The correct answers are B and C .
The study guide has a section titled "Not Verified Status on the Collector Agent" and states:
"The collector agent cannot verify if the user is still logged in" and lists these common causes :
* "A firewall is blocking traffic to port 139 and 445"
* "The workstation remote registry service is not running"
The guide also explains the verification method:
"For WMI polling mode, the collector agent checks the WMI service. For all the other modes, the collector agent checks the HKEY_USERS hive through remote registry services." If the workstation does not respond to these checks, the status can become not verified An additional requirements slide in the same study guide confirms:
* "TCP ports 139 and 445 must be open between the collector agent and all workstations"
* "Remote registry service must be up and running on each workstation"
Why the other options are wrong:
* A is wrong because the study guide mentions a workstation coming out of hibernate mode under a different problem: "No Internet After IP Address Change" , not as a common cause of Not Verified status
* D is wrong because DNS resolution issues are also discussed under the IP address change scenario, where the collector agent uses DNS to resolve the workstation name after an IP change. That is separate from the Not Verified causes listed for this log message So the verified answers are: B, C .
問題 #45
......
近來，Fortinet的認證考試越來越受大家的歡迎。Fortinet的認證資格也變得越來越重要。作為被 IT行業廣泛認可的考試，NSE7_FSN_AR-7.6認證考試是Fortinet中最重要的考試之一。取得了這個考試的認證資格，你就可以獲得很多的利益。如果你也想參加這個考試的話，Testpdf的NSE7_FSN_AR-7.6考古題是你準備考試的時候不能缺少的工具。因为这是NSE7_FSN_AR-7.6考试的最优秀的参考资料。
