NEW QUESTION # 32
Which two statements about Security Fabric communications are true? (Choose two.)
Answer: B,C
Explanation:
Comprehensive and Detailed Explanation From Exact Extract of Network Security Support Engineer Study Guide (FortiOS 7.6) topics:
The correct answers are A and B . Security Fabric communication uses Fortinet-proprietary protocols, mainly FortiTelemetry and Neighbor Discovery . The study guide states that FortiTelemetry uses TCP port 8013
, and that the connection is always established by the downstream FortiGate toward the upstream FortiGate
. This validates option A . The same section also states that FortiTelemetry must be manually enabled .
More precisely, the upstream FortiGate interface must have Security Fabric Connection enabled under administrative access so it can accept incoming Security Fabric connection requests. This validates option B .
Option C is wrong because only the FortiTelemetry TCP port 8013 can be changed; Neighbor Discovery uses UDP port 8014 and cannot be changed. Option D is also wrong because Security Fabric communication is not enabled automatically among all Fortinet devices. It requires the correct Security Fabric settings, interface administrative access, and downstream authorization. The study guide's troubleshooting section confirms that when FortiTelemetry is disabled, the upstream FortiGate receives TCP 8013 SYN packets but does not complete the Security Fabric connection.
NEW QUESTION # 33

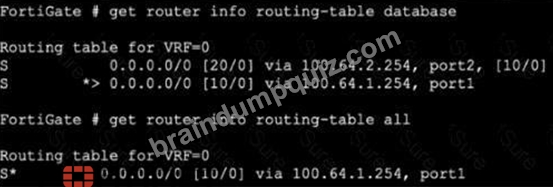

Refer to the exhibit, which shows partial outputs from two routing debug commands.
Why is the port2 default route not in the second command output?
Answer: A
Explanation:
The correct answer is D .
In the exhibit, get router info routing-table database shows both static default routes:
* 0.0.0.0/0 [20/0] via 100.64.2.254, port2
* 0.0.0.0/0 [10/0] via 100.64.1.254, port1
But get router info routing-table all shows only:
* 0.0.0.0/0 [10/0] via 100.64.1.254, port1
The study guide explains that get router info routing-table all displays the routes that make it to the FIB
- the best active routes . It also says that this command doesn't show standby or inactive routes , which can remain only in the routing table database. It gives the exact rule: "when two static routes to the same destination subnet have different distances, the one with the lower distance is installed in the routing table, and the one with the higher distance is installed in the routing table database." The study guide also shows the route selection process:
* Most specific route
* Lowest distance
* Lowest metric (dynamic routes)
* Lowest priority (static routes)
* ECMP
So the port2 default route is absent from the second output because its distance is 20 , while the port1 default route has distance 10 . The lower-distance route is installed in the active routing table/FIB.
Why the other options are wrong:
* A is wrong because the exhibit does not indicate port2 is down or disabled.
* B and C are wrong because priority is checked only after distance for static routes. Here, the routes already differ by distance , so priority is not the deciding factor.
So the verified answer is: D .
NEW QUESTION # 34
Which Iwo actions does FortiGate take after an administrator enables the auxiliary session selling? (Choose two.)
Answer: B,D
Explanation:
When the " auxiliary session " setting is enabled (typically via config system npu or implicitly for ECMP on NP6/NP7 processors), the FortiGate alters how it manages sessions to support hardware offloading for traffic that might switch interfaces (like ECMP or SD-WAN).
B). FortiGate accelerates all ECMP traffic to the NP6 processor:
The primary purpose of enabling auxiliary sessions is to ensure that ECMP traffic can be fully offloaded (accelerated) by the NPU. Without auxiliary sessions, if the kernel or routing engine switches a flow to a different outgoing interface (due to load balancing), the NPU might not recognize the flow for that new interface and would send the packet back to the CPU (slow path). Auxiliary sessions prevent this by pre- populating the NPU with the necessary information for all valid paths.
D). FortiGate creates two sessions in case of a routing change:
Technically, the FortiGate creates the primary session (for the currently selected path) and an auxiliary session (for the alternative path). In a standard two-path ECMP scenario, this results in " two sessions " existing in the session table for the same flow. This ensures that if a routing change occurs (e.g., the flow shifts to the second path), the traffic continues to be processed by the NPU without interruption or re- evaluation by the CPU.
NEW QUESTION # 35

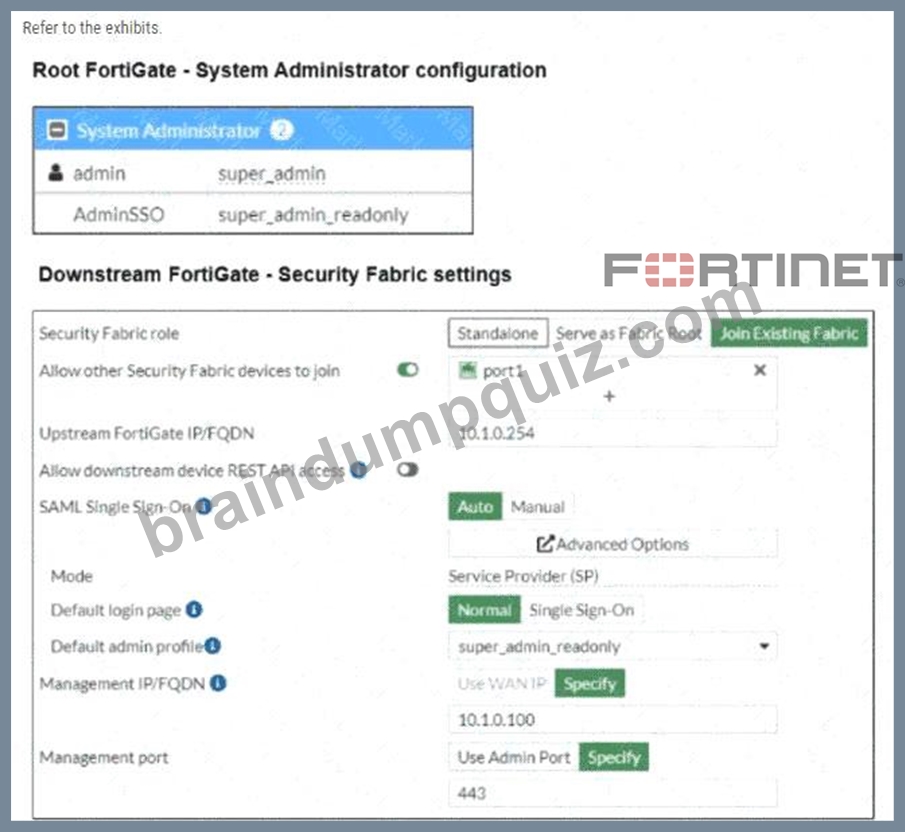

Refer to the exhibits.
The system administrator settings configured on the root FortiGate and the Security Fabric settings configured on a downstream FortiGate are shown.
When prompted to sign in with Security Fabric to the downstream FortiGate, a user enters the single sign-on (SSO) provider credentials.
What happens next for the user?
Answer: C
Explanation:
The Enterprise Firewall 7.6 Administrator Study Guide explains: "The root FortiGate acts as the identity provider (IdP) and you configure the other devices as service providers (SP)." Therefore, the root FortiGate authenticates the credentials for the AdminSSO administrator, while the downstream FortiGate operates as the SAML service provider.
After successful authentication, the root FortiGate returns a SAML assertion to the downstream FortiGate.
The downstream device then grants access according to its configured SAML administrator profile. The exhibit shows that its Default admin profile is super_admin_readonly. Consequently, the user is logged in to the downstream FortiGate with read-only super-administrator privileges.
The browser can be redirected temporarily to the root FortiGate for identity-provider authentication, but that is not the final access outcome, so option A is incomplete. AdminSSO is the administrator account name, not an access profile, and the user is not left on the root FortiGate, eliminating option C. Because the credentials are successfully authenticated, option D is also incorrect.
References: Enterprise Firewall 7.6 Administrator Study Guide, Security Fabric - Use Case 4: Security Fabric with SAML SSO, page 266; FortiOS 7.6 - Configuring a downstream FortiGate as an SP; FortiOS 7.6 - SSO administrators.
NEW QUESTION # 36

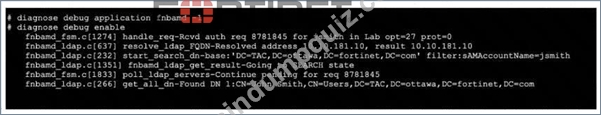

Refer to the exhibit, which shows a truncated output of a real-time LDAP debug.
What two conclusions can you draw from the output? (Choose two.)
Answer: A,B
Explanation:
The exhibit shows these key lines:
* handle_req-Rcvd auth req ... for jsmith in Lab
* start_search_dn-base: ' DC=TAC,DC=ottawa,DC=fortinet,DC=com ' filter:sAMAccountName=jsmith
* get_all_dn-Found DN 1:CN=John Smith,CN=Users,DC=TAC,DC=ottawa,DC=fortinet,DC=com The study guide explicitly shows the same LDAP real-time debug pattern and says the request line includes the LDAP server object name:
handle_req-Rcvd auth req ... for jsmith in Lab ...
That supports A : Lab is the configured LDAP server name being used for this authentication request.
For the LDAP flow stage, the study guide states:
"An fnbamd_ldap_build_dn_search_req-base message indicates that FortiGate is performing step two:
searching for the user in the LDAP tree." It also says that if the LDAP server finds the user, the output shows the user's full DN.
That matches the exhibit's start_search_dn-base ... filter:sAMAccountName=jsmith and Found DN ...
CN=John Smith... lines, so D is correct.
Why the other options are wrong:
* B is wrong because the exhibit shows FortiOS has found the user DN CN=John Smith,..., but that does not mean the user is already authenticating with that DN in this step. The study guide says this DN is discovered in step 2 , and only in step 3 does FortiGate bind using the user DN.
* C is wrong because the exhibit is showing step 2 (Search Request) , not step 3 (Bind Request) . The study guide separates these steps clearly and shows step 3 with fnbamd_ldap_build_userbind_req- Trying DN ... and __ldap_build_bind_req-Binding to ' CN=John Smith,... '
NEW QUESTION # 37
......
