| Section | Weight | Objectives |
|---|---|---|
| Security Policy & Services | 10% | - NAT & IP pool optimization - Advanced firewall & security profile design - Identity-based policies |
| Centralized Management | 20% | - FortiManager 7.6 deployment & role assignment - Policy packages & object templates - Configuration provisioning & version control - FortiAnalyzer logging & reporting |
| Advanced Routing & VPN | 25% | - OSPF, BGP, IS-IS configuration & optimization - Route redistribution & filtering - IPsec VPN & ADVPN architecture - SD-WAN design & SLA management |
| Monitoring & Troubleshooting | 10% | - Diagnostic tools & CLI analysis - Connectivity & performance troubleshooting - Fabric synchronization issues |
| High Availability & Redundancy | 15% | - Session synchronization & failover - Cross-data center redundancy - FGCP/FGSP/vCluster deployment |
| System Architecture & Design | 20% | - VDOM design & multi-tenant deployment - FortiOS 7.6 architecture & components - Security Fabric integration & scaling - Hardware sizing & resource planning |
>> Relevant NSE7_FSN_AR-7.6 Questions <<
The earlier you get NSE7_FSN_AR-7.6 exam certification, the more helpful for you to have better development in IT industry. Maybe you have heard that the important NSE7_FSN_AR-7.6 exam will take more time or training fee, because you haven't use our NSE7_FSN_AR-7.6 exam software provided by our FreeCram. The complex collection and analysis of NSE7_FSN_AR-7.6 Exam Materials have been finished by our professional team for you. You just need to effectively review and pass NSE7_FSN_AR-7.6 exam successfully.
NEW QUESTION # 87
In a transparent VDOM interface, what does the command set forward-domain < domain_ID > do?
Answer: D
Explanation:
In transparent mode, FortiGate forwards traffic at Layer 2, and interfaces in a transparent VDOM belong to the same broadcast domain by default. The Enterprise Firewall 7.6 Administrator Study Guide explains that set forward-domain < domain_ID > subdivides that transparent VDOM into separate broadcast domains.
Fortinet recommends using the VLAN ID as the forward-domain ID where appropriate because it makes the relationship straightforward to identify. Therefore, C correctly describes the command ' s purpose.
The setting is unrelated to FortiManager administrative domains (ADOMs), eliminating A. It does not specifically restrict management traffic, so B is incorrect. Nor does it enable an interface to operate across multiple VLANs as D suggests. Instead, interfaces assigned to different forward domains are Layer 2 isolated from one another within the transparent VDOM.
NEW QUESTION # 88

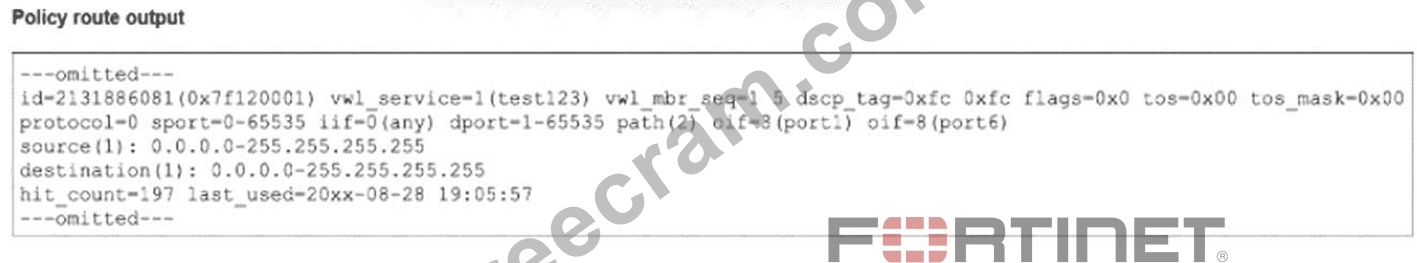

The output of a policy route table entry is shown.
Which type of policy route does the output show?
Answer: D
Explanation:
To determine the type of policy route, we must interpret the specific flags and fields visible in the diagnose firewall proute list (or similar kernel table) output provided in the exhibit Identify Key Indicators:
The most critical field in the output is vwl_service=1(test123).
It also lists vwl_mbr_seq=1 5.
Decode the Terminology:
vwl: This stands for Virtual WAN Link. In FortiOS, " Virtual WAN Link " is the legacy internal name for the SD-WAN feature. Even in newer firmware versions (7.x), the kernel and CLI debugs often still refer to SD- WAN objects as vwl.
vwl_service: This specifically refers to an SD-WAN Rule (also known as an SD-WAN Service). The name (test123) is the name given to that specific SD-WAN rule by the administrator.
Evaluate the Options:
A & D (Regular Policy Route): Standard policy routes (configured under config router policy) do not carry the vwl_service tag. They are typically identified by simple gateway or interface instructions without the SD- WAN service abstraction.
B (ISDB Route): While SD-WAN rules can use the Internet Service Database (ISDB) as a destination, the structure of the route entry shown here-specifically defined by a vwl_service ID-classifies it fundamentally as an SD-WAN rule, regardless of the destination object.
C (An SD-WAN rule): The presence of vwl_service and vwl_mbr_seq (SD-WAN member sequence) definitively identifies this entry as a rule generated by the SD-WAN subsystem.
Conclusion: The output shows a route controlled by the SD-WAN engine (vwl), confirming it is an SD-WAN rule.
Reference:
FortiGate Security 7.6 Study Guide (SD-WAN): " In the kernel routing table and debugs, SD-WAN rules are often referenced as vwl (Virtual WAN Link) services. The vwl_service field indicates the specific SD-WAN rule ID and name. "
NEW QUESTION # 89

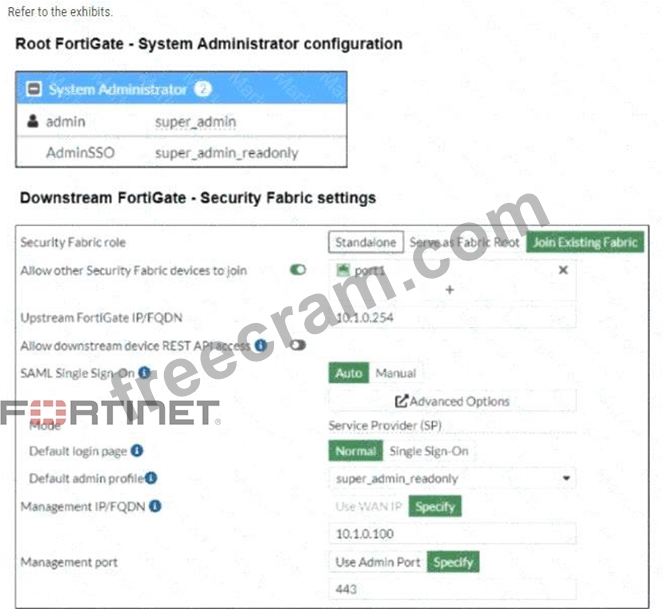

Refer to the exhibits.
The system administrator settings configured on the root FortiGate and the Security Fabric settings configured on a downstream FortiGate are shown.
When prompted to sign in with Security Fabric to the downstream FortiGate, a user enters the single sign-on (SSO) provider credentials.
What happens next for the user?
Answer: D
Explanation:
The Enterprise Firewall 7.6 Administrator Study Guide explains: "The root FortiGate acts as the identity provider (IdP) and you configure the other devices as service providers (SP)." Therefore, the root FortiGate authenticates the credentials for the AdminSSO administrator, while the downstream FortiGate operates as the SAML service provider.
After successful authentication, the root FortiGate returns a SAML assertion to the downstream FortiGate.
The downstream device then grants access according to its configured SAML administrator profile. The exhibit shows that its Default admin profile is super_admin_readonly. Consequently, the user is logged in to the downstream FortiGate with read-only super-administrator privileges.
The browser can be redirected temporarily to the root FortiGate for identity-provider authentication, but that is not the final access outcome, so option A is incomplete. AdminSSO is the administrator account name, not an access profile, and the user is not left on the root FortiGate, eliminating option C. Because the credentials are successfully authenticated, option D is also incorrect.
References: Enterprise Firewall 7.6 Administrator Study Guide, Security Fabric - Use Case 4: Security Fabric with SAML SSO, page 266; FortiOS 7.6 - Configuring a downstream FortiGate as an SP; FortiOS 7.6 - SSO administrators.
NEW QUESTION # 90

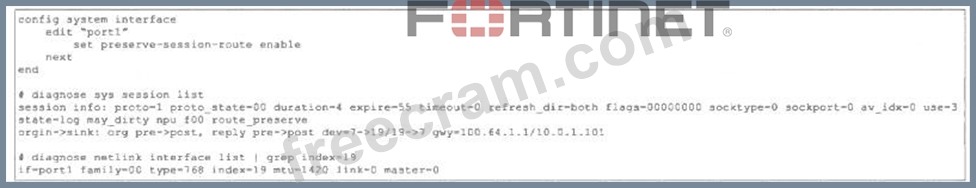

Refer to the exhibit, which shows the port1 interface configuration on FortiGate and partial session information for ICMP traffic.
What happens to the session information if a routing change occurs that affects this session?
Answer: D
NEW QUESTION # 91

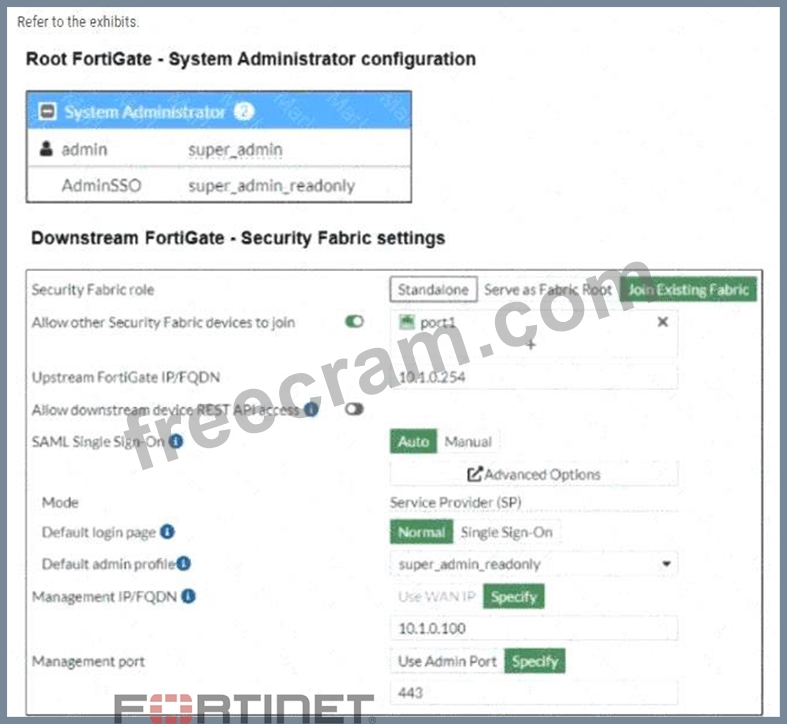

Refer to the exhibits.
The system administrator settings configured on the root FortiGate and the Security Fabric settings configured on a downstream FortiGate are shown.
When prompted to sign in with Security Fabric to the downstream FortiGate, a user enters the single sign-on (SSO) provider credentials.
What happens next for the user?
Answer: D
Explanation:
The Enterprise Firewall 7.6 Administrator Study Guide explains: "The root FortiGate acts as the identity provider (IdP) and you configure the other devices as service providers (SP)." Therefore, the root FortiGate authenticates the credentials for the AdminSSO administrator, while the downstream FortiGate operates as the SAML service provider.
After successful authentication, the root FortiGate returns a SAML assertion to the downstream FortiGate.
The downstream device then grants access according to its configured SAML administrator profile. The exhibit shows that its Default admin profile is super_admin_readonly. Consequently, the user is logged in to the downstream FortiGate with read-only super-administrator privileges.
The browser can be redirected temporarily to the root FortiGate for identity-provider authentication, but that is not the final access outcome, so option A is incomplete. AdminSSO is the administrator account name, not an access profile, and the user is not left on the root FortiGate, eliminating option C. Because the credentials are successfully authenticated, option D is also incorrect.
References: Enterprise Firewall 7.6 Administrator Study Guide, Security Fabric - Use Case 4: Security Fabric with SAML SSO , page 266; FortiOS 7.6 - Configuring a downstream FortiGate as an SP ; FortiOS 7.6
- SSO administrators .
NEW QUESTION # 92
......
