After you pay for our 300-515 exam material online, you will get the link to download it in only 5 to 10 minutes. You don't need to worry about safety in buying our 300-515 exam materials. Our products are free from computer virus and we will protect your private information. You won't get any telephone harassment or receiving junk E-mails after purchasing our 300-515 Study Guide. If we have a new version of your study material, we will send an E-mail to you. Whenever you have questions about our 300-515 study material, you are welcome to contact us via E-mail.
| Certification Vendor: | Cisco |
|---|---|
| Exam Name: | Implementing Cisco Service Provider VPN Services (SPVI) |
| Exam Number: | 300-515 SPVI |
| Certificate Validity Period: | 3 years (CCNP certification validity) |
| Exam Price: | USD 300 (may vary by region) |
| Exam Format: | Multiple choice, Multiple answer, Simulations / simlets |
| Available Languages: | Portuguese, English, Spanish, Simplified Chinese, Japanese |
| Related Certifications: | CCNP Service Provider Core (350-501 SPCOR) |
| Exam Duration: | 90 minutes |
| Real Exam Qty: | 55–65 |
| Recommended Training: | Cisco Learning Network - SPVI Training Cisco Official Training Courses (Service Provider) |
| Exam Registration: | Pearson VUE Cisco Exams Cisco Certification Exam Registration |
| Sample Questions: | Cisco 300-515 Sample Questions |
| Exam Way: | Online proctored exam or test center via Pearson VUE |
| Pre Condition: | No formal prerequisites. However, CCNP Service Provider certification requires passing the core exam (350-501 SPCOR) plus this concentration exam. |
| Official Syllabus URL: | https://www.cisco.com/c/en/us/training-events/training-certifications/exams/current-list/spvi-300-515.html |
>> Test 300-515 Passing Score <<
If you study on our 300-515 study engine, your preparation time of the 300-515 exam will be greatly shortened. Firstly, the important knowledge has been picked out by our professional experts. You just need to spend about twenty to thirty hours before taking the Real 300-515 Exam. Also, our workers have made many efforts on the design of the system. You will never feel bored when you study on our 300-515 preparation materials. You will find learning can also be a pleasant process.
Cisco 300-515 certification exam is a 90-minute exam that consists of 60-70 multiple-choice and multiple-answer questions. 300-515 exam is available in English and Japanese languages and can be taken at any Pearson VUE testing center. To pass the exam, candidates must score at least 70% or higher.
Cisco 300-515 exam, also known as Implementing Cisco Service Provider VPN Services, is designed to test the knowledge and skills required to implement and manage virtual private network (VPN) solutions in a service provider environment. 300-515 Exam is targeted towards network engineers, network architects, and systems administrators who are responsible for deploying and managing VPN services for service providers.
NEW QUESTION # 158

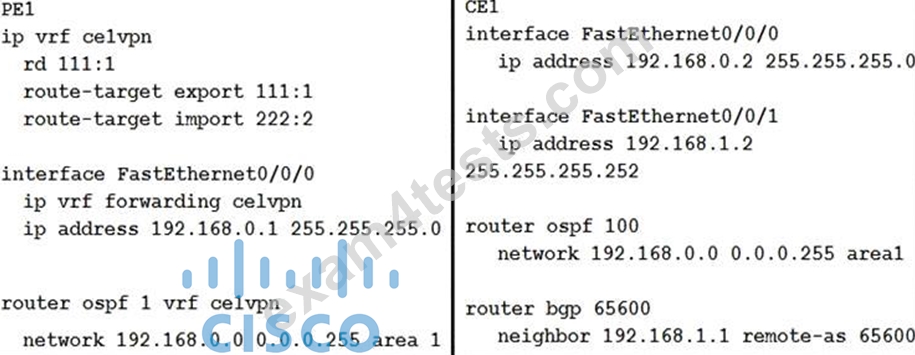

Refer to the exhibit.
If the two devices are operating normally, which two conclusions can you draw from this configuration?
(Choose two.)
Answer: B,E
NEW QUESTION # 159

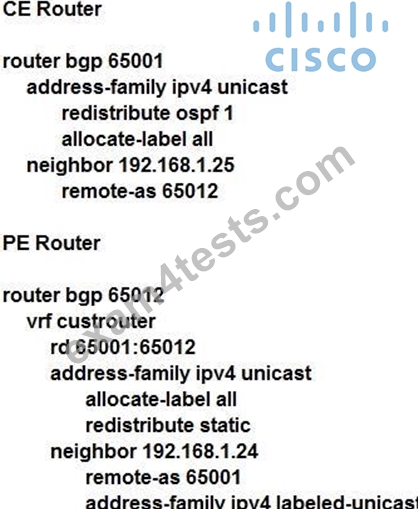

Refer to the exhibit. The CE router has established a BGP peering with the PE router, and the CE will use the core infrastructure of the PE as a backbone carrier to support CSC.
Which additional task can you perform to complete the configuration?
Answer: A
NEW QUESTION # 160
SIMULATION 6
Guidelines
This is a lab item in which tasks will be performed on virtual devices.
Refer to the Tasks tab to view the tasks for this lab item
Refer to the Topology tab to access the device console(s) and perform the tasks.

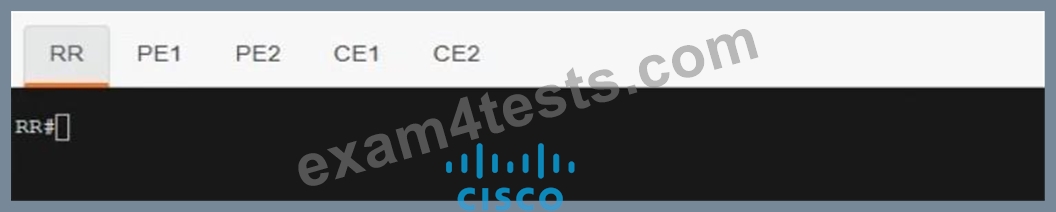

Console access is available for all required devices by clicking the device icon or using the
tab(s) above the console window.
All necessary pre-configurations have been applied.
Do not remove any existing configurations from the devices, only those necessary to make the
appropriate changes required to fulfill the listed tasks.
Do not change the enable password or hostname for any device.
Save your configurations to NVRAM before moving to the next item.
Click Next at the bottom of the screen to submit this lab and move to the next question.
When Next is clicked, the lab closes and cannot be reopened.

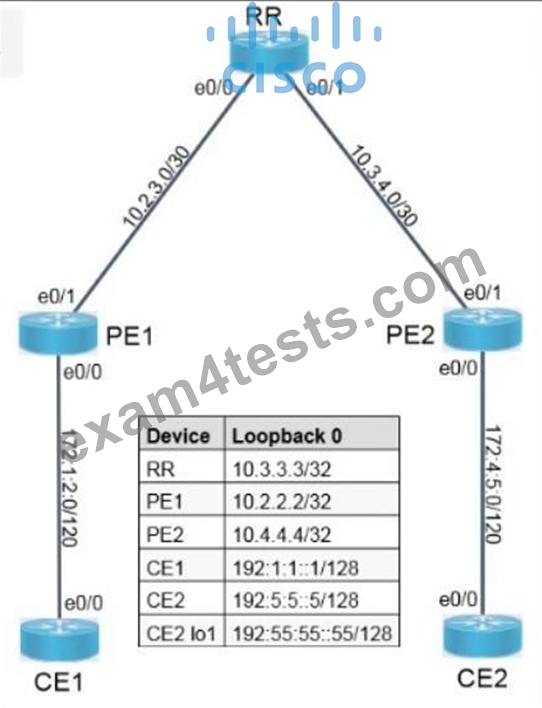

Topology
Tasks
CE1 and CE2 are IPv6 Customer Premise Equipment of two customers that communicate with each other through the MPLS L3VPN core comprising Provide Edge PE1, PE2, and route- reflector RR.
Perform the below configuration and verification tasks as noted.
1. Troubleshoot and modify the CEs to establish IPv6 BGP sessions with the PEs.
2. Troubleshoot and modify the PEs to receive the remote CE's advertised route in their BGP VRF table.
Initial configuration with IPv6 addressing has been completed. Do not change the configurations except to fulfill the abovementioned tasks.
Apply the solution with the minimum configuration.
Answer:
Explanation:
See explanation below.
Explanation:

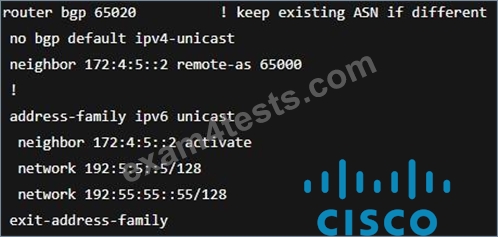

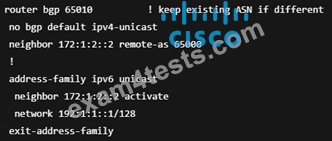

CE1
CE2

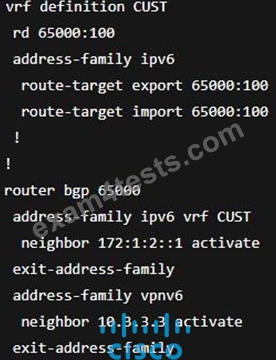

PE1
PE2
Route-Reflector (RR)
CE routers: Enabling the IPv6 address-family, activating the PE neighbor, and advertising the internal /128 loopbacks brings the eBGP IPv6 sessions up.
PE routers:
Under address-family ipv6 vrf CUST the CE neighbors are activated so the PE learns the
customer routes.
Matching route-target import/export ensures those VPNv6 routes are exported to RR and
imported by the remote PE.
Activating the RR neighbor under address-family vpnv6 allows VPNv6 prefixes to flow between
PEs through the route-reflector.
RR: Activating each PE as a VPNv6 peer reflects the VPNv6 routes between them, so each PE receives the remote CE's IPv6 prefixes in its VRF BGP table.
NEW QUESTION # 161
What is the role of an EVC?
Answer: B
Explanation:
An Ethernet Virtual Circuit (EVC) is the fundamental Layer 2 construct in Carrier Ethernet, providing a point-to-point or multipoint-to-multipoint Layer 2 "circuit" between customer UNI endpoints.
NEW QUESTION # 162
An engineer is troubleshooting an ongoing network outage. Which command should he use that can display the live log files for a process or service running on a network device?
Answer: B
NEW QUESTION # 163
......
