| Section | Weight | Objectives |
|---|---|---|
| Topic 1: High Availability and Resiliency | 5-10% | - Network resiliency design and troubleshooting - Redundancy protocols and failover mechanisms - Graceful restart and non-stop routing |
| Topic 2: OSPF | 15-20% | - Neighbor formation, area design and LSA types - Route summarization and redistribution - Configuration, verification and troubleshooting |
| Topic 3: Layer 2 Switching and VLANs | 15-20% | - Link Aggregation Groups (LAG) and Virtual Chassis - Spanning Tree Protocol (STP, RSTP, MSTP) operation and configuration - VLAN concepts, configuration, trunking and tagging |
| Topic 4: IS-IS | 10-15% | - Adjacency establishment, levels and metrics - Configuration and route exchange - Scalable enterprise deployment and troubleshooting |
| Topic 5: Protocol Independent Routing | 10-15% | - Basic routing policy and filter operation - Routing tables, static routes and route preference - Routing instances and route selection criteria |
| Topic 6: Tunnels and Overlays | 5-10% | - Tunnel types, encapsulation and operation - Overlay network design and connectivity - GRE, IP-IP and dynamic tunnel configuration |
| Topic 7: IP Multicast | 5-10% | - IGMP operation and configuration - PIM Dense Mode, Sparse Mode and RP mechanisms - Multicast routing monitoring and troubleshooting |
| Topic 8: BGP | 15-20% | - Routing policies, filtering and common troubleshooting - Route advertisement, attributes and path selection - Neighbor relationships and session establishment |
| Topic 9: Layer 2 Security | 10-15% | - Layer 2 firewall filters and security features - Port security, MAC limiting and storm control - DHCP snooping, Dynamic ARP Inspection and IP Source Guard |
First and foremost, even though our company has become the staunch force in this field for almost ten years and our JN0-352 exam questions have enjoyed such a quick sale in the international market we still keep an affordable price for our customers. Second, we have prepared free demo in this website for our customers to have the first-hand experience of the JN0-352 Latest Torrent compiled by our company before making their final decision. So do not hesitate any more, just hurry up to buy our JN0-352 test question which will never let you down.
NEW QUESTION # 164

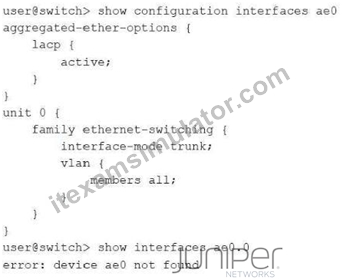

Click the Exhibit button.
You are troubleshooting an aggregated Ethernet interface on a Juniper Networks EX Series Switch. The aggregated Ethernet interface does not appear in the output shown in the exhibit.
Which action will solve this problem?
Answer: A
Explanation:
On EX Series switches, aggregated Ethernet (ae) interfaces do not exist by default; before any ae interface can be created, referenced, or brought into service, an administrator must first reserve the desired number of aggregated Ethernet device slots by configuring set chassis aggregated-devices ethernet device-count number at the [edit chassis] hierarchy. This statement allocates the internal resources needed for that many ae interfaces to exist as valid, configurable objects; until it is committed, any interface-level configuration referencing ae0 (such as the aggregated-ether-options and family ethernet-switching stanzas shown in the exhibit) is accepted syntactically by the CLI but never actually instantiates a live ae0 device, which is exactly why show interfaces ae0.0 returns 'device ae0 not found' despite the interface appearing fully configured.
Increasing the device-count to at least 1 (or higher, to cover the number of LAG bundles planned) immediately resolves this and allows ae0 to appear as an operational interface once its member links are also associated with it. This is a foundational and frequently overlooked prerequisite step in LAG deployment on Juniper switches. There is no separate licensing requirement for aggregated Ethernet functionality on EX Series switches, a reboot is not needed since the chassis statement takes effect upon commit, and the LACP mode (active versus passive) is unrelated to whether the ae interface object itself exists in the first place.
Reference topics: Junos Enterprise Switching - Link Aggregation, Configuring the Aggregated Ethernet Device Count.
NEW QUESTION # 165
After receiving a BGP route, which two conditions are verified by the receiving router to ensure that the received route is valid? (Choose two)
Answer: A,B
Explanation:
B is correct because the loops do not exist is one of the conditions that are verified by the receiving router to ensure that the received BGP route is valid. A loop in BGP means that a route has been advertised by the same AS more than once, which can cause routing instability and inefficiency. To prevent loops, BGP uses the AS-path attribute, which lists the AS numbers that a route has traversed from the origin to the destination. The receiving router checks the AS-path attribute of the received route and discards it if it finds its own AS number in the list. This way, BGP avoids accepting routes that contain loops.
C is correct because the next hop is reachable is one of the conditions that are verified by the receiving router to ensure that the received BGP route is valid. The next hop is the IP address of the next router that is used to forward packets to the destination network. The receiving router checks the next hop attribute of the received route and verifies that it has a valid route to reach it.
If the next hop is not reachable, the received route is not usable and is rejected by the receiving router. This way, BGP ensures that only feasible routes are accepted.
NEW QUESTION # 166

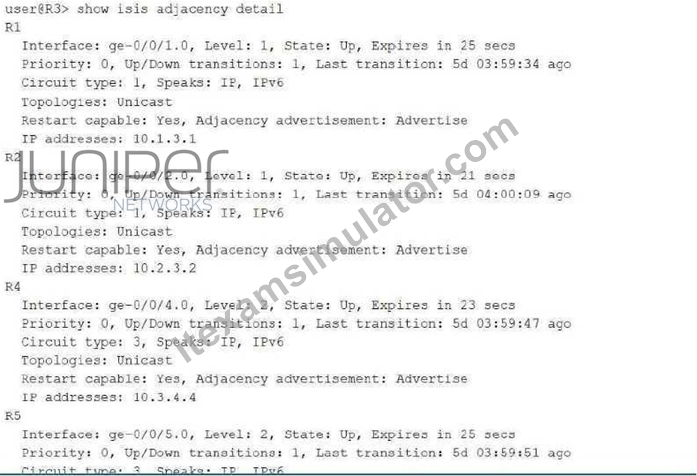

Click the Exhibit button. Which two statements about the IS-IS output shown in the exhibit are correct? (Choose two.)
Answer: A,D
Explanation:
This detailed adjacency output shows R3 maintaining four separate, fully Up adjacencies, evenly split between the two IS-IS levels. R1 and R2 are both formed at Level 1, confirming that R3 is directly adjacent to exactly two Level 1 neighbors within its local area, which validates that statement. R4 and R5 are both formed at Level 2, and Level 2 adjacencies are, by definition, part of the IS-IS backbone that interconnects areas; a router maintaining any Level 2 adjacency is by that fact participating in and connected to the Level 2 backbone, confirming R3's backbone connectivity as well. Every one of the four listed adjacencies explicitly shows 'Speaks: IP, IPv6' in its detail output, which is Junos's way of indicating that both the IPv4 and IPv6 address families have been successfully negotiated and are active over that circuit; this directly contradicts, rather than supports, the claim that IPv6 is disabled on these neighbors -- if IPv6 were disabled, the Speaks field would list only IP. Regarding authentication, the output contains no field, flag, or indication whatsoever referencing authentication configuration or state for the R5 adjacency (or any adjacency); Junos would typically surface authentication-related information separately if it were configured and relevant, and its complete absence here means no basis exists in the exhibit to conclude authentication is required for that specific adjacency.
NEW QUESTION # 167
You have configured an aggregate route for prefix 10.20.0.0/22 with three contributing routes:
10.20.0.0/24, 10.20.1.0/24, and 10.20.2.0/24. A packet arrives destined to 10.20.3.100. In this scenario, which action does the router take?
Answer: C
Explanation:
The 10.20.0.0/22 aggregate covers the four /24 blocks 10.20.0.0/24 through 10.20.3.0/24, but only the first three of those (10.20.0.0/24, 10.20.1.0/24, and 10.20.2.0/24) are configured and present as active contributing routes; 10.20.3.0/24, the block containing the destination address
10.20.3.100, has no corresponding contributing route in this configuration. Because no more- specific route exists for 10.20.3.100, the longest-match lookup falls through the missing /24 and matches only the broader /22 aggregate itself. By default, when Junos installs an aggregate route, it assigns that route a reject next hop rather than any usable forwarding next hop; this is a deliberate design choice so that traffic destined for gaps within an advertised summary block -- gaps where no real, more- specific path actually exists -- is not blindly forwarded toward whatever next hop happens to belong to one of the unrelated contributing routes. A reject next hop causes the router to drop the packet and generate and return an ICMP destination-unreachable message to the originating source, explicitly informing it that no path exists, which is functionally and behaviorally distinct from a silent discard next hop that would drop the packet without any such notification. Aggregate routes never adopt or forward through any single contributing route's next hop, which rules out the two forwarding-based answer choices entirely.
NEW QUESTION # 168
Which two statements about redundant trunk groups on EX Series switches are correct? (Choose two.)
Answer: B,C
Explanation:
Redundant trunk groups are designed to provide link redundancy. If the primary link fails, the secondary link will automatically take over to ensure continued connectivity.
In redundant trunk groups, while regular data traffic is sent over the primary link, Layer 2 control traffic (such as STP, LACP, etc.) is allowed on the secondary link to maintain network stability and protocol operations.
https://www.juniper.net/documentation/us/en/software/junos/multicast-l2/topics/topic-map/redundant-trunk-groups.html
