The biggest advantage of our Advanced VMware Cloud Foundation 9.0 Networking study question to stand the test of time and the market is that our sincere and warm service. To help examinee to pass Advanced VMware Cloud Foundation 9.0 Networking exam, we are establishing a perfect product and service system between us. We can supply right and satisfactory 3V0-25.25 exam questions you will enjoy the corresponding product and service. We canโt say we are the absolutely 100% good, but we are doing our best to service every customer. Only in this way can we keep our customers and be long-term cooperative partners. Looking forwarding to your 3V0-25.25 Test Guide use try!
| Certification Vendor: | VMware |
|---|---|
| Exam Name: | Advanced VMware Cloud Foundation 9.0 Networking |
| Exam Number: | 3V0-25.25 |
| Related Certifications: | VMware Certified Advanced Professional - VMware Cloud Foundation Networking (VCAP-VCF Networking) |
| Exam Format: | Multiple choice, Scenario-based items, Simulation-style questions |
| Exam Duration: | 135 minutes |
| Exam Price: | $250 USD |
| Passing Score: | 300 / 500 |
| Available Languages: | English |
| Real Exam Qty: | 60 |
| Sample Questions: | VMware 3V0-25.25 Sample Questions |
| Exam Way: | Pearson VUE (Online or Test Center) |
| Official Syllabus URL: | https://www.vmware.com/learning/certification/vcap-vcf-networking.html |
>> 3V0-25.25 Valid Exam Review <<
Prep4King dumps has high hit rate that will help you to pass VMware 3V0-25.25 test at the first attempt, which is a proven fact. So, the quality of Prep4King practice test is 100% guarantee and Prep4King dumps torrent is the most trusted exam materials. If you won't believe us, you can visit our Prep4King to experience it. And then, I am sure you must choose Prep4King exam dumps.
| Topic | Details |
|---|---|
| Topic 1 |
|
| Topic 2 |
|
| Topic 3 |
|
| Topic 4 |
|
| Topic 5 |
|

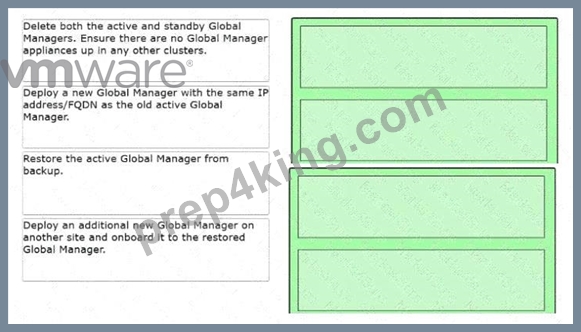

NEW QUESTION # 61
An administrator has noticed that both the active and standby Global Managers have gone offline.
What is the correct sequence of events to restore the Global Managers?

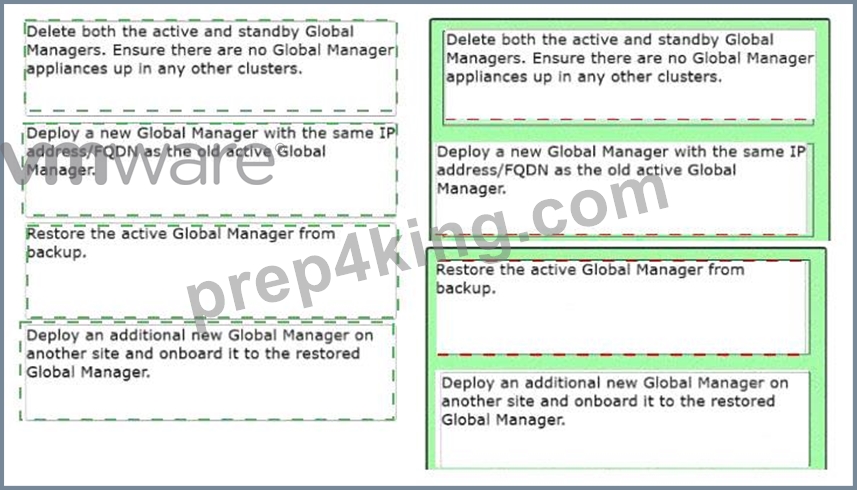

Answer:
Explanation:
Explanation:
* Step 1: Delete both the active and standby Global Managers. Ensure there are no Global Manager appliances up in any other clusters.
* Step 2: Deploy a new Global Manager with the same IP address/FQDN as the old active Global Manager.
* Step 3: Restore the active Global Manager from backup.
* Step 4: Deploy an additional new Global Manager on another site and onboard it to the restored Global Manager.
In aVMware Cloud Foundationmulti-site deployment usingNSX Federation, the Global Manager (GM) manages the global networking configuration across multiple sites. If the entire GM cluster (Active and Standby) fails, the following architectural principles apply:
* Cleanup (Step 1):Before initiating a restore, the environment must be "cleaned." If old, failed VMs remain in the inventory or on the hosts, they can cause IP address conflicts or UUID mismatches during the deployment of the new appliance. You must ensure the management plane is clear of the original failed nodes.
* Identity Consistency (Step 2):When restoring an NSX appliance (Local or Global) from backup, the new appliancemustbe deployed with the exact sameIP address and FQDNas the original active node.
This is critical because the existing Local Managers (LMs) at each site already have established thumbprints and communication channels tied to that specific identity.
* The Restore Operation (Step 3):Once the "seed" appliance is deployed, the restore process is triggered through the NSX Manager UI/API. This process re-populates the database with the global segments, firewall rules, and Tier-0/Tier-1 configurations.
* Restoring Redundancy (Step 4):The backup only contains the configuration of the cluster. It does not
"restore" the standby VM itself. High Availability (HA) must be manually re-established by deploying a second GM appliance at the secondary site and joining it to the newly restored Global Manager cluster to act as the standby.
NEW QUESTION # 62
An administrator is troubleshooting east-west network performance between several virtual machines connected to the same logical segment. The administrator inspects the internal forwarding tables used by ESXi and notices that different tables exist for MAC and IP mapping. Which table on an ESXi host is used to determine the location of a particular workload for frame forwarding?
Answer: D
Explanation:
Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:
In the context ofVMware Cloud Foundation (VCF)networking, understanding how an ESXi host (acting as a Transport Node) handles East-West traffic is fundamental. East-West traffic refers to communication between workloads within the same data center, often on the same logical segment.
When a Virtual Machine sends a frame to another VM on the same logical segment, the ESXi host's virtual switch must determine the "location" of the destination MAC address to performframe forwarding. The MAC Table(also known as the Forwarding Table or L2 Table) is the primary structure used for this decision.
For each logical segment, the host maintains a MAC table that maps the MAC addresses of virtual machines to their specific "locations." If the destination VM is residing on thesame host, the MAC table points the frame toward a specific internal port (vUUID) associated with that VM's vNIC. If the destination VM is on adifferent host(in an overlay environment), the MAC table entry for that remote MAC address will point to theTunnel End Point (TEP)IP of the remote ESXi host. While the TEP table (Option C) contains the list of known Tunnel Endpoints and the ARP table (Option A) maps IP addresses to MAC addresses, neither is the primary table used for the final frame forwardingdecision.
TheMAC Tableis the authoritative source for Layer 2 forwarding. In an NSX-managed VCF environment, these tables are dynamically populated and synchronized via theLocal Control Plane (LCP), which receives updates from the Central Control Plane. This ensures that even as VMs move via vMotion, the MAC table remains updated across all transport nodes, allowing for seamless East-West connectivity without the need for traditional MAC learning (flooding) in the physical fabric.
NEW QUESTION # 63
An administrator is troubleshooting a BGP connectivity issue on a Tier-0 Gateway (Active/Active). The Tier-
0 has the following configuration:
* Uplink VLAN 100: 192.168.100.0/24
* Uplink VLAN 101: 192.168.101.0/24
* BGP neighbors configured: 192.168.100.1 and 192.168.101.1
* A single static default route (0.0.0.0/0) exists with next-hop 192.168.100.1.
Symptoms observed on both Edge Nodes:
* Get BGP neighbors -> both neighbors stuck in Idle (Connect) - "No route to peer"
* Ping to 192.168.100.1 and 192.168.101.1 succeeds from the Edge nodes
* Get route shows the default route present only on VLAN 100 interface (fp-eth0), missing on VLAN 101 (fp- eth1) What is the root cause of both BGP sessions remaining in Idle state?
Answer: A
Explanation:
Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:
InVMware NSXnetworking, the Tier-0 Gateway'sRouting Table(RIB) is the definitive source for determining how to reach BGP neighbors. A common point of confusion occurs when an administrator can
"ping" a neighbor but the BGP state remainsIdleorConnectwith a "No route to peer" error.
This symptom specifically points to the"Scope"setting of a static route. In NSX, when a static route (such as the default route 0.0.0.0/0) is created, the administrator can define theScopeto be a specific uplink segment or interface. If the scope is set exclusively to theVLAN 100segment, the Tier-0 Gateway will only install that route into the forwarding table for the Service Router (SR) component associated with the VLAN 100 interface.
Because the default route is the only path the Tier-0 has to reach non-local networks (or even other local subnets not directly attached), the BGP process for the neighbor at192.168.101.1(VLAN 101) checks the routing table for a path. Since the only available route is scoped strictly to VLAN 100, the Tier-0 determines it has "No route" to reach the neighbor in VLAN 101. BGP requires a valid entry in the routing table for the neighbor's IP before it will even attempt to initiate the TCP three-way handshake on port 179.
The fact that pings succeed is due to pings often being tested from the specific interface (e.g., ping
192.168.101.1 -I fp-eth1), which bypasses the general routing table logic that the BGP control plane must follow. To resolve this, the static route scope should be expanded to include all relevant uplink segments or left as "All Uplinks," ensuring that the Tier-0 recognizes valid egress paths for neighbors on both VLAN 100 and VLAN 101.
NEW QUESTION # 64
An administrator is troubleshooting the packet flow of an incoming response to an ICMP Reply payload destined for 10.1.1.10 in the diagram.
The packet arrived at the Tier-0 SR at 172.16.215.100/29.
Which highlighted location identifies the next hop in the path to the destination?
Answer:
Explanation:
Explanation:
the administrator should click theTier-1 DR iconlocated within theEdge Node.
Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:In aVMware Cloud Foundation (VCF)environment, North-South traffic flows through a hierarchical routing structure composed ofTier-0andTier-1 Gateways. Each gateway is further divided into a Distributed Router (DR)component, which runs as a kernel module on all Transport Nodes (ESXi and Edges), and aService Router (SR), which provides centralized services and resides on the Edge Nodes.
According to the packet walk logic for an incoming (North-to-South) packet, once the traffic arrives from the physical router at theTier-0 Service Router (SR)on the Edge Node, it must be routed toward the destination virtual machine (10.1.1.10). In a multi-tier NSX architecture, the Tier-0 SR identifies that the destination subnet belongs to a connectedTier-1 Gateway. The communication between the Tier-0 and Tier-1 gateways occurs over an internal transit subnet, often referred to as theRouter Link(in this diagram, represented by the
100.64.16.0/31 subnet).
The "Next Hop" for the packet currently residing at the Tier-0 SR on the Edge Node is theTier-1 Distributed Router (DR)instance located on that same Edge Node. This is because the Edge Node participates as a Transport Node in the overlay and maintains local instances of all Distributed Routers to ensure efficient path processing. After the packet is processed by the local Tier-1 DR on the Edge Node, it determines that the destination VM is residing on a remote host (Compute Hypervisor). Only then is the packet encapsulated in a Geneveheader and sent via theTunnel Endpoints (TEP)from the Edge Node (172.16.215.124) to the Compute Hypervisor (172.16.215.67). Therefore, the Tier-1 DR on the Edge Node is the immediate logical next step in the routing pipeline before any host-to-host encapsulation occurs.
NEW QUESTION # 65
An architect has just deployed a new NSX Edge cluster in a VMware Cloud Foundation (VCF) fleet. The BGP peer between the NSX Tier-0 gateway and the top-of-rack routers is successfully up and stable.
* BGP Connection is established, but the NSX Tier-0 is not receiving a default route from the top-of-rack routers.
* Workloads inside NSX have no Internet access.
What could be the solution?
Answer: C
Explanation:
Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:
In aVMware Cloud Foundation (VCF)deployment, establishing a stable BGP neighborship between the Tier-0 Gatewayand the physicalTop-of-Rack (ToR)switches is only the first step in enabling North-South connectivity. While the BGP state may show as "Established," this only confirms that the control plane handshake is complete and the peers are ready to exchange prefixes.
The primary reason for a lack of external connectivity in this scenario is that norouting informationis being shared. For workloads within the SDDC to reach the internet, the Tier-0 Gateway must have a path to external networks. In most enterprise VCF designs, the physical network (ToR) is expected to provide adefault route (0.0.0.0/0)to the Tier-0 Gateway.
If the Tier-0 is not receiving this route, the issue typically lies in the physical router's configuration. BGP does not automatically "originate" or "redistribute" a default route unless explicitly commanded to do so. On most physical network platforms (like Cisco, Arista, or Juniper), the administrator must specifically configure a
"default-originate" command or ensure a static default route exists in the physical RIB and is allowed to be advertised into the BGP session with the NSX Edge nodes.
Options A and C are unlikely to be the primary cause of a completely missing default route in a fresh deployment. Option B describes the inverse-where the virtual network tells the physical network how to find the internet-which is incorrect for a standard VCF consumer model. Therefore, verifying and enabling the default route advertisement on the physical ToR switchesis the verified solution to provide the Tier-0 with the necessary egress path for internet-bound workload traffic.
NEW QUESTION # 66
......
