| Section | Weight | Objectives |
|---|---|---|
| Advanced BGP Features | 10% | - Route reflectors and confederations - BGP route attributes and policies - BGP path control and filtering |
| IPv6 Routing | 20% | - OSPFv3 and IS-IS for IPv6 - IPv6 addressing and transition technologies - BGP4+ and IPv6 route deployment |
| MPLS Technologies | 19% | - MPLS protection and fast reroute - MPLS basics and label distribution - MPLS VPN and traffic engineering |
| Advanced IGP Features | 17% | - OSPF advanced features and optimization - IS-IS advanced features and convergence - IGP route selection and control |
| Network Troubleshooting | 10% | - Fault diagnosis and analysis methods - Troubleshooting routing and switching issues |
| Network O&M | 7% | - Network monitoring and management tools - Performance optimization and capacity planning |
| Advanced Ethernet Technologies | 10% | - VLAN stacking and QinQ - Advanced link aggregation and reliability - Ethernet OAM and protection mechanisms |
| Network Cutover and Migration | 7% | - Service switchover and verification - Migration strategies and risk control |
It is carefully edited and reviewed by our experts. The design of the content conforms to the examination outline. Through the practice of our H12-831_V1.0 study materials, you can grasp the intention of the examination organization accurately. The number of its test questions is several times of the traditional problem set, which basically covers all the knowledge points to be mastered in the exam. You only need to review according to the content of our H12-831_V1.0 Study Materials, no need to refer to other materials. With the help of our H12-831_V1.0 study materials, your preparation process will be relaxed and pleasant.
NEW QUESTION # 182
Regarding the MPLS forwarding process, which description of the ingress node forwarding is correct? (Multiple choice)
Answer: A,B
NEW QUESTION # 183

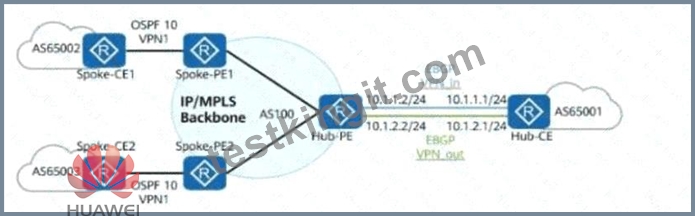

In the hub-spoke networking shown in the figure, to ensure correct route transmission , an administrator must manually configure the peer 10.1.2.1 _____ command in the IPv4 address family view of the BGP- VPN_out instance on the Hub-PE .
( Enter the answer in lowercase letters only. )
Answer:
Explanation:
next-hop-self
Explanation:
To determine the correct command, we need to analyze BGP behavior in a Hub-Spoke topology and how routes are advertised in MPLS VPN environments .
1. Understanding the Hub-Spoke BGP/MPLS VPN Topology
* The network consists of Hub-PE and Spoke-PE routers , which are MPLS VPN PEs .
* Hub-PE is responsible for distributing routes between Spoke-PE1 and Spoke-PE2 .
* Spoke routers do not have direct IBGP peering with each other ; instead, they rely on the Hub-PE to relay routes .
* BGP next-hop handling is critical for proper route advertisement .
2. Why is the " next-hop-self " Command Required?
* By default, when BGP advertises a route , the next-hop remains unchanged (i.e., the original next- hop is retained).
* In Hub-Spoke topology , Spoke routers would receive routes with a next-hop IP that belongs to another Spoke-PE , which is not reachable directly .
* To solve this issue, we use the next-hop-self command on the Hub-PE , so that:
* Hub-PE updates the next-hop to its own address before advertising routes to the Spoke-PEs.
* This ensures that Spoke-PE routers use the Hub-PE as the next-hop , making routes reachable and preventing blackholing .
3. Correct Command Usage
The administrator must run the following command under the BGP IPv4 address family of the BGP- VPN_out instance on Hub-PE :
shell
CopyEdit
peer 10.1.2.1 next-hop-self
This ensures that the next-hop for advertised routes is changed to the Hub-PE ' s IP , allowing proper route transmission in the Hub-Spoke MPLS VPN environment .
NEW QUESTION # 184

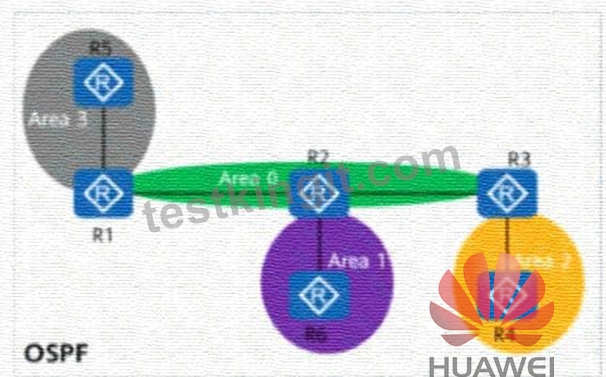

On the OSPF network shown in the figure, area 1 is a common area, area 2 is a stub area, and area 3 is an NSSA. R5 imports an external route 10.0.5.5/32. Given this, which of the following routers does not have the route 10.0.5.5/32 in its routing table?
Answer: B
Explanation:
Comprehensive and Detailed In-Depth Explanation:
In this OSPF network, we need to determine which router does not have the external route 10.0.5.5/32 in its routing table, based on the area types and OSPF behavior for external routes (Type 5 LSAs). Let's break it down step by step:
* Understanding the Network and Area Types:
* The network has multiple areas: Area 0 (backbone area), Area 1 (common area), Area 2 (stub area), and Area 3 (Not-So-Stubby Area or NSSA).
* Area 0 is the backbone area, connecting all other areas.
* Area 1 is a common (regular) area, which allows all types of LSAs, including external routes (Type 5 LSAs).
* Area 2 is a stub area, which does not allow external routes (Type 5 LSAs) to be propagated into it. Instead, a default route (0.0.0.0/0) is injected by the Area Border Router (ABR) to provide connectivity to external destinations.
* Area 3 is an NSSA, which allows limited external routes (Type 7 LSAs, translated to Type 5 LSAs by the ABR) but can block Type 5 LSAs depending on configuration. However, NSSAs typically allow external routes originated within the NSSA to be advertised into Area 0 and other areas.
* External Route Behavior (10.0.5.5/32):
* R5, located in Area 3 (NSSA), imports an external route 10.0.5.5/32. In an NSSA, external routes are advertised as Type 7 LSAs within the NSSA and are translated to Type 5 LSAs by the ABR (e.g., R1 or another router connecting Area 3 to Area 0) before being flooded into Area 0 and other areas.
* Type 5 LSAs (external routes) are flooded throughout the OSPF domain, except into stub areas and, in some cases, NSSAs (depending on configuration). However, stub areas block Type 5 LSAs entirely, replacing them with a default route.
* Analyzing Each Router's Area and Route Propagation:
* R1: Located in Area 0, R1 is an ABR connecting Area 0 to other areas (e.g., Area 1 and Area 3).
As an ABR, R1 receives the Type 7 LSA from R5 in Area 3, translates it to a Type 5 LSA, and floods it into Area 0 and other connected areas (except stub areas). Therefore, R1 will have the route 10.0.5.5/32 in its routing table.
* R2: Located in Area 0, R2 is also in the backbone area and will receive the Type 5 LSA flooded from Area 0. Thus, R2 will have the route 10.0.5.5/32 in its routing table.
* R3: Located in Area 2 (stub area), R3 does not receive Type 5 LSAs because stub areas block external routes. Instead, the ABR (likely R2 or another router connecting Area 2 to Area 0) injects a default route (0.0.0.0/0) into Area 2. Therefore, R3 will not have the specific route
10.0.5.5/32 in its routing table.
* R4: Located in Area 2 (stub area), R4, like R3, is in a stub area and does not receive Type 5 LSAs. It relies on the default route injected by the ABR. Thus, R4 will not have the route 10.0.5.5
/32 in its routing table.
* R5: Located in Area 3 (NSSA), R5 originates the external route 10.0.5.5/32 and advertises it as a Type 7 LSA within Area 3. R5 will have this route in its routing table.
* R6: Located in Area 1 (common area), R6 receives the Type 5 LSA flooded from Area 0 (via R1 or another ABR). Therefore, R6 will have the route 10.0.5.5/32 in its routing table.
* Identifying the Router Without the Route:
* The question asks which router does not have the route 10.0.5.5/32 in its routing table.
* R3 and R4 are both in Area 2 (stub area), which blocks Type 5 LSAs. Therefore, neither R3 nor R4 will have the route 10.0.5.5/32.
* R6 (Area 1, common area) and R2 (Area 0, backbone) will have the route, as will R1 (Area 0 and ABR) and R5 (Area 3, NSSA, originator).
* The options provided are R6, R3, R4, and R2. Among these, R3 and R4 do not have the route, but we need to select one correct answer from the options. Given the typical focus of such questions on identifying a single router in a stub area, and considering the placement of R4 in the diagram (Area 2), R4 is the most likely answer, as it is clearly in the stub area and isolated from external routes.
* Conclusion:
* R4, located in Area 2 (stub area), does not have the route 10.0.5.5/32 in its routing table because stub areas block Type 5 LSAs, and only a default route is provided by the ABR.
* Therefore, the correct answer is C (R4).
References (Based on HCIP-Datacom-Advanced Routing & Switching Technology Concepts):
* OSPF Area Types: HCIP-Datacom documentation on OSPF area configurations, including stub areas, NSSAs, and common areas (e.g., Section on OSPF LSA Types and Area Restrictions).
* External Route Propagation: HCIP-Datacom coverage of Type 5 and Type 7 LSAs, their flooding behavior, and restrictions in stub and NSSA areas (e.g., Chapter on Advanced OSPF Features).
* ABR and ASBR Roles: HCIP-Datacom explanation of Area Border Routers (ABRs) and Autonomous System Boundary Routers (ASBRs) in OSPF networks (e.g., Section on Route Redistribution and External Route Handling).
NEW QUESTION # 185

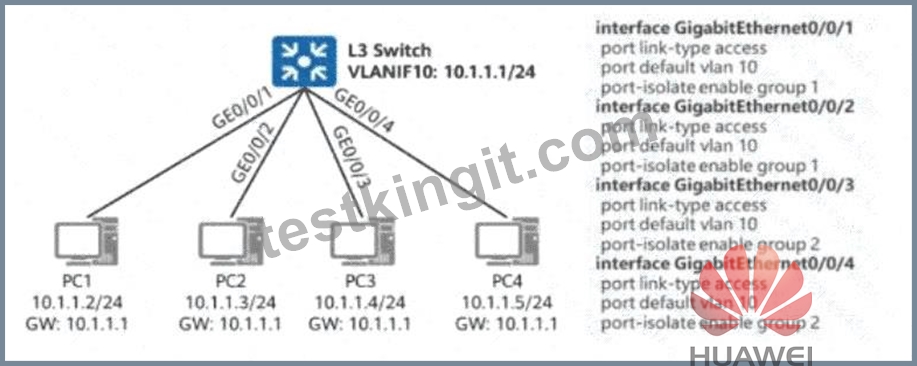

As shown in the figure, an administrator enables port isolation on the switch's interfaces connected to terminals.
In this scenario, which of the following IP addresses cannot be pinged from PC1?
Answer: A,C
Explanation:
Comprehensive and Detailed In-Depth Explanation:
Understanding Port Isolation in the Network
* Network Setup Details:
* The switch is Layer 3, with VLANIF10 configured as 10.1.1.1/24 (gateway for all PCs).
* All PCs are in VLAN 10 and use 10.1.1.1 as the default gateway.
* Port isolation is enabled on switch interfaces, dividing them into two groups:
* Group 1 (PC1 & PC2): GigabitEthernet0/0/1 and GigabitEthernet0/0/2
* Group 2 (PC3 & PC4): GigabitEthernet0/0/3 and GigabitEthernet0/0/4
* Port Isolation Behavior:
* Ports within the same isolation group CAN communicate with each other.
* Ports from different isolation groups CANNOT communicate directly.
* All devices CAN still communicate with the L3 switch (10.1.1.1), which acts as the gateway.
Ping Analysis from PC1 (10.1.1.2)
Destination IP
Device
Connected Port
Isolation Group
Ping Result from PC1
10.1.1.3
PC2
GigabitEthernet0/0/2
Group 1
# Can Ping
10.1.1.4
PC3
GigabitEthernet0/0/3
Group 2
# Cannot Ping
10.1.1.5
PC4
GigabitEthernet0/0/4
Group 2
# Cannot Ping
10.1.1.1
L3 Switch (Gateway)
N/A
Not Isolated
# Can Ping
Which IPs Cannot be Pinged from PC1?
* PC3 (10.1.1.4) and PC4 (10.1.1.5) are in a different isolation group (Group 2), so PC1 cannot reach them directly.
* PC2 (10.1.1.3) is in the same isolation group (Group 1), so PC1 can ping it.
* PC1 can ping the gateway (10.1.1.1) because the switch is Layer 3 and forwards traffic.
Thus, the correct answers are: A. 10.1.1.3 and D. 10.1.1.4.
Final Conclusion:
# PC1 CAN ping:
* 10.1.1.3 (PC2, same isolation group)
* 10.1.1.1 (Gateway, L3 Switch)
# PC1 CANNOT ping:
* 10.1.1.4 (PC3, different isolation group)
* 10.1.1.5 (PC4, different isolation group)
Thus, the correct answer is: A. 10.1.1.3 and D. 10.1.1.4.
Reference:
HCIP-Datacom-Advanced Routing & Switching Technology V1.0 - Port Isolation and VLAN Behavior Huawei Official HCIP-Datacom Study Guide - Port Isolation and Layer 3 Switch Configuration Huawei Documentation on Port Isolation in VLANs
NEW QUESTION # 186
In an MPLS VPN network, data packets are forwarded when they enter the public network. Will be encapsulated with two layers of MPLS labels.
Which of the following descriptions are correct about the processing of the data packet? (Multiple choice)
Answer: A,C
NEW QUESTION # 187
......
