NEW QUESTION # 70
In Type IV-C construction, a connection between two members of the primary structural frame supporting a floor is required to be protected to achieve a minimum fire-resistance rating of:
Answer: B
Explanation:
The required minimum rating is two hours. Under 2021 IBC Table 601, the primary structural frame in Type IV-C construction must provide a two-hour fire-resistance rating. A structural connection joining members of that frame cannot be permitted to fail before the members it connects; consequently, the connection must remain functional for the same required period.
The protection requirement applies to the complete connection assembly. This includes steel plates, hangers, bolts, screws, dowels, fasteners, welds, bearing regions, and portions of the connected timber that form part of the connection. Compliance can be achieved through tested construction, calculated wood cover, Type X gypsum protection, another approved noncombustible system, or a combination documented by the registered design professional.
Option A is insufficient because it would leave a one-hour weakness in a two-hour structural load path.
Option B similarly falls short of the required Table 601 rating. Option D is the Type IV-A primary-frame rating and is not required for the stated Type IV-C condition.
The special inspector must verify protective-cover dimensions and installation before connection hardware becomes concealed, including any project-specific inspection required for calculated wood-cover protection.
References/Topics: 2021 IBC Table 601 and Section 2304.10.1; AWC Fire Design Specification, protection of structural connections.
NEW QUESTION # 71

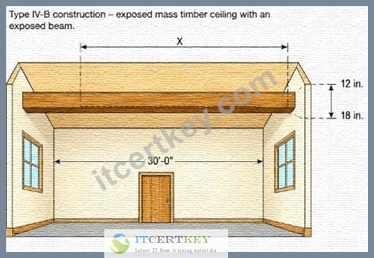

Refer to the figure by clicking on the EXHIBIT button above.
In Type IV-B construction, based on a 900 sq. ft. floor area, a 30 ' room width, and a 12 in. x 18 in. beam as shown in the Figure, the maximum length of the unprotected portion of the mass timber ceiling (dimension X) is _____ feet.
Answer: C
Explanation:
Section 602.4.2.2.2 permits unprotected mass timber ceilings in Type IV-B construction to equal no more than 20 percent of the floor area , and the code expressly states that attached beams are included when determining that exposed ceiling area.
The floor area is 900 square feet:
20% × 900 = 180 sq. ft. maximum exposed area .
The exposed 12-inch × 18-inch beam extends across the 30-foot room. Its three exposed surfaces consist of the 12-inch-wide bottom and two 18-inch-deep sides:
30 ft × (1 ft + 1.5 ft + 1.5 ft) = 120 sq. ft.
Because the attached beam counts against the ceiling exposure allowance, only:
180 # 120 = 60 sq. ft.
remains available for the exposed ceiling itself.
The exposed ceiling extends across the 30-foot room width, so:
30 ft × X = 60 sq. ft.
Therefore:
X = 2 ft .
Option A is correct. Ignoring the beam surfaces would overstate the permitted ceiling exposure and would contradict the explicit IBC requirement that attached beams be included in the exposed ceiling calculation.
References/Topics: 2021 IBC Section 602.4.2.2.2, Exception 1.1; Type IV-B exposed ceiling and attached- beam area calculations.
NEW QUESTION # 72
What fire-resistance rating is required for Type IV-C exterior and interior bearing walls?
Answer: B
Explanation:
IBC Table 601 requires both exterior and interior bearing walls in Type IV-C construction to have a minimum two-hour fire-resistance rating. Option B is correct.
For exterior bearing walls, the Table 601 rating is not the only applicable criterion. Section 602.1 also requires exterior walls to satisfy Table 705.5 based on occupancy and fire separation distance. Where Table 705.5 or another provision imposes a more restrictive rating, the higher requirement governs.
The two-hour rating may be achieved through the calculated structural fire resistance of the mass timber, approved noncombustible protection, or an approved combination of the two. Connections, intersections, penetrations, and abutting edges must not create a premature failure path or compromise the rated assembly.
A one-hour reduction can be permitted for bearing walls supporting a roof only under Table 601, Footnote
"a," but that exception does not apply to a wall carrying floors or other qualifying structural loads. The inspector must confirm the actual load path before accepting any reduced protection at the uppermost level.
References/Topics: 2021 IBC Sections 601, 602.1 and 602.4; Tables 601 and 705.5; Type IV-C bearing walls.
NEW QUESTION # 73
When Type X gypsum board is used as noncombustible protection over mass timber on the building ' s exterior walls, which of the following fasteners are permitted?
Answer: A
Explanation:
Option A reproduces one of the two permitted exterior gypsum-board fastening methods in 2021 IBC Section
722.7.2.2. Type X gypsum board used as noncombustible protection on the exterior side of mass timber walls may be attached using galvanized nails of minimum 12 gage with a 7/16-inch head and sufficient length to penetrate the mass timber at least 1 inch .
The code also permits ASTM C1002 Type S, W, or G screws, but those screws must likewise penetrate the mass timber a minimum of 1 inch . Options C and D are therefore incorrect because they specify only 3/4- inch and 7/8-inch penetration, respectively. Option B is incorrect because it substitutes 16-gage nails for the minimum 12-gage requirement.
Section 722.7.2.2 additionally requires exterior Type X gypsum-board layers to be fastened 12 inches on center each way and 6 inches on center at joints or ends. Panel-edge fasteners must be located at least 1 inch and not more than 2 inches from the edge.
These fastening details are part of the conditions necessary to claim the protection contribution in Table
722.7.1(2).
References/Topics: 2021 IBC Sections 722.7.1 and 722.7.2.2; exterior Type X gypsum-board protection.
NEW QUESTION # 74
For Type IV-A, IV-B, and IV-C construction, each of the following materials on the exterior side of mass timber exterior walls is required to be noncombustible except:
Answer: C
Explanation:
The code provides a specific combustible-material exception for qualifying water-resistive barriers , making option D correct. The exterior-protection provisions for Types IV-A, IV-B, and IV-C require the exterior side of mass timber walls to receive noncombustible protection with at least a 40-minute assigned protection time, and components of the exterior wall covering are generally required to be noncombustible.
A water-resistive barrier may be combustible only where it satisfies stringent fire-performance criteria.
Among those criteria, the 2021 IBC limits peak heat-release rate and total heat release under ASTM E1354 and establishes flame-spread and smoke-developed limits under ASTM E84 or UL 723. The provision therefore does not create a blanket exemption for arbitrary combustible membranes.
Insulation, exterior cladding, and architectural components forming part of the regulated exterior wall covering must comply with the applicable noncombustibility requirements unless some other express code allowance applies. The WRB is the specifically identified exception tested by this question.
During inspection, product identification and fire-test documentation should be checked rather than assuming that a membrane qualifies merely because it is marketed as a water-resistive barrier.
References/Topics: 2021 IBC Sections 602.4.1.1, 602.4.2.1 and 602.4.3.1; exterior wall protection and qualifying water-resistive barriers.
