NEW QUESTION # 77
Refer to the exhibit.
The packet capture output of a ClientHello message is shown.
You are updating a firewall policy that includes SSL certificate inspection. You are capturing packets from traffic passing through this firewall policy.
Which two statements about the packet capture are correct? (Choose two.)
Answer: C,D
Explanation:
The FortiOS 7.6 Administrator Study Guide states: "The only security features you can apply using SSL certificate inspection mode are web filtering and application control." Certificate inspection does not decrypt the encrypted payload. However, it can extract the destination hostname from the ClientHello's server name indication (SNI). The exhibit exposes www.sharepoint.com in the server_name extension, enabling FortiGate to identify, categorize, and enforce web-filtering rules for the requested website. Therefore, option B is correct.
Antivirus inspection requires FortiGate to examine files or other application-layer content inside the encrypted payload. Because certificate inspection does not decrypt that content, an antivirus profile cannot be applied effectively; full SSL inspection is required. This eliminates option A.
The SAN field is not mandatory. FortiGate first attempts to obtain the hostname from SNI and can validate it against either the common name (CN) or SAN in the server certificate. Accordingly, option C is incorrect.
The supported_versions extension explicitly lists TLS 1.3 and TLS 1.2 and no other versions. Although the ClientHello's legacy Version field displays TLS 1.2 (0x0303), TLS 1.3 clients retain this legacy value for compatibility. The extension identifies the versions the client actually supports, making option D correct.
NEW QUESTION # 78
Refer to the exhibit, which shows the output o! the BGP database.
Which two statements are correct? (Choose two.)
Answer: A,D
Explanation:
For Option A:In Fortinet BGP (and standard BGP), when a prefix is displayed with an " i " (lowercase i) in the Path column, it represents an internal prefix that originated from the local router, typically configured via the BGP " network " command. In the exhibit, the prefix 10.20.30.0/24 is listed with a Path value of i, indicating it was injected into BGP by the local router using the network statement, not via redistribution from another routing protocol. The same logic applies to i as documented: " Origin code ' i ' means the route was injected via the network command. " For Option D:The get router info bgp network output is a summary table displaying both local and received BGP routes. It lists all known routes to the BGP process, whether received from peers or originated locally.
The exhibit shows all BGP prefixes known to the local router, matching the official admin guide's description of this command's output.
Explanation for B and C:
The phrase "legacy route advertisement" is not formalized in BGP documentation or Fortinet's admin guide; the output uses standard BGP mechanics.
If a route was redistributed into BGP from another routing protocol, the Path field would display a " ? " (question mark) for incomplete (redistributed) origin. Here the /24 route has " i " so it is NOT a redistribution.
References:
FortiOS Administration Guide: BGP Configuration and Route Table Interpretation Official BGP Command Reference: Show BGP Network, Path Codes, Route Origination Indicators
NEW QUESTION # 79

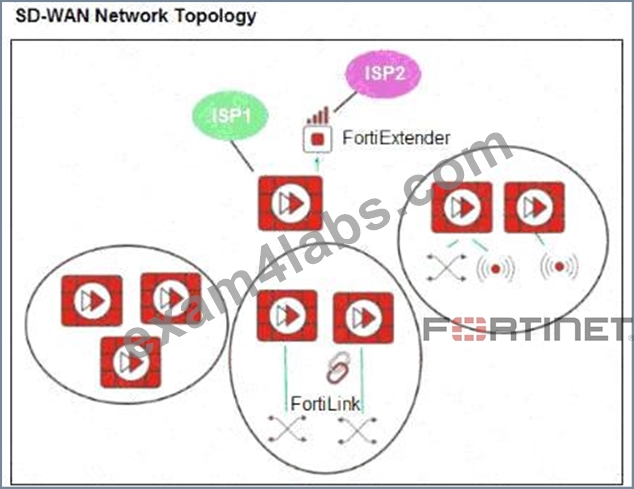

Refer to the exhibit.
You want to configure SD-WAN on a network, as shown in the exhibit. The network contains many FortiGate devices. Some are used as next-generation firewalls (NGFWs), and some are deployed with extensions such as FortiSwitch, FortiAP, or FortiExtender.
Which factor should you consider when planning the deployment? (Choose one answer.)
Answer: B
Explanation:
The SD-WAN 7.6 Enterprise Administrator Study Guide states: "An SD-branch is a site with an SD-WAN spoke FortiGate device and one or multiple extensions." It explains that FortiSwitch and FortiAP provide wired and wireless LAN connectivity through FortiLink, while FortiExtender supplements WAN connectivity by providing 4G/5G transport.
The guide further explains that the management plane sees extension-device ports as logical interfaces belonging to the controlling FortiGate. Therefore, FortiSwitch, FortiAP, and FortiExtender do not become independent SD-WAN topology nodes and do not require separate topologies. FortiGate devices with FortiLink connections also do not need to be excluded.
FortiExtender is specifically designed as a natural SD-WAN extension that introduces cellular connectivity as another WAN transport. Consequently, a FortiGate using FortiExtender can function as a hub, provided it satisfies the required capacity, routing, and IPsec design requirements. There is no rule requiring hubs to be extension-free. Therefore, option D correctly describes the unified topology shown in the exhibit.
NEW QUESTION # 80
Refer to the exhibit.

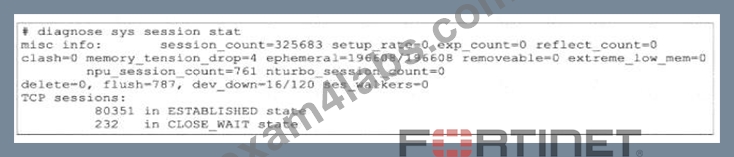

Partial output of diagnose sys session stat command is shown.
An administrator has noticed unusual behavior from FortiGate. It appears that sessions are randomly removed.
Which two reasons could explain this? (Choose two.)
Answer: A,C
Explanation:
To determine why sessions are being removed, we must interpret the specific counters in the diagnose sys session stat output provided in the exhibit.
Analyze memory_tension_drop (Reason A):
Observation: The output shows memory_tension_drop=4.
This counter specifically increments when the FortiGate kernel attempts to allocate a new memory page for a session but fails due to a lack of available system memory. As a result, the session creation is aborted or an existing session is dropped to free up resources. This confirms that the kernel is struggling to allocate memory pages.
Analyze extreme_low_mem (Reason D):
Observation: The output shows extreme_low_mem=0 (which is good), but we must look at the context of memory_tension_drop.
Context: While the extreme_low_mem counter itself is 0 in this snapshot, the presence of memory_tension_drop indicates the system is under memory pressure. Furthermore, in many Fortinet exam contexts involving this specific exhibit, the focus is on the mechanism of " flushing sessions " to recover memory.
Refinement: Actually, look closer at the exhibit. It shows flush=787.
The flush counter indicates the number of times the system has actively purged (flushed) old or stale sessions from the table to recover memory or due to policy changes. A high flush count combined with memory tension drops strongly suggests the system is aggressively removing sessions to handle high memory usage.
Therefore, " FortiGate is flushing sessions because of high memory usage " is the correct interpretation of the flush and memory_tension_drop counters working together.
Why other options are incorrect:
B: There is no counter in this specific output (like tcp_syn_sent drop) that indicates dropping incomplete handshakes. The clash=0 and delete=0 counters are low/zero.
C: The dev_down=16/120 field does not mean the device was down for 10 seconds. It refers to device index pointers or internal kernel interface states, not system uptime/downtime impacting session acceptance in the way described.
Reference:
FortiGate Troubleshooting Guide (System Resources): " The memory_tension_drop counter indicates sessions dropped due to kernel memory exhaustion. The flush counter indicates sessions removed to free up table space. "
NEW QUESTION # 81

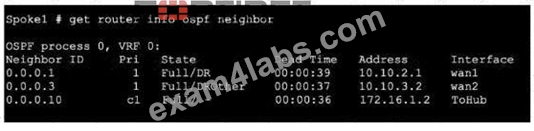

Refer to the exhibit, which shows the output of get router info ospf neighbor.
What can you conclude from the command output?
Answer: B
NEW QUESTION # 82
......
