NEW QUESTION # 125
On a campus network, if two switches are directly connected through three physical links, you can configure either STP or link aggregation to improve network reliability. These two functions are mutually exclusive, meaning only one of them can be configured on a device at a time.
Answer: B
Explanation:
STP and link aggregation are not mutually exclusive technologies. They solve different problems and can coexist on the same switch. Link aggregation combines multiple physical Ethernet links into a logical Eth- Trunk, increasing available bandwidth and providing member-link redundancy. STP or a related spanning-tree protocol prevents Layer 2 loops by calculating a loop-free active topology and can treat an Eth-Trunk as a logical interface. In a well-designed campus network, several physical links between two switches may first be aggregated into one Eth-Trunk, while STP operates over that logical link together with other Layer 2 paths.
Conversely, if separate redundant links are not aggregated, STP may block one or more paths to prevent a loop. Choosing link aggregation can use parallel member links more efficiently than allowing STP to block individual links, but enabling one function does not prohibit use of the other elsewhere on the device.
Therefore, the assertion that only STP or link aggregation can be configured on a device at one time is incorrect. The verified answer is FALSE, option B.
NEW QUESTION # 126

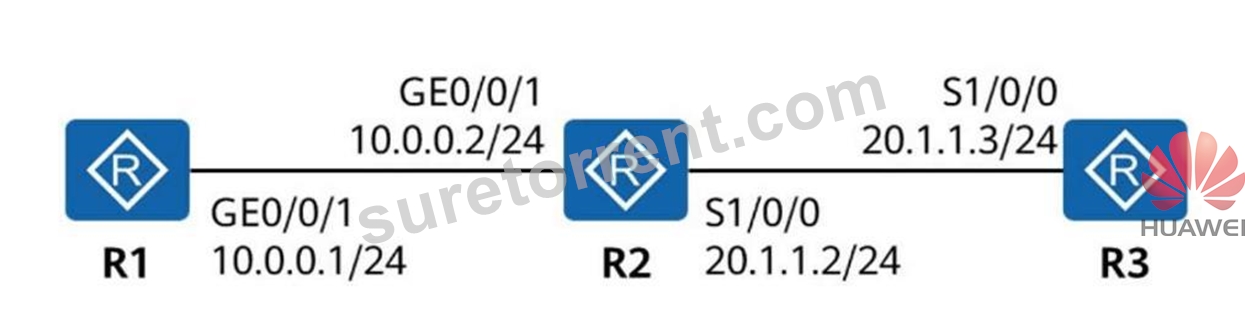

Which of the following configurations can enable connectivity between interfaces on R1 and R3? (Select all that apply)
Answer: A,D
Explanation:
For two directly connected edge networks to communicate through intermediate routing, each end router must have a route to the remote destination network pointing to the correct next hop on the transit link. Since
10.0.0.0/24 is directly connected to R1 and 20.1.1.0/24 is directly connected to R3, R1 needs a route to
20.1.1.0/24, and R3 needs a route to 10.0.0.0/24.
Option A is correct because it configures on R1 a static route to the remote network 20.1.1.0/24 using next hop 10.0.0.2, which is the neighbor toward the transit path. Option D is correct because it configures on R3 a static route to the remote network 10.0.0.0/24 using next hop 20.1.1.1, which is the proper adjacent forwarding address in that direction. Option B is incorrect because a router cannot use a next hop that belongs to the remote destination network but is not directly reachable as a valid immediate forwarding address in this topology. Option C is also incorrect because the specified next hop is not the correct adjacent next-hop address for R3. HCIA-Datacom stresses that static routes must always point to a reachable next hop or outbound interface.
NEW QUESTION # 127
R1 has the following configurations:
[R1] nat address-group test 1
[R1-address-group-test] section 1 100.1.23.1 100.1.23.254
[R1-address-group-test] mode pat
[R1-address-group-test] quit
[R1] nat-policy
[R1-policy-nat] rule name test
[R1-policy-nat-rule-test] source-address range 192.168.0.0 192.168.255.255
[R1-policy-nat-rule-test] action source-nat address-group test
[R1-policy-nat-rule-test] quit
[R1-policy-nat] quit
[R1] interface GE 0/0/2
[R1-GE0/0/2] nat enable
[R1-GE0/0/2] quit
Which of the following statements is false ?
Answer: B
Explanation:
Option C is false. In this configuration, the NAT address group test contains the public address range
100.1.23.1 to 100.1.23.254 , and the address group works in PAT mode . Port Address Translation allows multiple different intranet users to share the same public IP address while being distinguished by different transport-layer port numbers. Therefore, intranet users with different private IP addresses do not have to use different post-NAT public IP addresses.
Option A is true because 100.1.23.254 is included in the configured public address pool and can be used for source NAT. Option B is also true because NAT is enabled on GE0/0/2 , so if user traffic does not leave through that interface, the NAT policy may not be applied and public access may fail. Option D is true because the configured source address range includes 192.168.1.100, which falls within 192.168.0.0 to
192.168.255.255. HCIA-Datacom teaches that NAT behavior depends on matching traffic, address pools, PAT or no-PAT mode, and the interface where NAT is enabled. This question mainly tests understanding of source NAT and PAT address-sharing behavior.
NEW QUESTION # 128

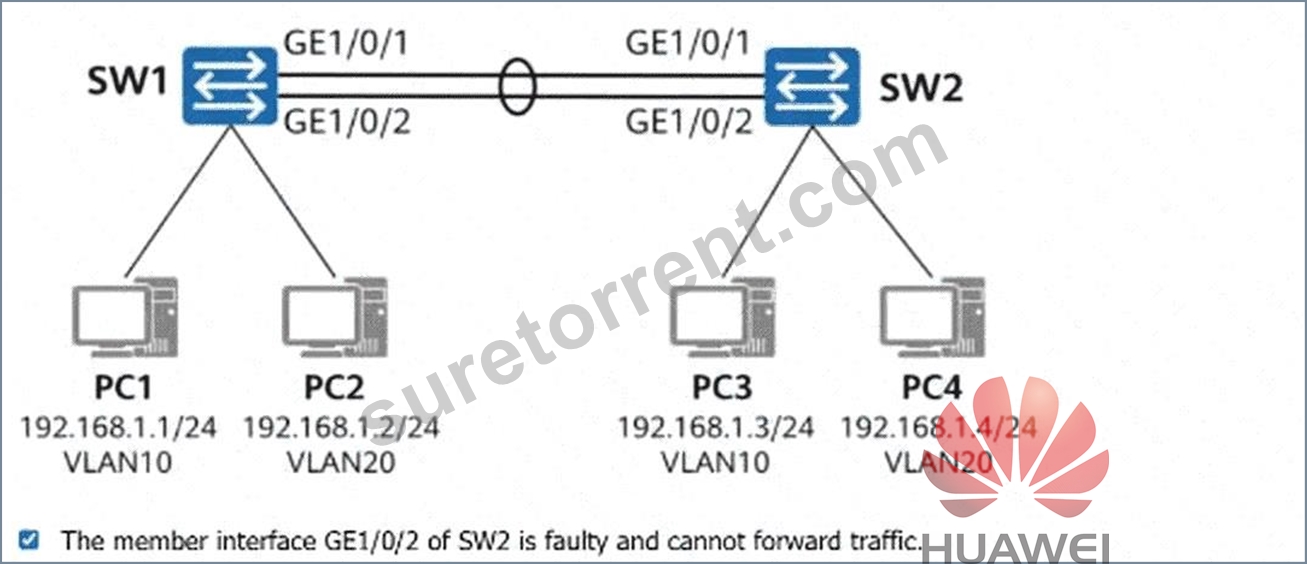

On the network shown in the figure, the administrator creates Eth-Trunk 1 in manual mode on SW1 and SW2, adds GE1/0/1 and GE1/0/2 on both switches to the Eth-Trunk 1, and sets the traffic forwarding mode to per- packet load balancing. However, the administrator finds that traffic from VLAN 10 cannot be forwarded, while traffic from VLAN 20 can be forwarded normally. The administrator verifies that the configuration of SW1 is correct. Which of the following statements are false about this fault scenario? (Select all that apply)
Answer: A,C,D
Explanation:
An Eth-Trunk combines multiple physical interfaces into one logical interface. VLAN permissions are configured on the logical Eth-Trunk rather than independently on individual member interfaces.
Option B describes a possible cause because SW2 may not permit VLAN 10 on Eth-Trunk 1, even though VLAN 20 is permitted.
Option A does not adequately explain the VLAN-specific failure. A failed member link would affect traffic distribution across the aggregated connection rather than inherently block only VLAN 10.
Option C is also inconsistent with normal VLAN 20 forwarding because incompatible aggregation modes could prevent the logical connection from operating correctly.
Option D is false because Eth-Trunk member interfaces do not independently control VLAN forwarding permissions.
Therefore, A, C, and D are the false explanations of the described fault.
NEW QUESTION # 129

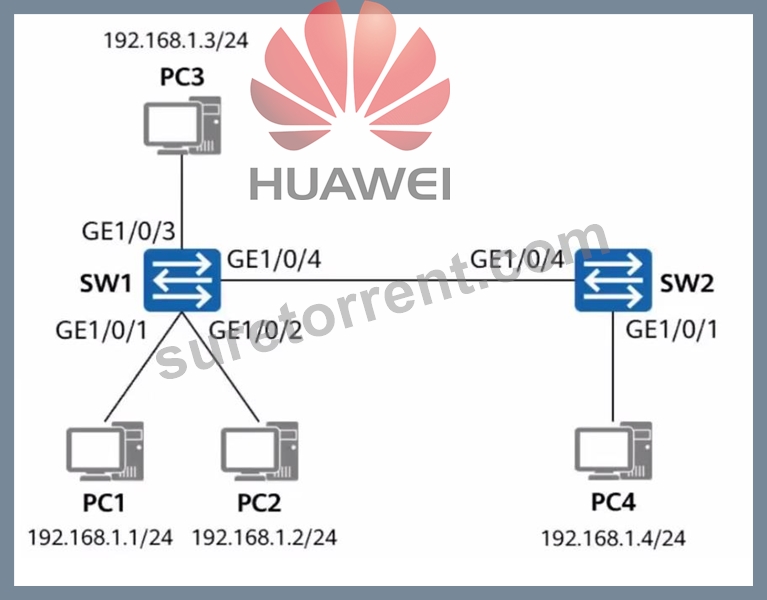

On the network shown in the figure, the interfaces connecting switches to terminals are access interfaces, and the interfaces connecting switches to each other are trunk interfaces. The administrator configures interface- based VLAN assignment. PC1 and PC3 belong to VLAN 2, and PC2 and PC4 belong to VLAN 3. Trunk interfaces allow packets from VLAN 2 and VLAN 3 to pass through and use the default PVID. The MAC address tables of switches are empty. When SW1 receives a unicast data frame sent from PC1 to PC3, through which of the following interfaces does SW1 not send the data frame?
Answer: A,C
Explanation:
PC1 and PC3 are members of VLAN 2, while PC2 and PC4 are members of VLAN 3. SW1 receives the frame from PC1 on access interface GE1/0/1 and associates it with VLAN 2. Because all switch MAC address tables are initially empty, PC3 ' s destination MAC address is unknown to SW1. The switch therefore floods this unknown unicast frame only through other interfaces that can carry VLAN 2. GE1/0/3 connects to PC3 in VLAN 2, so it is a valid flood port. GE1/0/4 is a trunk that permits VLAN 2 and VLAN 3, so it is also eligible to carry the VLAN 2 frame. SW1 does not send the frame back through GE1/0/1, the ingress interface, and it does not send it through GE1/0/2 because that access port belongs to VLAN 3. Therefore, the interfaces through which SW1 does not send the frame are GE1/0/2 and GE1/0/1, corresponding to A and D.
NEW QUESTION # 130
......
