問題 #162
Refer to the exhibit, which shows the partial output of command diagnose debug rating.
In this exhibit, which FDS server will the FortiGate algorithm choose?
答案：B
問題 #163
What can cause an IKEv2 tunnel to go down after it was initially brought up successfully?
答案：B
解題說明：
The correct answer is A.
The study guide explains the IKEv2 exchange order very clearly:
"The initial exchanges are: IKE_SA_INIT and IKE_AUTH."
"Create_Child_SA exchange: Creates a new child SA or rekeys an existing child SA." It also states:
"After successful IKE_SA_INIT and IKE_AUTH exchanges, the CHILD_SA exchange takes place. In this exchange, the peers negotiate the CHILD_SA and the traffic selectors - traffic selector responder (TSr) and traffic selector initiator (TSi)." That is why A is correct: if the tunnel was initially brought up successfully, then the initial exchanges already succeeded. A later problem during CREATE_CHILD_SA, especially with traffic selectors/phase 2 selectors, can cause the tunnel to fail during rekey or child-SA renegotiation.
Why the other options are wrong:
B is wrong because proposal mismatch for the IKE SA is handled during IKE_SA_INIT, not after the tunnel is already up. The study guide says IKE_SA_INIT negotiates the security settings to protect the IKE traffic C is wrong because a pre-shared key mismatch is part of authentication and would prevent successful initial establishment during IKE_AUTH. The study guide shows that after IKE_AUTH, "authentication succeeded" and "established IKE SA" when it works D is wrong because a Diffie-Hellman mismatch belongs to IKE_SA_INIT, which happens before the tunnel comes up. The study guide also states: "By IKEv2 design, no Diffie-Hellman public key is exchanged during an IKE_AUTH exchange." So the verified answer is: A.
問題 #164

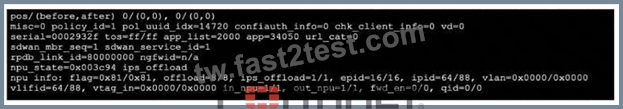

Refer to the exhibit, which shows the omitted output of a session table entry.
Which two statements are true? (Choose two.)
答案：A,D
解題說明：
In the provided session table output, the following details justify the answers:
Policy ID Match: The line policy_id=1 directly confirms that this session was matched by Firewall Policy ID
1. According to Fortinet's session table documentation, the policy_id field always references the policy that allowed this session, so this is a clear indicator.
Session Offloading: The presence of the strings npu_state, ips_offload, and notably the NPU info section such as offload=8/8, ips_offload=1/1 shows that this session has been offloaded to the Network Processor Unit (NPU). Fortinet technical documentation states that " offload " values greater than zero in both directions (and an NPU info section) affirm that NPU hardware processing (fast path) is handling this traffic, thus the session is not being handled in software only.
Other options:
VLAN Tagging (vlan=0x0000/0x0000): This means no VLAN tag is assigned to this session.
NP7: The actual NPU model handling the session isn't exposed in this snippet-the offload parameters shown are generic and not specific to NP7 hardware, so it cannot be concluded from the session data.
References:
Fortinet Technical Tip: FortiGate Session Table and NPU Offloading
FortiOS Diagnostics Guide: Policy ID, Offload, and VLAN Session Table Fields
問題 #165

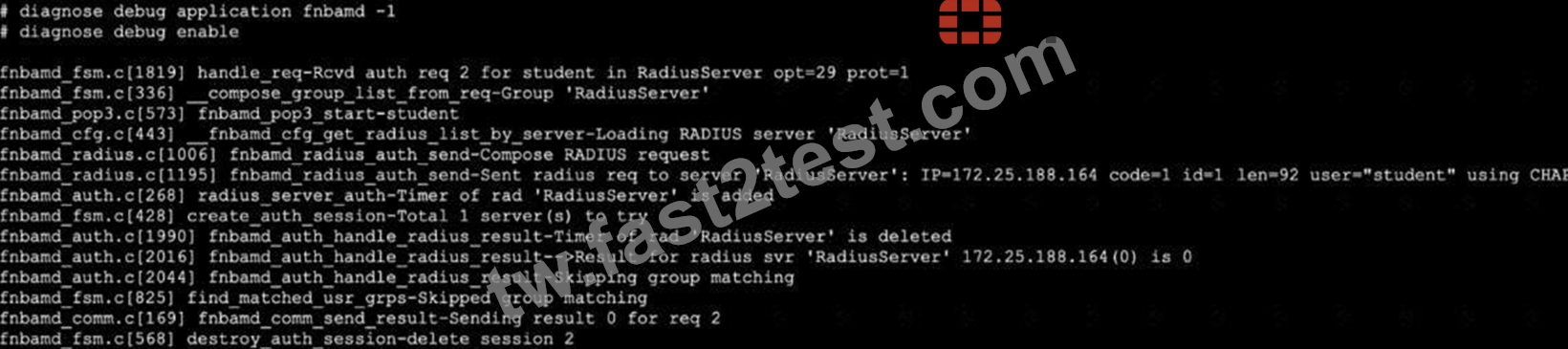

Refer to the exhibit, which shows a truncated output of a real-time RADIUS debug.
Which two statements are true? (Choose two answers)
答案：C,E
解題說明：
The correct answers are A and D.
The debug output shows:
Sent RADIUS req to server ' RadiusServer ' : IP=172.25.188.164 ... user= " student " using CHAP Result for radius svr ' RadiusServer ' 172.25.188.164(0) is 0 Sending result 0 for req 2 The study guide explains that in RADIUS real-time debug, FortiGate shows the IP address of the RADIUS server it is querying. In the example, it says FortiGate "creates an access request to the RADIUS server at IP address 10.0.13.130" and shows the line Sent radius req to server ... IP=10.0.13.130 So in your exhibit, the queried server is clearly 172.25.188.164, which makes A correct.
The study guide also states:
"The message fnbamd_comm_send_result-Sending result 0 indicates that the authentication was successful and that FortiGate received the Access-Accept message." Since your exhibit also ends with Sending result 0, that makes D correct.
Why the other options are wrong:
B is wrong because result 0 means authentication successful, not failed C is wrong because the debug explicitly shows using CHAP, and the study guide lists supported RADIUS schemes as CHAP, PAP, MS-CHAP, and MS-CHAPv2 E is wrong because the study guide says two-factor authentication would involve an Access-Challenge response: "If two-factor authentication is enabled on the server, the response is an Access-Challenge message" Your exhibit shows successful result 0 / Access-Accept, not a challenge.
So the verified answers are: A, D.
問題 #166

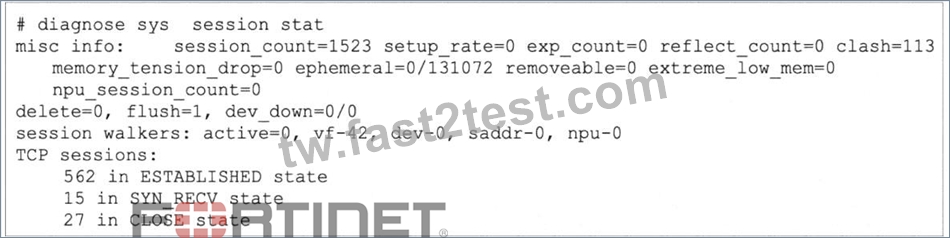

Refer to the exhibit.
The partial output of diagnose sys session stat command is shown.
Which statement about the output shown in the exhibit is correct?
答案：A
解題說明：
The correct answer is C .
The exhibit shows:
* 562 in ESTABLISHED state
* 27 in CLOSE state
* memory_tension_drop=0
* ephemeral=0/131072
According to the study guide, for TCP sessions: "The protocol state in the session table is a two-digit number. For TCP, the first number (from left to right) is related to the server-side state and is 0 when the session is not subject to any inspection (flow or proxy)... The second digit is the client-side state." The same page also shows that value 1 = ESTABLISHED So, if a TCP session is in ESTABLISHED state and there is no inspection , its proto_state is 01 :
* first digit 0 = no inspection
* second digit 1 = ESTABLISHED
That makes C correct. This is also consistent with FortiOS examples showing established TCP sessions with proto=6 proto_state=01 Why the other options are wrong:
* A is wrong because the field that indicates sessions dropped due to low free memory is memory_tension_drop, and in the exhibit it is 0 , not 113. The study guide states: "If there is a lack of free memory, the kernel deletes the oldest sessions. The command shown on this slide displays the number of sessions the kernel deleted because of this mechanism." So 113 is the clash value, not memory-tension drops.
* B is wrong because ephemeral=0/131072 does not mean 131072 ephemeral sessions were recorded.
The study guide explains that FortiGate "sets a hard limit on the maximum number of ephemeral sessions that can exist at the same time in the session table." Therefore:
* 0 = current ephemeral sessions
* 131072 = maximum allowed ephemeral sessions for that model/context
* D is wrong because the study guide says the temporary retention for possible out-of-order packets happens in state value 5 (TIME_WAIT) : "When a session is closed by both the sender and receiver, FortiGate keeps that session in the session table for a few seconds, to allow for any out- of-order packets that might arrive after the FIN/ACK packet. This is the state value 5." But the exhibit shows 27 in CLOSE state , and the same table shows CLOSE = 6 , not TIME_WAIT So the verified answer is C .
問題 #167
......
