NEW QUESTION # 13
(Full question statement start from here)

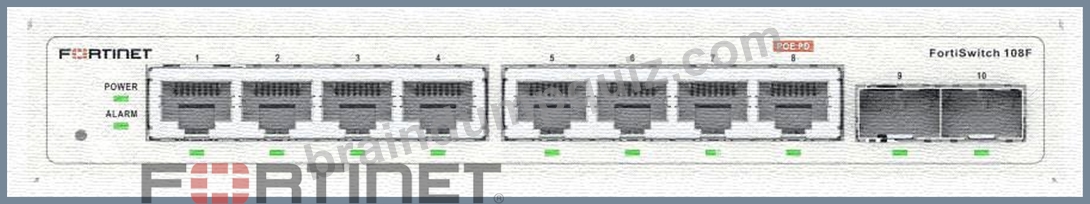

Refer to the exhibit.
Which information does FortiGate use to generate the port details in the FortiSwitch Faceplates view?
(Choose one answer)
Answer: C
Explanation:
In a FortiLink-managed switching architecture, the FortiGate firewall acts as the centralized controller for downstream FortiSwitch devices. TheFortiSwitch Faceplatesview in the FortiGate GUI provides a physical- style representation of switch ports, including port numbers, operational status, link state, speed, duplex, and connected neighbor information. According to FortiOS 7.6 and FortiSwitchOS 7.6 documentation from Fortinet, this port-level intelligence is derived fromLink Layer Discovery Protocol (LLDP)advertisements received from the FortiSwitch.
LLDP is an IEEE 802.1AB standard protocol used for vendor-neutral Layer 2 neighbor discovery.
FortiSwitch periodically sends LLDP frames that include detailed port descriptors such as chassis ID, port ID, port description, system name, system capabilities, and VLAN-related attributes. When FortiGate receives these LLDP advertisements over the FortiLink interface, it correlates the information with the managed FortiSwitch inventory and renders accurate port details in the Faceplates view.
Other options are incorrect for the following reasons. The FortiSwitch model alone is insufficient to populate per-port operational details. Cisco Discovery Protocol (CDP) is a Cisco-proprietary protocol and is not used by FortiGate for Faceplates visualization. FortiLink discovery frames are used to establish and maintain the FortiLink management relationship, but they do not carry the granular per-port metadata required for the Faceplates display.
Therefore, the Faceplates view relies specifically onLLDP advertisements received from the FortiSwitch, making optionCthe correct and fully verified answer based on FortiOS 7.6 and FortiSwitchOS 7.6 behavior.
NEW QUESTION # 14
Refer to the exhibits.

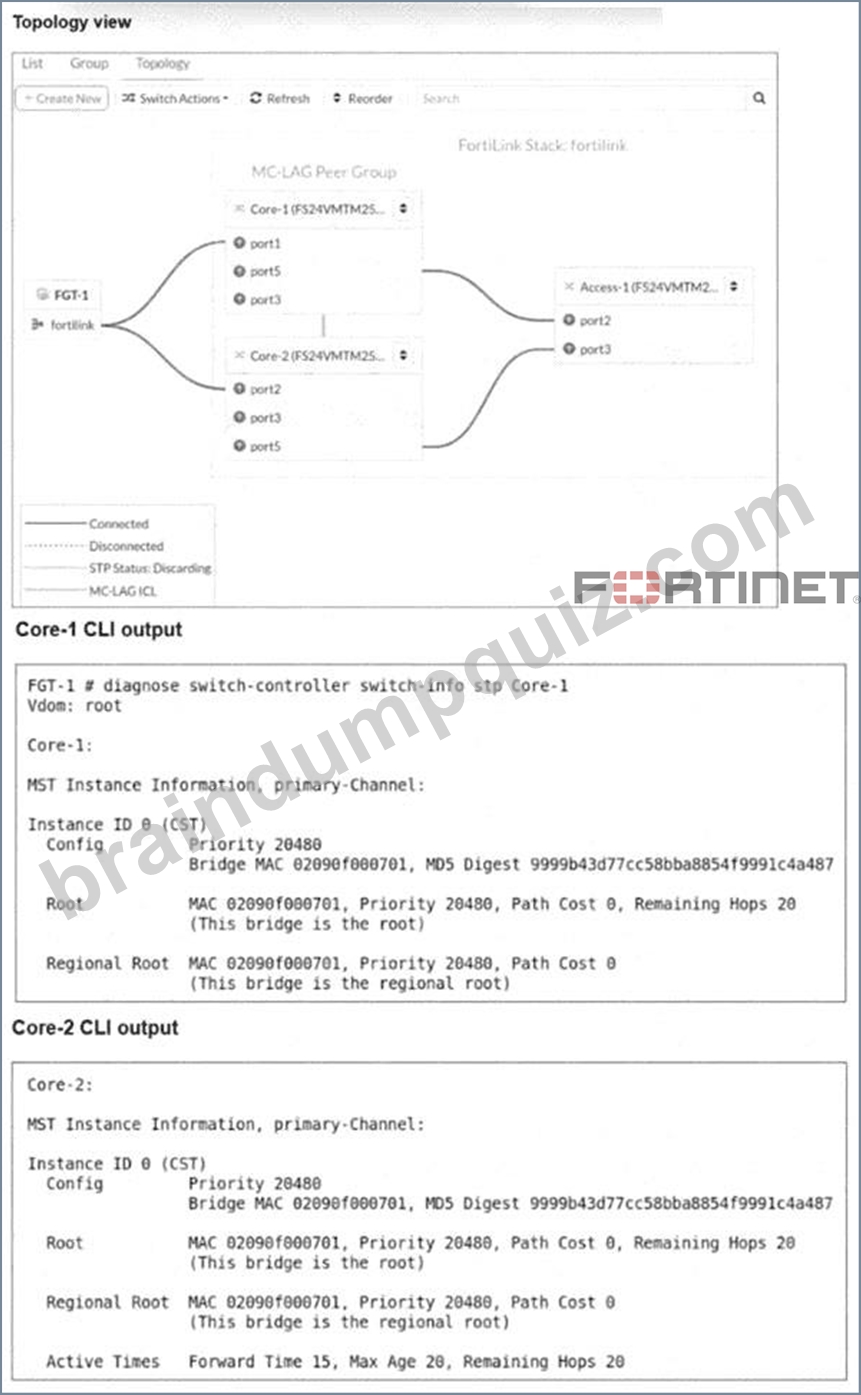

An administrator has deployed two FortiSwitch devices, Core-1 and Core-2, as multichassis link aggregation group (MCLAG) peers. These switches are connected to FortiGate for FortiLink and to an access switch (Access-1) using an inter-switch link (ISL). After configuration, the administrator notices that both Core-1 and Core-2 are claiming to be the root bridge in the Multiple Spanning Tree Protocol (MSTP) topology. What explains this behavior? (Choose one answer)
Answer: D
Explanation:
According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, Multichassis Link Aggregation (MCLAG) provides node-level redundancy by grouping two physical switches together so that theyappear as a single logical switchto the rest of the network. This logical representation is critical for preventing Spanning Tree Protocol (STP) from blocking redundant uplinks from downstream client switches.
To achieve this "single switch" appearance, the MCLAG peer switches synchronize their STP state andshare the same Bridge ID, which consists of a synchronized bridge MAC address and the same bridge priority. As shown in the exhibits for Core-1 and Core-2, both switches are configured with aBridge MAC of
02090f000701and aPriority of 20480. Because they possess identical identification parameters, each physical switch in the peer group locally recognizes itself as part of the root bridge entity for the MSTP region.
This behavior is intentional and is a fundamental characteristic of MCLAG design in FortiSwitchOS. It ensures that any downstream device, such as Access-1, receives BPDUs with the same bridge ID from both Core-1 and Core-2, thereby treating them as a single high-availability neighbor rather than two separate devices. Option A is incorrect as FortiGate typically does not participate in STP calculations. Option B is incorrect because this "duplicate" root behavior is the expected sign of acorrectlyfunctioning MCLAG control plane. Option D is incorrect as STP remains active to prevent loops elsewhere in the fabric; it is merely logically simplified for the MCLAG domain.
NEW QUESTION # 15
(Full question statement start from here)
Refer to the exhibit.
You run the command diagnose switch-controller switch-info loopguard access-1 and see that theMAC- Movecolumn displays a value of0forport1.
What does this indicate? (Choose one answer)
Answer: A
Explanation:
In FortiSwitchOS 7.6,Loop Guardis a Layer 2 loop detection mechanism primarily designed to protect access ports from unintended network loops. In itsoriginal implementation, Loop Guard only detected loops on thenative VLAN, which limited its effectiveness in environments using multiple tagged VLANs. To address this limitation, Fortinet enhanced Loop Guard by introducing theMAC move detection feature, as documented in the FortiSwitchOS 7.6 Administrator Guide.
TheMAC move optioninstructs the FortiSwitch to monitor for repeated MAC address flapping events across ports or VLANs. Such MAC movement is a strong indicator of a Layer 2 loop. However, this enhanced detection mechanism isdisabled by defaultand must be explicitly enabled by configuring aMAC move threshold greater than zero.
According to the FortiSwitchOS 7.6 Administrator Guide (page 164), enabling MAC move allows Loop Guard to detect loops beyond the native VLAN. Furthermore, the guide explicitly states (page 166) thata MAC-Move value of 0 indicates that the MAC move feature is not enabled. This means the switch is not monitoring MAC address movement as part of its loop detection logic, even though Loop Guard itself may still be enabled on the port.
Therefore, a MAC-Move value of 0 does not indicate that Loop Guard is disabled or inactive, nor does it imply VLAN-wide port shutdown behavior. It strictly confirms thatMAC move detection has not been enabled, makingOption Cthe correct and fully verified answer based on FortiSwitchOS 7.6 documentation.
NEW QUESTION # 16
Which two statements about VLAN assignments on FortiSwitch ports are true? (Choose two.)
Answer: A,B
Explanation:

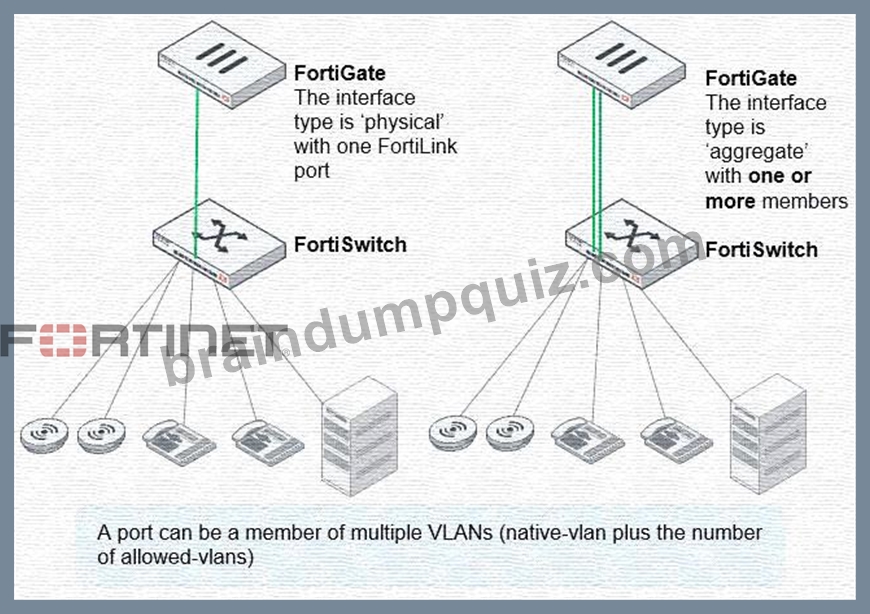

VLAN assignments on FortiSwitch ports must follow certain rules and guidelines to ensure network integrity and proper traffic segregation:
* Only Assign One Native VLAN on a Port (C):
* Native VLAN Configuration:Each switch port can have only one native VLAN. The native VLAN carries untagged traffic for that port. If the port receives untagged frames, they are assumed to belong to the native VLAN.
* Importance of Singular Native VLAN:This is crucial for preventing VLAN hopping attacks and ensures clear and secure VLAN demarcation on each port.
* Assign Untagged VLANs Using FortiGate CLI (D):
* CLI Configuration:Untagged VLANs, often equivalent to the native VLAN, can be assigned through the FortiGate CLI when managing a FortiSwitch via FortiLink. This allows for central management and configuration of VLANs across connected switches.
* Operational Efficiency:Using the CLI ensures that VLAN settings are applied uniformly, reducing the likelihood of misconfigurations that might occur when managing VLANs individually on each switch.
References:For detailed instructions and best practices on VLAN configuration on FortiSwitch, refer to the FortiSwitch administration guide available on:Fortinet Product Documentation
NEW QUESTION # 17
Exhibit.
Which configuration change will allow the managed FortiSwitch to accept SNMP requests from any source?
Answer: B
Explanation:
To enable a managed FortiSwitch to accept SNMP requests from any source, the relevant configuration would involve setting up access on the management interface specifically to permit SNMP traffic.Based on the provided options:
* Add SNMP service on the management interface of the switch (Option D): This configuration change directly targets the interface responsible for management traffic, which includes SNMP communications. By enabling SNMP service on this interface, SNMP requests from any source can be processed, assuming no other restrictive ACLs or firewall rules are in place that would block such requests.
References:
Typically, enabling SNMP on a device's management interface is straightforward and involves specifying the SNMP version, community strings, and permitted sources. This setting allows the device to process SNMP queries and send SNMP traps as configured.
