NEW QUESTION # 571
A virtual machine has the following configuration:
*IPv4 address: 169.254.10.10
*Subnet mask: 255.255.0.0
The virtual machine can reach colocated systems but cannot reach external addresses on the Internet. Which of the following Is most likely the root cause?
Answer: D
Explanation:
* Understanding the 169.254.x.x Address:
* An IPv4 address in the range of 169.254.x.x is an Automatic Private IP Addressing (APIPA) address, assigned when a DHCP server is unavailable.
* DHCP Server Offline:
* APIPA Assignment: When a device cannot obtain an IP address from a DHCP server, it assigns itself an APIPA address to enable local network communication. This allows communication with other devices on the same local subnet but not with external networks.
* Resolution: Ensure the DHCP server is operational. Check for connectivity issues between the virtual machine and the DHCP server, and verify the DHCP server settings.
* Comparison with Other Options:
* The subnet mask is incorrect: The subnet mask 255.255.0.0 is appropriate for the 169.254.x.x range and does not prevent external access by itself.
* The IP address is an RFC1918 private address: RFC1918 addresses are private IP ranges (10.x.x.
x, 172.16.x.x-172.31.x.x, 192.168.x.x) but 169.254.x.x is not one of them.
* The DNS server is unreachable: While this could affect name resolution, it would not prevent the assignment of a non-APIPA address or local network communication.
* Troubleshooting Steps:
* Verify the DHCP server's status and connectivity.
* Restart the DHCP service if necessary.
* Renew the IP lease on the virtual machine using commands such as ipconfig /renew (Windows) or dhclient (Linux).
NEW QUESTION # 572
A company's VoIP phone connection is cutting in and out. A senior network engineer is recommending the implementation of a voice VLAN. Which of the following should be configured?
Answer: D
Explanation:
A voice VLAN relies on IEEE 802.1Q to tag voice traffic with its own VLAN ID, letting switches differentiate and prioritize VoIP packets separately from data traffic. This segmentation reduces contention and stabilizes call quality.
NEW QUESTION # 573
Users are reporting latency on the network. The network engineer notes the following:
Confirms the only change was a new network switch
Confirms all users are experiencing latency
Thinks the issue is a network loop caused by the lower bridge ID of the new switch Which of the following describes the next step in the troubleshooting methodology?
Answer: B
Explanation:
The correct answer is Test the theory, which aligns directly with the CompTIA Network+ N10-009 troubleshooting methodology. According to the official troubleshooting steps, once a problem has been identified and relevant information gathered, the next step is to establish a theory of probable cause and then test that theory to determine whether it is valid.
In this scenario, the engineer has already completed the problem identification phase by confirming that all users are experiencing latency and correlating the issue with the installation of a new switch. The engineer has also formed a theory: that a network loop caused by the lower bridge ID of the new switch may be impacting Spanning Tree Protocol (STP), resulting in congestion and latency. Because this theory has already been developed, the next logical and required step is to test the theory-for example, by reviewing STP states, temporarily disabling ports, or adjusting bridge priorities.
Implementing a solution would be premature without validating the theory, and verifying full system functionality occurs only after a fix has been applied. The Network+ objectives stress following a structured methodology to avoid unnecessary changes and minimize network disruption. Testing the theory ensures accuracy before corrective action is taken, reducing risk and downtime.
NEW QUESTION # 574
A company implements a video streaming solution that will play on all computers that have joined a particular group, but router ACLs are blocking the traffic. Which of the following is the most appropriate IP address that will be allowed in the ACL?
Answer: B
Explanation:
224.0.0.1 is a multicast address that allows packets to be sent to all hosts within a multicast group. Since video streaming often uses multicast to efficiently distribute data to multiple clients without unnecessary duplication, this is the correct answer.
*Why not the other options?
*127.0.0.1 (A) - This is the loopback address used for internal device testing, not for multicast traffic.
*172.17.1.1 (B) - This is a private unicast address, meaning it can only send packets to one specific host.
*240.0.0.1 (D) - This falls within the reserved experimental IP address range and is not used for multicast.
Reference:
CompTIA Network+ (N10-009) Official Guide - Chapter 7: IP Addressing and Subnetting
NEW QUESTION # 575

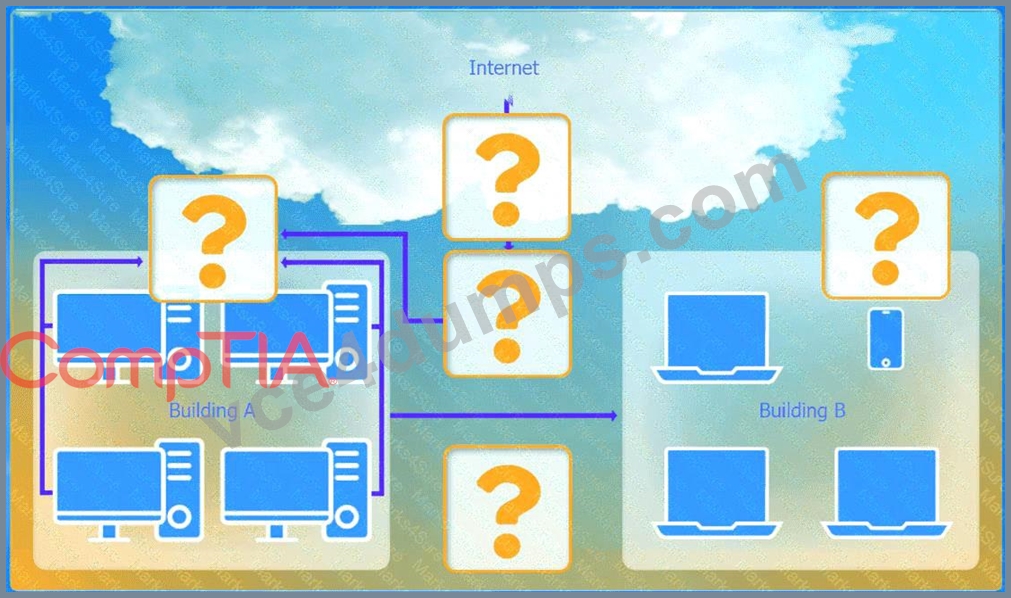

A network administrator has been tasked with configuring a network for a new corporate office. The office consists of two buildings, separated by 50 feet with no physical connectivity. The configuration must meet the following requirements:
. Devices in both buildings should be
able to access the Internet.
. Security insists that all Internet traffic
be inspected before entering the
network.
. Desktops should not see traffic
destined for other devices.
INSTRUCTIONS
Select the appropriate network device for each location. If applicable, click on the magnifying glass next to any device which may require configuration updates and make any necessary changes.
Not all devices will be used, but all locations should be filled.
If at any time you would like to bring back the initial state of the simulation, please click the Reset All button.
Answer:
Explanation:
See the step by step complete solution below.
Explanation:
Devices in both buildings should be able to access the Internet.
Security insists that all Internet traffic be inspected before entering the network.
Desktops should not see traffic destined for other devices.

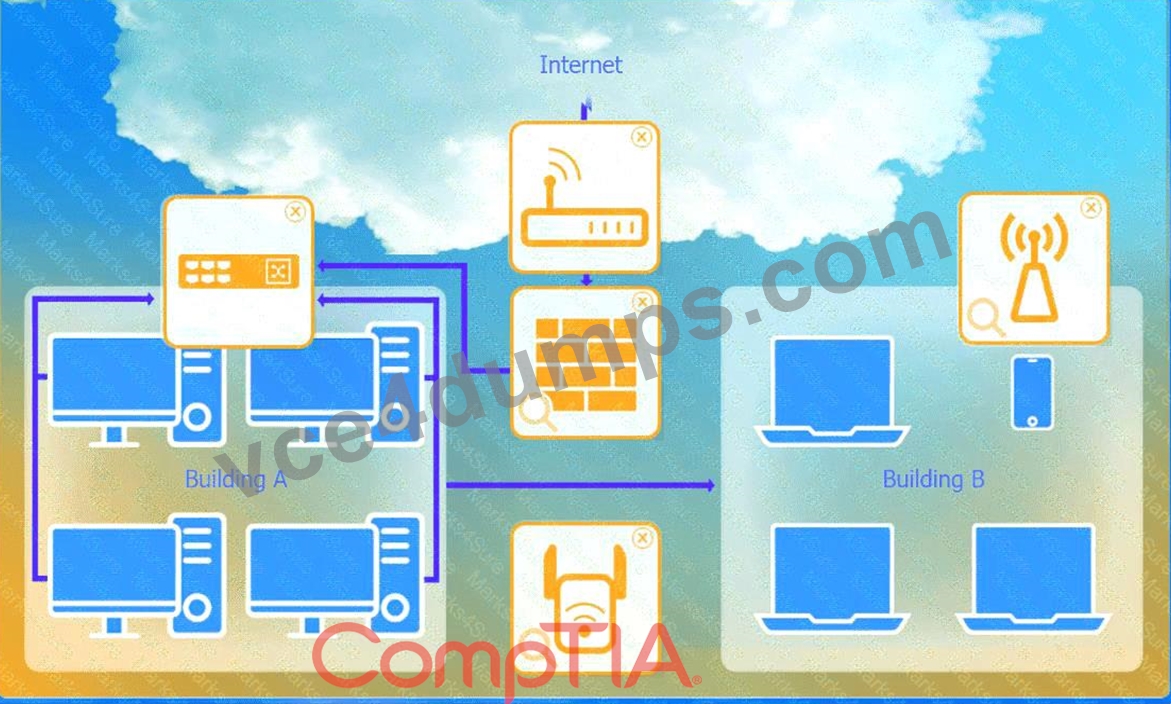

Here is the corrected layout with explanation:
Building A:
Switch: Correctly placed to connect all desktops.
Firewall: Correctly placed to inspect all incoming and outgoing traffic.
Building B:
Switch: Not needed. Instead, place a Wireless Access Point (WAP) to provide wireless connectivity for laptops and mobile devices.
Between Buildings:
Wireless Range Extender: Correctly placed to provide connectivity between the buildings wirelessly.
Connection to the Internet:
Router: Correctly placed to connect to the Internet and route traffic between the buildings and the Internet.
Firewall: The firewall should be placed between the router and the internal network to inspect all traffic before it enters the network.
Corrected Setup:
Top-left (Building A): Switch
Bottom-left (Building A): Firewall (inspect traffic before it enters the network) Top-middle (Internet connection): Router Bottom-middle (between buildings): Wireless Range Extender Top-right (Building B): Wireless Access Point (WAP) In this corrected setup, the WAP in Building B will connect wirelessly to the Wireless Range Extender, which is connected to the Router. The Router is connected to the Firewall to ensure all traffic is inspected before it enters the network.

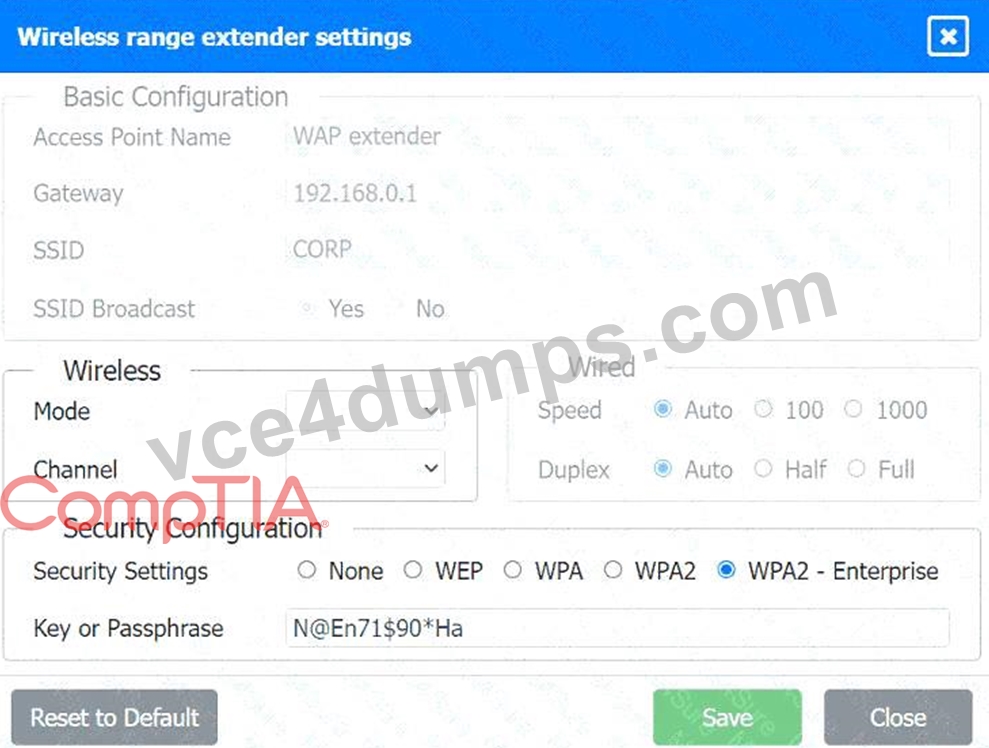

Configuration for Wireless Range Extender:
SSID: CORP
Security Settings: WPA2 or WPA2 - Enterprise
Key or Passphrase: [Enter a strong passphrase]
Mode: [Set based on your network plan]
Channel: [Set based on your network plan]
Speed: Auto
Duplex: Auto
With these settings, both buildings will have secure access to the Internet, and all traffic will be inspected by the firewall before entering the network. Desktops and other devices will not see traffic intended for others, maintaining the required security and privacy.
To configure the wireless range extender for security, follow these steps:
SSID (Service Set Identifier):
Ensure the SSID is set to "CORP" as shown in the exhibit.
Security Settings:
WPA2 or WPA2 - Enterprise: Choose one of these options for stronger security. WPA2-Enterprise provides more robust security with centralized authentication, which is ideal for a corporate environment.
Key or Passphrase:
If you select WPA2, enter a strong passphrase in the "Key or Passphrase" field.
If you select WPA2 - Enterprise, you will need to configure additional settings for authentication servers, such as RADIUS, which is not shown in the exhibit.
Wireless Mode and Channel:
Set the appropriate mode and channel based on your network design and the environment to avoid interference. These settings are not specified in the exhibit, so set them according to your network plan.
Wired Speed and Duplex:
Set the speed to "Auto" unless you have specific requirements for 100 or 1000 Mbps.
Set the duplex to "Auto" unless you need to specify half or full duplex based on your network equipment.
Save Configuration:
After making the necessary changes, click the "Save" button to apply the settings.
Here is how the configuration should look after adjustments:
SSID: CORP
Security Settings: WPA2 or WPA2 - Enterprise
Key or Passphrase: [Enter a strong passphrase]
Mode: [Set based on your network plan]
Channel: [Set based on your network plan]
Speed: Auto
Duplex: Auto
Once these settings are configured, your wireless range extender will provide secure connectivity for devices in both buildings.
Firewall setting to to ensure complete compliance with the requirements and best security practices, consider the following adjustments and additions:
DNS Rule: This rule allows DNS traffic from the internal network to any destination, which is fine.
HTTPS Outbound: This rule allows HTTPS traffic from the internal network (assuming 192.169.0.1/24 is a typo and should be 192.168.0.1/24) to any destination, which is also good for secure web browsing.
Management: This rule allows SSH access to the firewall for management purposes, which is necessary for administrative tasks.
HTTPS Inbound: This rule denies inbound HTTPS traffic to the internal network, which is good unless you have a web server that needs to be accessible from the internet.
HTTP Inbound: This rule denies inbound HTTP traffic to the internal network, which is correct for security purposes.
Suggested Additional Settings:
Permit General Outbound Traffic: Allow general outbound traffic for web access, email, etc.
Block All Other Traffic: Ensure that all other traffic is blocked to prevent unauthorized access.
Firewall Configuration Adjustments:
Correct the Network Typo:
Ensure that the subnet 192.169.0.1/24 is corrected to 192.168.0.1/24.
Permit General Outbound Traffic:
Rule Name: General Outbound
Source: 192.168.0.1/24
Destination: ANY
Service: ANY
Action: PERMIT
Deny All Other Traffic:
Rule Name: Block All
Source: ANY
Destination: ANY
Service: ANY
Action: DENY
Here is how your updated firewall settings should look:
Rule Name
Source
Destination
Service
Action
DNS Rule
192.168.0.1/24
ANY
DNS
PERMIT
HTTPS Outbound
192.168.0.1/24
ANY
HTTPS
PERMIT
Management
ANY
192.168.0.1/24
SSH
PERMIT
HTTPS Inbound
ANY
192.168.0.1/24
HTTPS
DENY
HTTP Inbound
ANY
192.168.0.1/24
HTTP
DENY
General Outbound
192.168.0.1/24
ANY
ANY
PERMIT
Block All
ANY
ANY
ANY
DENY
These settings ensure that:
Internal devices can access DNS and HTTPS services externally.
Management access via SSH is permitted.
Inbound HTTP and HTTPS traffic is denied unless otherwise specified.
General outbound traffic is allowed.
All other traffic is blocked by default, ensuring a secure environment.
Make sure to save the settings after making these adjustments.
NEW QUESTION # 576
......
