Fortinet NSE5_FSW_AD-7.6 Exam Overview:

Certification Vendor:Fortinet
Exam Name:Fortinet NSE 5 - FortiSwitch 7.6 Administrator
Exam Number:NSE5_FSW_AD-7.6
Passing Score:Pass / Fail
Exam Format:Configuration Reasoning, Scenario-Based Items, Multiple Choice
Exam Price:$200 USD
Related Certifications:Fortinet Certified Professional (FCP) - Secure Networking
Available Languages:English
Exam Duration:70 minutes
Real Exam Qty:35-40
Sample Questions:Fortinet NSE5_FSW_AD-7.6 Sample Questions
Exam Way:Pearson VUE
Pre Condition:None specified
Official Syllabus URL:https://training.fortinet.com/local/staticpage/view.php?page=library_fortiswitch

>> NSE5_FSW_AD-7.6資格関連題 <<

Fortinet NSE5_FSW_AD-7.6学習関連題、NSE5_FSW_AD-7.6シュミレーション問題集

当社のNSE5_FSW_AD-7.6学習ツールは、すべての受験者に高い合格率のNSE5_FSW_AD-7.6学習教材を提供するだけでなく、優れたサービスを提供します。当社または当社の製品について質問または疑問がある場合は、当社に連絡して解決してください。 NSE5_FSW_AD-7.6学習ガイドサービスの思慮深さは圧倒的です。私たちが行うことは、NSE5_FSW_AD-7.6実践教材の成功に貢献します。したがって、NSE5_FSW_AD-7.6実践教材は、ユーザーが今後の求人検索でより多くの利点を得ることができるため、ユーザーは激しい競争で際立って最高の成績を収めることができます。

Fortinet NSE5_FSW_AD-7.6 認定試験の出題範囲:

トピック出題範囲
トピック 1
  • 導入と管理:この領域では、マルチテナント環境を含む、サポートされているトポロジーにおけるFortiSwitchのプロビジョニングと導入について説明します。適切な設定、拡張性、および集中管理を重視します。
トピック 2
  • FortiSwitchの概念:このドメインでは、VLAN構成、QoS、LLDP-MED、スタッキング、スイッチングとルーティング、ループ防止のためのSTP、ポートとトランシーバーの構成など、FortiSwitchのコア機能を扱います。基本的なスイッチング操作とネットワーク統合に重点を置いています。
トピック 3
  • レイヤ2の制御とセキュリティ:このセクションでは、スイッチドネットワークを保護するためのポートセキュリティ、フィルタリング、なりすまし対策、ACL、セキュリティプロファイル、VLANセキュリティメカニズムなどのレイヤ2セキュリティ機能に焦点を当てます。
トピック 4
  • 監視とトラブルシューティング:この分野では、パケットキャプチャ方法、FortiLinkのトラブルシューティング、およびトラフィックの監視とネットワーク問題の解決に使用される診断ツールについて説明します。

Fortinet NSE 5 - FortiSwitch 7.6 Administrator 認定 NSE5_FSW_AD-7.6 試験問題 (Q18-Q23):

質問 # 18

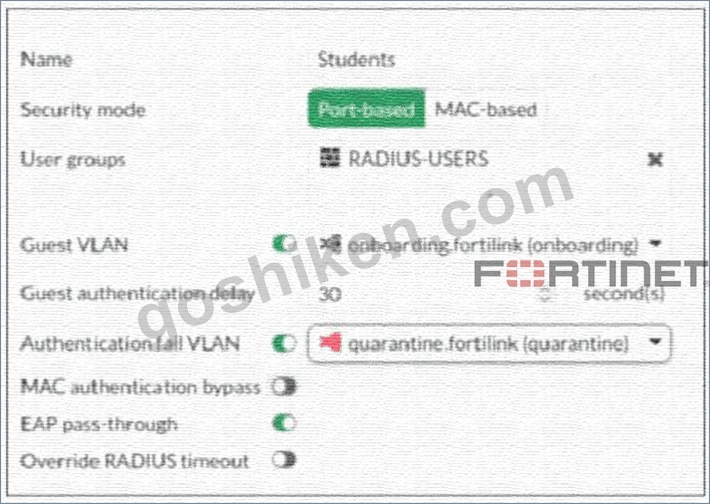

Refer to the exhibit.

The security port policy is configured as shown in the exhibit. Which behavior occurs if a device connected to the port that does not support 802.1X? (Choose one answer)

正解:B

解説:
According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, the interaction between a managed switch and a connected endpoint depends on whether the endpoint can participate in the
802.1X authentication process. When a security policy is applied to a port, the switch sends EAP (Extensible Authentication Protocol) requests to the device to initiate the login.
The FortiSwitch handles two primary failure scenarios differently:
* Non-supplicant (No 802.1X Support):If a device, such as a legacy PC or a basic printer, does not have an 802.1X supplicant, it will not respond to the switch ' s EAP requests. In this case, the switch waits for the duration specified in theGuest authentication delayfield (30 seconds in the exhibit). Once this timer expires without a response, the switch places the device into theGuest VLAN. As shown in the exhibit, the Guest VLAN is explicitly set to " onboarding.fortilink (onboarding) " .
* Authentication Failure:If a devicedoessupport 802.1X but the user provides incorrect credentials, the RADIUS server returns an Access-Reject message. In this scenario, the device is moved to theAuthentication fail VLAN, which the exhibit identifies as " quarantine.fortilink (quarantine) " .
Note:BecauseMAC authentication bypass (MAB)is disabled in the exhibit, the switch will not attempt to authenticate the device ' s MAC address against the RADIUS server before defaulting to the Guest VLAN.
Therefore, for any device lacking an 802.1X supplicant, the result is placement into theonboardingVLAN.


質問 # 19

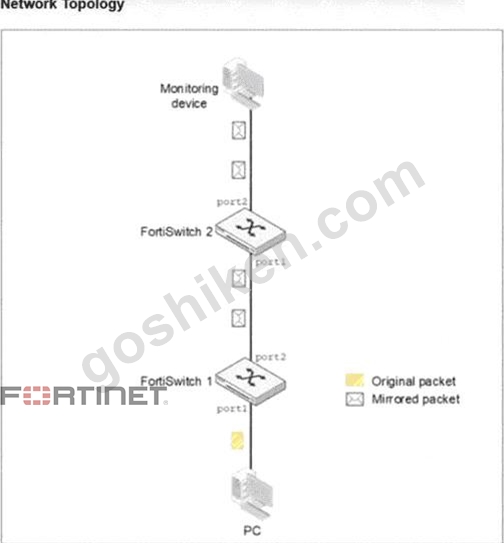

Refer to the exhibit.

You configured Switched Port Analyzer (SPAN) to monitor traffic from a source port on FortiSwitch 1, but the monitoring device is connected to FortiSwitch 2. After port mirroring configuration on FortiSwitch 1, the monitoring device is not receiving any mirrored traffic.
What is the most likely reason the mirrored traffic is not reaching the monitoring device? (Choose one answer)

正解:C

解説:
Comprehensive and Detailed Explanation From Exact Extract of knowledge of FortiAnalyzer 7.6 Study guide documents:
* Standard SPAN Limitation: Switched Port Analyzer (SPAN) is a local port mirroring technology. By design, SPAN copies traffic from one or more source ports (or VLANs) to a destination port on thesame physical switch.
* Traffic Forwarding: Standard SPAN traffic is not encapsulated and does not have the necessary headers to be routed or switched across a network fabric or trunk links between multiple switches. Therefore, if the source port is on FortiSwitch 1 and the monitoring device is on FortiSwitch 2, the mirrored frames will not reach the destination.
* Alternative Solutions: To monitor traffic across multiple switches (multi-hop), technologies such asRemote SPAN (RSPAN)orEncapsulated Remote SPAN (ERSPAN)must be used. RSPAN uses a specific VLAN to carry the mirrored traffic across switches, while ERSPAN encapsulates the traffic in GRE packets so it can be routed across Layer 3 boundaries.
* Troubleshooting Conclusion: Since the scenario describes a standard SPAN configuration and the traffic is failing to traverse from FortiSwitch 1 to FortiSwitch 2, the most likely reason is that basic SPAN does not support forwarding mirrored traffic across multiple switches.


質問 # 20
How does FortiGate handle configuration of flow tracking sampling if you export the settings to a managed FortiSwitch stack with sampling mode set to perimeter is true?

正解:C

解説:
When FortiGate exports configuration settings to a managed FortiSwitch stack with sampling mode set to " perimeter is true, " the behavior is:
* B. FortiGate configures FortiSwitch to perform ingress sampling on all switch interfaces, except ICL and ISL interfaces.This setting ensures that all incoming traffic on normal operational ports is sampled for monitoring and analysis purposes, but it excludes the inter-chassis link (ICL) and inter-switch link (ISL) interfaces from sampling. These exclusions are typically made to prevent the duplication of sampled data and to reduce unnecessary load on the monitoring system, as these links often carry traffic already monitored at other points.
Options A and D are incorrect because they either generalize the sampling across all interfaces without exceptions or incorrectly specify egress sampling on management interfaces. Option C is also incorrect as FortiGate can modify existing sampling settings to fit the perimeter-based configuration requirement.


質問 # 21

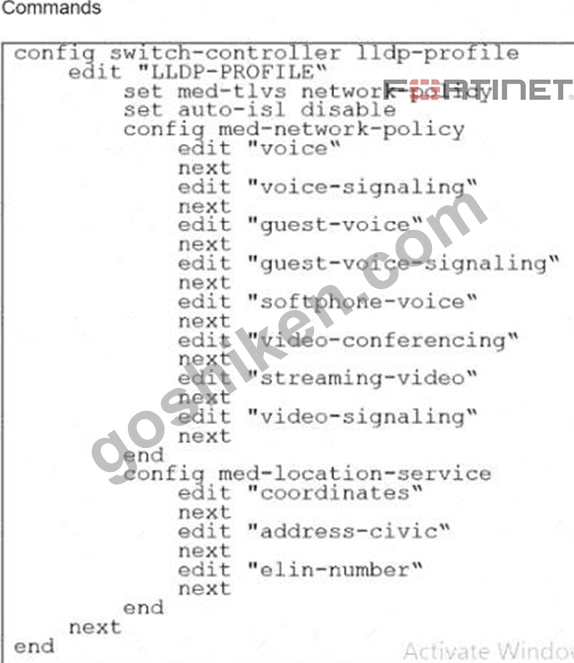

Refer to the exhibit.

The profile shown in the exhibit is assigned to a group of managed FortiSwitch ports, and these ports are connected to endpoints which are powered by PoE.
Which configuration action can you perform on the LLDP profile to cause these endpoints to exchange PoE information and negotiate power with the managed FortiSwitch?

正解:D

解説:
To cause endpoints to exchange PoE information and negotiate power with the managed FortiSwitch via LLDP, you should configure the LLDP profile to include power management in the advertised LLDP-MED TLVs. Here are the steps:
* Access the LLDP Profile Configuration:Start by entering the LLDP profile configuration mode with the command:
config switch-controller lldp-profile
edit "LLDP-PROFILE"
* Enable MED-TLVs:Ensure that MED-TLVs (Media Endpoint Discovery TLVs) are enabled. These TLVs are used for extended discovery relating to network policies, including PoE, and are essential for PoE negotiation. They include power management which is crucial for the negotiation of PoE parameters between devices. The command to ensure network policies are set might look like:
set med-tlvs network-policy
* Add Power Management TLV:Specifically add or ensure the power management TLV is part of the configuration. This will advertise the PoE capabilities and requirements, enabling dynamic power allocation between the FortiSwitch and the connected devices (like VoIP phones or wireless access points). This can typically be done within the network-policy settings:
config med-network-policy
edit <policy_index>
set poe-capability
next
end
* Save and Apply Changes:Exit the configuration blocks properly ensuring changes are saved:
End
* Verify Configuration:It's always good practice to verify that your configurations have been applied correctly. Use the appropriateshoworgetcommands to review the LLDP profile settings.
By adding the power management as part of LLDP-MED TLVs, the FortiSwitch will be able to communicate its power requirements and capabilities to the endpoints, thereby facilitating a dynamic power negotiation that is crucial for efficient PoE utilization.
References:For more detailed information and additional configurations, you can refer to the FortiSwitch Managed Switches documentation available on Fortinet's official documentation site:Fortinet Product Documentation


質問 # 22

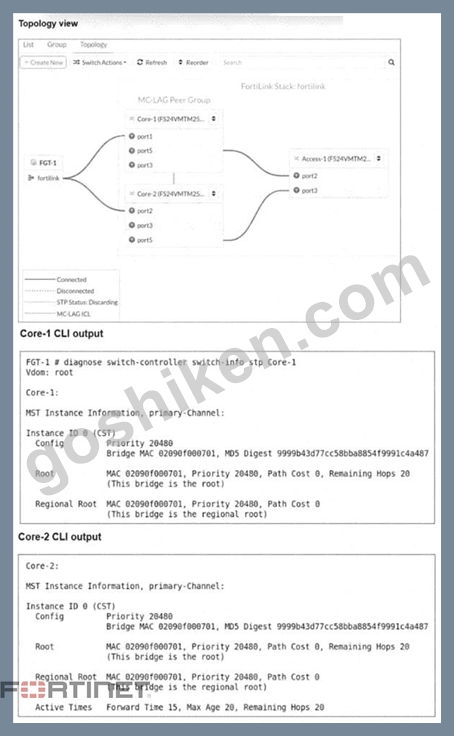

Refer to the exhibits.

An administrator has deployed two FortiSwitch devices, Core-1 and Core-2, as multichassis link aggregation group (MCLAG) peers. These switches are connected to FortiGate for FortiLink and to an access switch (Access-1) using an inter-switch link (ISL). After configuration, the administrator notices that both Core-1 and Core-2 are claiming to be the root bridge in the Multiple Spanning Tree Protocol (MSTP) topology. What explains this behavior? (Choose one answer)

正解:B

解説:
According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, Multichassis Link Aggregation (MCLAG) provides node-level redundancy by grouping two physical switches together so that theyappear as a single logical switchto the rest of the network. This logical representation is critical for preventing Spanning Tree Protocol (STP) from blocking redundant uplinks from downstream client switches.
To achieve this "single switch" appearance, the MCLAG peer switches synchronize their STP state andshare the same Bridge ID, which consists of a synchronized bridge MAC address and the same bridge priority. As shown in the exhibits for Core-1 and Core-2, both switches are configured with aBridge MAC of
02090f000701and aPriority of 20480. Because they possess identical identification parameters, each physical switch in the peer group locally recognizes itself as part of the root bridge entity for the MSTP region.
This behavior is intentional and is a fundamental characteristic of MCLAG design in FortiSwitchOS. It ensures that any downstream device, such as Access-1, receives BPDUs with the same bridge ID from both Core-1 and Core-2, thereby treating them as a single high-availability neighbor rather than two separate devices. Option A is incorrect as FortiGate typically does not participate in STP calculations. Option B is incorrect because this "duplicate" root behavior is the expected sign of acorrectlyfunctioning MCLAG control plane. Option D is incorrect as STP remains active to prevent loops elsewhere in the fabric; it is merely logically simplified for the MCLAG domain.


質問 # 23
......
