NEW QUESTION # 66

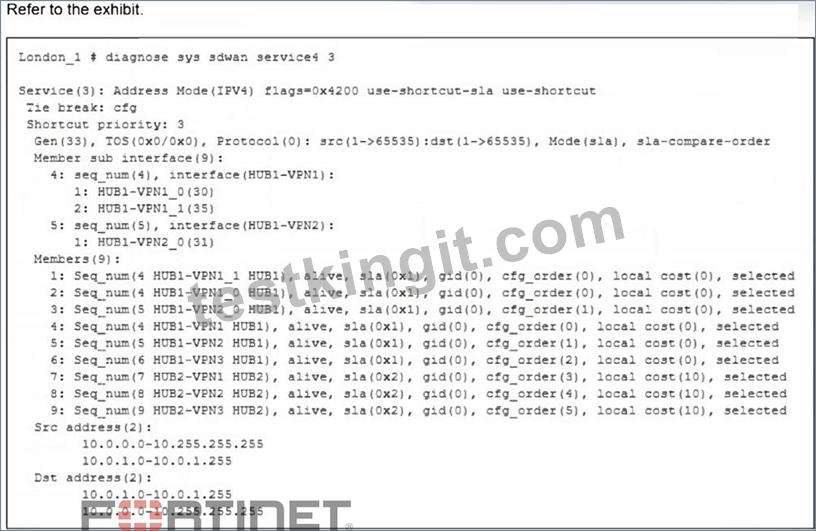

(Refer to the exhibit.
What can you conclude from the output shown? Choose one answer.)
Answer: B
Explanation:
The command shown in the exhibit is:
diagnose sys sdwan service 4 3
This command displays the runtime state of SD-WAN rule ID 3 on the device. The output explicitly shows:
Service(3) which confirms the SD-WAN rule being evaluated is rule number 3 Members(9) which indicates that nine SD-WAN members are associated with this rule The listed members include multiple IPsec tunnel interfaces such as HUB1-VPN1, HUB1-VPN2, HUB1-VPN3, HUB2-VPN1, HUB2-VPN2, and HUB2-VPN3, which is characteristic of a spoke device connecting to multiple hubs in a hub-and-spoke ADVPN topology, as defined in the FCSS SD-WAN 7.6 architecture.
Option B is incorrect because, although members are listed under different interfaces, the output does not indicate SD-WAN zones. Zones are shown only in configuration output, not in this diagnostic command.
Option C is incorrect because this is not a hub device. The presence of multiple hub tunnels as SD-WAN members indicates a spoke role. Additionally, the output does not confirm the number of established ADVPN shortcuts.
Option D is incorrect because the output clearly references SD-WAN rule 3, not rule 4, and it does not state that exactly three shortcut tunnels are allowed.
Therefore, the correct conclusion is that this is a spoke device and SD-WAN rule 3 is configured with nine members, which matches option A.
NEW QUESTION # 67
(When you deploy SD-WAN, you can choose from several common designs. Each design best applies to specific contexts.
Which two statements correctly associate a common SD-WAN design with its main indication or constraint? Choose two answers.)
Answer: A,C
Explanation:
The FCSS SD-WAN 7.6 curriculum describes multiple standard SD-WAN deployment designs, each mapped to a specific operational goal or constraint.
A cloud on-ramp topology is designed to optimize connectivity to cloud services such as SaaS and IaaS. This design provides the most efficient and reliable path to cloud applications by establishing direct tunnels to cloud gateways or cloud workloads and by avoiding backhauling traffic through a central data center. As a result, its primary indication is improving the performance of cloud applications, which makes option A correct.
A remote breakout (centralized breakout) design forwards all internet-bound traffic from branch sites to a central hub for security inspection. This allows security policies, inspection, and logging to be centralized on a high-capacity FortiGate at the hub. Because branch devices do not need advanced local security configurations, this design also limits local management requirements, which makes option C correct.
Option B is incorrect because a standalone SD-WAN design is not selected simply because a site has only one WAN link. SD-WAN provides its main benefits when multiple WAN paths exist, and single-link sites do not gain meaningful traffic-steering advantages.
Option D is incorrect because a direct internet access (DIA) design performs local internet breakout at the branch and therefore requires strong local security capabilities. DIA does not inherently increase traffic security and is not intended for devices with limited capabilities.
Therefore, the two correct associations are A and C.
NEW QUESTION # 68
(In the context of SD-WAN, the terms underlay and overlay are commonly used to categorize links.
Which two statements about underlay and overlay links are correct? Choose two answers.)
Answer: A,D
Explanation:
In Fortinet SD-WAN architecture, underlay and overlay have distinct meanings:
Underlay links are the physical or logical transport networks that provide basic IP connectivity (for example, broadband, MPLS, LTE/5G).
Overlay links are virtual tunnels (such as IPsec VPNs) built on top of the underlay, providing abstraction, routing control, and segmentation.
Option B is correct.
Overlay links (for example, IPsec tunnels used in SD-WAN and ADVPN) decouple routing from the physical transport. This allows dynamic path selection, segmentation, and flexible routing policies independent of the underlay. Providing routing flexibility is a core purpose of overlays in SD-WAN.
Option D is correct.
Wireless connections such as LTE or 5G can be used as underlay transports, and overlay tunnels can be built over them. Fortinet SD-WAN fully supports building IPsec overlays on wireless underlays, making wireless links valid for overlay construction.
Why the other options are incorrect:
Option A is incorrect because a VLAN is a Layer 2 segmentation mechanism, not an SD-WAN overlay link.
Option C is incorrect because FortiLink is used for internal management and switch/AP connectivity, not as a WAN underlay for SD-WAN.
Option E is incorrect because underlay links can be wired or wireless; they are not limited to wired connections.
Therefore, the two correct statements are B and D.
NEW QUESTION # 69
You want FortiGate to use SD-WAN rules to steer local-out traffic.
Which two constraints should you consider? (Choose two.)
Answer: B,D
Explanation:
By default, local-out traffic does not use SD-WAN → FortiGate normally sends local-out traffic (e.g., DNS, NTP, FortiGuard updates) directly through its interfaces without applying SD-WAN rules.
You must configure each local-out feature individually to use SD-WAN → To steer local-out traffic via SD-WAN, you must explicitly configure the desired local-out features (e.g., DNS, FortiGuard, CAPWAP) to use SD-WAN rules.
NEW QUESTION # 70
What are three key routing principles of SD-WAN? (Choose three.)
Answer: A,B,C
Explanation:
Fortinet outlines key SD-WAN routing principles:
"Policy routes are always evaluated before SD-WAN rules, meaning if a policy route matches, SD-WAN steering is bypassed. If the best route for a destination is not via an SD-WAN member, SD-WAN rules do not apply, and members are ignored if they lack a valid route. This hierarchy ensures traffic always follows the most deterministic and valid path according to configuration." Understanding these principles is critical for correct SD-WAN and routing integration.
NEW QUESTION # 71
......
