Fortinet FCSS_EFW_AD-7.6 Exam Syllabus Topics:

Section	Objectives
Monitoring, Logging, and Troubleshooting	- Troubleshooting tools 1. Packet capture and flow debugging - System monitoring 1. Logs, reports, and diagnostics
FortiGate Deployment and Administration	- Initial system setup and configuration 1. Device onboarding and licensing 2. Basic system settings and interfaces
Security Policies and Profiles	- Security profiles 1. Antivirus, IPS, Web filtering 2. Application control and SSL inspection - Firewall policies 1. Central NAT and policy order
Routing and SD-WAN	- SD-WAN configuration 1. Performance SLA and traffic steering - Dynamic and static routing 1. OSPF/BGP integration basics 2. Policy-based routing
VPN Technologies	- IPsec VPN 1. Site-to-site VPN configuration 2. Route-based vs policy-based VPN - SSL VPN 1. Remote access configuration
High Availability and Redundancy	- HA clustering 1. Failover behavior and synchronization 2. Active-passive and active-active modes

>> FCSS_EFW_AD-7.6 Testing Engine <<

FCSS_EFW_AD-7.6 Prüfung - FCSS_EFW_AD-7.6 Zertifikatsdemo

Wir versprechen, dass Sie die Prüfung zum ersten Mal mit unseren Schulungsunterlagen zur Fortinet FCSS_EFW_AD-7.6 Zertifizierungsprüfung bestehen können. Sonst erstatten wir Ihen die gesammte Summe zurück.

Fortinet FCSS - Enterprise Firewall 7.6 Administrator FCSS_EFW_AD-7.6 Prüfungsfragen mit Lösungen (Q121-Q126):

121. Frage
How will configuring set tcp-mss-sender and set tcp-mss-receiver in a firewall policy affect the size and handling of TCP packets in the network?

A. The TCP packet modifies the packet size only if the size of the packet is less than the one the administrator configured in the firewall policy.
B. The administrator must consider the payload size of the packet and the size of the IP header to configure a correct value in the firewall policy.
C. Applying commands in a firewall policy determines the largest payload a device can handle in a single TCP segment.
D. The maximum segment size permitted in the firewall policy determines whether TCP packets are allowed or denied.

Antwort: C

Begründung:
The set tcp-mss-sender and set tcp-mss-receiver commands in a firewall policy allow an administrator to adjust the Maximum Segment Size (MSS) of TCP packets.
This setting controls the largest payload size that a device can handle in a single TCP segment, ensuring that packets do not exceed the allowed MTU (Maximum Transmission Unit) along the network path.
# set tcp-mss-sender adjusts the MSS value for outgoing TCP traffic.
# set tcp-mss-receiver adjusts the MSS value for incoming TCP traffic.
This helps prevent issues with fragmentation and MTU mismatches, improving network performance and avoiding retransmissions.

122. Frage
Why does FortiGate_B install only one OSPF external route?

A. Route filtering
B. ECMP disabled
C. Area mismatch
D. Single advertisement

Antwort: B

Begründung:
Comprehensive and Detailed Explanation From Exact Extract documents and Knowledge:
OSPF external routes (Type 5 LSAs) can be learned from multiple paths. For a FortiGate to install multiple equal-cost paths into the routing table-a feature known as ECMP (Equal-Cost Multi-Path) -the OSPF process must have ECMP enabled and the maximum path count must be set to a value greater than one. If ECMP is disabled or the limit is set to 1, the FortiGate will select only the single best path (based on cost and RFC 1583/2328 selection rules) to install in the routing table, even if multiple valid advertisements exist.

123. Frage

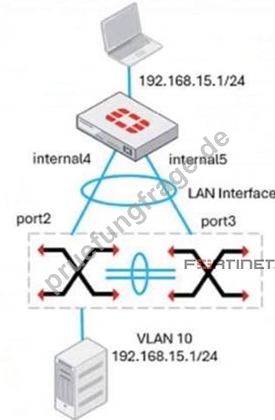

Refer to the exhibit, which shows a LAN interface connected from FortiGate to two FortiSwitch devices.

What two conclusions can you draw from the corresponding LAN interface? (Choose two.)

A. The LAN interface must use a 802.3ad type interface.
B. This connection is using a FortiLInk to manage VLANs on FortiGate.
C. FortiGate is using an SD-WAN-type interface to connect to a FortiSwitch device with MCLAG.
D. You must enable STP or RSTP on FortiGate and FortiSwitch to avoid layer 2 loopbacks.

Antwort: A,B

Begründung:
The diagram shows a FortiGate connected to two FortiSwitches, which suggests the use of FortiLink, Fortinet's protocol for managing switches directly from a FortiGate. Since multiple connections are being used, the LAN interface must be set to 802.3ad (LAG) mode to aggregate the links for redundancy and load balancing.
This setup allows FortiGate to handle VLAN assignments dynamically, as seen with VLAN 10 (192.168.15.1
/24). FortiLink ensures seamless integration between FortiGate and FortiSwitches, making STP unnecessary because Fortinet's MCLAG prevents loops at Layer 2. SD-WAN, on the other hand, is used for WAN interfaces and does not apply to switch connectivity in this scenario.

124. Frage

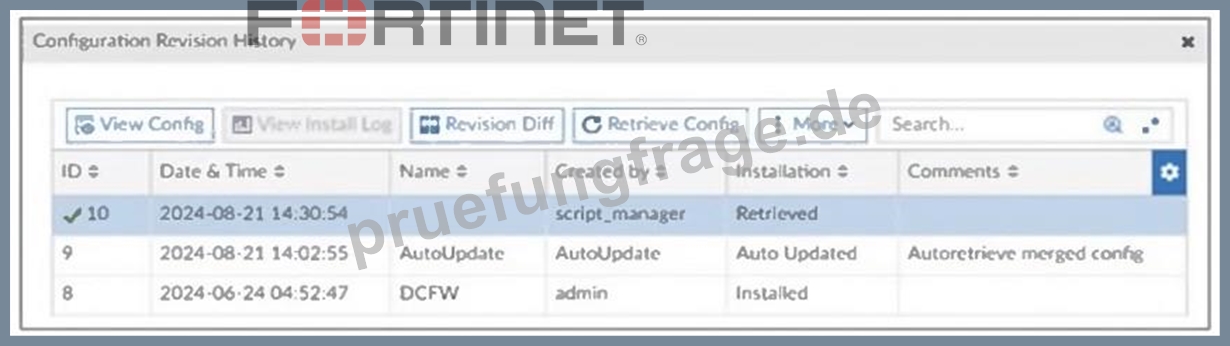

Refer to the exhibit, which shows a revision history window in the FortiManager device layer.

The IT team is trying to identify the administrator responsible for the most recent update in the FortiGate device database.
Which conclusion can you draw about this scenario?

A. The user script_manager is an API user from the Fortinet Developer Network (FDN) retrieving a configuration.
B. This retrieved process was automatically triggered by a Remote FortiGate Directly (via CLI) script.
C. Find the user in the FortiManager system logs and use the type=script command to find the administrator user in the user field.
D. To identify the user who created the event, check it on the Configuration and Installation widget on FortiGate within the FortiManager device layer.

Antwort: C

Begründung:
The Configuration Revision History window in FortiManager shows that the most recent configuration change (ID 10) was created by script_manager with the action Retrieved.
Since script_manager is a system-level script execution user, the IT team needs to find who actually triggered this script. This can be done by:
* Checking the FortiManager system logs for script execution events.
* Using the type=script filter to locate the administrator associated with the script execution.

125. Frage

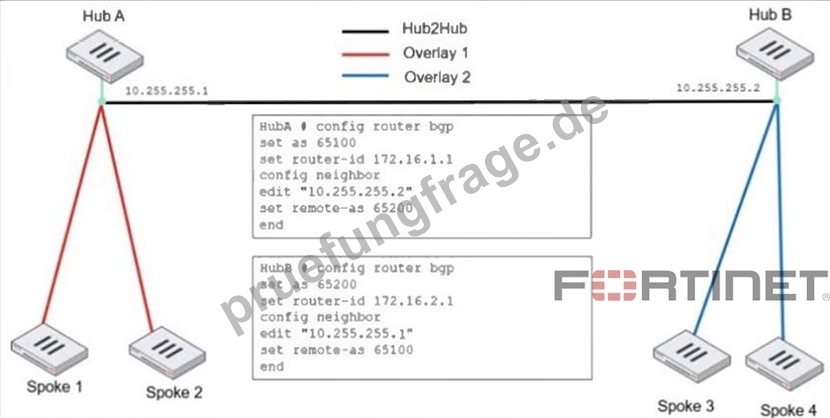

Refer to the exhibit, which shows an ADVPN network

An administrator must configure an ADVPN using IBGP and EBGP to connect overlay network 1 with 2.
What two options must the administrator configure in BGP? (Choose two.)

A. set next-hop-self enable
B. set ibgp-enforce-multihop advpn
C. set ebgp-enforce-multrhop enable
D. set attribute-unchanged next-hop

Antwort: A,C

Begründung:
In this ADVPN (Auto-Discovery VPN) network, there are two hubs (Hub A and Hub B) connected via EBGP, while IBGP is used within each overlay. To ensure proper BGP routing between the overlays, the administrator must configure specific BGP options..
set ebgp-enforce-multihop enable
By default, EBGP requires directly connected neighbors. Since Hub A and Hub B are not directly connected but reach each other over an IPsec tunnel, multihop must be enabled for EBGP sessions to work.
set next-hop-self enable
In IBGP, the next-hop attribute does not change by default. When an IBGP route is advertised from a spoke to another hub or spoke, the next-hop needs to be updated to ensure proper reachability. Enabling next-hop-self forces the BGP speaker to advertise itself as the next-hop, ensuring that all spokes properly reach routes across the overlays.

126. Frage
......
