질문 # 43

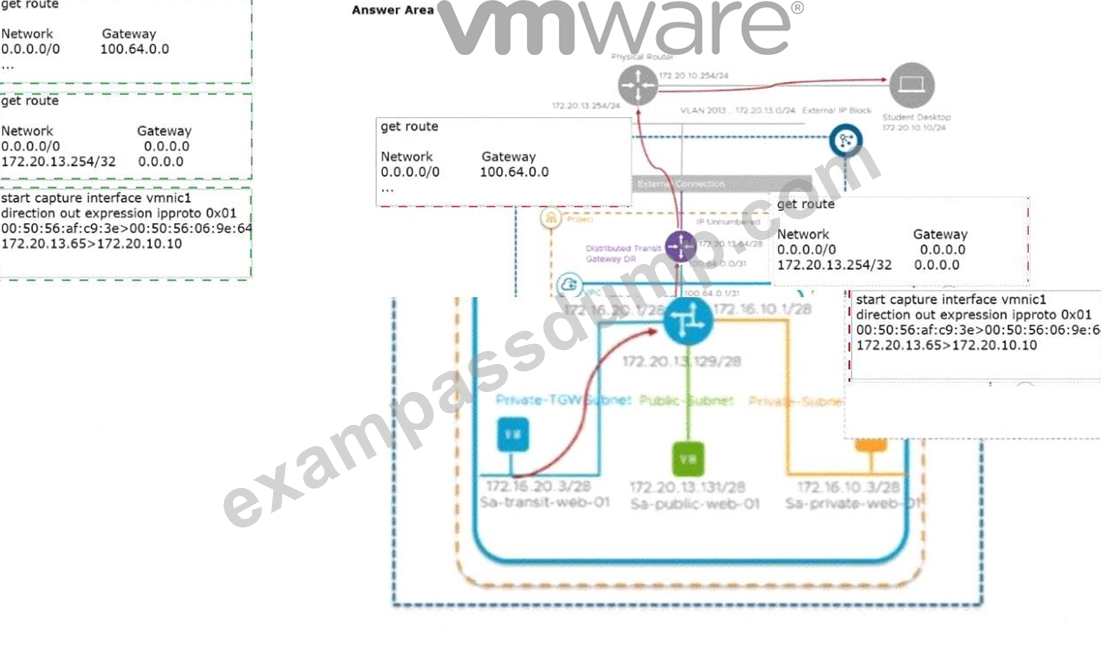

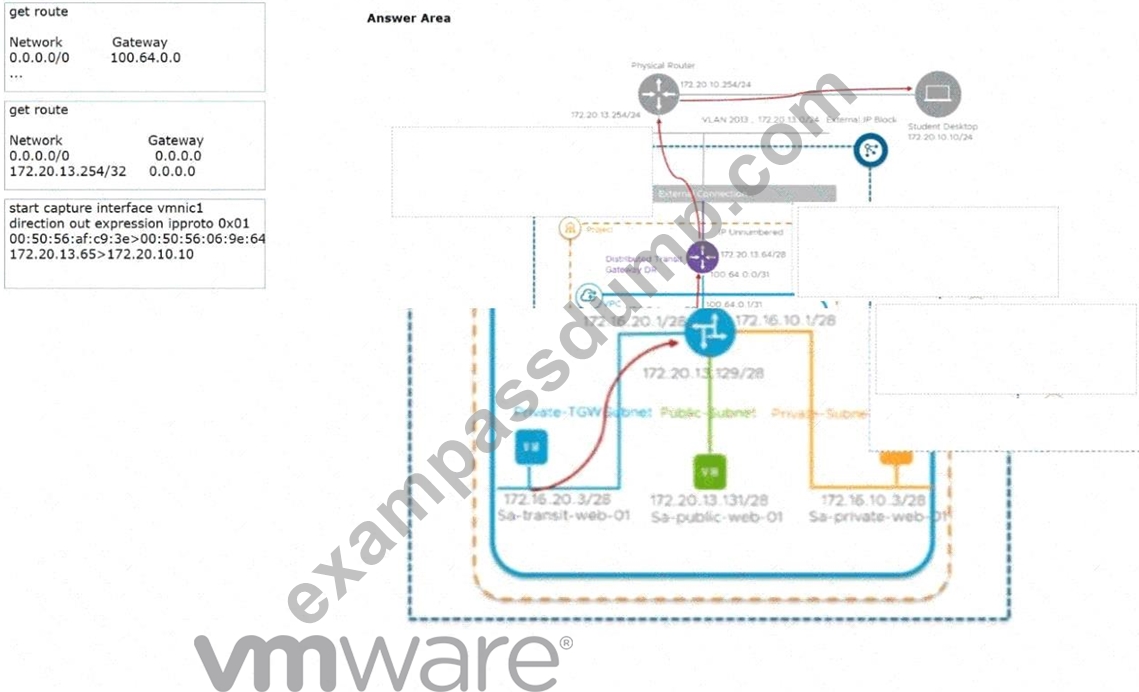

An administrator is attempting to confirm the successful transmission between an internal VM to an external destination.
An ICMP request packet is being sent from Sa-transit-web-01 to the Student Desktop in the diagram.
Drag and Drop the commands output into their appropriate originating NSX object.
정답：
설명：
Explanation:

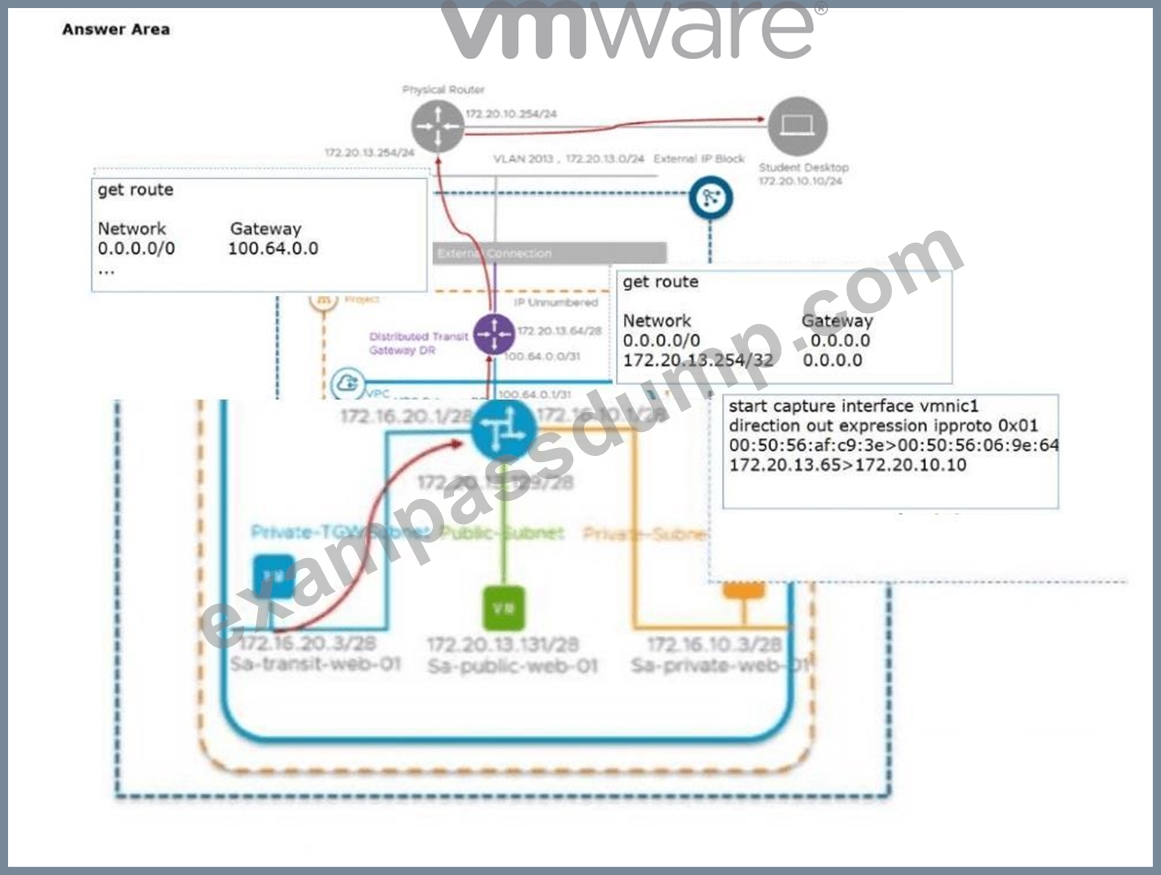

In a modernVCF 9.0environment using theVirtual Private Cloud (VPC)model, North-South traffic follows a specific hierarchical path. When a VM, such asSa-transit-web-01, initiates an ICMP request to an external destination (the Student Desktop), the packet must traverse the VPC's internal routing before exiting to the physical network.
The first hop is theVPC Tier-1 Gateway. This gateway manages the localized subnets within the VPC. In this architecture, the VPC Tier-1 is typically configured with a default route ($0.0.0.0/0$) pointing to the Transit Gateway (TGW). The gateway address 100.64.0.0 represents the provider-side interface of the Router Link connecting the VPC to the Transit Gateway. Thus, the command output showing the default route to 100.64.0.0 belongs to the VPC Gateway.
The second hop is theDistributed Transit Gateway DR. The Transit Gateway acts as the aggregation point for multiple VPCs and provides the bridge to the physical datacenter fabric. The command output for this object shows a default route with a gateway of 0.0.0.0, indicating it is directly peered or using a specific unnumbered interface to reach the physical router. Additionally, it identifies the specific physical router IP (172.20.13.254/32) as a known local next-hop, which is a common characteristic of the Transit Gateway's forwarding table when performing North-South transitions.
Finally, theTransport Node (ESXi Host)is where the physical packet capture occurs. As the packet exits the virtual environment, it is placed on a physical uplink (vmnic1). The packet capture output confirms the transformation of the traffic: it shows the source IP of the VM (or its translated NAT address 172.20.13.65) reaching out to the destination 172.20.10.10. The inclusion of ipproto 0x01 (ICMP) and the specific MAC addresses confirms that the packet has successfully traversed the NSX overlay and is now a standard Ethernet frame on the physical wire.
질문 # 44
An administrator must provide North/South connectivity for a VPC. The fabric exposes a distributed external VLAN across all ESX hosts. But, the only BGP peer to the core is on a VLAN only accessible on the Edge Cluster. Which design is required?
정답：C
설명：
Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:
In aVMware Cloud Foundation (VCF)environment utilizing theVirtual Private Cloud (VPC)model, North
/South connectivity is managed by theTransit Gateway (TGW). The TGW acts as the bridge between the VPC-internal networks and the provider-level physical network.
The scenario presents a specific constraint: while an external VLAN exists across all hosts, the actual BGP peering point (the interface to the physical core routers) is restricted to theNSX Edge Cluster. In NSX terminology, when a gateway or service must be anchored to specific Edge Nodes to access physical network services-such as BGP peering, NAT, or stateful firewalls-it must be configured as aCentralizedcomponent.
ACentralized Transit Gateway(Option C) is instantiated on the Edge nodes. This allows the TGW to participate in the BGP session with the core routers on the VLAN that is only accessible to those Edges. The TGW then handles the routing for the VPC's internal segments. Traffic from the ESXi transport nodes (East- West) travels via the Geneve overlay to the Edge nodes, where it is then routed North-South by the Centralized TGW using the physical BGP peer.
Option A is incorrect because "distributed eBGP peering" would require every ESXi host to have peering capabilities, which contradicts the constraint. Option B involves EVPN, which is a significantly more complex and different architecture than what is required for standard VPC North/South access. Option D is an unnecessarily complex routing design that is not the standard VCF/VPC implementation pattern. Thus, the use of a Centralized Transit Gateway on the Edge cluster is the verified design requirement to bridge the gap between the overlay VPC and the localized BGP peering point.
질문 # 45
A cloud service provider runs VPCs with differing traffic patterns:
* Some VPCs are generating high, large North/South flows.
* Most of the VPCs generate very little traffic.
The architect needs to optimize Edge dataplane resource consumption while ensuring that noisyVPCs do not impact others.
Which optimization satisfies the requirement?
정답：D
설명：
Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:
In a VMware Cloud Foundation (VCF) environment, especially with the architectural evolution in VCF 9.0, theVirtual Private Cloud (VPC)model is the primary way to deliver self-service, isolated networking. The networking performance for North/South traffic-traffic leaving the SDDC for the physical network-is processed byNSX Edge Nodes. These Edge Nodes use DPDK (Data Plane Development Kit) to provide high- performance packet processing, but their resources (CPU and Memory) are finite.
When dealing with "noisy neighbors"-tenants or VPCs that consume a disproportionate amount of throughput-it is critical to isolate their data plane impact. According to the VMware Validated Solutions and VCF Design Guides, the most scalable and efficient way to achieve this is through the use ofMultiple Edge Clusters. By creating distinct Edge clusters, an architect can physically isolate the compute resources used for routing.
In this scenario, high-traffic VPCs can be backed by specificVRF (Virtual Routing and Forwarding) instances on a Tier-0 gateway that is hosted on a dedicated high-performance Edge Cluster. Meanwhile, the numerous low-traffic VPCs can share a different Edge Cluster. This "Traffic Profile" based distribution ensures that a spike in traffic within a "heavy" VPC only consumes the DPDK cycles of its assigned Edge nodes, leaving the resources for the "quiet" VPCs untouched.
Option A is incorrect because Edge nodes function in clusters for high availability; assigning a single node creates a single point of failure and is administratively heavy. Option B reduces the multi-tenancy benefits and doesn't solve the resource contention at the Edge level. Option C removes the benefits of the software- defined overlay and VPC consumption model. Therefore, distributingVRF-backed VPCsacross multiple Edge clusters based on their expected load is the verified design best practice for optimizing resource consumption while maintaining strict performance isolation in a VCF provider environment.
질문 # 46
An administrator has been tasked with enabling OSPF as the routing protocol for a Tier-0 Gateway. Which two items must be configured to enable OSPF for a Tier-0 Gateway?
Mark two answers by clicking the two correct locations on the image. (Choose two.)
정답：
설명：
Explanation:
To enable OSPF on a Tier-0 Gateway within a VMware Cloud Foundation (VCF) or NSX environment, an administrator must define the areas where the gateway will participate and the specific interfaces it will use for peering.

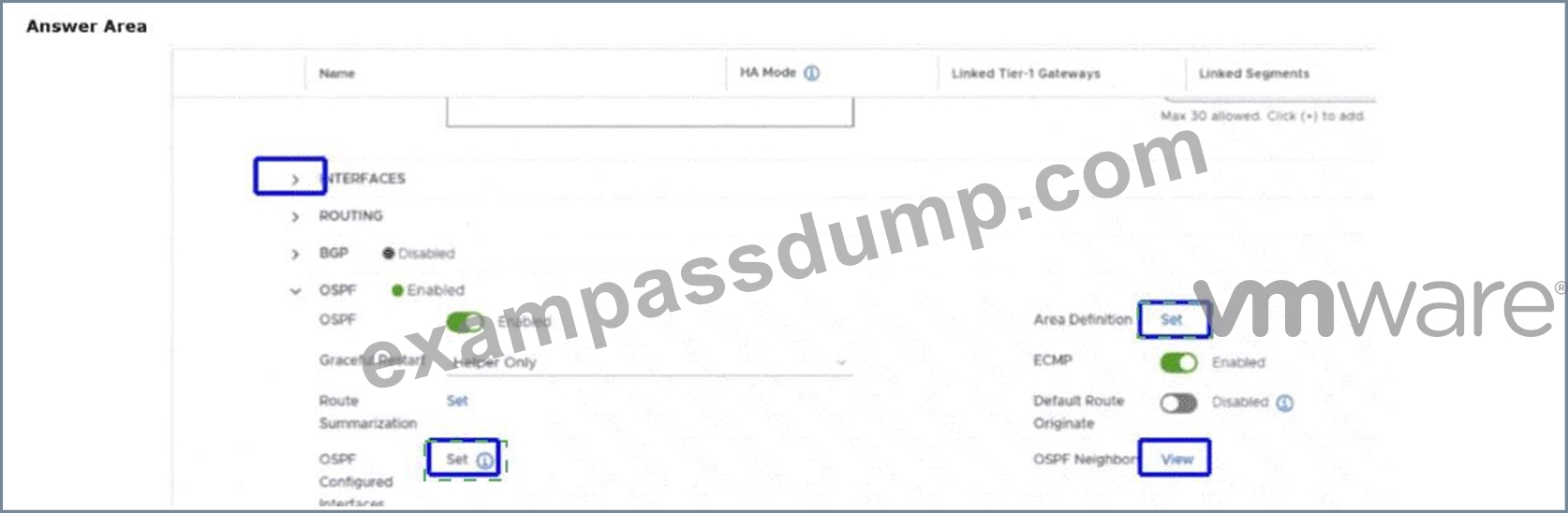

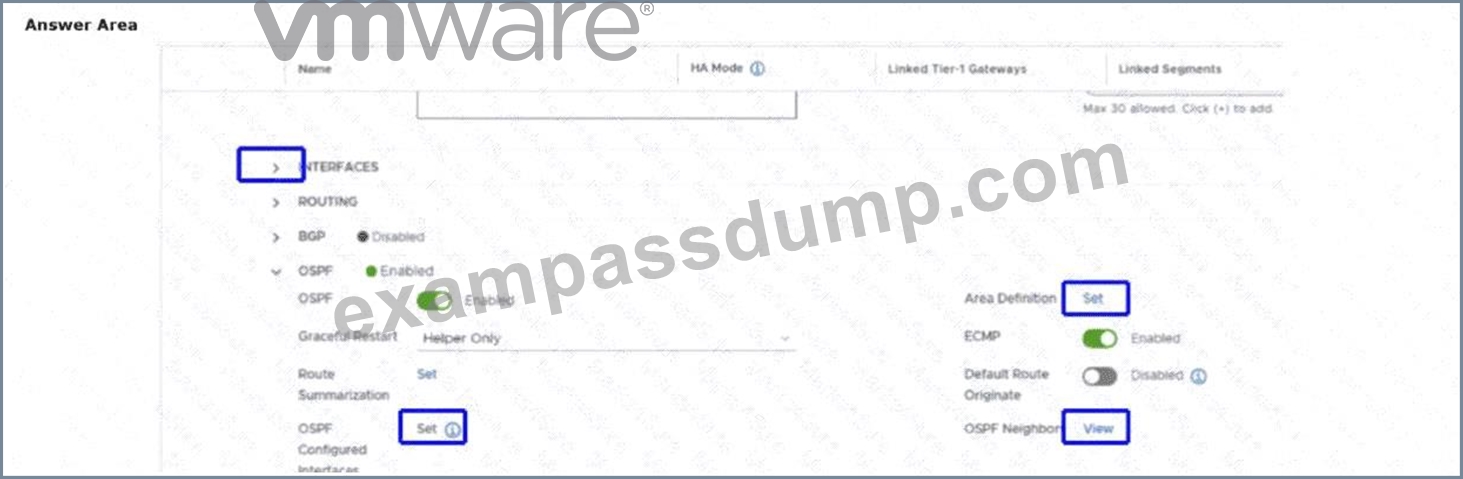

Based on the NSX Manager configuration interface, the two required items to be configured are:
* Area Definition: This is necessary to define the OSPF area (e.g., Area 0) the Tier-0 gateway will participate in.
* OSPF Configured Interfaces: OSPF must be explicitly configured on the relevant uplink interfaces to establish neighbor relationships and exchange routing information with physical routers.
질문 # 47
When attempting to deploy or expand an edge cluster from an administrator encounters a failure: "Failed to validate the BGP Route Distribution". Prior to calling support, the administrator attempts to troubleshoot the issue. How should the administrator troubleshoot this issue?
정답：A
설명：
Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:
InVMware Cloud Foundation (VCF), theSDDC Managerautomates the deployment and expansion ofNSX Edge Clusters. As part of the automated workflow, particularly in VCF 4.x, 5.x, and 9.0, a "Verify BGP Route Distribution" task is executed. This task is a validation check designed to ensure that the newly deployed or expanded Edge nodes are successfully peering with the physical Top-of-Rack (ToR) switches and, more importantly, are actually receiving routes.
According to VMware/Broadcom technical documentation (specificallyKB 388351), the workflow expects to see at least one route (often the default route or specific physical prefixes) learned via BGP from the northbound peer. If the Edge nodes establish a BGP session but the physical switches are not advertising any routes (or are only advertising routes that the Edge ignores due to filters), the SDDC Manager validation fails with the error "Failed to validate the BGP Route Distribution".
The verified troubleshooting step is tolog into the CLI of the Edge nodeidentified in the failure. Using the command get route bgp from within the Tier-0 Service Router (SR) VRF context allows the administrator to see the current Routing Information Base (RIB). If the table is empty or only contains internal "ISR" (Inter- SR) routes, it confirms that the physical network is not providing the expected advertisements. This allows the administrator to correct the BGP advertisement settings on the physical ToR switches-such as enabling default-originate-and then simply "Resume" the task in SDDC Manager without needing to redeploy the entire cluster.
질문 # 48
......
