| Section | Weight | Objectives |
|---|---|---|
| Topic 1: IPv6 | 8-12% | - Static and dynamic routing - Autoconfiguration - OSPFv3 and BGP for IPv6 - Address types and format |
| Topic 2: Border Gateway Protocol (BGP) | 20-25% | - IBGP and EBGP - Basic operation and message types - Path selection and attributes - Policy and route filtering - Configuration and troubleshooting |
| Topic 3: Protocol-Independent Routing | 10-15% | - Load balancing - Martian addresses - Filter-based forwarding - Static, aggregate, and generated routes - Routing instances and RIB groups |
| Topic 4: Spanning Tree Protocols | 8-12% | - Port roles and states - BPDU and protection features - Configuration and convergence - STP, RSTP, MSTP, VSTP |
| Topic 5: Multiprotocol Label Switching (MPLS) | 12-18% | - LDP and RSVP - Configuration and monitoring - Terminology and forwarding - Labels and LIB - Segment routing basics |
| Topic 6: Intermediate System to Intermediate System (IS-IS) | 10-15% | - Configuration and monitoring - Metrics and wide metrics - Adjacencies and levels - PDUs and TLVs |
| Topic 7: High Availability | 5-8% | - Graceful restart - NSR and GRES concepts - Nonstop active routing |
| Topic 8: Layer 2 Bridging and VLANs | 8-12% | - Bridging concepts - Service provider switching features - VLANs and trunking |
| Topic 9: Tunnels | 5-8% | - Tunnel configuration and usage - GRE and IP-IP tunnels |
| Topic 10: Open Shortest Path First (OSPF) | 15-20% | - Link-state database - LSA types and operation - Areas and router types - Configuration and troubleshooting |
Itcertmaster real Juniper JN0-364 Exam Dumps are ideal for applicants who are busy in their routines and want to do quick preparation for the Juniper JN0-364 certification test. We guarantee that our actual Service Provider Routing and Switching, Specialist (JNCIS-SP) (JN0-364) questions will be enough for you to prepare successfully for the Service Provider Routing and Switching, Specialist (JNCIS-SP) (JN0-364) examination.
NEW QUESTION # 50

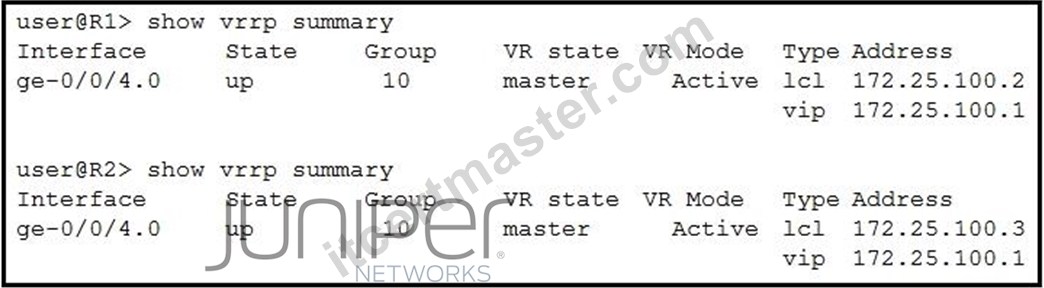

Referring to the exhibit, which statement is true about VRRP?
Answer: B
Explanation:
The exhibit shows the show vrrp summary output from two routers, with both routers listing the state of their VRRP group as master. VRRP allows for multiple routers to share a virtual IP address and a virtual MAC address, but usually, only one router is the master at any given time while others are in backup state. However, in some configurations, VRRP can operate in an active/active mode where multiple routers handle traffic simultaneously for load sharing. Since both routers show the state as master and there is no evidence of misconfiguration in the virtual IP addresses or priority, it indicates that VRRP is likely functioning in an active/active setup.
NEW QUESTION # 51

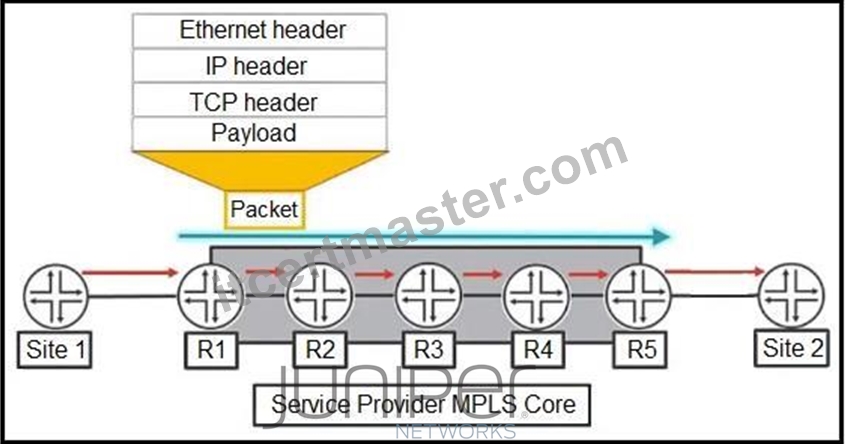

Referring to the exhibit. Which two statements ate correct about the actions taken as the packet traverses the service provider MPLS network from Site 1 to Site 2 as shown in the exhibit?
(Choose two.)
Answer: A,C
Explanation:
In MPLS (Multiprotocol Label Switching) networks, routers use label switching to forward packets.
The first router at the edge of the MPLS network (R1) will perform a lookup in the mpls.0 table to determine the label to attach to the packet as it enters the MPLS network. This label informs the next routers in the MPLS network (like R2) on how to forward the packet. Internal MPLS routers, like R2, also perform lookups in their mpls.0 table to determine how to switch the packet toward its destination (label swapping). The inet.3 table is used for resolving next-hop information for labeled routes, but it's the mpls.0 table that is used for label switching decisions.
NEW QUESTION # 52
Exhibit:

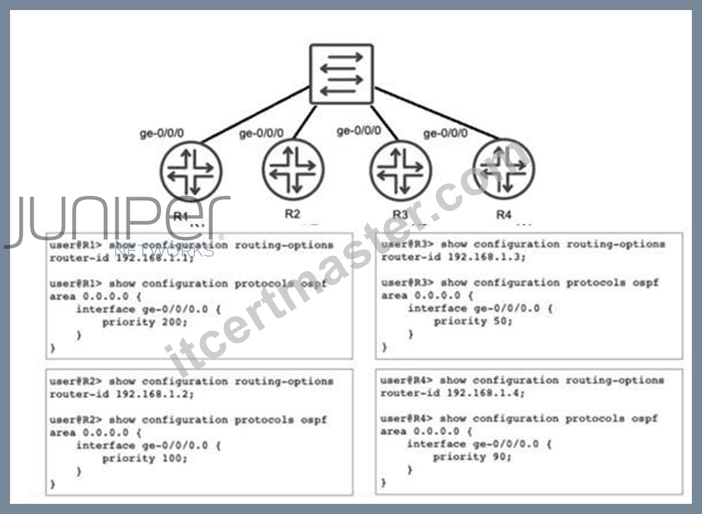

Referring to the exhibit, you have configured R1, R2, R3, and R4 to be a part of OSPF area 0 and you have connected them to a broadcast segment. Assuming all four routers come online within one minute of each other, which router becomes the DR and which router becomes the BDR?
Answer: B
Explanation:
In OSPF networks, when multiple routers are connected to a shared multi-access broadcast segment (like an Ethernet switch), they undergo an election process to select aDesignated Router (DR)and aBackup Designated Router (BDR). This mechanism is essential for reducing the number of adjacencies and limiting the volume of Link State Advertisement (LSA) flooding on the segment.
The OSPF election process follows a strict hierarchy based on the following criteria:
* Interface Priority:The router with the highest OSPF interface priority is elected as the DR. The router with the second-highest priority becomes the BDR. In Junos, the default priority is 128, but it can be manually configured between 0 and 255.
* Router ID:If there is a tie in priority, the router with the numerically highest Router ID (RID) wins the election.
Analyzing the configuration provided in the exhibit:
* R1:Priority 200, Router-ID 192.168.1.1
* R2:Priority 100, Router-ID 192.168.1.2
* R3:Priority 50, Router-ID 192.168.1.3
* R4:Priority 90, Router-ID 192.168.1.4
Comparing the priority values,R1 has the highest priority (200)and therefore becomes theDR. The next highest priority value among the remaining routers is100, which belongs to R2, making it theBDR. Although R4 has a higher Router ID than R2, the priority value is evaluated first and takes precedence.
Since all routers came online within a short window (one minute), they participate in the same election cycle, ensuring the configured priorities dictate the outcome rather than "first-come, first-served" preemption behavior common in OSPF once a DR is already established.
NEW QUESTION # 53
What information is determined by using the AS path attribute included in the BGP update message? (Choose two.)
Answer: A,D
NEW QUESTION # 54
Exhibit:

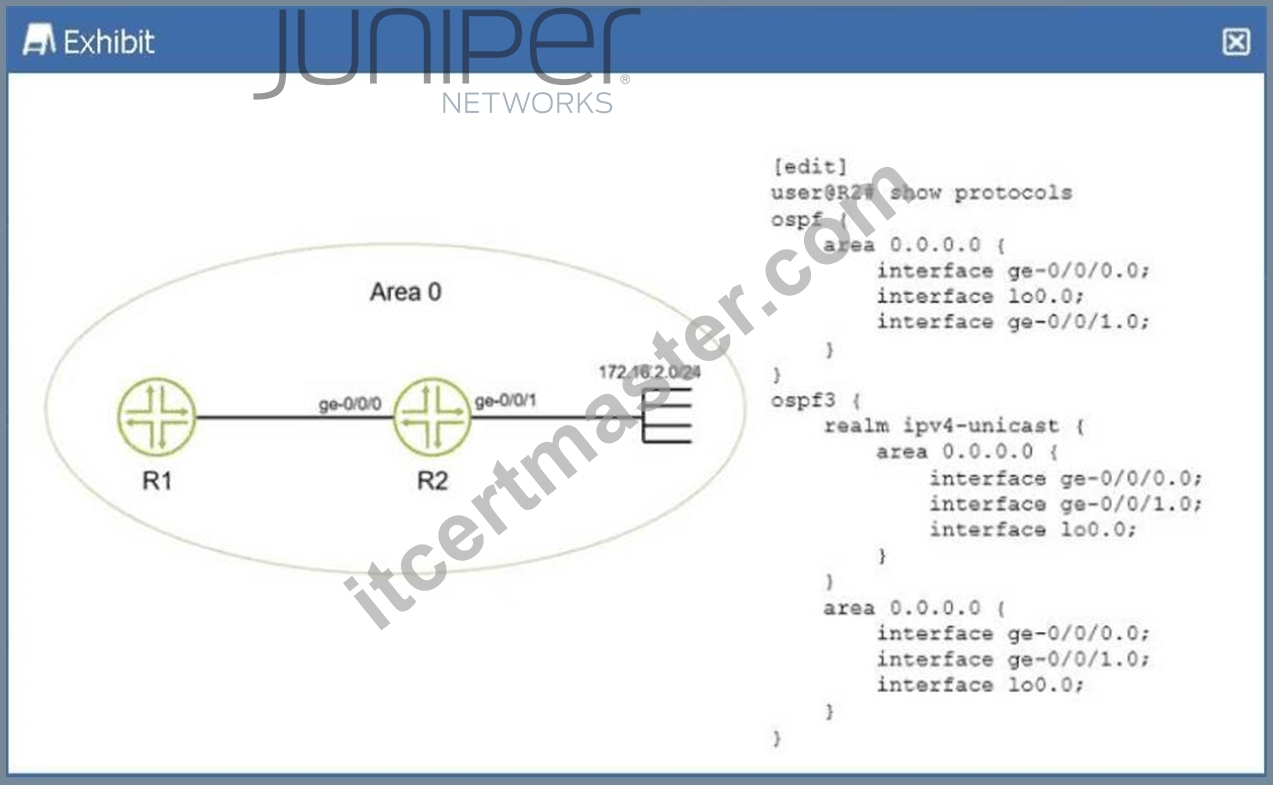

You have configured IPv4 and IPv6 in your network and all OSPF neighbors are established. You apply the configuration shown in the exhibit. Which statement is true in this scenario?
Answer: B
Explanation:
In a Juniper Networks environment running Junos OS, understanding the interaction between different versions of OSPF is essential for multi-protocol environments.OSPFv2(defined in RFC 2328) is the standard protocol used for routing IPv4 unicast traffic.OSPFv3(defined in RFC 5340) was originally developed to support IPv6 routing. However, OSPFv3 was later extended via RFC 5838 to support multiple address families (AF), allowing it to carry IPv4 unicast, IPv4 multicast, and other address types within a single OSPF instance.
According to Juniper technical documentation, Junos OS implements this multi-AF support in OSPFv3 through the use ofrealms. When the realm ipv4-unicast statement is configured under the [edit protocols ospf3] hierarchy, the OSPFv3 process becomes capable of calculating and advertising IPv4 routes.
In the provided exhibit, routerR2has a dual-protocol configuration. First, it is running standard OSPFv2, with the ge-0/0/1.0 interface (which is directly connected to the 172.16.2.0/24 network) participating in Area 0.
This ensures that the prefix is advertised as a standard IPv4 LSA to its neighbor,R1. Second, R2 is running OSPFv3 with the realm ipv4-unicast specifically enabled on that same ge-0/0/1.0 interface. Because of this realm, OSPFv3 also treats the 172.16.2.0/24 prefix as a reachable IPv4 destination and advertises it to R1 as an OSPFv3 IPv4-unicast LSA.
As a result, whenR1(which is also running both protocols) receives these routing updates, it will see the same destination prefix advertised by two different protocols. Its routing table (inet.0) will contain one entry learned from the OSPFv2 process and a second, separate entry learned from the OSPFv3 process. While the Junos Routing Engine will ultimately select one as the "active" route based on route preference (both protocols have a default preference of 10), both entries will technically exist within the Routing Information Base (RIB). This confirms that statementBis the correct description of the operational state of the network.
=========
NEW QUESTION # 55
......
