Möchten Sie dieNokia 4A0-D03 Zertifizierungsprüfung mühlos bestehen? Dann sind die Fragenkataloge zur Nokia 4A0-D03 Zertifizierung aus Zertpruefung unerlässlich. Die Fragenpool zur Nokia 4A0-D03 Zertifizierungsprüfung aus Zertpruefung werden von den erfahrenen Experten durch ständige Praxis entworfen, sie sind eine Kommbination aus Fragen und Antworten. Deswegen ist die Webseite Zertpruefung die Beste. Wählen Sie Zertpruefung, wartet eine schönere Zukunft auf Sie da.
| Section | Weight | Objectives |
|---|---|---|
| Layer 2 EVPN Services | 25% | - EVPN Route Types 1–4 - Multi-homing and Ethernet Segments - Anycast Gateway and IRB |
| Data Center Interconnect (DCI) Solutions | 25% | - BGP route policies and route reflectors - Gateway-less EVPN DCI - Interoperability with Nokia 7750 SR |
| Layer 3 EVPN Services | 25% | - EVPN Route Type 5 - VRF integration and route targets - Symmetric and asymmetric routing |
| SR Linux and EVPN Fundamentals | 25% | - SR Linux architecture and CLI - EVPN control plane and MP-BGP - VXLAN encapsulation and underlay |
Die Nokia 4A0-D03 Zertifizierungsprüfung sit eine Prüfung, die IT-Technik testet. Zertpruefung ist eiune Website, die Ihnen zum Bestehen der Nokia 4A0-D03 Zertifizierungsprüfung verhilft. Viele Menschen verwenden viel Zeit und Energie auf die Nokia 4A0-D03 Zertifizierungsprüfung oder sie geben viel Geld für die Kurse aus, um die Nokia 4A0-D03 Zertifizierungsprüfung zu bestehen. Mit Zertpruefung brauchen Sie nicht so viel Geld, Zeit und Energie. Die zielgerichteten Übungen von Zertpruefung dauern nur 20 Stunden. Sie können dann die Nokia 4A0-D03 Zertifizierungsprüfung leicht bestehen.
10. Frage
Which of the following statements about configuring and using an integrated routing and bridging (IRB) interface is TRUE?
Antwort: B
Begründung:
Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:
An IRB interface is the logical connection point between a Layer 2 MAC-VRF and a Layer 3 IP-VRF. It provides the routed gateway function for hosts in the bridge domain while allowing traffic to move into the routed VRF for inter-subnet forwarding. The correct statement is that when an IRB sub-interface has multiple IP addresses, one can be designated as the primary. This is important because the primary address is used for normal gateway or subnet behavior when more than one address is present on the same routed interface context. Option A is inaccurate because the question is about an IRB sub-interface, not a generic subinterface selection between bridge or routed access modes. Option B is not the defining multi-homing model; EVPN multi-homing is implemented through Ethernet Segment association and MAC-VRF attachment behavior, not by adding multiple IRB subinterfaces for multi-homing. Option D is also wrong because the IRB is the shared logical link between the MAC-VRF and IP-VRF; the design does not require separate IRB subinterfaces on each side as independent constructs. Reference: SR Linux IRB configuration, MAC-VRF to IP-VRF interconnection, primary IP addressing.
11. Frage
Which of the following GARP functions is FALSE?
Antwort: D
Begründung:
Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:
A Gratuitous ARP is an ARP message a host sends to announce or refresh its own IP-to-MAC binding without waiting for another host to request it. In a traditional Ethernet subnet, the GARP is sent as a broadcast so that other hosts can update their ARP caches with the sender's current MAC address. This is useful after a host boots, changes NICs, moves to another attachment point, or takes over an IP address in a redundancy scenario. In EVPN environments, GARPs are also important because a leaf can snoop the ARP information and update local proxy ARP and EVPN MAC/IP state. Option D is false because recipients do not acknowledge a gratuitous ARP with a reply. GARP is an announcement mechanism, not a request/response transaction. If every receiving host acknowledged a broadcast GARP, the result would be unnecessary ARP traffic amplification. The correct behavior is passive update of ARP state by receiving systems and, in EVPN, potential control-plane propagation of the learned binding by the local PE. Reference: GARP behavior, proxy ARP learning, Layer 2 EVPN endpoint update procedures.
12. Frage
Which of the following statements about an integrated routing and bridging (IRB) interface is FALSE?
Antwort: B
Begründung:
Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:
An IRB interface provides the logical L3 gateway function between a Layer 2 MAC-VRF and a Layer 3 IP-VRF on the same PE. It allows locally bridged hosts to route into the tenant IP-VRF while preserving EVPN control-plane signaling for MAC/IP reachability. The IRB subinterface must have at least one IP address because it acts as the routed gateway for the subnet, and it may also be configured with ACLs to apply traffic policy at the L3 boundary. Option B is false because it incorrectly generalizes the IRB relationship. In SR Linux EVPN service modeling, an IRB subinterface connects a MAC-VRF to an IP-VRF in a controlled one-to-one service attachment context; the design is not that both IP-VRFs and MAC-VRFs arbitrarily contain multiple IRB interfaces for the same relationship. A MAC-VRF has its IRB gateway association into the IP-VRF, and the IP-VRF may connect to multiple MAC-VRFs through distinct IRB contexts, but the statement as written is not the correct rule for IRB interface behavior. Reference: SR Linux IRB interface operation, MAC-VRF/IP-VRF interconnection, gateway IP and ACL support.
13. Frage
Consider the exhibit.
All IP-VRFs are configured properly and are operational.
Which of the following statements is FALSE?
Antwort: C
Begründung:
Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:
In a single-active EVPN multi-homing design, the connected PE routers perform Designated Forwarder election to determine which PE is active for the relevant service or Ethernet Segment. The DF is responsible for forwarding toward the attached segment and, in a Layer 3 multi-homing case, only the active/DF PE advertises the customer IP prefix route toward the EVPN control plane. Single-active redundancy is communicated using Ethernet Segment-related EVPN procedures, including Ethernet A-D information, so remote PEs can identify the redundancy behavior and avoid forwarding traffic to an inactive attachment. The false statement is that the elected DF uses an AD per EVI update to identify itself as primary. AD per EVI is primarily used to advertise per-service Ethernet Segment reachability and support aliasing/load-balancing behavior in multi-homed services. DF election itself is driven by Ethernet Segment route procedures, not by the DF declaring itself primary through AD per EVI. Therefore, option B misstates the role of AD per EVI in the single-active L3 multi-homing control plane. Reference: EVPN DF election, single-active multi-homing, Ethernet A-D routes.
14. Frage

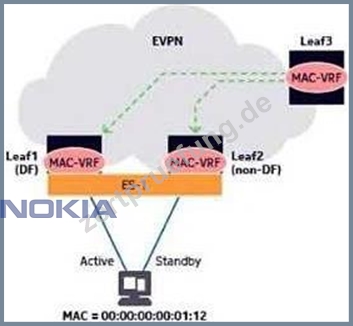

Consider the exhibit.
Which of the following statements about the configuration and operation of this setup is TRUE?
Antwort: C
Begründung:
Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:
This setup represents a Layer 2 EVPN multi-homing attachment where the host is connected to Leaf1 and Leaf2 through an Ethernet Segment named ES-1. In SR Linux EVPN multi-homing, the Ethernet Segment must be associated with the physical or logical attachment interfaces facing the host. This allows the PEs to advertise Ethernet Segment information into EVPN, participate in DF election, and apply the appropriate forwarding behavior for single-active or all-active redundancy. Option D is therefore correct. Option A is not necessarily true because the exhibit indicates an active/standby style attachment, not all-active operation. Option B is also incorrect because ECMP on the remote MAC-VRF is not the mechanism that defines the local ES association or single-active behavior. Option C is wrong in this setup because a host LAG is required for common all-active L2 multi-homing with LACP, but the shown design uses an active/standby-style attachment where the Ethernet Segment is bound to the host-facing ports. The technical anchor is that ES-1 must be associated to the access ports connecting the host into the multi-homed MAC-VRF service. Reference: L2 EVPN multi-homing, Ethernet Segment interface association, DF behavior.
15. Frage
......
Zertpruefung ist eine Website, die Bequemlichkeiten für die Nokia 4A0-D03 Zertifizierungsprüfung bietet. Nach den Forschungen über die Fragen und Antworten in den letzten Jahren kann Zertpruefung die Themen zur Nokia 4A0-D03 Zertifizierungsprüfung effektiv erfassen. Die Nokia 4A0-D03 Prüfungsübungen haben eine große Ähnlichkeit mit realen Prüfungen.
4A0-D03 Prüfungsübungen: https://www.zertpruefung.de/4A0-D03_exam.html
