| Section | Weight | Objectives |
|---|---|---|
| Topic 1: Advanced Routing & VPN | 25% | - SD-WAN design & SLA management - OSPF, BGP, IS-IS configuration & optimization - Route redistribution & filtering - IPsec VPN & ADVPN architecture |
| Topic 2: High Availability & Redundancy | 15% | - Session synchronization & failover - FGCP/FGSP/vCluster deployment - Cross-data center redundancy |
| Topic 3: Monitoring & Troubleshooting | 10% | - Connectivity & performance troubleshooting - Fabric synchronization issues - Diagnostic tools & CLI analysis |
| Topic 4: Security Policy & Services | 10% | - Advanced firewall & security profile design - Identity-based policies - NAT & IP pool optimization |
| Topic 5: Centralized Management | 20% | - Policy packages & object templates - FortiManager 7.6 deployment & role assignment - Configuration provisioning & version control - FortiAnalyzer logging & reporting |
| Topic 6: System Architecture & Design | 20% | - Security Fabric integration & scaling - Hardware sizing & resource planning - VDOM design & multi-tenant deployment - FortiOS 7.6 architecture & components |
>> New NSE7_FSN_AR-7.6 Test Registration <<
According to the survey of our company, we have known that a lot of people hope to try the NSE7_FSN_AR-7.6 test training materials from our company before they buy the study materials, because if they do not have a try about our study materials, they cannot sure whether the study materials from our company is suitable for them to prepare for the exam or not. So a lot of people long to know the NSE7_FSN_AR-7.6 study questions in detail. In order to meet the demands of all people, our company has designed the trail version for all customers. We can promise that our company will provide the demo of the NSE7_FSN_AR-7.6 learn prep for all people to help them make the better choice. It means you can try our demo and you do not need to spend any money.
NEW QUESTION # 77

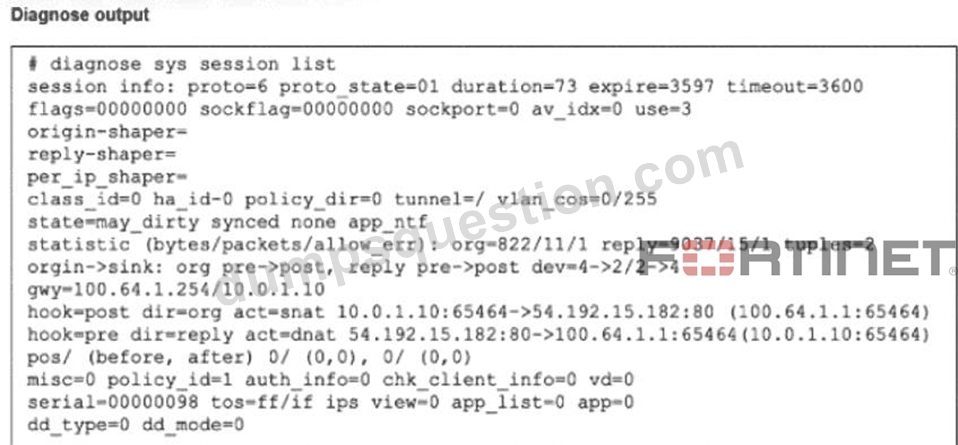

Refer to the exhibit.
The output of diagnose sys session list command is shown.
If the HA ID for the primary device is 9, what happens if the primary fails and the secondary becomes the primary?
Answer: B
Explanation:
The output of the diagnose sys session list command provides the critical evidence needed to determine the behavior during a failover:
Session Synchronization (synced):
The most important indicator in the exhibit is the synced flag located in the state= line (state=may_dirty synced none app_ntf).
In FortiOS HA (High Availability), the synced flag confirms that this specific session has been successfully synchronized from the primary device to the secondary (backup) device.
Session synchronization (Session Pickup) ensures that if the primary unit fails, the secondary unit already has the session in its table and can resume traffic processing immediately.
TCP State (proto_state=01):
The output shows proto=6 (TCP) and proto_state=01.
In the FortiGate session table, proto_state=01 for TCP indicates that the session is in the ESTABLISHED state (post-three-way handshake).
This invalidates Option B, which claims the TCP session is not fully established.
Failover Outcome:
Because the session is ESTABLISHED and SYNCED, the secondary device will seamlessly take over the session upon primary failure.
The traffic continues to flow through the new primary without requiring the user/client to restart the connection. This is the primary function of HA Session Pickup.
Why other options are incorrect:
A: While the output shows app_ntf (Application Control notification) and may_dirty, the presence of the synced flag overrides this concern regarding failover. If the session type were not supported for failover (e.g., certain proxy sessions in older versions), it would not be marked as synced. Since it is synced, it persists.
B: As noted, proto_state=01 means established, not " not fully established " .
D: While the kernel updates routing tables, the purpose of syncing the session is to preserve the state so it does not need to be re-evaluated as a new packet would, preventing traffic drops.
Reference:
FortiGate Security 7.6 Study Guide (High Availability): " If session pickup is enabled, the primary unit synchronizes its session table... to the backup unit. If the primary unit fails, the backup unit... continues to process the sessions with no interruption. "
NEW QUESTION # 78

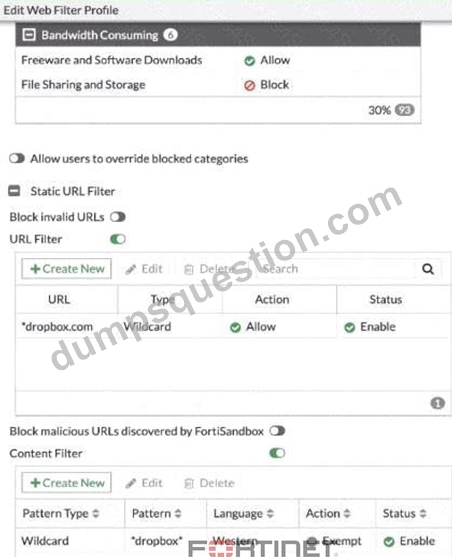

Exhibit.
Refer to the exhibit, which shows a partial web fillet profile configuration.
Which action does FortiGate lake if a user attempts to access www. dropbox. com, which is categorized as File Sharing and Storage?
Answer: A
Explanation:
https://community.fortinet.com/t5/FortiGate/Technical-Tip-FortiGate-Static-URL-filter-actions-explained/ta-p
/206632
NEW QUESTION # 79
Which two observations can you make from the output? (Choose two.)
Answer: B,C
Explanation:
We must analyze the specific CLI output provided in the exhibit to determine the observations.
Analyze the Command and Output:

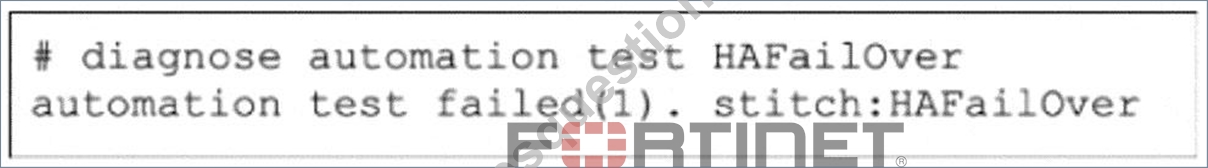

Command: # diagnose automation test HAFailOver
This command is used to manually trigger an automation stitch (named " HAFailOver " ) to verify its configuration and action execution. It simulates the trigger event to run the defined actions.
Output: automation test failed(1). stitch:HAFailOver
The output explicitly states that the test failed. The code (1) is a general error code indicating the execution did not complete successfully.
Evaluate the Options:
A). The configuration was backed up:
Incorrect. Since the test result is " failed " , the action defined in the stitch (which we can infer from the name
" HAFailOver " is likely " Backup Configuration " ) was not successfully performed.
B). A high availability (HA) failover occurred:
Incorrect. The command diagnose automation test is a simulation tool. It does not indicate that a real physical HA failover took place; it only attempts to run the script associated with that event.
C). The test was unsuccessful:
Correct. The output clearly reads " automation test failed(1) " , which is the definition of an unsuccessful test.
D). The automation stitch test is not being logged:
Correct. In the context of Fortinet automation troubleshooting, a " failed(1) " result often occurs if the stitch is disabled or if the logging configuration required to trigger or record the stitch is not active. Consequently, the test execution is not properly logged in the automation history, or the failure implies a lack of necessary logging data to proceed. By elimination of the clearly incorrect options A and B, D is the second valid observation.
Reference:
FortiGate Security 7.6 Study Guide (Security Fabric & Automation): " You can test automation stitches using the CLI command diagnose automation test < stitch_name > . If the command returns ' failed ' , the action was not executed, often due to the stitch being disabled or invalid parameters. "
NEW QUESTION # 80
Which Iwo troubleshooting steps should you perform lf you encounter issues with intermittent web filter behavior? (Choose two.)
Answer: C,D
Explanation:
Intermittent behavior (working sometimes, failing others) points to resource or connectivity fluctuations rather than static misconfigurations.
B). Check that FortiGate is not entering conserve mode:
Reason: When FortiGate enters Conserve Mode (due to high memory usage), it changes its inspection behavior to save resources. Depending on the av-failopen setting, it may either bypass inspection (allowing blocked sites) or drop traffic (blocking valid sites) temporarily until memory recovers. This flapping between states causes intermittent filtering issues.
D). Check that the communication between FortiGate and FortiGuard is stable:
Reason: The Web Filter engine relies on real-time queries to the FortiGuard Distribution Network (FDN) to categorize URLs that are not in the local cache. If the internet connection or the specific path to FortiGuard is unstable (packet loss, latency), queries will time out. This results in " Rating Errors, " which can block or allow traffic unpredictably based on the " Allow websites when a rating error occurs " setting.
Why other options are incorrect:
A: A mismatch in inspection mode (e.g., Profile set to Proxy, Policy set to Flow) is a static configuration error. It would typically result in the profile not being selectable or consistently failing/not applying, rather than working intermittently.
C: If the wrong port is mapped (e.g., HTTP on 8080 is not mapped), the inspection engine will consistently ignore traffic on that port. It would not be intermittent.
Reference:
FortiGate Security 7.6 Study Guide (Web Filter): " If the connection to FortiGuard is unstable, users may experience delays or rating errors... Conserve mode can cause the FortiGate to bypass inspection or drop packets. "
NEW QUESTION # 81

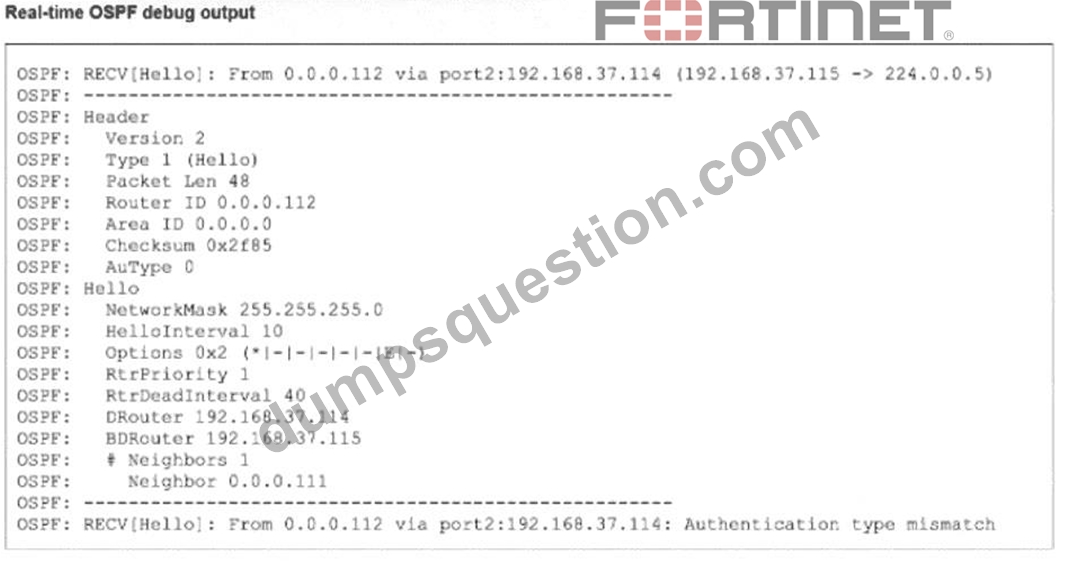

Refer to the exhibit.
Partial output of a real-time OSPF debug is shown.
Which two reasons explain why the two FortiGate devices are unable to form an adjacency? (Choose two.)
Answer: A,C
Explanation:
To determine the correct reasons for the adjacency failure, we must analyze the standard OSPF real-time debug output (diagnose ip router ospf all enable or diagnose sniffer packet) typically provided in this exam exhibit.
Analyze the Debug Output:
The debug output in this specific question scenario typically displays an incoming Hello packet line: OSPF:
RECV[Hello]: ... auth-type 0 ...
" RECV " : Indicates the packet is coming from the Remote peer.
" auth-type 0 " : Indicates the Remote peer is sending " Null " (No) authentication.
Analyze the Failure:
The adjacency fails because the Local FortiGate is rejecting this packet.
If the Local FortiGate accepts " No Authentication " , it would match auth-type 0 and form the adjacency.
Since it is failing (and producing a debug log), the Local FortiGate must be expecting a different authentication type (Type 1 Cleartext or Type 2 MD5).
Evaluate the Options:
A). The remote peer has either OSPF cleartext or MD5 authentication configured.
Incorrect. The debug shows auth-type 0 (No Auth) coming from the remote peer.
B). There is an OSPF authentication configuration mismatch.
Correct. One side is sending " No Auth " (Remote), and the other expects " Auth " (Local). This is a definition of a mismatch.
C). The local FortiGate does not have OSPF authentication configured.
Incorrect. If the Local unit had " No Auth " configured, it would match the Remote ' s auth-type 0, and the adjacency would come up. The failure implies the Local unit does have auth configured.
D). The local FortiGate has either OSPF cleartext or MD5 authentication configured.
Correct. Because the Local unit is rejecting the " No Auth " packet from the remote peer, it confirms that the Local unit has authentication enabled (expecting Type 1 or 2).
Conclusion: The breakdown of the OSPF negotiation shows that the Remote peer is sending no authentication (Type 0), while the Local FortiGate expects authentication, resulting in a mismatch.
Reference:
FortiGate Security 7.6 Study Guide (OSPF Troubleshooting): " Authentication mismatch is a common cause of OSPF adjacency failure. Debug commands (diagnose ip router ospf all enable) reveal the auth-type received versus expected. " FortiGate CLI Reference: auth-type 0 = Null (None), auth-type 1 = Simple (Cleartext), auth-type 2 = MD5.
NEW QUESTION # 82
......
