NEW QUESTION # 10

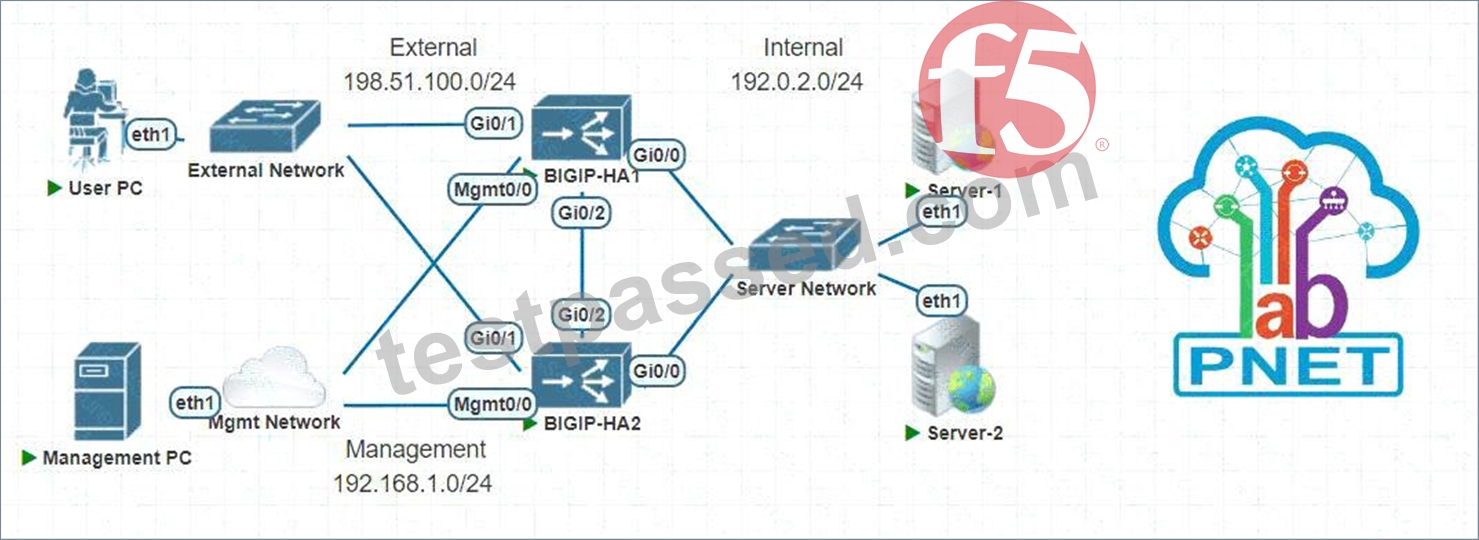

The network architecture for a BIG-IP consists of an external VLAN and an internal VLAN with two interfaces connected to the upstream switch. The design requires fault tolerance in the case that one of the interfaces is down. Which deployment architecture meets these requirements? (Choose one answer)
Answer: D
Explanation:
To meet the requirement of fault tolerance when one interface goes down, BIG-IP must use link aggregation so that loss of a single physical link does not isolate the VLAN(s).
How the objects relate (data plane view)
* Interfaces = physical links.
* Trunk (LACP) = bundles multiple interfaces into one logical link that provides redundancy (and possibly bandwidth aggregation).
* VLANs are assigned to interfaces or trunks. If you need multiple VLANs on the same trunk, they must use 802.1Q tagging (because you can only have one untagged VLAN per interface/trunk).
* Self IPs are then placed on the VLANs to provide BIG-IP presence and routing/ARP functions, but self IPs are not what provides link resiliency-the trunk does.
Why Option D is correct
* You have two physical interfaces and you want resiliency if one fails # put both interfaces into one trunk with LACP enabled.
* You need both external and internal VLANs on those same two links # both VLANs should be configured as tagged on that trunk, so they can coexist on the same aggregated link.
* If either physical interface fails, the trunk remains up via the remaining interface, keeping both VLANs operational.
Why the other options are incorrect
* A: Two VLANs cannot both be untagged on the same trunk/interface. Only one untagged VLAN is possible; additional VLANs must be tagged.
* B: Two trunks "each with one VLAN" would typically mean splitting VLANs across separate trunks.
With only two interfaces total, that becomes one interface per trunk-if one interface goes down, the VLAN on that interface is down (no redundancy for that VLAN).
* C: Same redundancy problem as B, and disabling LACP removes the negotiated aggregation behavior expected when the switch engineer specifically requested LACP.
NEW QUESTION # 11
A development team needs to apply a software fix and troubleshoot one of its servers. The BIG-IP Administrator needs to immediately remove all connections from the BIG-IP system to the back-end server. The BIG-IP Administrator checks the virtual server configuration and finds that a persistence profile is assigned to it.
What should the BIG-IP Administrator do to meet this requirement? (Choose one answer)
Answer: C
Explanation:
In BIG-IP traffic management, persistence profiles cause existing client connections (and subsequent requests) to be repeatedly sent to the same pool member. When persistence is enabled, simply preventing new connections is not sufficient if the requirement is to immediately remove all existing connections.
Key behavior of pool member states:
Forced Offline
Immediately removes the pool member from load balancing.
Terminates all existing connections, regardless of persistence.
Prevents new connections from being established.
This is the correct state when urgent maintenance or troubleshooting is required.
Disabled
Prevents new connections from being sent to the pool member.
Allows existing connections to continue, which is not acceptable when persistence is configured and connections must be cleared immediately.
Offline (non-forced)
Similar to Disabled behavior depending on context.
Does not guarantee immediate termination of existing connections.
Manually deleting connections via the command line
Is unnecessary and operationally inefficient.
BIG-IP already provides a supported mechanism (Forced Offline) to cleanly and immediately remove traffic.
Conclusion:
To immediately remove all existing connections, including those maintained by persistence, the BIG-IP Administrator must set the pool member to a Forced Offline state. This directly satisfies the requirement without additional manual steps.
NEW QUESTION # 12
What are two features of an application delivery controller (ADC)?
Pick the 2 correct responses below.
Answer: A,C
Explanation:
An Application Delivery Controller (ADC) provides application traffic-management functions between clients and application servers. Two fundamental ADC capabilities represented here are SSL offloading and load balancing.
SSL offloading allows the BIG-IP system to terminate client-side SSL/TLS connections and perform the cryptographic processing that would otherwise consume application-server resources. F5 specifically describes SSL offload as the BIG-IP system performing the SSL handshake and encryption/decryption functions normally performed by the destination server. Client SSL profiles are commonly applied to virtual servers to implement this functionality.
Load balancing is another core ADC function. BIG-IP LTM uses pools and configured load-balancing algorithms to select an appropriate pool member for each connection or request. For example, with Round Robin, BIG-IP distributes incoming requests sequentially across available pool members. F5 identifies the load-balancing method as a fundamental property of a server pool.
Log collecting can occur as part of system administration and telemetry, but it is not one of the fundamental ADC functions being tested here. Screen sharing is an end-user collaboration capability and has no role in ADC traffic delivery.
Study Guide Reference/Topics: Application Delivery Controller Functions; SSL/TLS Offload; Virtual Servers and SSL Profiles; Pools; Load-Balancing Methods.
NEW QUESTION # 13
In the GUI, where should the BIG-IP Administrator configure an existing VLAN named external to a specific interface as untagged?
Answer: C
Explanation:
In the BIG-IP system, VLANs are the logical entities that group physical interfaces or trunks together. To modify how a VLAN interacts with an interface, the administrator must navigate to the specific VLAN configuration object.
* VLAN List:This section displays all existing VLANs configured on the system.
* Interface Association:Within the properties of a specific VLAN (in this case, "external"), there is an Interfacessection. This is where physical ports or trunks are assigned to the VLAN.
* Tagging Status:For each associated interface, the administrator can choose betweenTagged(802.1Q) or Untagged.
* Untagged:The interface will treat incoming traffic without a VLAN header as part of this VLAN, and outgoing traffic will not have a VLAN tag added. An interface can only be "Untagged" for one VLAN.
* Tagged:Allows an interface to carry traffic for multiple VLANs simultaneously by using 802.1Q headers.
NEW QUESTION # 14

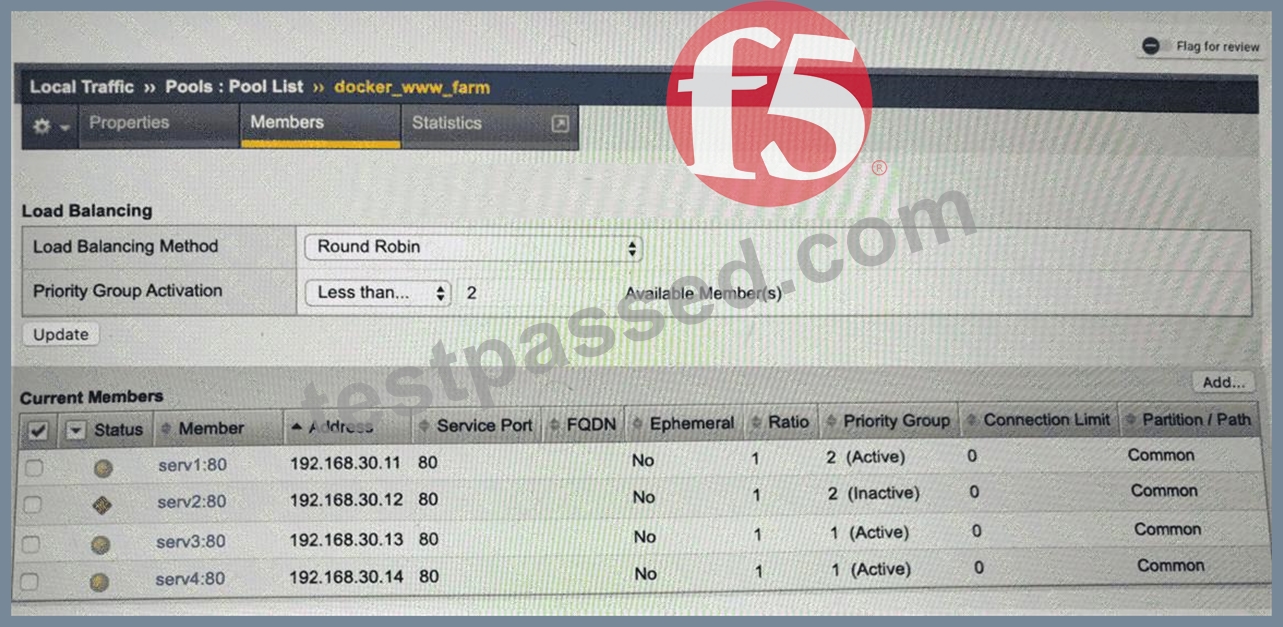

Refer to the exhibit above.
A BIG-IP pool is configured withPriority Group Activation = Less than 2 available members. The pool members have different priority groups and availability states. Which pool members arereceiving traffic?
(Choose one answer)
Answer: B
Explanation:
This question tests understanding ofPriority Group Activation (PGA)and how BIG-IP determines which pool members are eligible to receive traffic.
Key BIG-IP Priority Group Concepts:
* Higher priority group numbers = higher priority
* BIG-IP willonly send traffic to the highest priority groupthat meets thePriority Group Activation condition
* Lower priority groups areactivated only when the condition is met
* Onlyavailable (green)members count toward the activation threshold
Configuration from the Exhibit:
* Priority Group Activation:Less than 2 available members
* Pool Members and Status:
Pool Member
Priority Group
Status
serv1
2
Active (available)
serv2
2
Inactive (down)
serv3
1
Active (available)
serv4
1
Active (available)
Step-by-Step Traffic Decision:
* BIG-IP first evaluates thehighest priority group (Priority Group 2)
* Priority Group 2 has:
* serv1 # available
* serv2 # unavailable
* Total available members = 1
* Activation rule isLess than 2 available members
* Condition istrue(1 < 2)
* BIG-IPactivates the next lower priority group (Priority Group 1)
* Traffic is now sent to:
* serv1 (Priority Group 2)
* serv3 and serv4 (Priority Group 1)
Final Result:
Traffic is distributed toserv1, serv3, and serv4
Why the Other Options Are Incorrect:
* A- Ignores activation of the lower priority group
* B- serv4 is also active and eligible
* C- serv2 is down and cannot receive traffic
Key Data Plane Concept Reinforced:
Priority Group Activation controls when lower-priority pool members are allowed to receive traffic, based strictly on the number ofavailable membersin the higher-priority group. In this case, the failure of one high-priority member caused BIG-IP toexpand traffic distributionto lower-priority members to maintain availability.
NEW QUESTION # 15
......
