| Section | Weight | Objectives |
|---|---|---|
| Topic 1: SD-WAN Troubleshooting and Optimization | 15% | - Performance optimization and SLA adjustment - Diagnose SD-WAN rule and routing issues - Monitor and troubleshoot IPsec/ADVPN tunnels |
| Topic 2: Centralized Management | 20% | - Overlay orchestration with SD-WAN Manager - SD-WAN deployment via FortiManager - Branch configuration management |
| Topic 3: SD-WAN Basic Setup | 15% | - Performance SLA definition and monitoring - Initial SD-WAN configuration - SD-WAN member and zone configuration |
| Topic 4: Rules and Routing | 25% | - SD-WAN traffic steering rules - Link failover and load balancing - Routing policies and path selection |
| Topic 5: Advanced IPsec and Overlay Design | 25% | - ADVPN configuration and operation - Multihub and multi-region deployments - Hub-and-spoke and full-mesh topologies |
>> Top Fortinet FCSS_SDW_AR-7.6 Questions <<
The objective of the 2Pass4sure is to help FCSS_SDW_AR-7.6 exam applicants crack the test. It follows its goal by giving a completely free demo of Real FCSS_SDW_AR-7.6 Exam Questions. The free demo will enable users to assess the characteristics of the FCSS - SD-WAN 7.6 Architect exam product.
NEW QUESTION # 12
(Refer to the exhibits.
You collected the output shown in the exhibits and want to know which interface HTTP traffic will flow through from the user device 10.0.1.101 to the corporate web server 10.0.0.126. All SD-WAN links are stable.
Which interface will FortiGate use to steer the traffic? Choose one answer.)
Answer: A
Explanation:
From the SD-WAN service configuration, rule edit 3 (name "Corp") is configured with:
set mode sla
set load-balance enable
set dst "Corp-net"
set src "LAN-net"
SLA checks referenced under config sla
Traffic from 10.0.1.101 to 10.0.0.126 matches this rule because the destination is within the corporate network range (shown in the policy-route/proute output as destination 10.0.0.0-10.255.255.255 for the Corp service).
In the diagnose firewall proute list output for vwl_service=3 (Corp), FortiGate shows which SD-WAN members are eligible based on SLA pass results:
oif=21 (HUB1-VPN3) num_pass=2
oif=20 (HUB1-VPN2) num_pass=0
oif=19 (HUB1-VPN1) num_pass=0
This indicates that, for the SLA-based rule, only HUB1-VPN3 is meeting the SLA requirements (it is the only member with num_pass=2). The other members have num_pass=0, so they are not eligible for forwarding under this SLA rule even though links are up.
The sniffer trace further corroborates the forwarding decision by showing the traffic egressing through HUB1-VPN3.
Therefore, FortiGate will steer the HTTP traffic through only HUB1-VPN3, which corresponds to Option A.
NEW QUESTION # 13

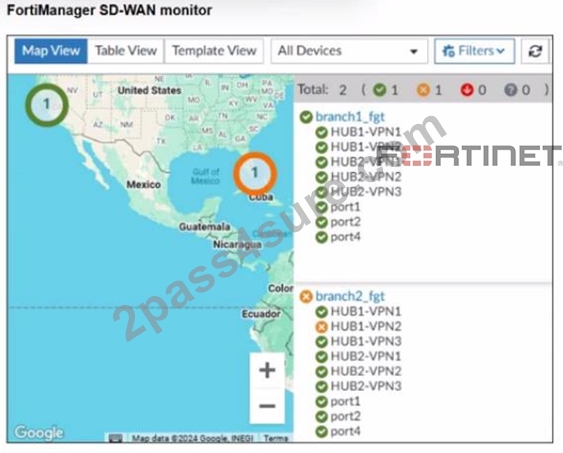

Refer to the exhibit.
An administrator checks the status of an SD-WAN topology using the FortiManager SD-WAN monitor menus. All members are configured with one or two SLAs.
Which two conclusions can you draw from the output shown? (Choose two.)
Answer: B,C
Explanation:
From the SD-WAN monitor in FortiManager:
"The SD-WAN monitor provides a summary view of the branch devices and their members. In the scenario shown, it is clear that branch2_fgt is missing SLA configuration for one member, as evidenced by the lack of performance metrics. The monitor also shows only two branches in the current topology, allowing quick assessment of branch health and configuration completeness." This kind of visibility is vital for proactive monitoring and rapid troubleshooting in SD-WAN environments.
Reference:
[FCSS_SDW_AR-7.4 1-0.docx Q18]
FortiManager SD-WAN Monitoring Guide, "Branch Device Health and SLA Status Visualization"
NEW QUESTION # 14
Refer to the exhibits. You collected the output shown in the exhibits and want to know which interface TCP traffic will flow through from the user device 10.0.1.101 to the corporate file server 10.0.0.125. All SD-WAN links are stable.
Which interface will FortiGate use to steer the traffic? Choose one answer.)
Answer: B
Explanation:
From the SD-WAN rule configuration (service ID 3, name "Corp"), the rule is configured as:
set mode sla
set load-balance enable
set hash-mode source-ip-based
set priority-members 3 4 5
Two SLAs are referenced under config sla
In the diagnose firewall proute list output for service=3 (Corp), FortiGate shows the actual members considered for this rule and their SLA pass status:
oif=19 (HUB1-VPN1) num_pass=2
oif=20 (HUB1-VPN2) num_pass=2
oif=21 (HUB1-VPN3) num_pass=1
Because the rule is SLA-based, FortiGate selects only members that meet the SLA requirements for the rule. The output indicates that HUB1-VPN1 and HUB1-VPN2 pass both SLA checks (num_pass=2), while HUB1-VPN3 passes only one (num_pass=1) and therefore is not selected as an eligible forwarding interface for this rule.
Since load-balance is enabled and the rule uses hash-mode source-ip-based, FortiGate will consistently choose an eligible member based on the source IP hash. For traffic sourced from 10.0.1.101, the session can be steered through either HUB1-VPN1 or HUB1-VPN2 (whichever the hash selects), but not HUB1-VPN3.
Therefore, the correct answer is B.
NEW QUESTION # 15

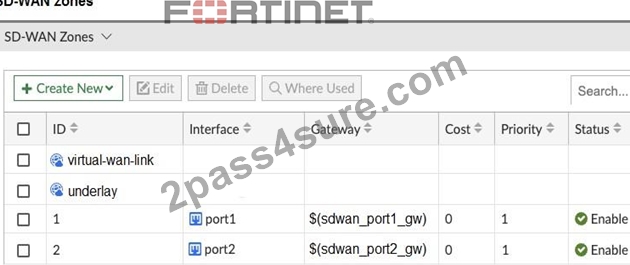

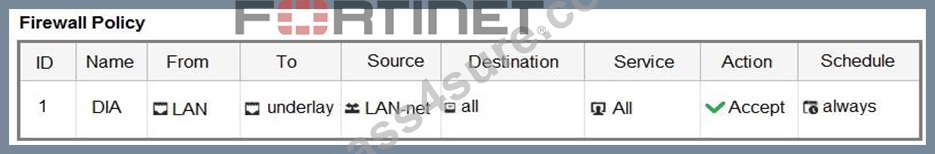

The FortiGate devices are managed by ForliManager, and are configured for direct internet access (DIA). You confirm that DIA is working as expected for each branch, and check the SD-WAN zone configuration and firewall policies shown in the exhibits.

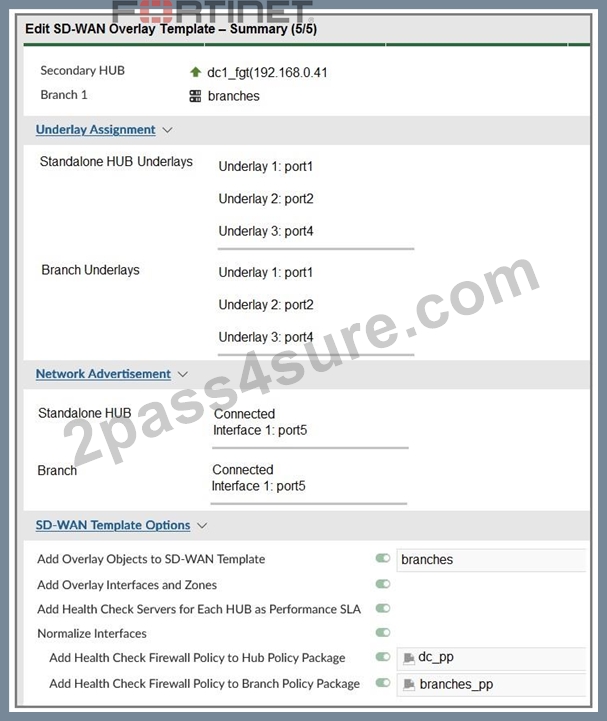

Then, you use the SD-WAN overlay template to configure the IPsec overlay tunnels. You create the associated SD-WAN rules to connect existing branches to the company hub device and apply the changes on the branches.
After those changes, users complain that they lost internet access. DIA is no longer working.
Based on the exhibit, which statement best describes the possible root cause of this issue?
Answer: A
Explanation:
The SD-WAN overlay template defines a zone for each underlay interface and moves the interfaces into those zones. This statement perfectly describes the likely sequence of events. The template, when applied, re-organizes the interfaces and zones, causing the existing firewall policy that relies on the old zone configuration to fail. This is the most plausible root cause.
NEW QUESTION # 16
You are planning a large SD-WAN deployment with approximately 1000 spokes and want to allow ADVPN between the spokes. Some remote sites use FortiSASE to connect to the company's SD- WAN hub. Which overlay routing configuration should you use?
Answer: A
Explanation:
Using BGP on loopback with dynamic BGP enables scalable routing for large deployments and supports ADVPN shortcut routing with resilient, stable next-hop reachability across dynamic tunnels.
