| Section | Objectives |
|---|---|
| Topic 1: Network Operations | - Business continuity and disaster recovery - Network documentation and diagrams - Monitoring and optimization |
| Topic 2: Network Implementation | - Switching technologies - Wireless networking - Routing technologies - Network storage and virtualization |
| Topic 3: Network Security | - Security concepts and threats - Network hardening techniques - Access control and authentication |
| Topic 4: Networking Concepts | - Ports, protocols, and services - OSI model and TCP/IP model - IPv4 and IPv6 addressing - Network topologies and types (LAN, WAN, WLAN) |
| Topic 5: Network Troubleshooting | - Common network issues - Troubleshooting methodology - Tools and diagnostic techniques |
>> New CompTIA N10-009 Test Book <<
In addition to the free download of sample questions, we are also confident that candidates who use N10-009 study materials will pass the exam at one go. N10-009 study materials are revised and updated according to the latest changes in the syllabus and the latest developments in theory and practice. Regardless of your weak foundation or rich experience, N10-009 study materials can bring you unexpected results. In the past, our passing rate has remained at 99%-100%. This is the most important reason why most candidates choose N10-009 Study Materials. Failure to pass the exam will result in a full refund. But as long as you want to continue to take the N10-009 exam, we will not stop helping you until you win and pass the certification.
NEW QUESTION # 406
SIMULATION
You have been tasked with setting up a wireless network in an office. The network will consist of 3 Access Points and a single switch. The network must meet the following parameters:
The SSIDs need to be configured as CorpNet with a key of S3cr3t!
The wireless signals should not interfere with each other
The subnet the Access Points and switch are on should only support 30 devices maximum The Access Points should be configured to only support TKIP clients at a maximum speed INSTRUCTONS Click on the wireless devices and review their information and adjust the settings of the access points to meet the given requirements.
If at any time you would like to bring back the initial state of the simulation, please click the Reset All button.
Answer:
Explanation:
See explanation below.
Explanation:
On the first exhibit, the layout should be as follows
A screenshot of a computer AI-generated content may be incorrect.
A screenshot of a computer AI-generated content may be incorrect.
A screenshot of a computer AI-generated content may be incorrect.
A screenshot of a computer AI-generated content may be incorrect.
A screenshot of a computer AI-generated content may be incorrect.

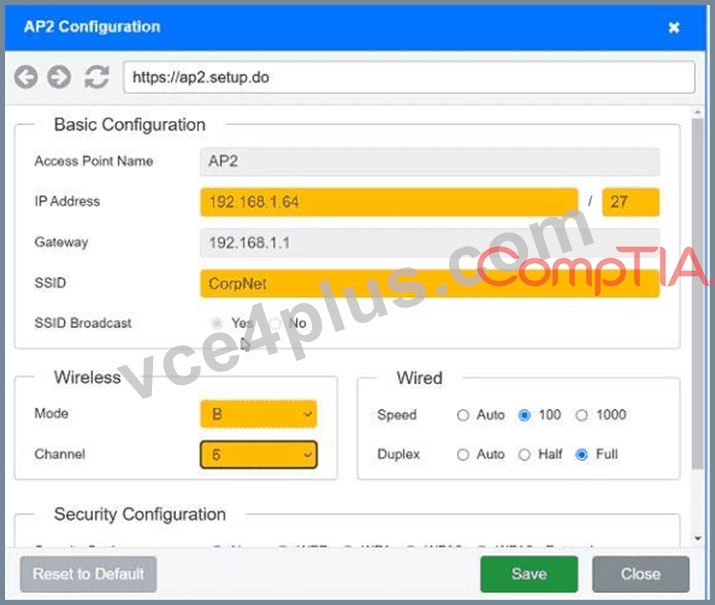

Exhibit 2 as follows
Access Point Name AP2
A screenshot of a computer AI-generated content may be incorrect.
A screenshot of a computer AI-generated content may be incorrect.
A screenshot of a computer AI-generated content may be incorrect.

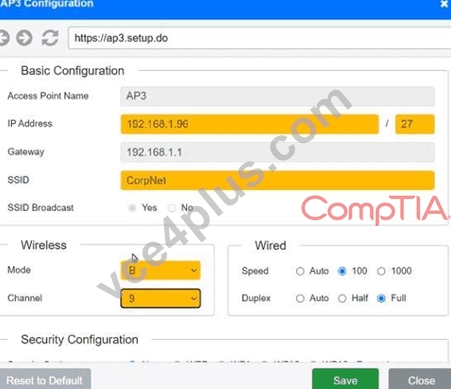

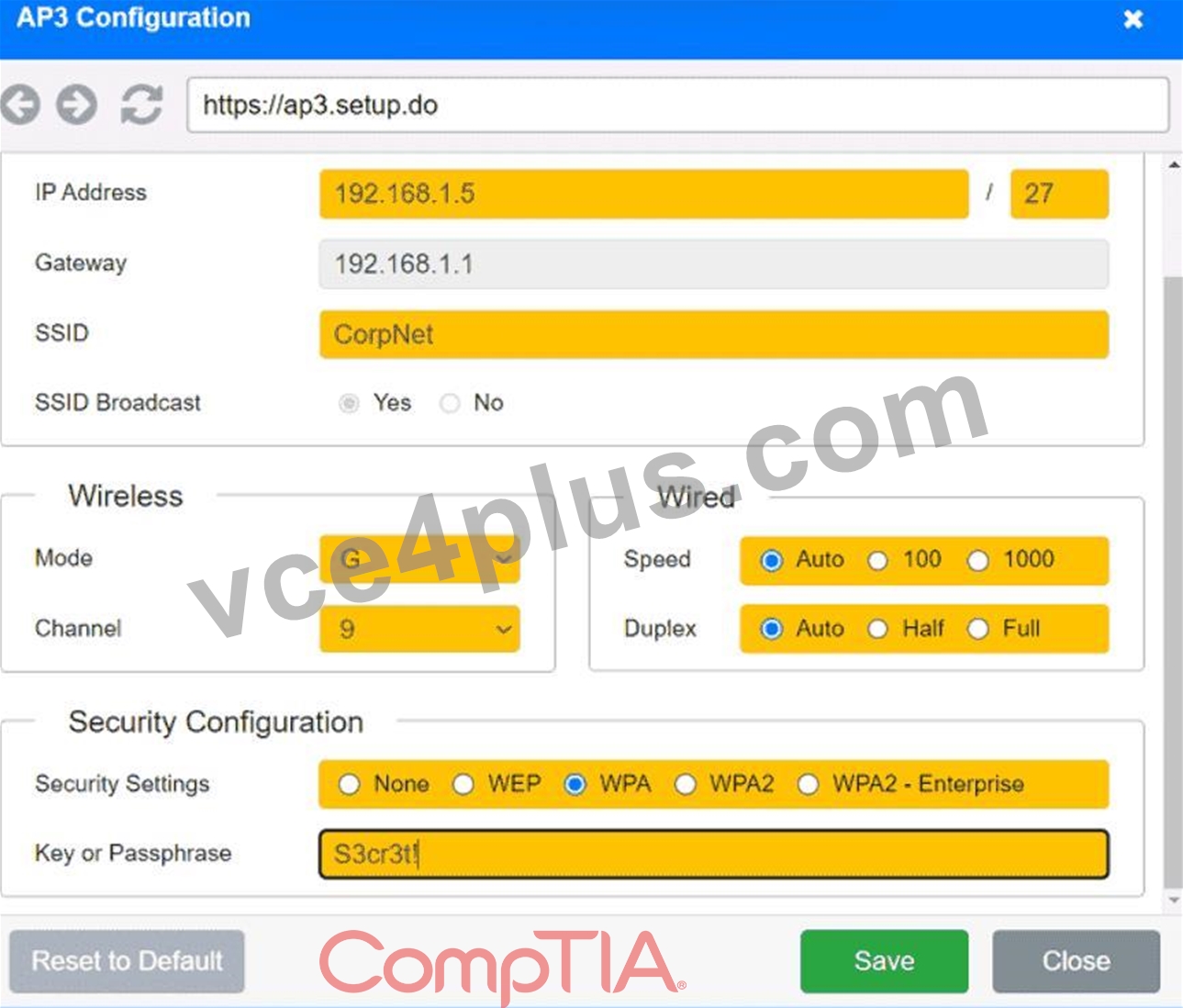

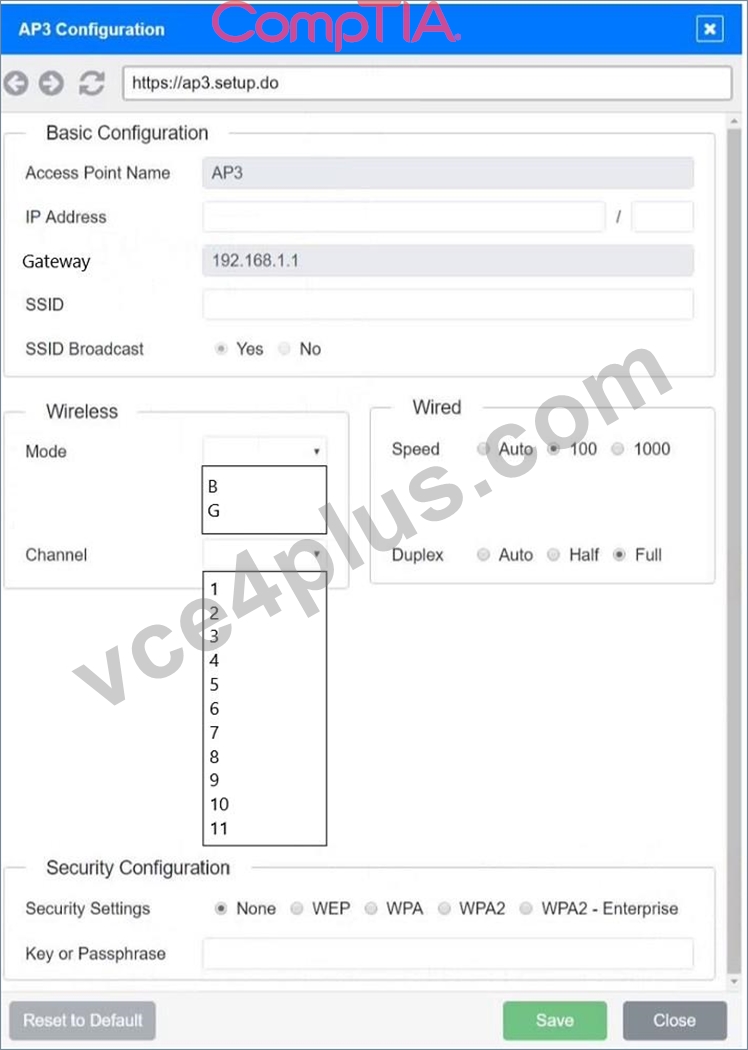

Exhibit 3 as follows
Access Point Name AP3
A screenshot of a computer AI-generated content may be incorrect.
A screenshot of a computer AI-generated content may be incorrect.
A screenshot of a computer AI-generated content may be incorrect.
NEW QUESTION # 407
Which of the following network traffic type is sent to all nodes on the network?
Answer: B
Explanation:
Broadcast traffic is sent to all nodes on the network. In a broadcast, a single packet is transmitted to all devices in the network segment. This is commonly used for tasks like ARP (Address Resolution Protocol) requests.
* Broadcast Domain: All devices within the same broadcast domain will receive broadcast traffic.
* Network Types: Ethernet networks commonly use broadcast traffic for certain functions, including network discovery and addressing.
* IPv4 Broadcast: An IPv4 broadcast address (e.g., 255.255.255.255) ensures the packet is sent to all devices on the network.
Network References:
* CompTIA Network+ N10-007 Official Certification Guide: Explains network traffic types, including broadcast, unicast, and multicast.
* Cisco Networking Academy: Provides training on network communication methods and traffic types.
* Network+ Certification All-in-One Exam Guide: Discusses different types of network traffic and their uses in various network scenarios.
Broadcast traffic is essential for network operations that require communication with all nodes, such as ARP requests or DHCP discovery messages.
NEW QUESTION # 408
Users are unable to access files on their department share located on file server 2.
The network administrator has been tasked with validating routing between networks hosting workstation A and file server 2.
INSTRUCTIONS

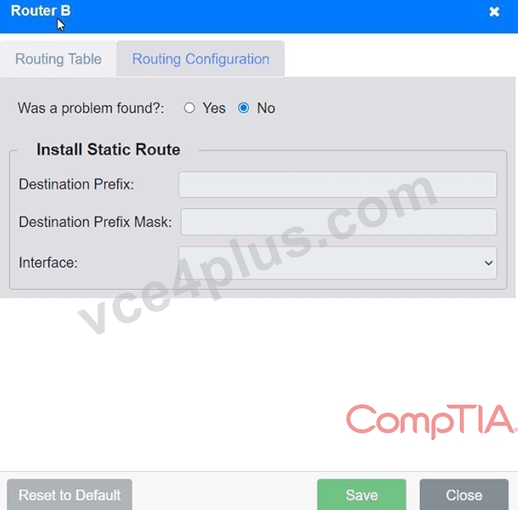

Click on each router to review output, identify any issues, and configure the appropriate solution.
If at any time you would like to bring back the initial state of the simulation, please click the Reset All button.
Answer:
Explanation:
See the solution in Explanation.
Explanation:
To validate routing between networks hosting Workstation A and File Server 2, follow these steps:
Review Routing Tables:
Check the routing tables of Router A, Router B, and Router C to identify any missing routes.
Identify Missing Routes:
Ensure that each router has routes to the networks on which Workstation A and File Server 2 are located.
Add Static Routes:
If a route is missing, add a static route to the relevant destination network via the correct interface.

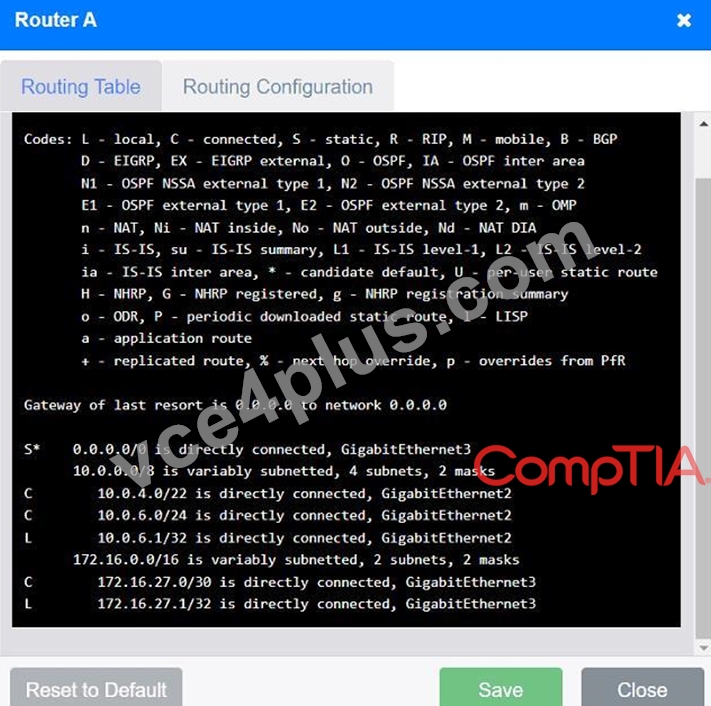

Routing Table:
Gateway of last resort is 0.0.0.0 to network 0.0.0.0
S* 0.0.0.0/0 is directly connected, GigabitEthernet3
10.0.0.0/8 is variably subnetted, 4 subnets, 2 masks
C 10.0.4.0/22 is directly connected, GigabitEthernet2
C 10.0.6.0/24 is directly connected, GigabitEthernet2
L 10.0.6.1/32 is directly connected, GigabitEthernet2
172.16.0.0/16 is variably subnetted, 2 subnets, 2 masks
C 172.16.27.0/30 is directly connected, GigabitEthernet3
L 172.16.27.1/32 is directly connected, GigabitEthernet3
Routing Table:
Gateway of last resort is 0.0.0.0 to network 0.0.0.0
S* 0.0.0.0/0 is directly connected, GigabitEthernet1
10.0.0.0/8 is variably subnetted, 4 subnets, 2 masks
C 10.0.0.0/22 is directly connected, GigabitEthernet1
L 10.0.0.1/32 is directly connected, GigabitEthernet1
172.16.0.0/16 is variably subnetted, 2 subnets, 2 masks
C 172.16.27.4/30 is directly connected, GigabitEthernet1
L 172.16.27.5/32 is directly connected, GigabitEthernet1

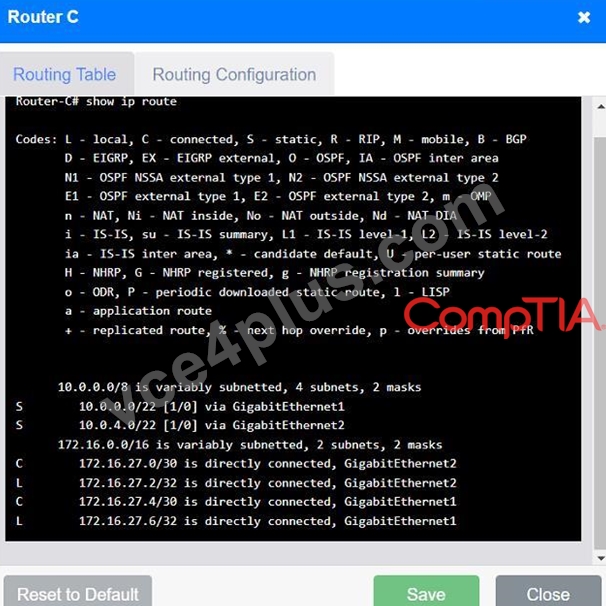

Routing Table:
10.0.0.0/8 is variably subnetted, 4 subnets, 2 masks
S 10.0.0.0/22 [1/0] via GigabitEthernet1
S 10.0.4.0/22 [1/0] via GigabitEthernet2
172.16.0.0/16 is variably subnetted, 2 subnets, 2 masks
C 172.16.27.0/30 is directly connected, GigabitEthernet2
L 172.16.27.2/32 is directly connected, GigabitEthernet2
C 172.16.27.4/30 is directly connected, GigabitEthernet1
L 172.16.27.6/32 is directly connected, GigabitEthernet1

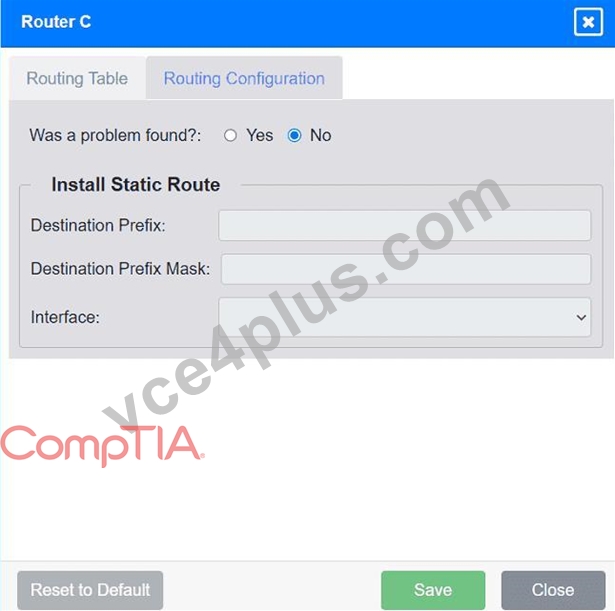

Install Static Route to 10.0.0.0/22 via 172.16.27.1 (assuming Router C's IP is 172.16.27.1):
Destination Prefix: 10.0.0.0
Destination Prefix Mask: 255.255.252.0
Interface: GigabitEthernet3
Install Static Route to 10.0.4.0/22 via 172.16.27.5 (assuming Router C's IP is 172.16.27.5):
Destination Prefix: 10.0.4.0
Destination Prefix Mask: 255.255.252.0
Interface: GigabitEthernet1
Install Static Route to 10.0.6.0/24 via 172.16.27.2 (assuming Router A's IP is 172.16.27.2):
Destination Prefix: 10.0.6.0
Destination Prefix Mask: 255.255.255.0
Interface: GigabitEthernet2
Install Static Route to 10.0.0.0/22 via 172.16.27.1 (assuming Router B's IP is 172.16.27.1):
Destination Prefix: 10.0.0.0
Destination Prefix Mask: 255.255.252.0
Interface: GigabitEthernet1
Summary of Static Routes:
Router A:
ip route 10.0.0.0 255.255.252.0 GigabitEthernet3
Router B:
ip route 10.0.4.0 255.255.252.0 GigabitEthernet1
Router C:
ip route 10.0.6.0 255.255.255.0 GigabitEthernet2
ip route 10.0.0.0 255.255.252.0 GigabitEthernet1
These configurations ensure that each router knows the correct paths to reach Workstation A and File Server
2, resolving the connectivity issue.
NEW QUESTION # 409
An IT manager needs to connect ten sites in a mesh network. Each needs to be secured with reduced provisioning time. Which of the following technologies will best meet this requirement?
Answer: C
Explanation:
* Definition of SD-WAN:
* Software-Defined Wide Area Network (SD-WAN) is a technology that simplifies the management and operation of a WAN by decoupling the networking hardware from its control mechanism. It allows for centralized management and enhanced security.
* Benefits of SD-WAN:
* Reduced Provisioning Time: SD-WAN enables quick and easy deployment of new sites with centralized control and automation.
* Security: Incorporates advanced security features such as encryption, secure tunneling, and integrated firewalls.
* Scalability: Easily scales to accommodate additional sites and bandwidth requirements.
* Comparison with Other Technologies:
* VXLAN (Virtual Extensible LAN): Primarily used for network virtualization within data centers.
* VPN (Virtual Private Network): Provides secure connections but does not offer the centralized management and provisioning efficiency of SD-WAN.
* NFV (Network Functions Virtualization): Virtualizes network services but does not specifically address WAN management and provisioning.
* Implementation:
* SD-WAN solutions are implemented by deploying edge devices at each site and connecting them to a central controller. This allows for dynamic routing, traffic management, and security policy enforcement.
NEW QUESTION # 410
A user reports having intermittent connectivity issues to the company network. The network configuration for the user reveals the following:
IP address: 192.168.1.10
Subnet mask: 255.255.255.0
Default gateway: 192.168.1.254

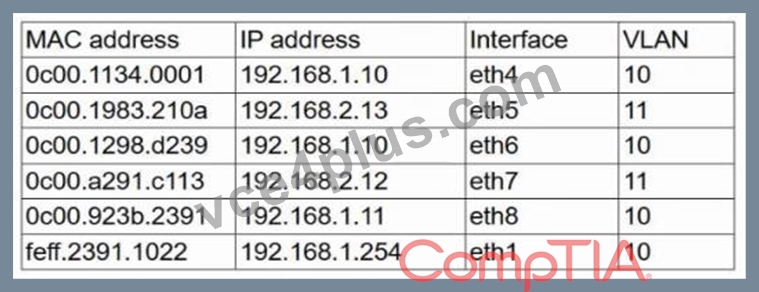

The network switch shows the following ARP table:
Which of the following is the most likely cause of the user's connection issues?
Answer: C
Explanation:
This scenario describes a duplicate IP address. The ARP table shows two different MAC addresses (0c00.1134.0001 and 0c00.1298.d239) associated with the same IP address (192.168.1.10), which leads to ARP table conflicts and intermittent connectivity.
From Andrew Ramdayal's guide:
"Duplicate IP addresses occur when two devices on the same network are assigned the same IP address, causing network conflicts. Common issues include manual configuration errors or DHCP lease issues. Resolution includes using IP management tools and avoiding overlaps in DHCP and static IP assignments."
NEW QUESTION # 411
......
