問題 #70
A BIG-IP Administrator uses backend servers to host multiple services per server. There are multiple virtual servers and pools defined, referencing the same backend servers. Which load balancing algorithm is most appropriate to have an equal number of connections on each backend server?
答案：D
解題說明：
This question addresses the critical architectural distinction between "member-based" and "node-based" load balancing in environments where servers are multi-homed or host multiple virtualized services. On a BIG-IP, a node represents the underlying IP address of a physical or virtual server, while a pool member represents a specific combination of that IP and a service port (e.g., 10.1.1.10:80).
When multiple pools reference the same IP address across different ports or Virtual Servers, using Least Connections (member) (Option D) only balances connections relative to that specific pool. For example, if Pool_A and Pool_B both use Server_X, and Pool_A has 100 connections while Pool_B has only 5, a member- based algorithm for Pool_B only sees the 5 connections and may continue to send traffic there even if Server_X is CPU-saturated by Pool_A.
The Least Connections (node) algorithm (Option B) solves this by tracking the aggregate total of all active connections directed to that specific node (IP address) across every pool on the system. By selecting the node with the absolute lowest total connection count, the BIG-IP ensures a more equitable distribution of work at the hardware resource level. Predictive methods (Options A and C) use a ranking system based on the trend of connection counts over time, but for the specific requirement of maintaining an equal number of current connections on multi-service servers, the direct Least Connections (node) calculation is the standard and most effective procedural choice.
問題 #71
In a pool there are 2 pool members (older servers) that can handle fewer connections than the other 3 newer servers.
Which load balancing method would allow more traffic to be directed to the newer servers? (Choose one answer)
答案：D
解題說明：
This scenario requires unequal load distribution based on server capacity. The newer servers must receive more connections than the older ones, while still dynamically accounting for active connection counts.
According to BIG-IP Administration: Data Plane Configuration documentation:
* Weighted Least Connections (member) combines:
* Connection awareness (least connections)
* Administrator-defined weights (ratios) to reflect server capacity
* Pool members with higher weights receive proportionally more new connections than members with lower weights, even when using the same load balancing algorithm.
Why B is correct:
* Allows assigning higher weights to newer servers and lower weights to older servers
* Ensures smarter traffic distribution based on both capacity and real-time load Why the other options are incorrect:
* A. Global AvailabilityUsed for disaster recovery and site failover, not intra-pool load distribution.
* C. Round RobinDistributes connections evenly without considering server capacity.
* D. Least Connections (member)Balances only by current connection count and does not account for differences in server performance or capacity.
Correct Resolution:
Use Weighted Least Connections (member) and assign higher weights to newer servers so they receive more traffic while protecting older servers from overload.
問題 #72

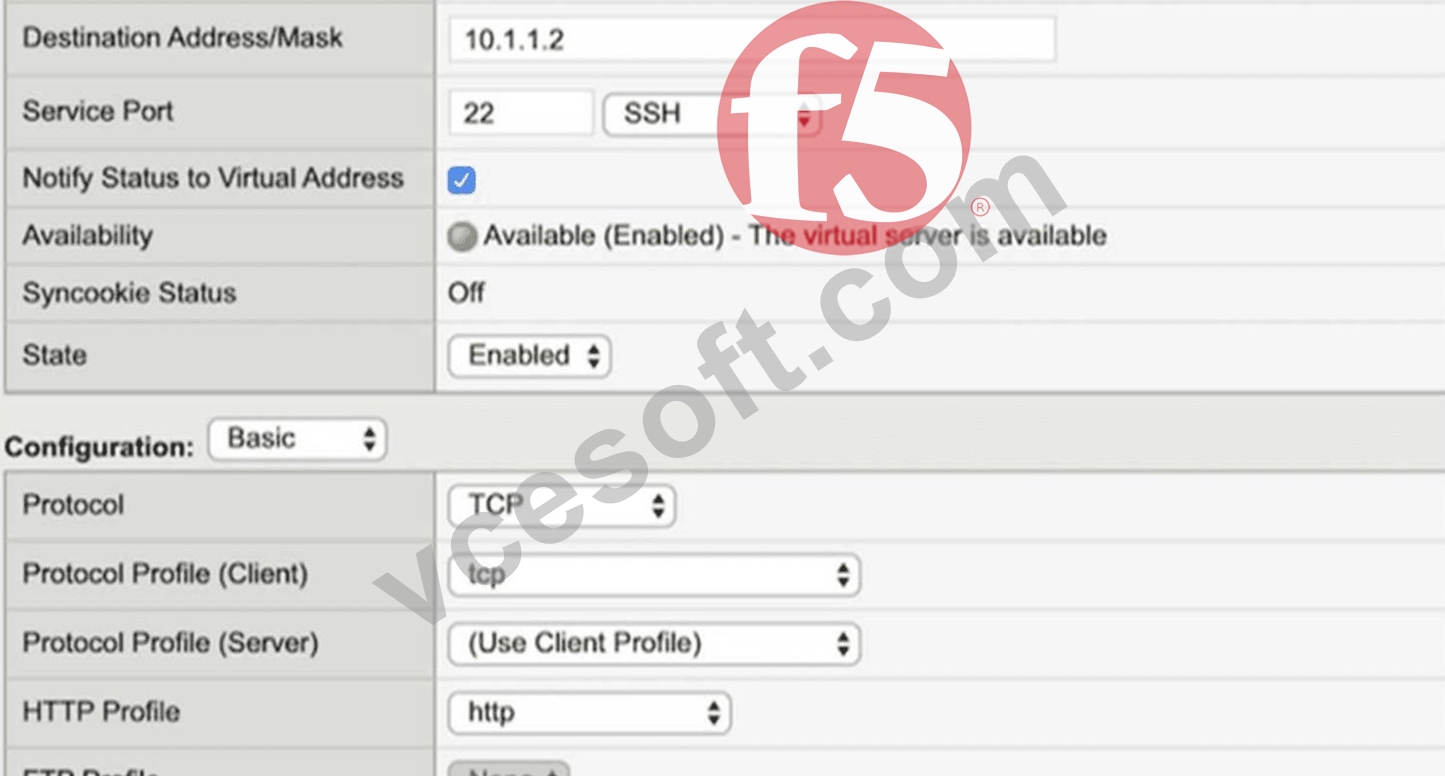

Refer to the exhibit.
A BIG-IP Administrator creates a new Virtual Server to load balance SSH traffic. Users are unable to log on to the servers.
What should the BIG-IP Administrator do to resolve the issue?
答案：C
解題說明：
The configuration error is the HTTP Profile = http setting. The virtual server is intended to load balance SSH
, which operates over TCP port 22 and is not an HTTP application protocol. The configured TCP protocol and TCP profile are therefore appropriate, but an HTTP profile should not be attached to this SSH virtual server.
F5 documentation states that an HTTP profile defines how BIG-IP manages HTTP traffic . The standard http profile operates in Reverse proxy mode by default and invokes BIG-IP ' s HTTP protocol processing. F5 separately documents Transparent HTTP proxy mode as the mode that can forward invalid HTTP traffic instead of dropping it. This distinction is important because an SSH protocol exchange is not syntactically valid HTTP traffic.
Setting HTTP Profile to None removes unnecessary Layer 7 HTTP parsing and leaves the virtual server handling the SSH connection through its TCP profile. The other changes are inappropriate: SSH requires TCP rather than UDP; the source address does not need to equal the virtual server ' s destination IP; and changing the destination to 0.0.0.0/0 is unrelated to the application-protocol mismatch.
Reference Topics: Local Traffic Profiles # HTTP Profiles , Proxy Mode , TCP profiles , Virtual Server profile assignment .
問題 #73
All pool members are online and all other settings are default.
What might alter the load balancing behavior?
答案：D
解題說明：
Persistence overrides load balancing decisions by maintaining client-to-server affinity.
問題 #74
A BIG-IP Administrator is creating a new Trunk on the BIG-IP device. What objects should be added to the new Trunk being created?
答案：D
解題說明：
In F5 BIG-IP architecture, a Trunk is a logical aggregation of physical interfaces designed to increase bandwidth and provide link redundancy through 802.3ad Link Aggregation Control Protocol (LACP).
When creating a Trunk object within the BIG-IP configuration, the administrator must assign physical Interfaces to it - these are the underlying hardware ports (e.g., 1.1, 1.2, 1.3) that will be bundled together to form the aggregated logical link.
It is critical to understand the layered object hierarchy on the BIG-IP platform:
* Interfaces # assigned to Trunks
* Trunks (or individual Interfaces) # assigned to VLANs (as tagged or untagged members)
* VLANs # assigned Self IP addresses
* Self IPs / Routes # configured at the network layer above
VLANs are not added to a Trunk; rather, a Trunk is added as a member of a VLAN. IP addresses and network routes are configured independently at a higher abstraction layer and have no direct association with Trunk creation.
This layered design ensures proper separation of concerns across the data plane. Misunderstanding this hierarchy is a common configuration error that can result in traffic forwarding failures.
Reference: BIG-IP Administration - Data Plane Configuration, Module: Network Objects - Interfaces, Trunks, and VLANs.
問題 #75
......
