| Section | Objectives |
|---|---|
| Basic Concepts | - Language Structure
|
| Business Layer | - Composite Elements - Behavior Elements - Active Structure Elements - Passive Structure Elements |
| Motivation Modeling | - Stakeholder Concerns - Drivers and Goals |
| Relationships | - Derivation Rules
|
| Implementation and Migration | - Relationships with Other Layers and Aspects - Implementation and Migration Metamodel Elements - Transition Architectures |
| Strategy Layer | - Strategy Elements |
| Technology Layer | - Physical Elements - Behavior Elements - Active Structure Elements - Passive Structure Elements |
| Application Layer | - Behavior Elements - Active Structure Elements - Passive Structure Elements |
| Generic Metamodel | - Specializations
- Active Structure Elements - Passive Structure Elements |
| Addressing Stakeholder Concerns with Architecture Views | - Viewpoints - Customization |
| Relationships Between Core Layers | - Cross-Layer Relationship Rules - Application of Derivation Relationships |
| Language Customization Mechanisms |
我々PassTestは一番信頼できるIT試験資料販売サイトになれるために、弊社はお客様に最完備かつ最新版のOGA-032問題集を提供して努力します。我々の問題集によって、ほとんどの受験生は大方の人から見る大変なThe Open Group OGA-032試験にうまく合格しました。この成功データはOGA-032試験に準備する皆様にPassTestのOGA-032問題集を勧める根拠とします。もしあなたは残念的にOGA-032試験に失敗したら、全額で返金することを承諾します。すべてのことはあなたの安心的に試験に準備できるのためのです。
質問 # 10
Please read this scenario prior to answering the question
The ArchiSurance enterprise document management solution includes a sophisticated ecosystem of applications and technologies. Designed with a strong emphasis on high availability, it plays a vital role in providing support for a diverse range of document types and managing a substantial volume of document-based transactions on a daily basis.
Recognizing its importance to the business, the document management solution is redundantly hosted at two geographically separate data center sites, both configured identically for seamless operations.
The system software at the core of the document management solution is comprised of three key modules.
The Document Engine serves as a repository, facilitating document storage, retrieval, and various other operations. The Workflow Engine acts as a host for document management applications, while the Application Engine powers the most advanced and sophisticated applications within the system.
Two key factors have driven the Architecture Board's approval of a project aimed at updating this critical solution. Firstly, the supplier of the Workflow Engine has given notice of the end of support for the current software version, necessitating an upgrade. Secondly, the system administrator responsible for the Application Engine has flagged the need for hardware replacement on the server where the software is currently running. Given that the Claim Management application shares infrastructure with the Application Engine, the involvement of the system administrator responsible for this application is crucial in the project planning and execution.
Refer to the Scenario
You are the Enterprise Architect within this organization. You have been assigned the task of modeling the applications and technology for this solution, as well as outlining the motivations driving the need for its update.

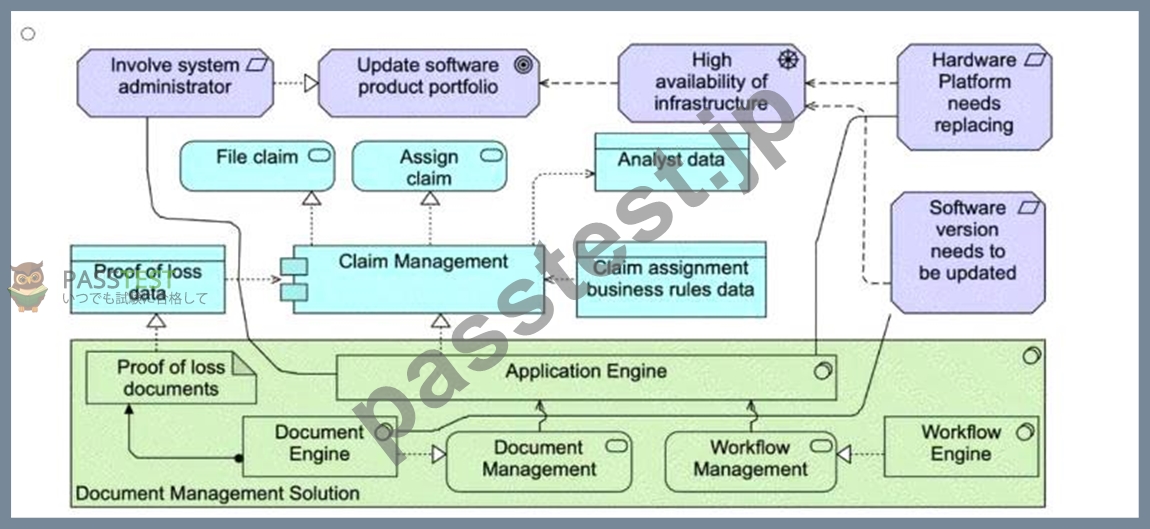

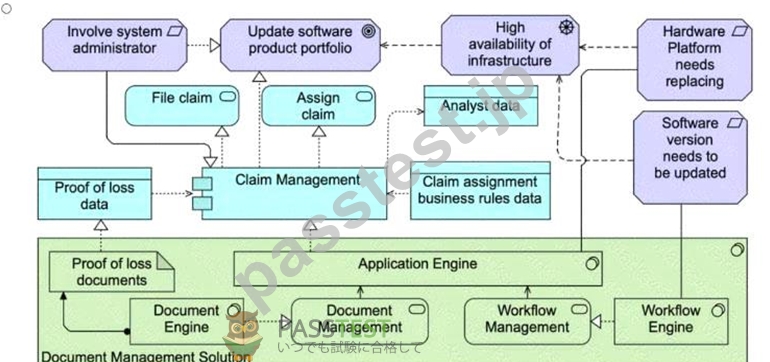

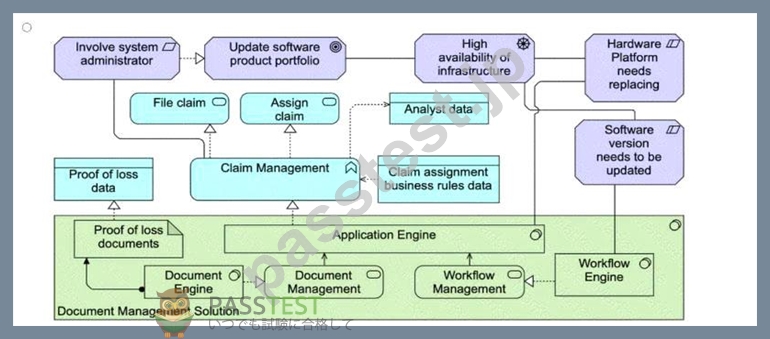

Based on the scenario, which answer provides the most complete and accurate description?
正解：C
解説：

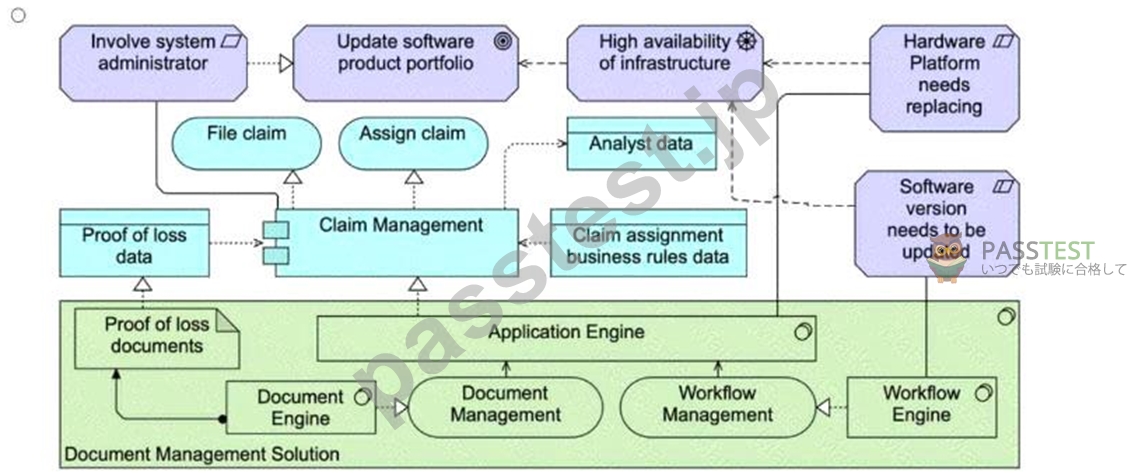

This scenario revolves aroundArchiSurance's document management solutionand themotivationsbehind updating the solution due to software and hardware challenges. The task is to model both theapplicationsand technology componentsinvolved, along with themotivationsdriving the need for an update.
Key ArchiMate® 3.2 Concepts Applied:
* Applications and Components:
* Claim Management Application:This application handles key processes such asfiling claimsand assigning claims, and it shares infrastructure with theApplication Engine.
* Document Management Solution:Includes several subsystems such as:
* Document Engine:Managesdocument storage, retrieval, and processing operations.
* Workflow Engine:Facilitates document workflows and supports document-related operations.
* Application Engine:Hosts sophisticated applications likeClaim Management.
* Data Objects:
* Proof of Loss DocumentsandProof of Loss Dataare critical components managed by the Document Management Solution. This data is processed and handled by both theDocument Engineand theClaim Managementapplication.
* Technology and Infrastructure:
* Hardware Platform Needs Replacing:TheApplication Engineruns on hardware that needs replacement. This drives a part of the motivation for updating the infrastructure.
* Software Version Needs to Be Updated:TheWorkflow Engineis running on outdated software, necessitating an upgrade to ensure continued support and functionality.
* High Availability of Infrastructure:Given that the system is redundantly hosted across two data centers,high availabilityis crucial for seamless operations. This includes continuous availability for the document management processes.
* Motivations and Drivers:
* Theend-of-supportnotice from theWorkflow Enginesupplier requires anupgradeto maintain operational continuity.
* The system administrator responsible for theApplication Enginehas raised concerns about hardware needing replacement, adding urgency to the infrastructure upgrade.
Why Option D is Correct:
* Option Dprovides the most comprehensive representation of the applications, infrastructure, and motivations for updating the solution.
* It clearly shows theClaim Management Applicationand its interaction with theClaim Assignment Business Rules Data, as well as how it relies on theApplication Engine.
* TheDocument Management Solutionand its subsystems (Document Engine, Workflow Engine, and Application Engine) are correctly depicted, with clear relationships to the data they manage (Proof of Loss Documents and Data).
* The motivations for change-specifically, the need toupdate the Workflow Engine softwareand replace thehardware platform-are clearly shown, alongside their impact on the overall system.
* The diagram shows the involvement of thesystem administratorin the update process, which is important for ensuring smooth project execution.
Why Other Options Are Incorrect:
* Option AandOption Bdo not accurately capture all necessary relationships, particularly the connections between theClaim Managementapplication and its reliance on theApplication Engine infrastructure. They also miss some of the drivers related to the requiredhardware replacement.
* Option Comits some key details regarding how theClaim Management ApplicationandDocument Management Solutioncomponents interact with the system, particularly theClaim Assignment Business Rules DataandProof of Loss Data.
Conclusion:
Option Dis the best answer because it offers the most complete and accurate representation of the applications, technology infrastructure, and driversfor the update project. It clearly illustrates how the Claim ManagementandDocument Managementsystems work together, along with the necessary infrastructure updates, in line with ArchiMate® 3.2 modeling standards.
質問 # 11
Please read this scenario prior to answering the question
The ArchiSurance enterprise document management solution plays a crucial role in supporting a large number of document types and managing a high volume of document-based transactions each day. Given its business-critical nature, the document management solution is hosted redundantly across two geographically separate data center sites: Site A and Site B. Both sites are configured identically to ensure seamless operations.
Each site has a highly available data center network (DCN) that connects to the resilient ArchiSurance wide area network (WAN). Each claim management server is connected to its respective site's DCN, forming a converged network that interconnects servers and storage arrays. A dedicated physical storage array is allocated to the claim management application within each DCN. Additionally, each site houses four powerful physical servers exclusively dedicated to the claim management application. Among these servers, one remains on standby at any given time, while the other three take on specific roles in hosting the document, workflow, and application engines.
The standby server is responsible for monitoring the behavior of the other servers, providing a logging and reporting service. The active servers regularly transmit data to facilitate this monitoring functionality. In the event of a server failure, the standby server steps in to perform resource reallocation, replacing the faulty server. However, this task requires manual intervention from a system administrator to reconfigure the logging and reporting service to adapt to the new environment.
Refer to the Scenario

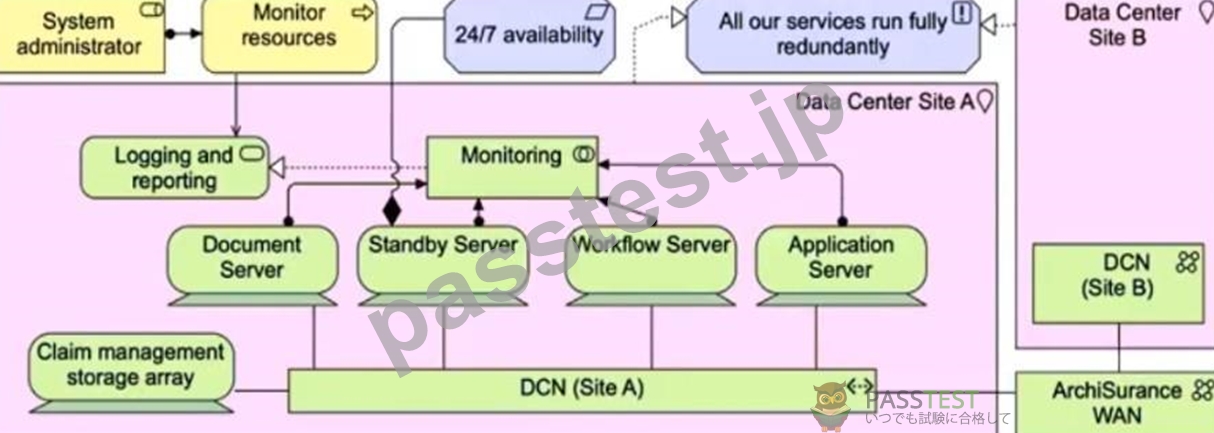

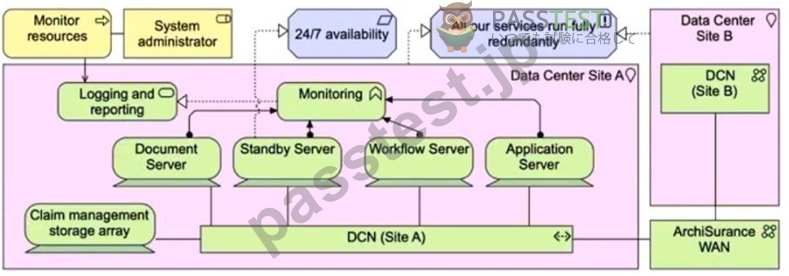

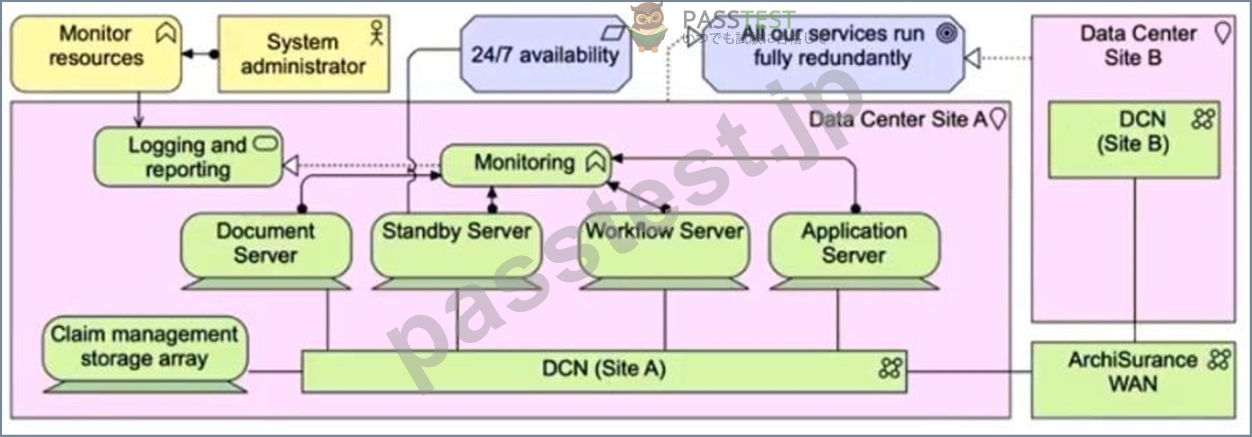

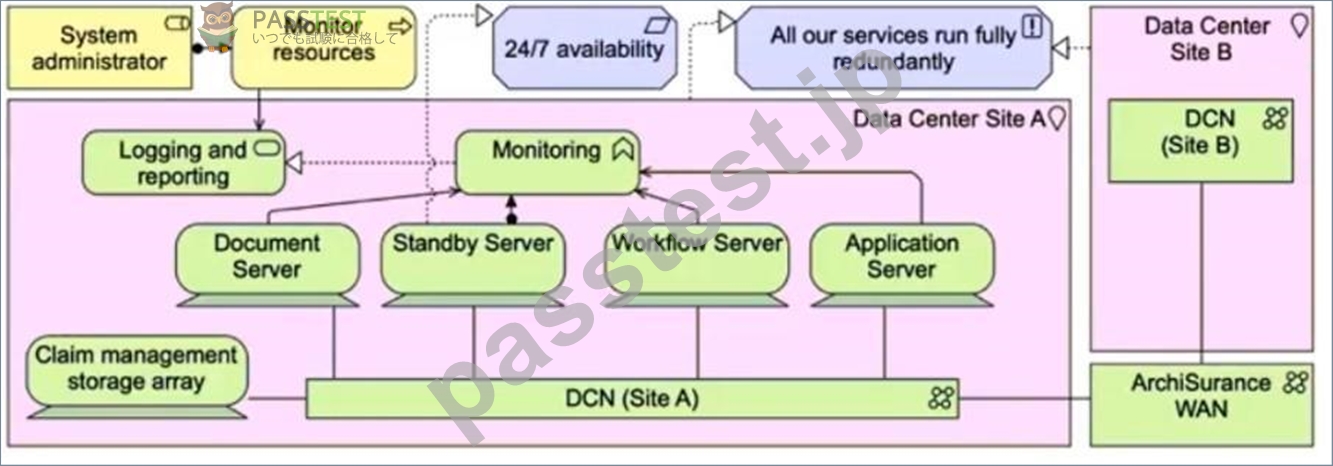

The IT manager has asked you to model the hardware and networks that support the document management solution. This includes capturing the infrastructure components such as data center sites, servers, storage, and networks. Additionally, you are expected to outline the necessary functionality and services required to enable failover within a server cluster. Given that both data centers share an identical configuration, it is sufficient for Site B to only show the associated networking, Which of the following is the best answer?
正解：A
解説：
Business Layer
- System Administrator is shown as a Business Actor (stick-figure badge).
- Monitor resources is a Business Function (chevron badge) assigned to the System Administrator.
Motivation
- "24/7 availability" is modeled as a Goal,
- "All our services run fully redundantly" as a Requirement.
- Both link into the technology-layer failover design.
Technology Layer
- Monitoring is a Technology Function (up-arrow badge) realized by the standby server.
- Logging and reporting is a Technology ("infrastructure") Service (circle badge) offered by that same node.
- The four physical machines (Document, Workflow, Application, Standby Servers) are all Technology Nodes (the 3D-style server shapes).
- The claim storage is a Technology Artifact (cylinder); the DCNs and WAN are Technology Network elements.
Locations
- Both sites are captured as Location elements (the pin icon), but only Site B's networking is shown to avoid unnecessary duplication.
Fail-over Flow
- Arrows from the active servers into the Monitoring function capture the regular "heartbeat."
- The standby node realizes Monitoring and Logging/Reporting, and a manual triggering relationship back to the System Administrator models the human re-configuration step.
質問 # 12
Please read this scenario prior to answering the question
A global retail company operates an Order Fulfillment process supported by three core applications: Order Management System (OMS), Warehouse Management System (WMS), and Shipping Coordinator.
The OMS captures orders and stores them in an Order Database. The WMS manages inventory using an Inventory Database. The Shipping Coordinator schedules shipments and generates tracking notifications.
These applications run on virtual machines hosted on a hypervisor cluster. Each VM connects to redundant LAN switches and stores data on centralized SAN storage.
Refer to the scenario.
You are required to model how applications and technology support the Order Fulfillment process, including application behavior, data access, and hosting infrastructure.
Which of the following answers provides the most complete model?
正解：A
質問 # 13
Please read this scenario prior to answering the question
ArchiSurance has decided to leverage its financial expertise by offering defined contribution retirement plans. Each trading day, ArchiSurance submits consolidated mutual fund trading transactions to a stock exchange on behalf of its retirement plan participants.
The daily mutual fund trading cycle consists of four key processes: Transaction capture, pricing, trading and reconciliation. Transaction capture consists of two sub-processes: manual exchange and loans and distributions (L&D). For transaction capture, retirement plan participants use an online account management application to enter manual fund exchange transactions. For L&D, plan participants use a separate application to enter requests. The L&D application determines whether the request can be fulfilled based on the mutual fund balances held in each plan balances and a set of business rules. Each day's captured manual exchange transactions accumulate in a transaction database.
ArchiSurance contracts with a third-party information service to receive a file of mutual fund prices at the close of each trading day. The pricing application uses this file to convert captured transaction into trades, and then validates each trade against the mutual fund balances held in each plan. The pricing application generates a trade file with the minimum number of trades necessary. The trading application sends this file to an external trading service. When the trading application receives a confirmation file back from the trading service, it passes it to the reconciliation application, which updates the plan recordkeeping database.
The lead application Architect has decided to merge the pricing application, the trading application and the reconciliation application into one application, which will be serving the pricing, trading and reconciliation processes respectively. The reason for this is that maintenance costs for these three components are too high and the performance is too slow. This implementation will increase the performance and lower the maintenance cost significantly.
The CIO has agreed on this plan, but wants this to be done in two phases, each in a separate project. Phase 1 should include the merger of the Trading and Pricing applications. Phase 2 should then merge the merged applications with the Reconciliation application respectively. Each project phase has a number of defined deliverables. Phase 1 has two deliverables, 'TraPri application implemented and tested' and 'Active TraPri application', which together form a first transition architecture. Phase 2 has two deliverables, 'Recon 2.0 application implemented and tested' and 'Back-up applications phased out', which together form the second transition architecture. These two projects are part of the ArchiSurance application integration program scheduled for the next 6 months.
Refer to the Scenario

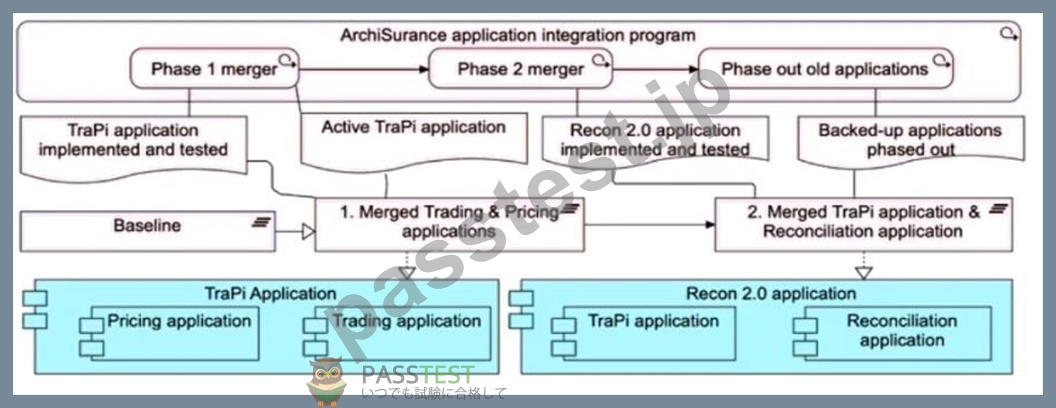

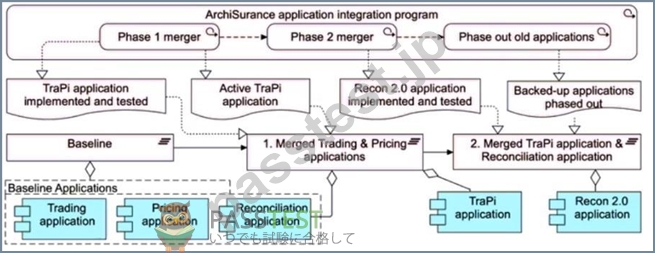

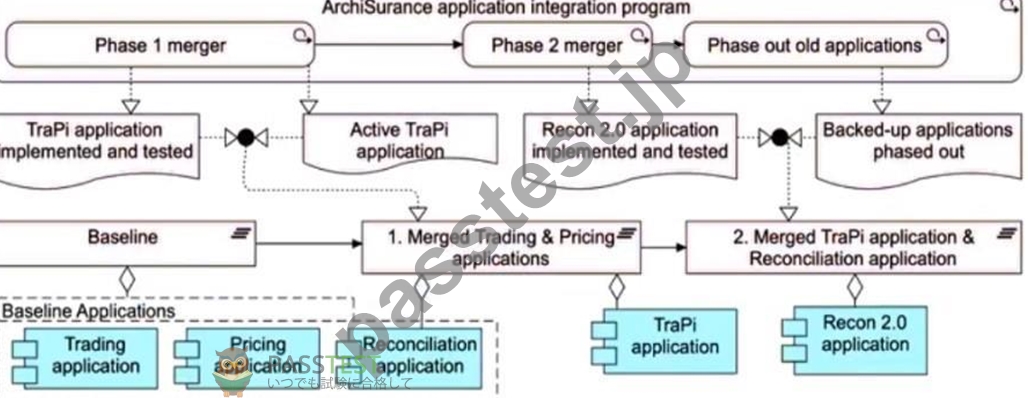

You have been asked by the lead application architect to show how the applications used for daily trading can be migrated. This should include a description of the work packages, deliverables and transition architectures.
Which of the following answers best describes the applications and migration plan?
正解：A
解説：

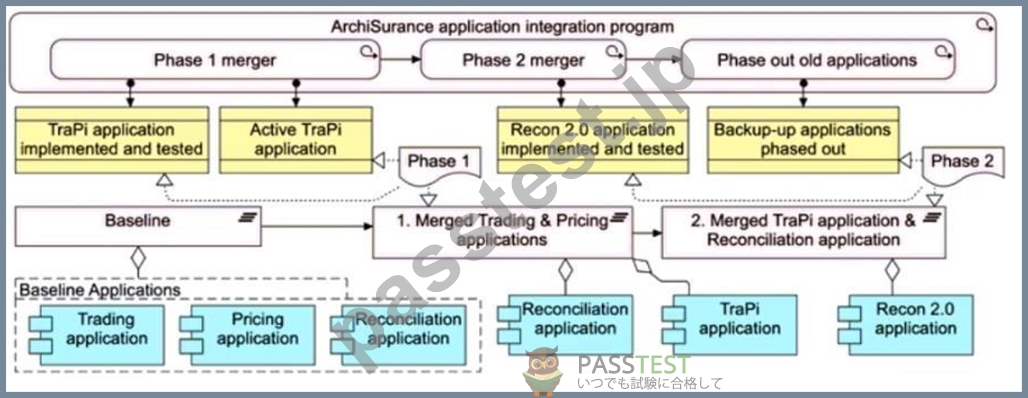

This diagram is the one that correctly captures:
- Program with three sequential projects (Phase 1 merger, Phase 2 merger, Phase out old applications) at the top.
- Each phase's deliverables ("TraPri application implemented and tested" + "Active TraPri application" → first transition; "Recon 2.0 application implemented and tested" + "Back-up applications phased out" → second transition) linked into two distinct plateaus ("1. Merged Trading & Pricing applications" and "2. Merged TraPri application & Reconciliation application").
- A clear baseline on the left showing the three existing applications, and the final target apps on the right (TraPi application and Recon 2.0 application).
質問 # 14
Please read this scenario prior to answering the question
ArchiCar has been a market leader in the premium priced luxury car sector for the last decade. Its product leadership strategy has brought superior products to market, and enabled ArchiCar to achieve premium prices for its cars. This strategy has been widely successful in the past, but recently competitors have been offering comparable products and taking significant market share. The governing board of ArchiCar has identified opportunities in emerging markets where the ArchiCar brand is associated with luxury and high performance products, but is thought to be too expensive for mass-market success.
Based on this assessment, the board has made the decision to setup a subsidiary company to mass-produce affordable cars locally. This will be achieved by focusing on a strategy of operational excellence. Such a strategy is ideal for such markets where customers value cost over other factors.
To facilitate this strategic transformation, the project has been divided into multiple phases within a five-year program. The initial phase, known as "Achieving Operational Excellence," is underway. The engineering team has begun devising an action plan to drive the necessary changes and outlining the technological conditions that must be met. The product architect has identified three current capabilities - industry-leading engineering, high-quality materials sourcing, and cutting-edge focussed R&D - along with their contributions to the new production philosophy.
Moving forward, it has been determined that two out of the three current capabilities require revision.
Materials sourcing needs to be adjusted to meet optimization demands, and R&D targets must align with future goals to enable affordable production.
Additionally, process engineering is introduced as a fourth capability to shift the company's focus from products to a process-oriented approach.
The Enterprise Architecture team has been tasked with migration planning, and identifying keywork packages and deliverables. They have identified two transition states between the current and future scenario. The first transition aims to adjust current capabilities, including revising the R&D approach and procurement strategy. The second transition aims to shift from a product-centric mindset to a process-focused approach and adjust materials sourcing accordingly.
It is important to consider existing
supplier contracts that cannot be immediately canceled during this process.
The Enterprise Architecture team has identified that the second transition must implement a process framework, in order to shift to a process focus and meet a number of requirements, including the requirement for end-to-end process thinking. As this requirement impacts procurement processes, it also impacts the procurement strategy.
Refer to the Scenario
You have been tasked with modeling the current capabilities of ArchiCar, identifying the capabilities necessary for the company to achieve Operational Excellence, and showing the motivations behind these changes Which of the following models best answers this?
正解：D
解説：
We need to find the model that best represents:
* Current Capabilities- Industry-leading engineering, high-quality materials sourcing, and cutting-edge focused R&D.
* Strategic Shift- Moving fromproduct leadershiptooperational excellenceto enter emerging markets.
* Required Changes-
* AdjustingR&D targetsto support cost-effective production.
* Revisingmaterials sourcingfor optimization.
* Introducingprocess engineeringto enable a process-oriented mindset.
* Motivations Behind the Changes-
* Competitor pressure.
* Emerging market opportunities.
* High costs limiting mass-market success.
Why D is the Best Choice:
#Includes all current and future capabilities- Shows the existing strengths ofengineering, R&D, and materials sourcingwhile introducingprocess engineeringas required for operational excellence.#Clearly depicts the shift in strategy- Fromproduct leadershiptooperational excellenceand the necessary transformations.#Captures stakeholder concerns and motivations- Includingcompetition, cost concerns, and emerging market opportunities.#Represents dependencies and sequencing correctly- Reflecting how each capability changecontributes to the transition states and ultimate business goals.
Why Not A, B, or C?
* A:Does not properly represent the transition betweenproduct leadershipandoperational excellence.
* B:Fails to clearly define the requiredcapability changesand motivations.
* C:Lacks key relationships betweenstrategy shifts and operational changes.
質問 # 15
......
