| Section | Weight | Objectives |
|---|---|---|
| Application Environment, Configuration and Security | 25% | - Configure resource requirements, limits and quotas - Work with ConfigMaps - Create and consume Secrets - Understand authentication, authorization and admission control - Apply application security settings - Use ServiceAccounts - Use custom resources and extensions |
| Application Design and Build | 20% | - Define, build and modify container images - Utilize persistent and ephemeral volumes - Understand multi-container Pod design patterns - Choose and use appropriate workload resources |
| Services and Networking | 20% | - Understand and apply NetworkPolicies - Troubleshoot network access - Use Ingress rules - Expose applications via Services |
| Application Deployment | 20% | - Implement deployment strategies - Manage Deployments, rolling updates and rollbacks - Work with Kustomize - Use Helm package manager |
| Application Observability and Maintenance | 15% | - Debug applications in Kubernetes - Understand API deprecations - Implement probes and health checks - Monitor applications using CLI tools - Work with container logs |
PDFBraindumps assists people in better understanding, studying, and passing more difficult certification exams. We take pride in successfully servicing industry experts by always delivering safe and dependable exam preparation materials. All of our Linux Foundation CKAD exam questions follow the latest exam pattern. We have included only relevant and to-the-point Linux Foundation CKAD Exam Questions for the Linux Foundation Certified Kubernetes Application Developer Exam exam preparation. You do not need to waste time preparing for the exam with extra or irrelevant outdated Linux Foundation CKAD exam questions.
NEW QUESTION # 56
You are tasked with designing a multi-container Pod that runs a web application, a database, and a cache server. The application needs to initialize the database before the web server starts. How would you implement this using Kubernetes init containers? Provide a comprehensive YAML configuration for the Pod.
Answer:
Explanation:
See the solution below with Step by Step Explanation.
Explanation:
Solution (Step by Step) :

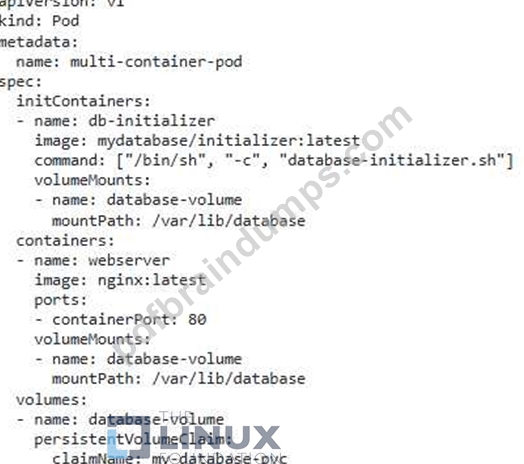

1. Define Init Container:
- Create an init container named 'db-initializer' with the following:
- Image: Specify the image containing the script to initialize the database (e.g., 'mydatabase/initializer.latest
- Command: Define the command to execute the initialization script.
- VolumeMounts: Mount any necessary volumes from the main container to the init container.
2. Main Container:
- Create a main container named 'webserver' with the following:
- Image: Specify the web server image (e_g_, 'nginx:latest)_
- Pons: Define any ports exposed by the web server.
- VolumeMounts: Mount any necessary volumes (e.g., data volumes).
3. Define Volumes:
- Define any volumes used by the containers (e.g., 'persistentVolumeClaim' for persistent storage).
4. Pod Specification:
- Create a Pod specification with the following:
- Containers: Include both the 'db-initializer' and 'webserver' containers.
- RestartPolicy: Set to 'Always' to ensure that the Pod restarts if a container fails.
- ImagePullSecrets: Add any necessary image pull secrets.
- The initContainers' section specifies the initialization steps to be executed before the main container starts. - The 'db-initializer' container runs the 'database-initializer-sm script to initialize the database. - The 'volumeMounts' ensure that both the 'db-initializer' and 'webserver containers have access to the same database volume. - The ' persistentVolumeClaim' provides a persistent storage for the database data. Remember: - Replace 'mydatabase/initializer:latest and 'nginx:latest' with your actual container images. - Modify the 'database-initializer.sh' script based on your specific database initialization requirements. - Customize the volumes and volume mounts according to your application's needs.]
NEW QUESTION # 57
Context
Context
A pod is running on the cluster but it is not responding.
Task
The desired behavior is to have Kubemetes restart the pod when an endpoint returns an HTTP 500 on the /healthz endpoint. The service, probe-pod, should never send traffic to the pod while it is failing. Please complete the following:
* The application has an endpoint, /started, that will indicate if it can accept traffic by returning an HTTP 200. If the endpoint returns an HTTP 500, the application has not yet finished initialization.
* The application has another endpoint /healthz that will indicate if the application is still working as expected by returning an HTTP 200. If the endpoint returns an HTTP 500 the application is no longer responsive.
* Configure the probe-pod pod provided to use these endpoints
* The probes should use port 8080
Answer:
Explanation:
Solution:
apiVersion: v1
kind: Pod
metadata:
labels:
test: liveness
name: liveness-exec
spec:
containers:
- name: liveness
image: k8s.gcr.io/busybox
args:
- /bin/sh
- -c
- touch /tmp/healthy; sleep 30; rm -rf /tmp/healthy; sleep 600
livenessProbe:
exec:
command:
- cat
- /tmp/healthy
initialDelaySeconds: 5
periodSeconds: 5
In the configuration file, you can see that the Pod has a single Container. The periodSeconds field specifies that the kubelet should perform a liveness probe every 5 seconds. The initialDelaySeconds field tells the kubelet that it should wait 5 seconds before performing the first probe. To perform a probe, the kubelet executes the command cat /tmp/healthy in the target container. If the command succeeds, it returns 0, and the kubelet considers the container to be alive and healthy. If the command returns a non-zero value, the kubelet kills the container and restarts it.
When the container starts, it executes this command:
/bin/sh -c "touch /tmp/healthy; sleep 30; rm -rf /tmp/healthy; sleep 600" For the first 30 seconds of the container's life, there is a /tmp/healthy file. So during the first 30 seconds, the command cat /tmp/healthy returns a success code. After 30 seconds, cat /tmp/healthy returns a failure code.
Create the Pod:
kubectl apply -f https://k8s.io/examples/pods/probe/exec-liveness.yaml
Within 30 seconds, view the Pod events:
kubectl describe pod liveness-exec
The output indicates that no liveness probes have failed yet:
FirstSeen LastSeen Count From SubobjectPath Type Reason Message
--------- -------- ----- ---- ------------- -------- ------ -------
24s 24s 1 {default-scheduler } Normal Scheduled Successfully assigned liveness-exec to worker0
23s 23s 1 {kubelet worker0} spec.containers{liveness} Normal Pulling pulling image "k8s.gcr.io/busybox"
23s 23s 1 {kubelet worker0} spec.containers{liveness} Normal Pulled Successfully pulled image "k8s.gcr.io/busybox"
23s 23s 1 {kubelet worker0} spec.containers{liveness} Normal Created Created container with docker id 86849c15382e; Security:[seccomp=unconfined]
23s 23s 1 {kubelet worker0} spec.containers{liveness} Normal Started Started container with docker id 86849c15382e After 35 seconds, view the Pod events again:
kubectl describe pod liveness-exec
At the bottom of the output, there are messages indicating that the liveness probes have failed, and the containers have been killed and recreated.
FirstSeen LastSeen Count From SubobjectPath Type Reason Message
--------- -------- ----- ---- ------------- -------- ------ -------
37s 37s 1 {default-scheduler } Normal Scheduled Successfully assigned liveness-exec to worker0
36s 36s 1 {kubelet worker0} spec.containers{liveness} Normal Pulling pulling image "k8s.gcr.io/busybox"
36s 36s 1 {kubelet worker0} spec.containers{liveness} Normal Pulled Successfully pulled image "k8s.gcr.io/busybox"
36s 36s 1 {kubelet worker0} spec.containers{liveness} Normal Created Created container with docker id 86849c15382e; Security:[seccomp=unconfined]
36s 36s 1 {kubelet worker0} spec.containers{liveness} Normal Started Started container with docker id 86849c15382e
2s 2s 1 {kubelet worker0} spec.containers{liveness} Warning Unhealthy Liveness probe failed: cat: can't open '/tmp/healthy': No such file or directory Wait another 30 seconds, and verify that the container has been restarted:
kubectl get pod liveness-exec
The output shows that RESTARTS has been incremented:
NAME READY STATUS RESTARTS AGE
liveness-exec 1/1 Running 1 1m
NEW QUESTION # 58
You're building a microservice architecture that uses a load balancer to distribute traffic across multiple instances of a service. You want to implement a health check mechanism that ensures only healthy instances receive traffic. Design a solution using Kubernetes Liveness probes and a service With a health check configuration.
Answer:
Explanation:
See the solution below with Step by Step Explanation.
Explanation:
Solution (Step by Step) :

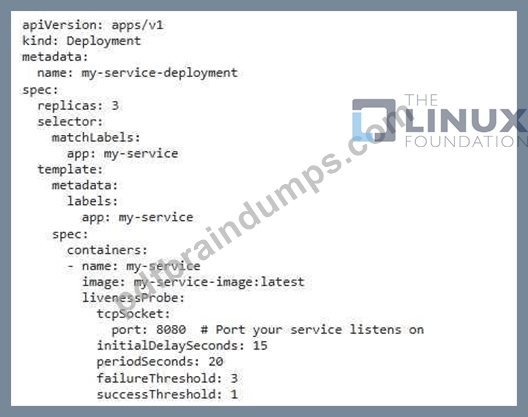

1. Define a Liveness Probe in the Deployment:

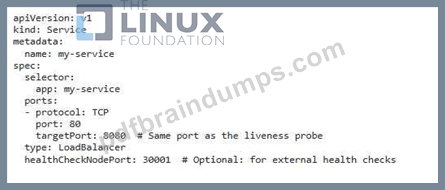

- Replace 'my-service-image:latest' with your service image. - Replace '8080' with the port your service listens on. - Adjust the probe settings as needed. 2. Create a Service with Health Check Configuration:
- 'healthCheckNodePort' is optional, but can be used for external health checks against the service. 3. Apply the YAML Files: - Apply the Deployment and Service using 'kubectl apply -f deployment_yamr and ' kubectl apply -f service.yaml'. 4. Verify the Health Checks: - Check the service logs for liveness probe results. - If a pod becomes unhealthy, it should be restarted by the liveness probe. - You can also use 'kubectl get pods -I app=my-service' to check the pod status. 5. Advanced Configuration: - Use 'exec' or 'httpGet' probes for more complex health check requirements. - Configure the 'failureThreshold' and "successThreshold' to adjust the probe's sensitivity. - Add a 'readinessProbe' to the Deployment for readiness checks that determine when a pod is ready to receive traffic. ,
NEW QUESTION # 59
Refer to Exhibit.

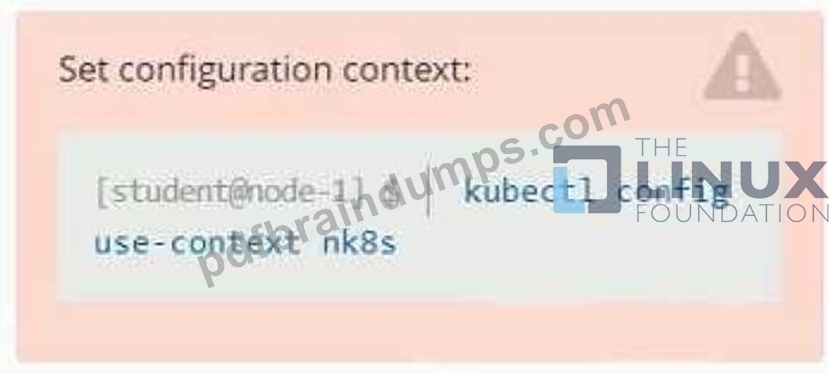

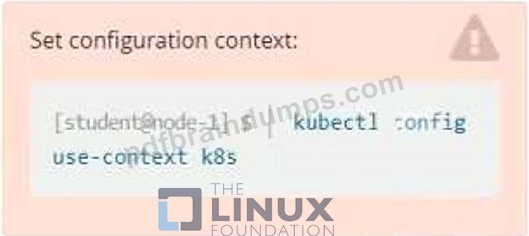

Set Configuration Context:
[student@node-1] $ | kubectl
Config use-context k8s
Task

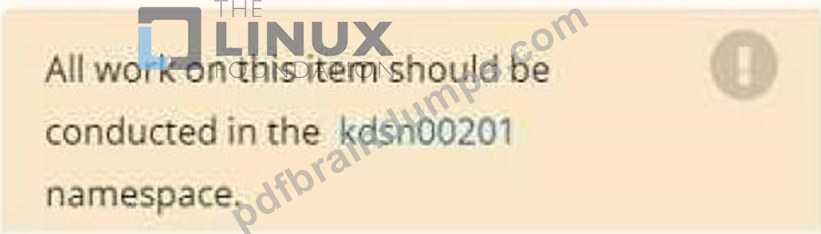

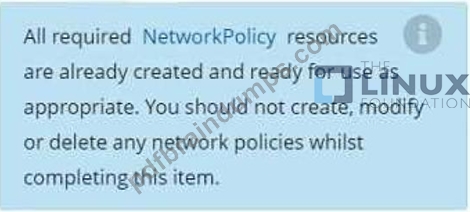

You have rolled out a new pod to your infrastructure and now you need to allow it to communicate with the web and storage pods but nothing else. Given the running pod kdsn00201 -newpod edit it to use a network policy that will allow it to send and receive traffic only to and from the web and storage pods.
Answer:
Explanation:
To allow a pod to send and receive traffic only to and from specific pods, you can use network policies in Kubernetes.
First, you will need to create a network policy that defines the allowed traffic. You can create a network policy yaml file with the following rules:
apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
name: newpod-network-policy
namespace: default
spec:
podSelector:
matchLabels:
app: kdsn00201-newpod
ingress:
- from:
- podSelector:
matchLabels:
app: web
- podSelector:
matchLabels:
app: storage
This policy will only allow incoming traffic to the pod with the label app=kdsn00201-newpod from pods with the label app=web or app=storage. If you have different labels on your web and storage pods please update the matchLabels accordingly.
Once you have created the network policy, you can apply it to the cluster by running the following command:
kubectl apply -f <network-policy-file>.yaml
This will apply the network policy to the cluster, and the newpod will only be able to send and receive traffic to and from the web and storage pods.
Please note that, NetworkPolicy resource is not available by default, you need to enable the NetworkPolicy feature on your Kubernetes cluster. This feature is enabled by default on some clusters and must be explicitly enabled on others. You can check if NetworkPolicy is available by running the command kubectl api-versions | grep networking Also, you need to ensure that the pods that you want to allow traffic to and from are running on the same namespace.
NEW QUESTION # 60
You have a multi-container Pod that needs to perform some initialization tasks before the main application containers Stan. These tasks involve setting up a database connection, downloading a configuration file, or running some pre-flight checks. Design a Pod configuration that utilizes an init container to handle these tasks before tne main application containers start Ensure that your solution includes the necessary steps to handle potential errors encountered during the initialization process.
Answer:
Explanation:
See the solution below with Step by Step Explanation.
Explanation:
Solution (Step by Step) :
1. Create an init container: Define an init container within your Pod's spec. This container will be responsible for running the initialization tasks before your main application containers start.

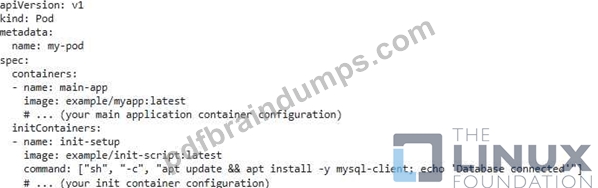

2. Define the init container image: Create a Docker image specifically for your init container. This image should contain all the necessary tools and scripts to perform your initialization tasks. basn # Create a Dockerfile for the init container FROM ubuntu:latest RUN apt update && apt install -y mysql-client # (add your initialization tasks here) CMD ["echo", "Database connected"] # Build the Docker image docker build -t example/init-script:latest . 3. Handle potential errors: Use a "lifecycle" nook to handle any errors during tne init container execution. This ensures that if the init container fails, the Pod is restarted, and the initialization process is retried.

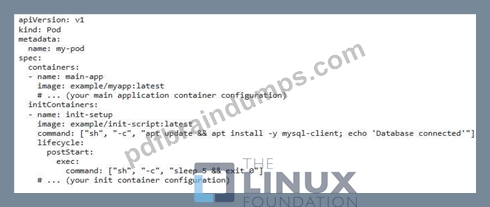

This example demonstrates the "poststart" lifecycle hook, which ensures the main application container only starts after the init container successfully completes. 4. Define resources for the init container: Specifr,' resource requirements for your init container (CPU, memory, etc.). This ensures that the initialization process doesn't impact your main application containers resource availability 5. Configure the main application container: Make sure your main application containers configuration is aware of the init containers actions (e.g., the database connection details are available). 6. Monitor and troubleshoot: Monitor your Pod's status to ensure the init container runs successfully. If errors occur, analyze logs from the init container to identify and address the issues. This configuration ensures that your init container executes the initialization tasks before your main application containers start, and provides a mechanism to handle errors during the initialization process.
NEW QUESTION # 61
......
