| Section | Weight | Objectives |
|---|---|---|
| Data Center Interconnect (DCI) Solutions | 25% | - BGP route policies and route reflectors - Gateway-less EVPN DCI - Interoperability with Nokia 7750 SR |
| Layer 2 EVPN Services | 25% | - Multi-homing and Ethernet Segments - Anycast Gateway and IRB - EVPN Route Types 1–4 |
| SR Linux and EVPN Fundamentals | 25% | - EVPN control plane and MP-BGP - VXLAN encapsulation and underlay - SR Linux architecture and CLI |
| Layer 3 EVPN Services | 25% | - EVPN Route Type 5 - VRF integration and route targets - Symmetric and asymmetric routing |
4A0-D03学習教材を選択し、当社の製品を適切に使用する場合、4A0-D03試験に合格し、4A0-D03認定を取得することをお約束します。そうすれば、あなたは段階的に社会的影響力と成功の大きなレベルに前進するチャンスがたくさんあることに気付くでしょう。 4A0-D03ガイド急流は、4A0-D03試験問題を確認できるコンサートを除外するために、すべての受験者に無料デモを提供することもできます。 4A0-D03学習ガイドがお気に召されると思います。
質問 # 57
Which of the following statements about the Layer 2 EVPN configuration/operation in a Nokia SR Linux is FALSE?
正解：D
解説：
Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:
In SR Linux, a Layer 2 EVPN service is implemented using a MAC-VRF network instance. The MAC-VRF represents the tenant bridge domain and is associated with access subinterfaces and a VXLAN data-plane mapping. Local hosts are learned through the data plane when Ethernet frames arrive on local interfaces. Remote hosts, however, are not learned by flooding or by configuring static per-peer VXLAN interfaces. They are learned through MP-BGP EVPN updates, especially EVPN route type 2 MAC/IP Advertisement routes. Option B is false because SR Linux does not require a separate manually configured VXLAN interface toward each remote VTEP for the MAC-VRF. Instead, the MAC-VRF is bound to VXLAN encapsulation and a VNI, while remote VTEPs and their MAC reachability are discovered dynamically through the EVPN control plane. This is one of the central advantages of EVPN compared with static VXLAN flood-and-learn models: the overlay endpoints and endpoint reachability are signaled through BGP, reducing manual configuration and improving scale. Reference: SR Linux L2 EVPN MAC-VRF configuration, MP-BGP EVPN learning, VXLAN data-plane mapping.
質問 # 58
Leaf routers are configured to support Layer 2 multi-homing all-active mode.
Which of the following statements is FALSE?
正解：B
解説：
Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:
For Layer 2 all-active EVPN multi-homing on SR Linux, the Ethernet Segment configuration is the control-plane anchor that binds the redundant access attachment to EVPN. The relevant LAG subinterfaces must be associated with the Ethernet Segment so that the PE can advertise the segment correctly and apply split-horizon and aliasing behavior. The Ethernet Segment must also be administratively enabled; otherwise, the PE will not participate properly in ES discovery and DF procedures. The multi-homing mode must be set to all-active to permit forwarding through multiple attached leaf routers and support host-side LAG operation. The false statement is option B. The Ethernet Segment Identifier has a defined structure, and the blanket statement that the 2nd through 7th octets "must not be all zeros" is not a valid requirement as stated. What matters operationally is that the ESI uniquely identifies the same multi-homed Ethernet Segment across participating PEs and is consistently configured where required. The ESI must be non-zero as a meaningful segment identifier, but the specific octet restriction in the option is not the SR Linux all-active configuration rule. Reference: SR Linux L2 EVPN all-active multi-homing, Ethernet Segment configuration, LAG association.
質問 # 59
Consider the exhibit.
Leaf1 and Leaf2 have the Ethernet segment configured to use the default election algorithm while Leaf3 and Leaf4 are configured to use the preference-based algorithm with Leaf3 having the higher preference value. The DF candidate list is the same on all leaf routers.
Which of the following leafs is the DF for mac-vrf103?
正解：A
解説：
Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:
Designated Forwarder election determines which PE forwards BUM traffic from the EVPN overlay toward a multi-homed Ethernet Segment for a given service. In this scenario, all leaf routers share the same DF candidate list for mac-vrf103, but the election configuration is not identical. Leaf1 and Leaf2 use the default algorithm, while Leaf3 and Leaf4 use the preference-based algorithm. Under preference-based DF election, the candidate with the highest configured preference is selected over lower-preference candidates, assuming the candidate list is valid and consistent. The question states that Leaf3 has the higher preference value compared with Leaf4. Therefore, Leaf3 becomes the DF for mac-vrf103. This is the correct outcome because the preference-based election explicitly overrides simple default behavior by assigning operator-defined priority to a PE. In production designs, this is useful when the operator wants deterministic forwarding placement, maintenance control, or service-specific primary-path selection rather than relying only on the default modulo-based DF selection process. Reference: EVPN DF election, preference-based algorithm, MAC-VRF service forwarding.
質問 # 60
A host is connected to a MAC-VRF on leaf1 and leaf2. The MAC-VRF interfaces on leaf1 and leaf2 are associated to an Ethernet segment configured for active-standby multi-homing.
Which of the following statements is FALSE?
正解：C
解説：
Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:
In active-standby, or single-active, Layer 2 EVPN multi-homing, only one PE is active for the Ethernet Segment and MAC-VRF at a time. Leaf1 and Leaf2 participate in DF election, and the elected DF becomes the active forwarding PE for that service attachment. Because this is not all-active multi-homing, the non-DF must not forward traffic to the host for the protected service. This prevents duplicate frames, incorrect MAC learning, and loops on the access side. The DF accepts traffic from the host and forwards BUM traffic received from remote PEs toward the host-facing segment. Option D is false because it claims that the non-DF can forward unicast traffic from remote PEs to the host. In single-active operation, remote peers must direct traffic to the active PE, and the standby PE remains ready to take over only after DF state changes. This is the operational distinction from all-active multi-homing, where more than one PE may be used for forwarding depending on the traffic type and aliasing behavior. Reference: single-active L2 EVPN multi-homing, DF role, non-DF forwarding suppression.
質問 # 61

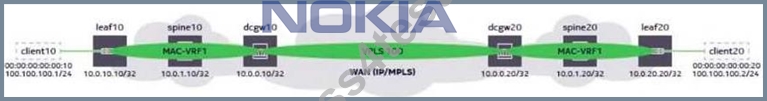

Consider the exhibit.
dcgw10 is a Nokia 7750SR and is used as the integrated gateway.
Which of the following is NOT configured in VPLS 100 on dcgw10?
正解：C
解説：
Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:
For Layer 2 data center interconnect using an integrated gateway, VPLS 100 on the Nokia 7750 SR represents the WAN-side Layer 2 VPN service. The VPLS requires an EVI because EVPN uses the EVI to identify the L2 service instance in the control plane. It also requires BGP EVPN signaling with the appropriate route targets so the local and remote service instances can import the correct EVPN routes. Because the service is transported across the WAN, the BGP/EVPN instance must be associated with the MPLS transport tunnels toward the remote gateway, dcgw20. A VXLAN instance with a VNI is not configured in the 7750 SR VPLS 100 for this integrated WAN gateway service. The VXLAN/VNI mapping is used inside the SR Linux data center fabric where MAC-VRF services are transported over VXLAN. On the WAN side, the VPLS service is carried using MPLS/EVPN mechanisms, not a VXLAN VNI configured directly under the VPLS. Reference: integrated gateway DCI, L2 EVPN/VPLS interworking, EVI and route-target operation.
質問 # 62
......
