Our JN0-352 study materials do not have the trouble that users can't read or learn because we try our best to present those complex and difficult test sites in a simple way. As long as you learn according to the plan of our JN0-352 training materials, normal learning can make you grasp the knowledge points better. Whether you are an experienced top student or a student with poor grades, our JN0-352 learning guide can help you get started quickly.
| Section | Weight | Objectives |
|---|---|---|
| Topic 1: BGP | 15-20% | - Routing policies, filtering and common troubleshooting - Neighbor relationships and session establishment - Route advertisement, attributes and path selection |
| Topic 2: Layer 2 Security | 10-15% | - Layer 2 firewall filters and security features - Port security, MAC limiting and storm control - DHCP snooping, Dynamic ARP Inspection and IP Source Guard |
| Topic 3: Tunnels and Overlays | 5-10% | - GRE, IP-IP and dynamic tunnel configuration - Tunnel types, encapsulation and operation - Overlay network design and connectivity |
| Topic 4: IP Multicast | 5-10% | - Multicast routing monitoring and troubleshooting - IGMP operation and configuration - PIM Dense Mode, Sparse Mode and RP mechanisms |
| Topic 5: Protocol Independent Routing | 10-15% | - Routing instances and route selection criteria - Basic routing policy and filter operation - Routing tables, static routes and route preference |
| Topic 6: OSPF | 15-20% | - Neighbor formation, area design and LSA types - Route summarization and redistribution - Configuration, verification and troubleshooting |
| Topic 7: Layer 2 Switching and VLANs | 15-20% | - Link Aggregation Groups (LAG) and Virtual Chassis - Spanning Tree Protocol (STP, RSTP, MSTP) operation and configuration - VLAN concepts, configuration, trunking and tagging |
| Topic 8: High Availability and Resiliency | 5-10% | - Redundancy protocols and failover mechanisms - Network resiliency design and troubleshooting - Graceful restart and non-stop routing |
| Topic 9: IS-IS | 10-15% | - Configuration and route exchange - Adjacency establishment, levels and metrics - Scalable enterprise deployment and troubleshooting |
Remember that this is a crucial part of your career, and you must keep pace with the changing time to achieve something substantial in terms of a certification or a degree. So do avail yourself of this chance to get help from our exceptional Juniper JN0-352 Dumps to grab the most competitive Juniper JN0-352 certificate. Test4Sure has formulated the Enterprise Routing and Switching, Specialist (JNCIS-ENT) (JN0-352) product in three versions. You will find their specifications below to understand them better.
NEW QUESTION # 160
You are asked to configure a redundant trunk group (RTG). Which two requirements would accomplish this task? (Choose two.)
Answer: A,D
NEW QUESTION # 161

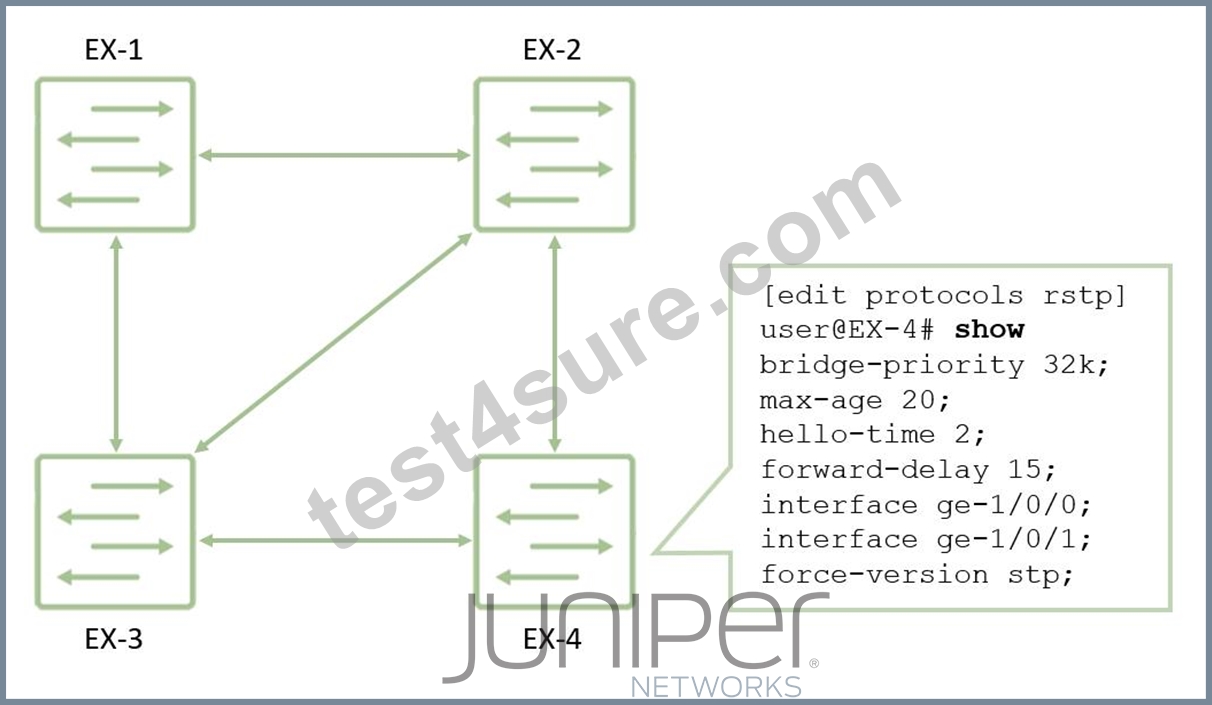

You have configured the four EX Series switches with RSTP, as shown in the exhibit. You discover that whenever a link between switches goes up or down, the switches take longer than expected for RSTP to converge, using the default settings.
In this scenario, which action would solve the delay in RSTP convergence?
Answer: B
Explanation:
The exhibit shows the configuration of RSTP on EX-4, which has the command force-version stp.
This command forces the switch to use the legacy STP protocol instead of RSTP, even though the switch supports RSTP. This means that EX-4 will not be able to take advantage of the faster convergence and enhanced features of RSTP, such as edge ports, link type, and proposal/agreement sequence. The other switches in the network are likely to be running RSTP, as it is the default protocol for EX Series switches. Therefore, there will be a compatibility issue between EX-4 and the other switches, which will result in longer convergence times and suboptimal performance. The switch will also generate a warning message that says "Warning:
STP version mismatch with neighbor" when it receives a BPDU from a RSTP neighbor.
To solve this problem, the force-version command must be removed from EX-4, so that it can run RSTP natively and interoperate with the other switches in the network. This will enable faster convergence and better stability for the network topology. To remove the command, you can use the delete protocols rstp force-version command in configuration mode.
NEW QUESTION # 162
You have traffic for a video streaming application traversing a GRE tunnel in your network and users are reporting poor performance. Both ends of the tunnel are using the default settings for a gigabit Ethernet interface, but you observe excessive packet drops due to exceeding the MTU.
Which two steps would you take to improve connectivity for this application? (Choose two.)
Answer: A,D
Explanation:
The described symptom -- excessive packet drops specifically attributed to exceeding the MTU on a GRE tunnel carrying full-size video streaming traffic across default-MTU gigabit Ethernet interfaces -- is a direct consequence of the 24 bytes of GRE encapsulation overhead pushing packets that were already at or near the standard 1500-byte Ethernet MTU past the physical interface's transmission limit once the outer GRE and IP headers are added. The most durable fix is to proactively increase the physical member interfaces' MTU beyond the 1500-byte default -- to
1524 bytes or higher -- which provides sufficient headroom to absorb the full GRE encapsulation overhead without ever causing the fully encapsulated packet to exceed the interface's transmission capability, allowing full-size 1500-byte payloads to pass through the tunnel intact and without fragmentation or drops. As a complementary measure, configuring the clear-dont- fragment-bit option on the tunnel or member interfaces instructs Junos to clear the DF (don't fragment) bit on oversized packets rather than dropping them outright when they do exceed the available MTU, allowing the Packet Forwarding Engine to fragment and later reassemble the traffic instead of silently discarding it, which directly addresses the reported packet loss even under transient conditions. Simply raising the MTU only to 1500 bytes fails to account for the 24- byte GRE overhead and would not resolve the underlying oversize condition. Routing the tunnel over a higher-bandwidth link addresses potential congestion but does nothing to correct an MTU- based packet-size violation, which is the root cause explicitly identified in this scenario.
NEW QUESTION # 163
Which two statements correctly describe RSTP port roles? (Choose two.)
Answer: B,D
Explanation:
An RSTP topology contains ports that have specific roles:
The root port is responsible for forwarding data to the root bridge.
The alternate port is a standby port for the root port. When a root port goes down, the alternate port becomes the active root port.
The designated port forwards data to the downstream network segment or device.
The backup port is a backup port for the designated port. When a designated port goes down, the backup port becomes the active designated port and starts forwarding data.
NEW QUESTION # 164
Which two statements are correct about using firewall filters on EX Series switches? (Choose two.)
Answer: A,B
Explanation:
A is correct because you can deploy only stateless firewall filters on an EX Series switch. A stateless firewall filter is a filter that evaluates each packet individually based on the header information, such as source and destination addresses, protocol, and port numbers. A stateless firewall filter does not keep track of the state or context of a packet flow, such as the sequence number, flags, or session information. EX Series switches support only stateless firewall filters, which are also called access control lists (ACLs) or packet filters.
C is correct because you can apply firewall filters to both Layer 2 and Layer 3 traffic on an EX Series switch. Layer 2 traffic is traffic that is switched within a VLAN or a bridge domain, while Layer 3 traffic is traffic that is routed between VLANs or networks. EX Series switches support three types of firewall filters: port (Layer 2) firewall filters, VLAN firewall filters, and router (Layer
3) firewall filters. You can apply these filters to different interfaces and directions to control the traffic entering or exiting the switch.
NEW QUESTION # 165
......
