73. Frage
A virtual server is listening at 10.10.1.100:80 and has the following iRule associated with it:
when HTTP_REQUEST { if { [HTTP::header UserAgent] contains "MSIE" }
{ pool MSIE_pool }
else { pool Mozilla_pool }
If
a user connects to http://10.10.1.100/foo.html and their browser does not specify a UserAgent, which pool will receive the request?
Antwort: A
74. Frage
The BIG-IP Administrator needs to ensure that if a pool member is marked down by the monitor, the BIG-IP system sends existing connections to another available pool member. Which task should the BIG-IP Administrator perform to meet this goal?
Antwort: C
Begründung:
By default, when a pool member is marked "down" by a monitor, the BIG-IP system stops sendingnew connections to that member, but it typically allows existing connections to time out naturally (or resets them depending on profile settings).
* Action on Service Down:This setting is configured at thePoollevel.
* Reselect:When set toReselect, if a pool member is marked down, the BIG-IP system will immediately attempt to pick a different available pool member for any existing, active connections associated with the failed member.
* Client Experience:This is used to maintain the user session by transparently moving the traffic to a healthy server without the client needing to re-establish the connection to the Virtual Server.
75. Frage
Refer to the exhibit above.
A BIG-IP pool is configured withPriority Group Activation = Less than 2 available members. The pool members have different priority groups and availability states. Which pool members arereceiving traffic?
(Choose one answer)
Antwort: D
Begründung:
This question tests understanding ofPriority Group Activation (PGA)and how BIG-IP determines which pool members are eligible to receive traffic.
Key BIG-IP Priority Group Concepts:
* Higher priority group numbers = higher priority
* BIG-IP willonly send traffic to the highest priority groupthat meets thePriority Group Activation condition
* Lower priority groups areactivated only when the condition is met
* Onlyavailable (green)members count toward the activation threshold
Configuration from the Exhibit:
* Priority Group Activation:Less than 2 available members
* Pool Members and Status:
Pool Member
Priority Group
Status
serv1
2
Active (available)
serv2
2
Inactive (down)
serv3
1
Active (available)
serv4
1
Active (available)
Step-by-Step Traffic Decision:
* BIG-IP first evaluates thehighest priority group (Priority Group 2)
* Priority Group 2 has:
* serv1 # available
* serv2 # unavailable
* Total available members = 1
* Activation rule isLess than 2 available members
* Condition istrue(1 < 2)
* BIG-IPactivates the next lower priority group (Priority Group 1)
* Traffic is now sent to:
* serv1 (Priority Group 2)
* serv3 and serv4 (Priority Group 1)
Final Result:
Traffic is distributed toserv1, serv3, and serv4
Why the Other Options Are Incorrect:
* A- Ignores activation of the lower priority group
* B- serv4 is also active and eligible
* C- serv2 is down and cannot receive traffic
Key Data Plane Concept Reinforced:
Priority Group Activation controls when lower-priority pool members are allowed to receive traffic, based strictly on the number ofavailable membersin the higher-priority group. In this case, the failure of one high-priority member caused BIG-IP toexpand traffic distributionto lower-priority members to maintain availability.
76. Frage

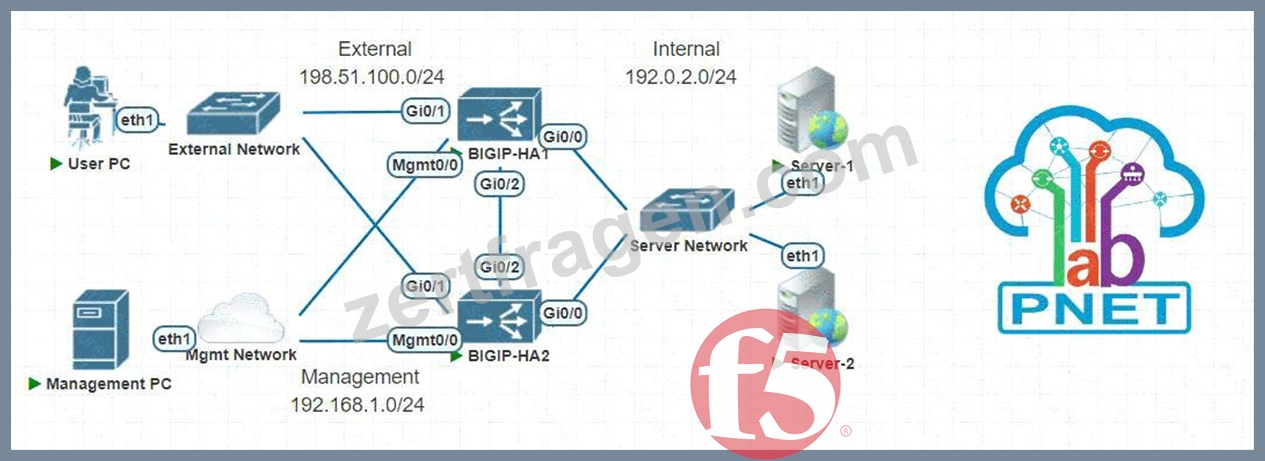

The network architecture for a BIG-IP consists of an external VLAN and an internal VLAN with two interfaces connected to the upstream switch. The design requires fault tolerance in the case that one of the interfaces is down. Which deployment architecture meets these requirements? (Choose one answer)
Antwort: B
Begründung:
To meet the requirement of fault tolerance when one interface goes down, BIG-IP must use link aggregation so that loss of a single physical link does not isolate the VLAN(s).
How the objects relate (data plane view)
Interfaces = physical links.
Trunk (LACP) = bundles multiple interfaces into one logical link that provides redundancy (and possibly bandwidth aggregation).
VLANs are assigned to interfaces or trunks. If you need multiple VLANs on the same trunk, they must use 802.1Q tagging (because you can only have one untagged VLAN per interface/trunk).
Self IPs are then placed on the VLANs to provide BIG-IP presence and routing/ARP functions, but self IPs are not what provides link resiliency-the trunk does.
Why Option D is correct
You have two physical interfaces and you want resiliency if one fails → put both interfaces into one trunk with LACP enabled.
You need both external and internal VLANs on those same two links → both VLANs should be configured as tagged on that trunk, so they can coexist on the same aggregated link.
If either physical interface fails, the trunk remains up via the remaining interface, keeping both VLANs operational.
Why the other options are incorrect
A: Two VLANs cannot both be untagged on the same trunk/interface. Only one untagged VLAN is possible; additional VLANs must be tagged.
B: Two trunks "each with one VLAN" would typically mean splitting VLANs across separate trunks. With only two interfaces total, that becomes one interface per trunk-if one interface goes down, the VLAN on that interface is down (no redundancy for that VLAN).
C: Same redundancy problem as B, and disabling LACP removes the negotiated aggregation behavior expected when the switch engineer specifically requested LACP.
77. Frage
A BIG-IP Administrator is informed that traffic on interface 1.1 is expected to increase beyond the maximum bandwidth capacity of the link. There is a single VLAN on the interface.
What should the BIG-IP Administrator do to increase the total available bandwidth? (Choose one answer)
Antwort: C
Begründung:
Comprehensive and Detailed Explanation (BIG-IP Administration - Data Plane Concepts):
On BIG-IP systems, physical interface bandwidth is fixed by the link speed (for example, 1GbE or 10GbE). When traffic demand exceeds the capacity of a single interface, BIG-IP provides link aggregation through trunks.
Key concepts involved:
Interfaces
A single physical interface (such as 1.1) is limited to its negotiated link speed. You cannot exceed this capacity through software tuning alone.
Trunks (Link Aggregation)
A trunk combines multiple physical interfaces into a single logical interface.
BIG-IP supports LACP and static trunks.
Traffic is distributed across member interfaces, increasing aggregate bandwidth and providing redundancy.
VLANs are then assigned to the trunk, not directly to individual interfaces.
Why option B is correct:
Creating a trunk with two interfaces allows BIG-IP to use both physical links simultaneously.
This increases total available bandwidth (for example, two 10Gb interfaces → up to 20Gb aggregate capacity).
This is the documented and supported method for scaling bandwidth on BIG-IP.
Why the other options are incorrect:
A . Increase the MTU
MTU changes affect packet size and efficiency, not total bandwidth capacity.
C . Assign two interfaces to the VLAN
BIG-IP does not support assigning a VLAN to multiple interfaces directly. VLANs must be associated with one interface or one trunk.
D . Set the media speed manually
Media speed can only be set up to the physical capability of the interface and connected switch port. It cannot exceed the hardware limit.
Conclusion:
To increase total available bandwidth on BIG-IP when a single interface is insufficient, the administrator must create a trunk object with multiple interfaces and move the VLAN onto the trunk. This aligns directly with BIG-IP data plane design and best practices.
