| Section | Objectives |
|---|---|
| Topic 1: Special Inspection Requirements | - Inspection of connections and protective materials - Special inspection procedures for tall mass timber buildings - Inspector duties and responsibilities |
| Topic 2: Fire Protection and Fire-Resistance | - Noncombustible protection and protection of mass timber elements - Fire-resistance requirements - Fire protection systems and related provisions |
| Topic 3: Structural Inspection | - Connections and fastening systems - Mass timber structural elements - Structural loads and related code requirements |
| Topic 4: Code Compliance and Related Requirements | - Sound transmission requirements - Documentation and verification of compliance - Energy code requirements applicable to mass timber buildings |
| Topic 5: Tall Mass Timber Building Code Provisions | - Mass timber materials and construction requirements - Types IV-A, IV-B and IV-C construction - International Building Code requirements for tall mass timber construction |
| Topic 6: Construction Fire Safety | - International Fire Code requirements - Construction-phase fire safety requirements - Protection of mass timber during construction |
>> 93-Tall-Mass-Timber-Buildings Passing Score Feedback <<
With the development of science and technology the internet in our daily life is playing a more and more important role! IT workers become high-salary people. International Code Council certifications become hot vocational qualification certificate. PDFVCE offers the best 93-Tall-Mass-Timber-Buildings Guide Torrent files to help people clear exams and realize their idea better. We are engaged in this field more than 8 years. If you have dream in this field, our valid 93-Tall-Mass-Timber-Buildings guide torrent files will be a good chance for you.
NEW QUESTION # 30
Refer to the exhibit by clicking on the EXHIBIT button above.
In the detail shown, the 2x2 block is intended for what purpose according to AWC Technical Report 10?
Answer: D
Explanation:
The 2 × 2 block is intended to protect the abutting wood edges from the effects of char contraction. Therefore, option D is correct.
During fire exposure, wood chars and the char layer can shrink or contract. At an interface between two abutting timber components, that contraction can create a gap that allows heat and flames to penetrate deeper than predicted for a continuous exposed surface. AWC connection-fire-design methodology therefore requires additional protection at susceptible joints and interfaces. The block shields the abutting edges and maintains the sacrificial wood-cover path around the protected connection.
Its primary function is not decorative, nor is it simply an air-sealing component. Although limiting airflow can be a secondary consequence of closing the interface, the design purpose addressed by the technical guidance is control of premature fire penetration caused by char contraction. The block also should not be interpreted independently as a generic one-hour protective membrane for the steel ledger; the connection's total rating depends on the complete approved protection assembly.
The inspector should confirm the block's dimensions, species or product designation, fastening, continuity, and tight installation before the connection is concealed.
References/Topics: AWC Technical Report 10; AWC Fire Design Specification provisions addressing char contraction and gaps between abutting wood members.
NEW QUESTION # 31
For CLT, which of the following standards is used for the determination of bond line shear test for adhesives?
Answer: A
Explanation:
ANSI/APA PRG 320 is the governing product standard for performance-rated cross-laminated timber, including adhesive qualification, bond integrity, manufacturing quality control, and required product identification. Accordingly, option D is correct.
Bond-line performance is critical because CLT panels depend on structural adhesive to transfer shear forces between laminations and maintain composite action. PRG 320 establishes qualification and quality-assurance requirements intended to verify that adhesive bonds remain structurally reliable and resist delamination or inadequate bond development. Testing and manufacturing controls under this standard address the completed CLT product rather than treating the adhesive as an isolated material.
AITC 113 concerns dimensional tolerances and related requirements for structural glued-laminated timber rather than CLT bond-line shear qualification. ASTM C557 addresses adhesives for ceramic tile and is unrelated to structural timber manufacture. ANSI 117 is not the governing CLT manufacturing standard.
During inspection, the special inspector ordinarily does not reproduce factory bond-line tests on-site. Instead, the inspector verifies the CLT manufacturer's identification, certification marks, panel grade, layup designation, and conformance with PRG 320 and the approved construction documents.
References/Topics: 2021 IBC Section 2303.1.4; ANSI/APA PRG 320; CLT adhesive-bond qualification and manufacturing quality assurance.
NEW QUESTION # 32
Refer to the figure by clicking on the EXHIBIT button above.

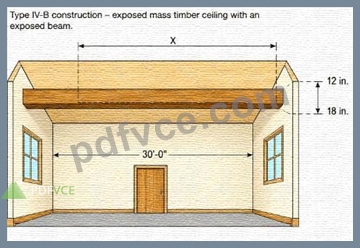

In Type IV-B construction, based on a 900 sq. ft. floor area, a 30 ' room width, and a 12 in. x 18 in. beam as shown in the Figure, the maximum length of the unprotected portion of the mass timber ceiling (dimension X) is _____ feet.
Answer: C
Explanation:
Section 602.4.2.2.2 permits unprotected mass timber ceilings in Type IV-B construction to equal no more than 20 percent of the floor area , and the code expressly states that attached beams are included when determining that exposed ceiling area.
The floor area is 900 square feet:
20% × 900 = 180 sq. ft. maximum exposed area .
The exposed 12-inch × 18-inch beam extends across the 30-foot room. Its three exposed surfaces consist of the 12-inch-wide bottom and two 18-inch-deep sides:
30 ft × (1 ft + 1.5 ft + 1.5 ft) = 120 sq. ft.
Because the attached beam counts against the ceiling exposure allowance, only:
180 # 120 = 60 sq. ft.
remains available for the exposed ceiling itself.
The exposed ceiling extends across the 30-foot room width, so:
30 ft × X = 60 sq. ft.
Therefore:
X = 2 ft .
Option A is correct. Ignoring the beam surfaces would overstate the permitted ceiling exposure and would contradict the explicit IBC requirement that attached beams be included in the exposed ceiling calculation.
References/Topics: 2021 IBC Section 602.4.2.2.2, Exception 1.1; Type IV-B exposed ceiling and attached- beam area calculations.
NEW QUESTION # 33
In mass timber construction of Type IV-B, each of the following is suitable for use as fireblocking except:
Answer: A
Explanation:
A 7/16-inch wood structural panel is not one of the prescriptively acceptable fireblocking materials listed by IBC Section 718.2.1. Therefore, option C is correct.
Section 718.2.1 permits fireblocking to consist of several specified materials. These include one-half-inch gypsum board; properly secured batts or blankets of mineral wool, mineral fiber, or other approved materials; and mass timber complying with Section 2304.11. Options A, B, and D are consequently valid.
For wood structural panels, however, the IBC requires a substantially greater thickness: a single thickness of approximately 0.719 inch , conventionally represented as 23/32 inch, with joints backed by material of the same required thickness. A 7/16-inch panel is only approximately 0.438 inch thick and therefore does not satisfy that prescriptive fireblocking provision.
Fireblocking is intended to interrupt concealed draft openings and restrict the movement of flame and hot gases through concealed combustible spaces. It should not be confused with a tested firestop system used at penetrations through fire-resistance-rated assemblies.
Special inspection should confirm that the installed material, thickness, joint backing, retention, and location conform to the approved construction documents and the applicable code provision.
References/Topics: 2021 IBC Sections 718.2 and 718.2.1; Section 2304.11; permitted fireblocking materials.
NEW QUESTION # 34
Refer to the figure by clicking on the EXHIBIT button above.

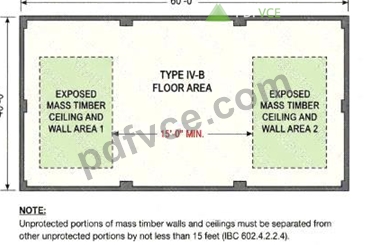

In Type IV-B construction, unprotected portions of mass timber as shown in the Figure are required to be separated by _____ feet.
Answer: B
Explanation:
The required separation is 15 feet , making option B correct. Section 602.4.2.2.4 of the 2021 IBC specifically regulates the separation distance between unprotected mass timber elements in Type IV-B construction.
Within each dwelling unit or fire area, unprotected portions of mass timber walls and ceilings must be separated from other unprotected wall and ceiling portions by not less than 15 feet . For ceiling-related surfaces, the separation is measured horizontally along the ceiling. For wall-to-wall exposure, the applicable separation is measured horizontally along the floor.
This requirement operates in addition to the maximum exposed-area restrictions. A designer therefore cannot merely demonstrate that the exposed ceiling is below 20 percent or that exposed walls are below 40 percent of floor area; the exposed regions must also satisfy the required spatial separation.
The purpose is to prevent multiple exposed mass timber regions from acting as closely spaced fuel packages during a compartment fire. During inspection, dimensions should be checked against the approved documents before required gypsum or other noncombustible protection is completed.
References/Topics: 2021 IBC Section 602.4.2.2.4; separation distance between unprotected Type IV-B mass timber elements.
