NEW QUESTION # 50
A large multinational corporation is seeking proposals for the modernization of a Private Cloud environment.
The proposed solution must meet the following requirements:
* Support multiple data centers located in different geographic regions.
* Provide a secure and scalable solution that ensures seamless connectivity between data centers and different departments.
Which three NSX features or capabilities must be included in the proposed solution? (Choose three.)
Answer: C,E,F
Explanation:
Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:
In a modern VMware Cloud Foundation (VCF) architecture, particularly when addressing the needs of a multinational corporation with geographically dispersed data centers, the solution must prioritize multi- tenancy, security, and consistent delivery. The integration ofNSXwithin VCF provides these core pillars.
First, theNSX Edgeis a foundational requirement for any multi-site or modern cloud environment. It serves as the bridge between the virtual overlay network and the physical world. In a multi-region deployment, NSX Edges facilitate North-South traffic and are essential for supporting features like Global Server Load Balancing (GSLB) or site-to-site connectivity. Without the Edge, the software-defined data center (SDDC) cannot communicate with external networks or peer via BGP with physical routers.
Second,vDefend(formerly known as NSX Security) provides the advanced security framework required for a
"secure and scalable" environment. This includes Distributed Firewalling (DFW), Distributed IDS/IPS, and Malware Prevention. For a corporation with different departments, vDefend allows for micro-segmentation, ensuring that a security breach in one department's segment cannot move laterally to another. This is critical for meeting compliance and isolation requirements across global regions.
Third, theVirtual Private Cloud (VPC)model is the cornerstone of the latest VCF 9.0 and 5.x architectures.
It enables the "scalable solution" for different departments by providing a self-service consumption model.
Each department can manage its own isolated network space, including subnets and security policies, without needing deep networking expertise or constant tickets for the central IT team. This abstraction simplifies management across multiple data centers and allows for consistent application of policies regardless of the physical location.
While AVI Load Balancer and Centralized Network Connectivity are valuable, they are often considered add- ons or outcomes rather than the core architectural features that define the multi-tenant, secure, and geographically distributed nature of a modern VCF private cloud modernization project.
NEW QUESTION # 51
An administrator is troubleshooting why workloads in NSX cannot reach the external network 10.100.0.0/16.
The Tier-0 Gateway is in Active/Active mode and has the following configuration:
* Uplink-1 (VLAN 100): 192.168.100.0/24 -> router R1 at 192.168.100.1
* Uplink-2 (VLAN 101): 192.168.101.0/24 -> router R2 at 192.168.101.1
* A static route for 10.100.0.0/16 was added with both next-hops (192.168.100.1 and 192.168.101.1).
* The Scope of this route is set to Uplink-1.
Symptoms:
* Virtual Machines (VMs) cannot reach 10.100.0.0/16
* Traceroute from the VM stops at the Tier-0 gateway with "Destination Net Unreachable"
* Pings from the Edge nodes to both 192.168.100.1 and 192.168.101.1 are success What explains why workloads in NSX cannot reach the external network?
Answer: A
Explanation:
Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:
Troubleshooting routing in a VMware Cloud Foundation (VCF) environment requires a deep understanding of how theNSX Tier-0 Gatewayprocesses forwarding entries. In anActive/Activeconfiguration, the Tier-0 gateway is designed to utilize ECMP (Equal Cost Multi-Pathing) to distribute traffic across multiple paths to the physical network.
The specific failure described-where a traceroute fails at the Tier-0 with "Destination Net Unreachable" despite the Edge nodes having basic ping connectivity to the routers-points toward a routing table entry error rather than a physical connectivity issue. In NSX, when a static route is created, an administrator has the option to set a"Scope."The Scope explicitly tells the NSX routing engine which interface should be used to reach the defined next-hops.
In this scenario, the administrator has defined two next-hops (R1 and R2) but has restricted the scope of the static route toUplink-1 only. Because R2 (192.168.101.1) is on a different subnet/VLAN (VLAN 101) that is associated withUplink-2, the Tier-0 gateway cannot resolve the next-hop for R2 via Uplink-1. Furthermore, if the gateway detects an inconsistency between the defined next-hop and the scoped interface, it may invalidate the route or fail to install it correctly in the forwarding information base (FIB) for the service router.
According to VMware documentation, theScopeshould typically be left as "All Uplinks" or carefully matched to the interfaces that have Layer 2 reachability to the next-hop. By scoping it to only Uplink-1, the router R2 becomes unreachable for that specific route entry. Even for R1, if the hashing mechanism of the Active
/Active Tier-0 attempts to use a component of the gateway not associated with that scope, the traffic will fail.
The error "Destination Net Unreachable" at the Tier-0 hop confirms that the Tier-0 has no valid, functional path in its routing table for the 10.100.0.0/16 network due to this scoping conflict.
NEW QUESTION # 52
An administrator is tasked to configure NSX Federation between separate VMware Cloud Foundation (VCF) Fleets. Which requirement must all sites meet before being added to a Global Manager (GM) for NSX Federation?
Answer: C
NEW QUESTION # 53
An administrator is troubleshooting a BGP connectivity issue on a Tier-0 Gateway (Active/Active). The Tier-
0 has the following configuration:
* Uplink VLAN 100: 192.168.100.0/24
* Uplink VLAN 101: 192.168.101.0/24
* BGP neighbors configured: 192.168.100.1 and 192.168.101.1
* A single static default route (0.0.0.0/0) exists with next-hop 192.168.100.1.
Symptoms observed on both Edge Nodes:
* Get BGP neighbors -> both neighbors stuck in Idle (Connect) - "No route to peer"
* Ping to 192.168.100.1 and 192.168.101.1 succeeds from the Edge nodes
* Get route shows the default route present only on VLAN 100 interface (fp-eth0), missing on VLAN 101 (fp- eth1) What is the root cause of both BGP sessions remaining in Idle state?
Answer: B
Explanation:
Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:
InVMware NSXnetworking, the Tier-0 Gateway'sRouting Table(RIB) is the definitive source for determining how to reach BGP neighbors. A common point of confusion occurs when an administrator can
"ping" a neighbor but the BGP state remainsIdleorConnectwith a "No route to peer" error.
This symptom specifically points to the"Scope"setting of a static route. In NSX, when a static route (such as the default route 0.0.0.0/0) is created, the administrator can define theScopeto be a specific uplink segment or interface. If the scope is set exclusively to theVLAN 100segment, the Tier-0 Gateway will only install that route into the forwarding table for the Service Router (SR) component associated with the VLAN 100 interface.
Because the default route is the only path the Tier-0 has to reach non-local networks (or even other local subnets not directly attached), the BGP process for the neighbor at192.168.101.1(VLAN 101) checks the routing table for a path. Since the only available route is scoped strictly to VLAN 100, the Tier-0 determines it has "No route" to reach the neighbor in VLAN 101. BGP requires a valid entry in the routing table for the neighbor's IP before it will even attempt to initiate the TCP three-way handshake on port 179.
The fact that pings succeed is due to pings often being tested from the specific interface (e.g., ping
192.168.101.1 -I fp-eth1), which bypasses the general routing table logic that the BGP control plane must follow. To resolve this, the static route scope should be expanded to include all relevant uplink segments or left as "All Uplinks," ensuring that the Tier-0 recognizes valid egress paths for neighbors on both VLAN 100 and VLAN 101.
NEW QUESTION # 54

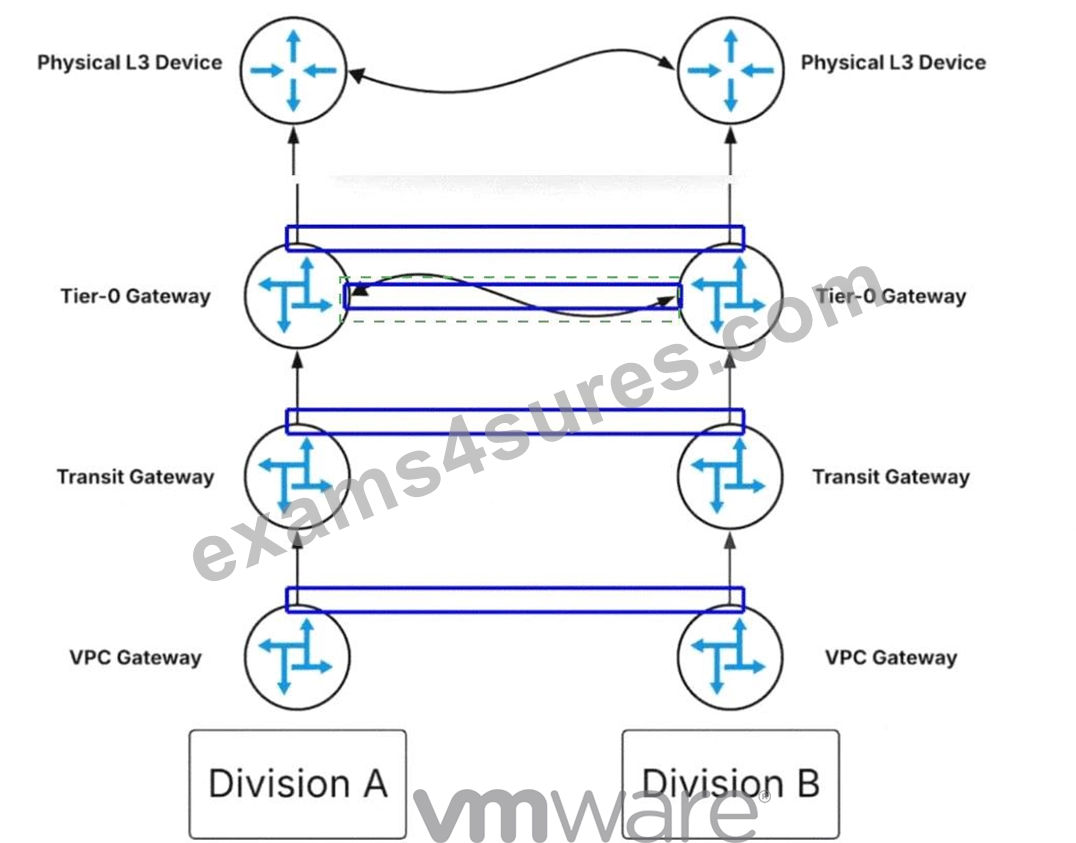

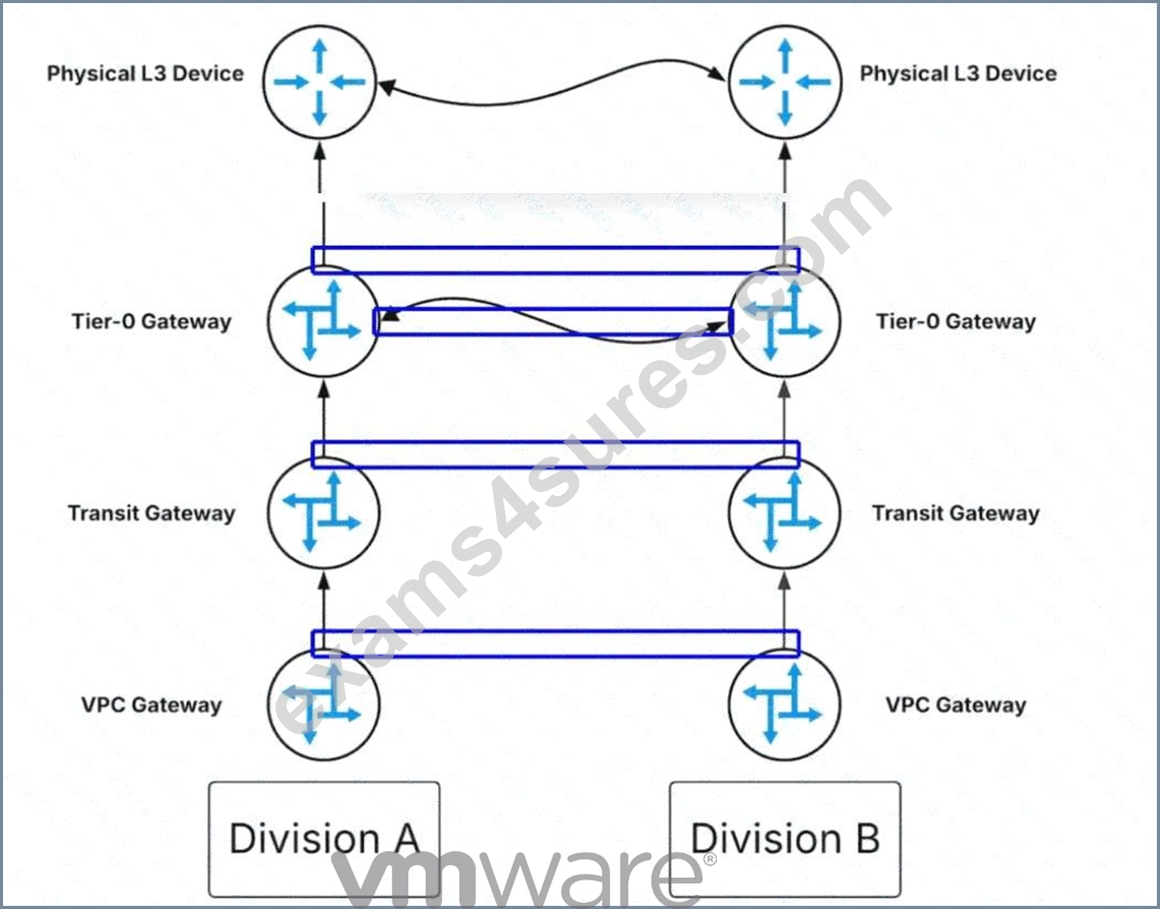

An administrator implements route leaking between the Tier-0 gateways to enhance east/west communication because the physical L3 devices are oversubscribed.
Where should route-maps be configured based on the architecture observed in the diagram?
Answer:
Explanation:
Explanation:
The administrator should click on theblue box representing the logical link between the two Tier-0 Gateways.
In the multi-tenant architecture ofVMware Cloud Foundation (VCF) 9.0, networking is structured hierarchically with VPC Gateways, Transit Gateways, and Tier-0 Gateways. Under normal conditions, traffic between isolated divisions (such as Division A and Division B) that need to communicate might be routed
"North" all the way to thePhysical L3 Devices(the physical core routers) before being routed back down.
However, if these physical devices are oversubscribed or reaching their throughput limits, this creates a performance bottleneck.
To optimize this flow, NSX allows forRoute Leakingat the Tier-0 layer. By establishing a logical peering or connection directly between twoTier-0 Gatewayswithin the virtual fabric, administrators can exchange routing information (prefixes) between the two environments without the traffic ever leaving the SDDC.
To control exactly which networks are shared and to prevent routing loops or unauthorized access,Route- Mapsmust be applied at this inter-gateway connection point. These route-maps define the "Permit" or "Deny" statements for specific IP prefixes being "leaked" from one routing table to another. By clicking the highlighted link between the Tier-0 Gateways, the administrator is targeting the specific control plane interface where these prefix exchanges occur. This configuration ensures that East-West traffic between Division A and Division B is handled locally by theNSX Edge Nodes, effectively bypassing the oversubscribed physical L3 devices and significantly reducing latency and physical network congestion.
NEW QUESTION # 55
......
