被験者は、定期的に計画を立て、自分の状況に応じて目標を設定し、研究を監視および評価することにより、学習者のプロフィールを充実させる必要があります。 NCM-MCI-6.10試験の準備に役立つからです。試験に合格して関連する試験を受けるには、適切な学習プログラムを設定する必要があります。当社からNCM-MCI-6.10テストガイドを購入し、それを真剣に検討すると、最短時間でNCM-MCI-6.10試験に合格するのに役立つ適切な学習プランが得られると考えています。
| Section | Objectives |
|---|---|
| Topic 1: Manage and Configure Nutanix Virtual Infrastructure | - AHV cluster configuration - VM management and operations - Resource scheduling and optimization |
| Topic 2: Troubleshoot and Resolve Complex Issues | - Log analysis and diagnostics - Cluster health management - Failure recovery procedures |
| Topic 3: Manage and Optimize Nutanix Storage | - Storage container and VDisk management - Storage optimization and efficiency - Data protection and disaster recovery |
| Topic 4: Configure and Manage Nutanix Networking | - Advanced networking scenarios - AHV networking configuration - Network segmentation and microsegmentation |
| Topic 5: Deploy and Upgrade Nutanix Environments | - Foundation processes - Cluster installation and configuration - Software and firmware upgrades |
| Topic 6: Analyze and Remediate Performance Issues | - Troubleshooting storage performance - Performance monitoring and metrics - Troubleshooting network performance |
| Topic 7: Implement and Manage Security and Compliance | - Security hardening - Access control and authentication - Compliance frameworks |
Nutanix知識ベースの経済の支配下で、私たちは変化する世界に歩調を合わせ、まともな仕事とより高い生活水準を追求して知識を更新しなければなりません。 この状況では、ポケットにNCM-MCI-6.10認定を取得すると、CertShiken労働市場での競争上の優位性を完全に高め、他の求職者との差別化を図ることができます。 したがって、当社のNCM-MCI-6.10学習ガイドは、夢を実現するための献身的な支援を提供します。 そして、NCM-MCI-6.10試験の質問で20〜30時間学習Nutanix Certified Master - Multicloud Infrastructure (NCM-MCI)した後にのみ、NCM-MCI-6.10試験に合格することができます。
質問 # 24
Task 6
An administrator needs to assess performance gains provided by AHV Turbo at the guest level.
To perform the test the administrator created a Windows 10 VM named Turbo with the following configuration.
1 vCPU
8 GB RAM
SATA Controller
40 GB vDisk
The stress test application is multi-threaded capable, but the performance is not as expected with AHV Turbo enabled. Configure the VM to better leverage AHV Turbo.
Note: Do not power on the VM. Configure or prepare the VM for configuration as best you can without powering it on.
正解:
解説:
To configure the VM to better leverage AHV Turbo, you can follow these steps:
Log in to Prism Element of cluster A using the credentials provided.
Go to VM > Table and select the VM named Turbo.
Click on Update and go to Hardware tab.
Increase the number of vCPUs to match the number of multiqueues that you want to enable. For example, if you want to enable 8 multiqueues, set the vCPUs to 8. This will improve the performance of multi-threaded workloads by allowing them to use multiple processors.
Change the SCSI Controller type from SATA to VirtIO. This will enable the use of VirtIO drivers, which are required for AHV Turbo.
Click Save to apply the changes.
Power off the VM if it is running and mount the Nutanix VirtIO ISO image as a CD-ROM device. You can download the ISO image from Nutanix Portal.
Power on the VM and install the latest Nutanix VirtIO drivers for Windows 10. You can follow the instructions from Nutanix Support Portal.
After installing the drivers, power off the VM and unmount the Nutanix VirtIO ISO image.
Power on the VM and log in to Windows 10.
Open a command prompt as administrator and run the following command to enable multiqueue for the VirtIO NIC:
ethtool -L eth0 combined 8
Replace eth0 with the name of your network interface and 8 with the number of multiqueues that you want to enable. You can use ipconfig /all to find out your network interface name.
Restart the VM for the changes to take effect.
You have now configured the VM to better leverage AHV Turbo. You can run your stress test application again and observe the performance gains.
https://portal.nutanix.com/page/documents/kbs/details?targetId=kA00e000000LKPdCAOchangev
CPUto 2/4 ?
Change SATA Controller to SCSI:
acli vm.get Turbo
Output Example:
Turbo {
config {
agent_vm: False
allow_live_migrate: True
boot {
boot_device_order: "kCdrom"
boot_device_order: "kDisk"
boot_device_order: "kNetwork"
uefi_boot: False
}
cpu_passthrough: False
disable_branding: False
disk_list {
addr {
bus: "ide"
index: 0
}
cdrom: True
device_uuid: "994b7840-dc7b-463e-a9bb-1950d7138671"
empty: True
}
disk_list {
addr {
bus: "sata"
index: 0
}
container_id: 4
container_uuid: "49b3e1a4-4201-4a3a-8abc-447c663a2a3e"
device_uuid: "622550e4-fb91-49dd-8fc7-9e90e89a7b0e"
naa_id: "naa.6506b8dcda1de6e9ce911de7d3a22111"
storage_vdisk_uuid: "7e98a626-4cb3-47df-a1e2-8627cf90eae6"
vmdisk_size: 10737418240
vmdisk_uuid: "17e0413b-9326-4572-942f-68101f2bc716"
}
flash_mode: False
hwclock_timezone: "UTC"
machine_type: "pc"
memory_mb: 2048
name: "Turbo"
nic_list {
connected: True
mac_addr: "50:6b:8d:b2:a5:e4"
network_name: "network"
network_type: "kNativeNetwork"
network_uuid: "86a0d7ca-acfd-48db-b15c-5d654ff39096"
type: "kNormalNic"
uuid: "b9e3e127-966c-43f3-b33c-13608154c8bf"
vlan_mode: "kAccess"
}
num_cores_per_vcpu: 2
num_threads_per_core: 1
num_vcpus: 2
num_vnuma_nodes: 0
vga_console: True
vm_type: "kGuestVM"
}
is_rf1_vm: False
logical_timestamp: 2
state: "Off"
uuid: "9670901f-8c5b-4586-a699-41f0c9ab26c3"
}
acli vm.disk_create Turbo clone_from_vmdisk=17e0413b-9326-4572-942f-68101f2bc716 bus=scsi remove the old disk acli vm.disk_delete 17e0413b-9326-4572-942f-68101f2bc716 disk_addr=sata.0
質問 # 25
The security team has provided some new security requirements for cluster level security on Cluster 2.
Security requirements:
* Update the password for the root user on the Cluster 2 node to match the admin user password.
Note: The 192.168.x.x network is not available. To access a node use the host IP (172.30.0.x) from the CVM.
* Output the cluster-wide configuration of the SCMA policy to desktop\output.txt before changes are made.
* Enable the Advanced Intrusion Detection Environment (AIDE) to run on a weekly basis for the hypervisor and cvms for Cluster 2.
* Enable high-strength password policies for the hypervisor and cluster.
* Ensure CVMs require SSH keys for login instead of passwords. (SSH keys are located in the desktop\Files\SSH folder.) Ensure the cluster meets these requirements. Do not reboot any cluster components.
Note: Please ensure you are modifying the correct components.
正解:
解説:
See the Explanation below for detailed answer.
Explanation:
Here is the step-by-step solution to apply the security requirements to Cluster 2.
1. Access Cluster 2 Prism Element
First, we must access the Prism Element (PE) interface for Cluster 2, as most security settings are cluster- specific.
* From the Prism Central dashboard, navigate to Hardware > Clusters.
* Find Cluster 2 in the list and click its name. This will open the Prism Element login page for that specific cluster in a new tab.
* Log in to Cluster 2's Prism Element using the admin credentials.
2. Requirement: Update Node Root Password
This task syncs the root password for all AHV hypervisor nodes with the cluster's admin user password.
* In the Cluster 2 PE interface, click the gear icon (Settings) in the top right corner.
* Select Cluster Lockdown from the left-hand menu.
* Click the Set Root Password on All Hosts button.
* A dialog box will appear. Enter the current admin password (the one you just used to log in) into both the New Password and Confirm New Password fields.
* Click Save. This will propagate the admin password to the root user on all nodes in Cluster 2.
3. Requirement: Add CVM SSH Key
This task adds the security team's public key to the admin user, which is required before we can disable password-based login.

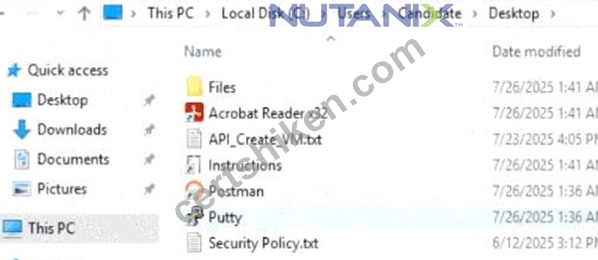

* On the desktop, navigate to the Files > SSH folder.
* Open the id_rsa.pub file (or equivalent public key file) with Notepad.
* Copy the entire string of text (e.g., ssh-rsa AAAA...).
* In the Cluster 2 PE interface, go to Settings (gear icon) > User Management.
* Select the admin user and click Modify User.
* Paste the copied public key into the Public Keys text box.
* Click Save.
4. Requirement: Apply SCMA Policies (All other requirements)
The remaining requirements are all applied via the command line on a CVM using Nutanix's Security Configuration Management Automation (SCMA).
* Access the CVM:
* Find a CVM IP for Cluster 2 by going to Hardware > CVMs in the PE interface.
* Open an SSH client (like PuTTY) and connect to that CVM's IP address.
* Log in with the username admin and the corresponding password.
* Output Current Policy (Req 2):
* Before making changes, run the following command to see the current policy:
ncli scma status
* Copy the entire output from your SSH terminal.
* Open Notepad on the desktop, paste the copied text, and Save the file to the desktop as output.
txt.
* Apply New Policies (Req 3, 4, 5):
* Run the following commands one by one. The cluster will apply them immediately without a reboot.
* Enable AIDE (Req 3):
ncli scma update aide-status=enabled aide-schedule=weekly
* Enable High-Strength Passwords (Req 4):
ncli scma update password-policy=high
* Require SSH Keys for CVMs (Req 5):
ncli scma update ssh-login=keys-only
Verification
You can verify all changes by running the status command again. The output should now reflect the new, hardened security posture.
ncli scma status
* AIDE Status: should show Enabled
* AIDE Schedule: should show Weekly
* Password Policy: should show High
* SSH Login: should show keys-only
質問 # 26
The Database team is reporting performance degradation for a business-critical application on Saturdays.
The team is requesting monitoring of processor, memory and storage utilization for the cluster for the application: SQL01, SQL02.
The report should contain views for the following:
* At the cluster level, only for the Cluster 1: The maximum percentage of CPU used
* At the VM level, including any future VM with the prefix SQL: The maximum time taken, maximum percentage of time a VM waits to use the physical CPU, out of the total CPU The report should run on Sundays at 12:00 AM for the previous 7 days. The report should show when completed.
Create a report named SQL_Batch_Saturday that meets these requirements.
Generate an instance of the report named SQL_Batch_Saturday as a CSV and save the file.
Note: You must name the report SQL_Batch_Saturday to receive any credit. Any other name will not be accepted. SMTP is not configured.
正解:
解説:
See the Explanation below for detailed answer.
Explanation:
Here is the step-by-step solution to create and run the report, performed entirely within Prism Central.
1. Create the Analysis Session
First, we will build the charts and entities for the report using the Analysis tool.
* From the Prism Central main menu, navigate to Operations > Analysis.
* Click the + New Session button.
* Add the required entities:
* In the "Entities" search box, type Cluster 1 and select Cluster: Cluster 1.
* In the "Entities" search box, type SQL01 and select VM: SQL01.
* In the "Entities" search box, type SQL02 and select VM: SQL02.
* Click Add Charts > New Chart to add the Cluster CPU chart:
* Title: Cluster 1 Max CPU Usage
* Entity Type: Cluster
* Metric: Cluster CPU Usage %
* Aggregation: Select Maximum.
* Click Add.
* Click Add Charts > New Chart to add the VM CPU Ready Time chart:
* Title: VM Max CPU Ready Time
* Entity Type: VM
* Metric: CPU Ready Time %
* Aggregation: Select Maximum.
* Click Add.
2. Save and Configure the Report
Now, save the session as a report and configure it to dynamically include all VMs with the SQL prefix.
* Click the Save as Report icon (the bookmark icon in the upper right).
* Name the report SQL_Batch_Saturday and click Save.
* Navigate to Operations > Reports.
* Find the SQL_Batch_Saturday report you just created and click its name to open the report editor.
* In the Entities tile, click the Edit (pencil) icon.
* By default, it will list "Cluster 1", "SQL01", and "SQL02".
* Change the VM selection:
* Select the radio button for All VMs prefixed with.
* In the text box, enter SQL.
* Ensure "Cluster 1" is still listed under "Clusters".
* Click Save.
3. Schedule the Report
* While still in the report editor for SQL_Batch_Saturday, click the Schedule button.
* Configure the schedule:
* Recurrence: Weekly
* Repeat on: Sunday
* Start Time: 12:00 AM
* Time Range: Previous 7 Days
* Configure the notification (as SMTP is not available):
* Expand the Notification Settings section.
* Check the box for Notify when ready (this enables the bell icon notification).
* Ensure "Email Report" is not checked.
* Click Save.
4. Generate and Save the CSV Instance
Finally, run the report now and download the CSV as requested.
* Navigate back to the main Operations > Reports list.
* Select the checkbox next to SQL_Batch_Saturday.
* Click the Actions dropdown and select Run Now.
* In the dialog, confirm the time range (e.g., "Last 7 Days") and click Run.
* Click the Report Instances tab.
* Wait for the report instance "SQL_Batch_Saturday" to finish running (the status will change from
"Running" to Succeeded).
* Once it has succeeded, click the Download (arrow) icon for that instance.
* Select the CSV format.
* Save the file to the desktop.
質問 # 27
An administrator needs to configure a new write-intensive MS-SQL VM on Cluster 1.
VM specifications:
* vCPU: 12
* vRAM: 128GB
* Storage: 100 GB OS, 750 GB Data
Create the VM and any objects needed in the current environment to meet requirements, maximizing performance for the production environment. Include NEWSQL in the name of any new objects.
Production environment:
* 4 nodes
* Each node has two 8-core CPUs
* Each node has 1024 GB RAM
* Storage: 4 × 7.16 TB SSD Disks and 8 × 8 TB HDD disks
Make sure the VM is configured for maximum performance for the production environment.
Note: Network configuration is not required at this time. Do not power on the VM.
正解:
解説:
See the Explanation below for detailed answer.
Explanation:
Here is the step-by-step solution to create the high-performance SQL VM on Cluster 1.
This task requires two phases: first, creating a new all-flash storage container, and second, creating the VM with a specific vNUMA and disk controller configuration for maximum performance.
1. Access Cluster 1 Prism Element
* From the main Prism Central dashboard, navigate to Hardware > Clusters.
* Find Cluster 1 in the list and click its name. This will open the specific Prism Element login page for that cluster.
* Log in to Cluster 1's Prism Element interface.
2. Create the All-Flash Storage Container
To maximize performance for a "write-intensive" workload on a hybrid cluster, the data and log disks must be placed on an all-flash container.
* In the Cluster 1 PE interface, click the gear icon (Settings) in the top-right corner.
* From the left-hand menu, select Storage.
* Click the + Storage Container button.
* Fill in the basic details:
* Name: NEWSQL_Flash_Container
* Click Advanced Settings.
* Scroll down to the Storage Tier section.
* Select the SSD radio button. This pins all data in this container to the SSD tier, ensuring all-flash performance.
* Click Save.
3. Create and Configure the VM
Now, create the VM, applying vNUMA and multi-SCSI controller best practices.
* From the main PE dashboard, navigate to the VM view.
* Click the + Create VM button.
* Enter the compute details. This configuration is critical for vNUMA performance, as it tells the VM's guest OS about the underlying physical NUMA topology (2 CPUs with 8 cores each).
* Name: NEWSQL_VM
* vCPUs: 12
* Number of Sockets: 2
* Cores per vCPU: 6 (This creates a 2-socket, 6-core VM, totaling 12 vCPUs)
* Memory: 128 GB
* Scroll down to the Disks section and add the OS disk:
* Click + Add New Disk.
* Storage Container: Select the default (hybrid) container.
* Size: 100 GB
* Bus: SCSI
* Device Index: 0 (This will be scsi.0)
* Click Add.
* Add the Data disk (on its own controller for parallel processing):
* Click + Add New Disk.
* Storage Container: Select NEWSQL_Flash_Container.
* Size: 750 GB
* Bus: SCSI
* Device Index: 1 (This creates a new controller, scsi.1)
* Click Add.
* Add a Log disk (on its own controller, a best practice for "write-intensive" SQL):
* Click + Add New Disk.
* Storage Container: Select NEWSQL_Flash_Container.
* Size: 100 GB (A common size for a log disk)
* Bus: SCSI
* Device Index: 2 (This creates a third controller, scsi.2)
* Click Add.
* Review the configuration: You should now have three disks attached, each on a separate controller (scsi.
0, scsi.1, scsi.2). This provides the maximum I/O performance.
* Ensure the Power on VM after creation box is unchecked.
* Click Save.
Topic 1, Performance Based Questions Set 1

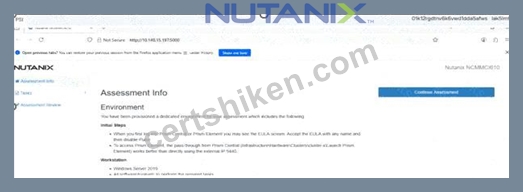

Environment
You have been provisioned a dedicated environment for your assessment which includes the following:
Initial Steps
* When you first log into Prism Central or Prism Element you may see the EULA screen. Accept the EULA with any name and then disable Pulse.
* To access Prism Element, the pass-through from Prism Central
(Infrastructure\Hardware\Clusters\cluster-x\Launch Prism Element) works better than directly using the external IP:9440.
Workstation
* Windows Server 2019
* All software/tools/etc to perform the required tasks
* Nutanix Documentation and whitepapers can be found in Desktop\Files\Documentation and Desktop\Files\Documentation 6.10
* Note that the Workstation is the system you are currently logged into
* Windows Server 2019
* All software/tools/etc to perform the required tasks
* Nutanix Documentation and whitepapers can be found in Desktop\Files\Documentation and Desktop\Files\Documentation 6.10
* Note that the Workstation is the system you are currently logged into Nutanix Cluster
* There are two clusters provided, connected to one Prism Central. The connection information for the relevant cluster will be displayed to the right of the question. Please make sure you are working on the correct cluster for each item. Please ignore any licensing violations.
Important Notes
* If the text is too small and hard to read, or you cannot see all of the GUI, you can increase/decrease the zoom of the browser with CTRL + and CTRL - (the plus and minus keys).
Prism Central Web Console
* admin / ykZUCJMER7V*
* nutanix / UJ2xE!DEXGY
Cluster 1
* CVM external IP: 34.53.118.63
* CVM DR IP: 172.30.0.6
* admin / 9Fw0B!3QH4X)
* nutanix / GNP*FE2504XWZ
* root / KR*6HY0z5E8
Cluster 2
* CVM external IP: 34.82.155.5
* CVM DR IP: 172.30.0.4
* admin / 5*K30fA76X
* nutanix / N*3F%1ME!Z7T9
質問 # 28
Create a VM template on Cluster 1 named Small Template that matches the small VM Configuration in NVD-2031 (see the Files\Documentation 6.10 folder) however, you will use default storage container.
Configure SMTP Alerting and NCC reports per NVD-2031 for Cluster 1.
Settings:
* SMTP: Use Cluster 2 IP address
* Cluster email: cluster1@ACME.org
* Alert emails: primaryalerts@ACME.org, secondaryalerts@ACME.org
正解:
解説:
See the Explanation below for detailed answer.
Explanation:
Here is the step-by-step solution to complete both tasks on Cluster 1.
This solution requires you to first find the IP of Cluster 2 (for the SMTP server) and then perform all configurations within the Prism Element interface for Cluster 1.
Prerequisite: Find Cluster 2 IP
* In Prism Central, navigate to Hardware > Clusters.
* Find Cluster 2 in the list and note its IP Address. You will use this in the steps below.
Task 1: Create the VM Template
* Log in to the Prism Element (PE) interface for Cluster 1. (From PC, go to Hardware > Clusters > click the name "Cluster 1").
* Navigate to the VM view from the main dashboard.
* Click the + Create VM button.
* Fill in the VM details based on the NVD-2031 "Small VM" configuration (e.g., 2 vCPUs, 1 Core per vCPU, 4 GB RAM).
* Name: Small Template
* Compute Details:
* vCPUs: 2
* Number of Cores per vCPU: 1
* Memory: 4 GB
* Scroll down to Storage and click + Add New Disk.
* Operation: Select Clone from Image Service.
* Image: Select any available guest OS image (e.g., a Windows or CentOS image).
* Storage Container: Ensure the default container is selected (as required by the task).
* Click Add.
* Scroll down to Network Adapters (NIC) and click + Add NIC.
* Select any available VLAN/Subnet (e.g., Primary).
* Click Add.
* Click Save. The VM will be created (and remain powered off).
* Find the new Small Template VM in the list. Select its checkbox.
* Click the Actions dropdown and select Convert to Template.
* Confirm the action by clicking OK.
Task 2: Configure SMTP and NCC Reports
* While still in the Cluster 1 Prism Element interface, click the gear icon (Settings) in the top-right corner.
* Select SMTP Server from the left-hand menu.
* Click the Configure button.
* In the "Server Settings" tab, fill in the following:
* Server Address: Enter the Cluster 2 IP Address (which you found in the prerequisite step).
* Port: 25 (leave as default).
* From Email Address: cluster1@ACME.org
* Click Next.
* In the "Email Recipients" tab, click + Add Email Recipient.
* Address: primaryalerts@ACME.org
* Ensure all severities (Critical, Warning, Info) are checked.
* Click Save.
* Click + Add Email Recipient again.
* Address: secondaryalerts@ACME.org
* Ensure all severities are checked.
* Click Save.
* Click Done. A test email will be sent.
* In the main Settings menu, select Alerts and Notifications.
* Scroll to the NCC Health Checks section.
* Check the box labeled Email Nutanix Cluster Check reports to recipients. (This will use the SMTP settings and recipients you just configured).
* Click Save.
質問 # 29
......
NCM-MCI-6.10学習ガイドは多くの利点を高め、購入する価値があります。購入する前に、NCM-MCI-6.10試験トレントを無料でダウンロードして試用できます。Nutanix製品を購入したら、すぐにNCM-MCI-6.10学習資料をダウンロードできます。 5〜10分以内に製品を郵送します。古いクライアントには無料のアップデートと割引を提供します。 NCM-MCI-6.10試験の教材は高い合格率を高めます。 NCM-MCI-6.10の学習準備には時間と労力がほとんどかからず、主に仕事やその他の重要なことに専念できます。
NCM-MCI-6.10難易度: https://www.certshiken.com/NCM-MCI-6.10-shiken.html
P.S. CertShikenがGoogle Driveで共有している無料かつ新しいNCM-MCI-6.10ダンプ:https://drive.google.com/open?id=1hvH06Q_6PjKQ0DeEIQXc9AxC8xosDCzm
