| Section | Weight | Objectives |
|---|---|---|
| Topic 1: Security Policy & Services | 10% | - NAT & IP pool optimization - Advanced firewall & security profile design - Identity-based policies |
| Topic 2: Monitoring & Troubleshooting | 10% | - Connectivity & performance troubleshooting - Diagnostic tools & CLI analysis - Fabric synchronization issues |
| Topic 3: Advanced Routing & VPN | 25% | - IPsec VPN & ADVPN architecture - Route redistribution & filtering - SD-WAN design & SLA management - OSPF, BGP, IS-IS configuration & optimization |
| Topic 4: System Architecture & Design | 20% | - Security Fabric integration & scaling - Hardware sizing & resource planning - FortiOS 7.6 architecture & components - VDOM design & multi-tenant deployment |
| Topic 5: High Availability & Redundancy | 15% | - Cross-data center redundancy - Session synchronization & failover - FGCP/FGSP/vCluster deployment |
| Topic 6: Centralized Management | 20% | - Configuration provisioning & version control - FortiManager 7.6 deployment & role assignment - FortiAnalyzer logging & reporting - Policy packages & object templates |
>> Valid NSE7_FSN_AR-7.6 Real Test <<
The Prep4SureReview is dedicated to providing Fortinet NSE 7 - Secure Networking 7.6 Architect exam candidates with the real Fortinet Dumps they need to boost their NSE7_FSN_AR-7.6 preparation in a short time. With our comprehensive NSE7_FSN_AR-7.6 PDF questions, NSE7_FSN_AR-7.6 practice exams, and 24/7 support, users can be confident that they are getting the best possible Fortinet NSE 7 - Secure Networking 7.6 Architect preparation material. Buy today and start your journey to success with the actual NSE7_FSN_AR-7.6 Exam Dumps.
NEW QUESTION # 128

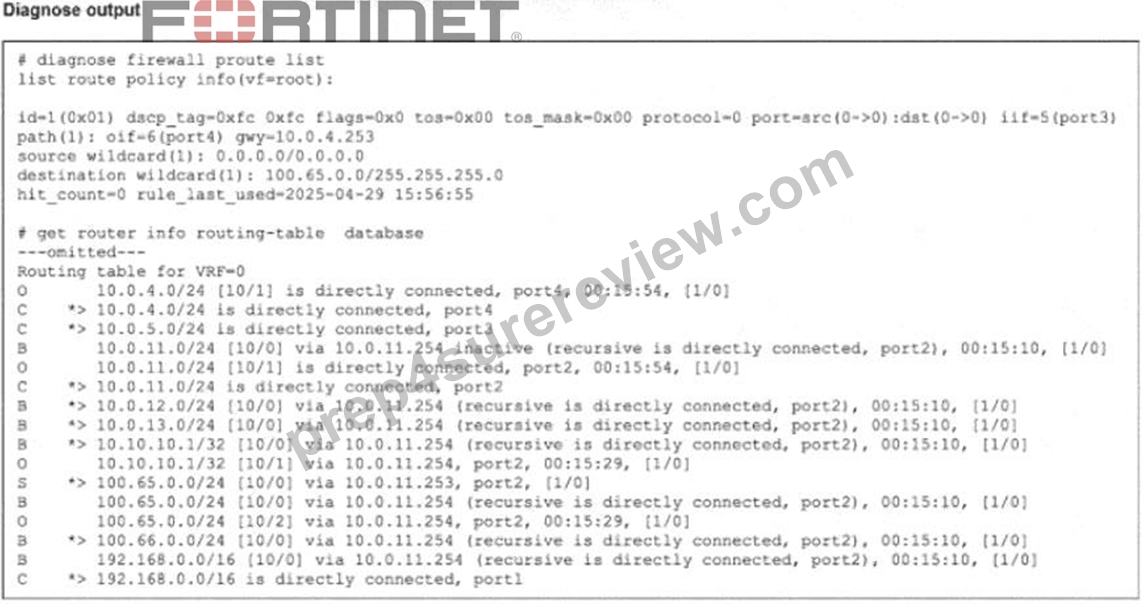

Refer to the exhibit.
Which route will traffic take to get to the 100.65.0.0/24 network considering the routes are all configured with the same distance?
Answer: A
Explanation:
To determine the path the traffic will take, we must look at the FortiGate Route Lookup Precedence (Packet Processing Flow) and the specific configurations shown in the exhibit Analyze the Routing Precedence:
In FortiOS, when a packet arrives (and is not part of an existing session), the FortiGate performs route lookups in a specific order:
Policy Routes: Configured under config router policy (or diagnose firewall proute list). These are checked first. If a packet matches the criteria (Source, Destination, Protocol, Incoming Interface), the Policy Route is used immediately, bypassing the standard routing table.
FIB (Forwarding Information Base): If no Policy Route matches, the device looks at the standard routing table (Static, Connected, Dynamic).
Analyze the Exhibit:
Policy Route Section: The output of diagnose firewall proute list shows an active policy route (id=1).
Destination: 100.65.0.0/255.255.255.0 (Matches the network in the question).
Action: It directs traffic to gateway 10.0.4.253 via oif=6(port4).
Routing Table Section: The output of get router info routing-table database shows multiple routes for
100.65.0.0/24 (Static, OSPF, BGP) all with distance 10. The Static route (S) is currently selected (* > ) in the FIB.
Conclusion:
Because Policy Routes take precedence over the standard routing table (FIB), the FortiGate will forward the traffic using the instructions in Policy Route ID 1. It will not use the Static, BGP, or OSPF routes visible in the routing table for any traffic that matches the policy route ' s criteria (ingress port 3).
Reference:
FortiGate Security 7.6 Study Guide (Routing): " Policy routes take precedence over entries in the routing table. If a packet matches a policy route, the FortiGate routes the packet according to the specified interface and gateway. "
NEW QUESTION # 129

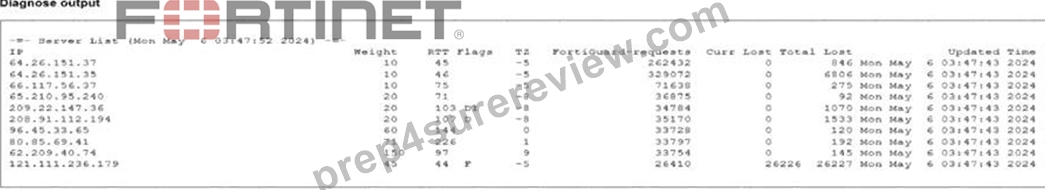

Refer to the exhibit.
Partial output of command diagnose debug rating is shown. Which FDS server will the FortiGate algorithm choose?
Answer: A
Explanation:
The correct answer is C. 64.26.151.37 .
The study guide explains the FortiGuard flags shown by diagnose debug rating:
* D = Default
* I = Initial
* T = Timing
* F = Failed and specifically: "F = The server is down"
So even though 121.111.236.179 has the lowest RTT in the exhibit, it has the F flag, meaning FortiGate considers that server failed/down , so it will not be chosen.
To determine which active server is selected, the FortiOS administration guide states:
"The server list is sorted first by weight. The server with the smallest RTT appears at the top of the list regardless of weight. ... Therefore the top position in the list is selected based on RTT while the other positions are based on weight." Among the valid, non-failed choices in the exhibit:
* 64.26.151.37 # RTT 45
* 209.22.147.36 # RTT 103
* 96.45.33.65 # RTT 144
* 208.91.112.194 # RTT 107
The active server with the lowest RTT is 64.26.151.37 , so that is the server FortiGate will choose.
So the verified answer is: C .
NEW QUESTION # 130

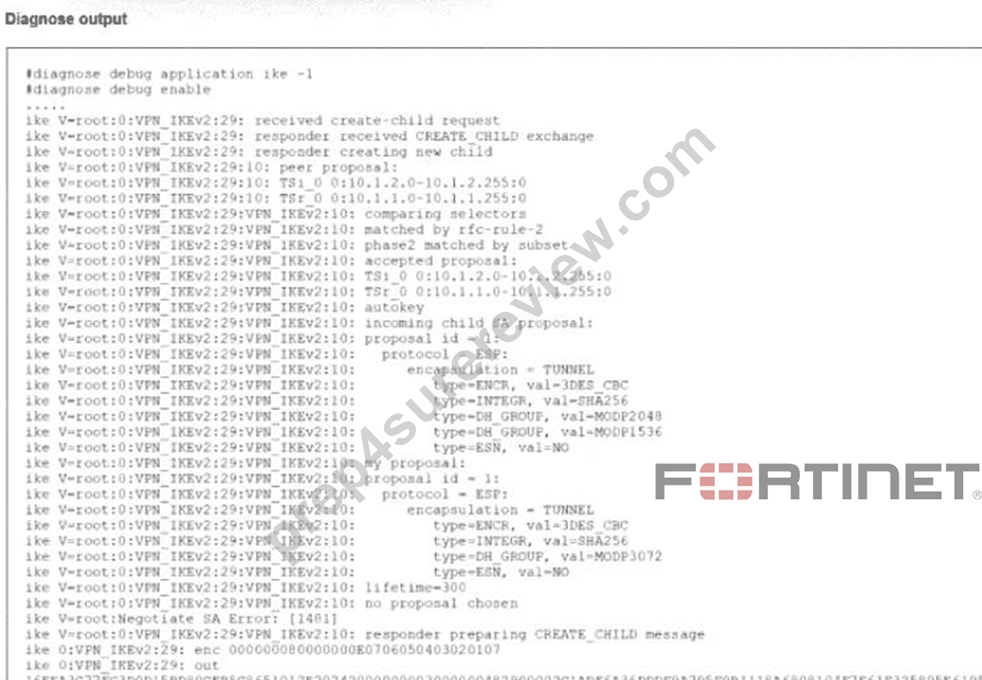

Refer to the exhibit.
An IPsec VPN tunnel using IKEv2 was brought up successfully, but when the tunnel rekey takes place the tunnel goes down.
The debug command for IKE was enabled and, in the exhibit, you can review the partial output of the debug IKE while attempting to bring the tunnel up.
What is causing. The tunnel to be down?
Answer: A
Explanation:
To determine the cause of the failure, we must analyze the IKEv2 debug output provided in the exhibit (image_ad3dc6.jpg):
Identify the Negotiation Phase:
The debug log shows: responder received CREATE_CHILD exchange.
In IKEv2, the CREATE_CHILD_SA exchange is used to create new Child SAs (Phase 2) or to rekey existing ones.
The fact that the tunnel was previously " brought up successfully " implies the initial IKE SA (Phase 1) is stable, and this error is occurring specifically during a rekey event, which often involves Perfect Forward Secrecy (PFS).
Analyze the Proposals (The Mismatch):
Incoming Proposal (Remote Peer):
The remote peer sends a proposal containing two Diffie-Hellman groups: type=DH_GROUP, val=MODP2048 (Group 14) and type=DH_GROUP, val=MODP1536 (Group 5).
My Proposal (Local FortiGate):
The local FortiGate configuration expects: type=DH_GROUP, val=MODP3072 (Group 15).
Result of the Negotiation:
The debug output concludes with: no proposal chosen and Negotiate SA Error.
This error occurs because the local FortiGate cannot find a common Diffie-Hellman group between what it requires (Group 15) and what the peer is offering (Groups 14 or 5).
While this is technically a mismatch occurring during the Phase 2 (Child SA) creation, " A Diffie-Hellman mismatch " (Option A) is the precise root cause identified in the logs.
Why other options are incorrect:
B: The log shows received create-child request, confirming that UDP traffic is reaching the device and is not blocked.
C: The failure is in the CREATE_CHILD exchange (Phase 2/Rekey), not the IKE_SA_INIT or IKE_AUTH (Phase 1) exchanges.
D: While the mismatch is occurring within the Phase 2 definitions, Option A is the specific technical reason for the no proposal chosen error shown in the DH_GROUP lines.
Reference:
FortiGate Security 7.6 Study Guide (IPsec VPN): " Phase 2 parameters... if Perfect Forward Secrecy (PFS) is enabled, a Diffie-Hellman exchange is performed again. Both peers must match the DH Group. "
NEW QUESTION # 131
Refer to the exhibit.
An auto-discovery VPN (ADVPN) network is shown.
You must configure an ADVPN using iBGP for each local region and eBGP across regions to connect Overlay 1 with Overlay 2.
Which two options must you configure in the Hub2Hub BGP peering? (Choose two.)
Answer: A,B
Explanation:
The Use Case 2 - BGP Configuration diagram explicitly shows these commands for inter-region BGP neighbors:
set attribute-unchanged next-hop
set ebgp-enforce-multihop enable
Technical Explanation:
The topology contains two independent BGP autonomous systems:
* Region A operates within AS 65100.
* Region B operates within AS 65200.
Within each region, iBGP exchanges routing information between the hub and its associated spokes. Between the two regions, eBGP propagates routes through the Hub2Hub connection.
Option B is correct: The command set attribute-unchanged next-hop preserves the BGP next-hop attribute when routes are advertised between the regional hubs.
Preserving next-hop information is important in the documented inter-region ADVPN design because it supports the intended routing and shortcut behavior across the overlays. The next-hop addresses must remain reachable through the configured routing infrastructure.
Option C is correct: The command set ebgp-enforce-multihop enable allows eBGP neighbor relationships to operate when the peers are not directly adjacent at the IP routing level.
In this topology, the hubs establish BGP peering using their inter-hub addresses. Enabling eBGP multihop supports the required connectivity when reaching those addresses involves intermediate routed hops.
Why the other options are incorrect:
Option A: set next-hop-self enable causes FortiGate to replace the advertised next hop with its own address.
This contradicts the next-hop preservation requirement shown in the study guide ' s configuration for this topology.
Option D: set ebgp-enforce-multihop advpn is not the documented FortiOS configuration syntax. The valid value used here is enable.
Architectural Consideration:
For a multiregion ADVPN design, the architect must ensure that BGP next-hop resolution, inter-hub routing, and IPsec connectivity are consistent. Otherwise, BGP may establish successfully while data-plane forwarding or shortcut creation still fails.
References: Enterprise Firewall 7.6 Administrator Study Guide, Auto-Discovery VPN - Use Case 2, pages
235-237; SD-WAN 7.6 Enterprise Administrator Study Guide, Dual-Hub and Multiregion Topologies, page
152.
NEW QUESTION # 132

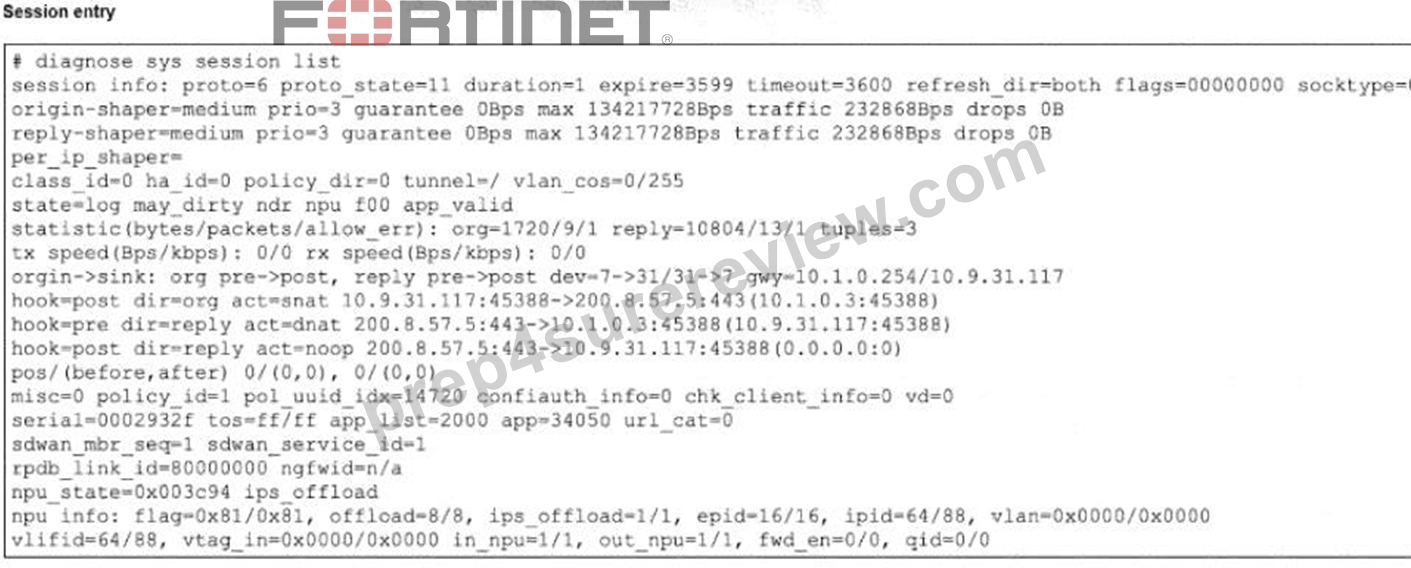

Refer to the exhibit.
The exhibit shows a session entry. Which statement about this TCP session is true?
Answer: A
Explanation:
The correct answer is C. The session is offloaded using NPU.
The exact session example in the study guide shows:
proto=6 # this is a TCP session
expire=3599 # the session will expire in 3599 seconds, not in one second hook=post dir=org act=snat 10.9.31.117:45388- > 200.8.57.5:443(10.1.0.3:45388) hook=pre dir=reply act=dnat 200.8.57.5:443- > 10.1.0.3:45388(10.9.31.117:45388) npu info: ... offload=8/8 ...
and the slide explicitly states: "Offloaded in both directions using NP6" The study guide also explains this exact point clearly:
"Counters for hardware acceleration-The presence of the npu info field indicates the session has been offloaded to hardware acceleration. In this example, traffic is being offloaded in both directions using network processor (NP) 6, which is represented by the value of 8." Why the other options are wrong:
A is wrong because expire=3599, not 1. The duration=1 field means the session has existed for 1 second, not that it will expire in 1 second.
B is wrong because the original session is from 10.9.31.117 to the remote server 200.8.57.5:443. The IP
10.1.0.3 is the SNAT-translated source address, not the final destination.
D is not the best answer for this single-select question. The reply is indeed DNATed back toward the original client, but the exact validated takeaway highlighted by the study guide for this exhibit is the NPU offload state.
NEW QUESTION # 133
......
