| Section | Objectives |
|---|---|
| Network Visibility and Monitoring | - Troubleshoot network devices and device status - Guests and contractors - Explain and configure device profiling - Use logging options available on FortiNAC |
| Integration | - Explain and configure MDM integration - Configure and use FortiNAC-F Manager - Integrate with third-party devices using Syslog and SNMP trap input |
| Concepts and Initial Configuration | - Explain isolation networks and the configuration wizard - Model and organize infrastructure devices |
| Deployment and Provisioning | - Configure FortiNAC-F security policies - Configure access control on FortiNAC-F - Configure security automation - Configure and monitor high availability (HA) |
>> NSE6_FNC_AD-7.6 Zertifikatsdemo <<
Die Welt verändert sich. Daher müssen mit den Veränderungen Schritt halten. Wir ITZert beachten immer die vielfältige Veränderungen der Fortinet NSE6_FNC_AD-7.6 Prüfung. Wir haben schon zahlreiche Prüfungsaufgaben der Fortinet NSE6_FNC_AD-7.6 Prüfung von mehreren Jahren geforscht. Jetzt können wir Ihnen die wertvolle Prüfungsunterlagen der Fortinet NSE6_FNC_AD-7.6 bieten. Nach Ihrem Kauf geben Ihnen rechtzeitigen Bescheid über die Aktualisierungsinformationen der Fortinet NSE6_FNC_AD-7.6. Dieser Dienst ist kostenlos, weil die Gebühren für die Unterlagen bezahlen, haben Sie schon alle auf Fortinet NSE6_FNC_AD-7.6 bezügliche Hilfen gekauft.
23. Frage
While discovering network infrastructure devices, a switch appears in the inventory topology with a question mark (?) on the icon. What would cause this?
Antwort: C
Begründung:
In FortiNAC-F, the Inventory topology uses specific icons to represent the status and model of discovered network infrastructure. When a switch or other network device is discovered via SNMP, FortiNAC-F retrieves its System ObjectID (sysObjectID) to identify the specific make and model. This OID is then compared against the internal database of supported device mappings.
A question mark (?) icon appearing on a discovered switch indicates that while the discovery process successfully communicated with the device (meaning SNMP credentials were correct), the SNMP ObjectID is not recognized or mapped in the current version of FortiNAC-F. This essentially means the device is "unsupported" by the current software out-of-the-box. Because the OID is unknown, FortiNAC-F does not know which CLI or SNMP command set to use for critical functions like L2 polling (host visibility) or VLAN switching (enforcement). To resolve this, an administrator can manually "Set Device Mapping" to a similar existing model or a "Generic SNMP Device" if only basic L3 visibility is required.
"Discovered devices displaying a '?' icon indicate the currently running version does not have a mapping for that device's System OID (device is not supported). Device mappings are used to manage the device by performing functions such as L2/L3 Polling, Reading, and Switching VLANs."
24. Frage
An administrator is configuring FortiNAC-F to manage FortiGate VPN users. As part of the configuration, the administrator must configure a few FortiGate firewall policies.
What is the purpose of the FortiGate firewall policy that applies to clients not yet authorized by FortiNAC-F?
Antwort: D
Begründung:
The firewall policy for clients not yet authorized by FortiNAC-F is designed to restrict their access so they can communicate only with the FortiNAC-F VPN interface. This allows FortiNAC-F to perform authentication and authorization before granting broader network access.
25. Frage

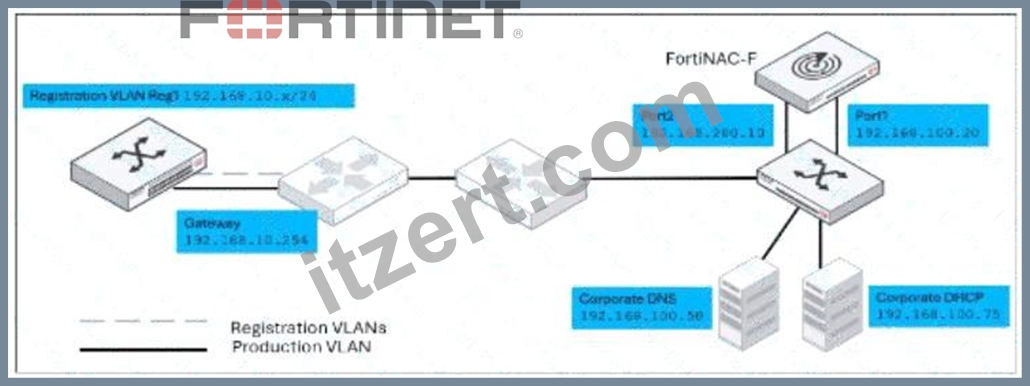

Refer to the exhibit.
Given this topology, and a layer 3 registration network configuration, which IP address would be designated in the DHCP relay configuration for the registration network?
Antwort: B
Begründung:
The correct answer is D . In a Layer 3 registration or isolation network design, DHCP requests from the isolated registration VLAN are not served locally on that VLAN by a normal production DHCP server.
Instead, the registration VLAN's DHCP relay must forward DHCP traffic to FortiNAC-F port2 , because port2 is the captive network service interface. The study guide states that in Layer 3 captive networks, DHCP traffic is relayed to port2 from the captive networks, and that the FortiNAC-F port2 interface provides DHCP, DNS, and captive portal services for hosts assigned to those captive networks.
In the exhibit, the registration VLAN is 192.168.10.x/24 , with gateway 192.168.10.254 . That gateway is where the DHCP relay would be configured, but it is not the relay destination. The relay destination must be the FortiNAC-F port2 address, shown as 192.168.200.10 . The corporate DHCP server 192.168.100.75 is for production network addressing, not registration isolation. The FortiNAC-F port1 address 192.168.100.20 is the administrative or production-facing interface, not the captive network service interface. Therefore, the DHCP relay should point to 192.168.200.10 .
26. Frage

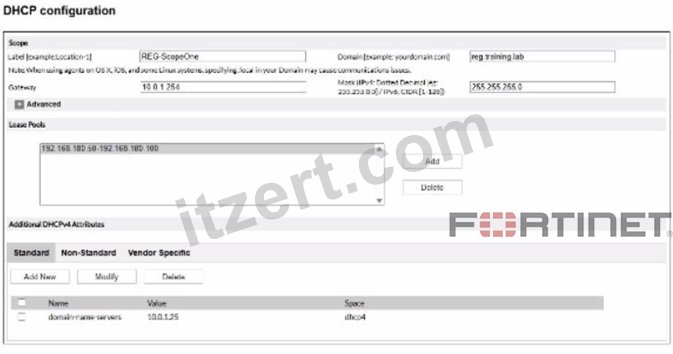

Refer to the exhibit. An administrator has configured the DHCP scope for a registration isolation network, but the isolation process isn't working.
What is the problem with the configuration?
Antwort: A
Begründung:
In a FortiNAC-F deployment, the configuration of the DHCP scope for isolation networks (Registration, Remediation, etc.) must perfectly align with the underlying network infrastructure to ensure that isolated hosts can communicate with the FortiNAC appliance. In the provided exhibits, there is a clear discrepancy between the DHCP configuration and the Network Topology.

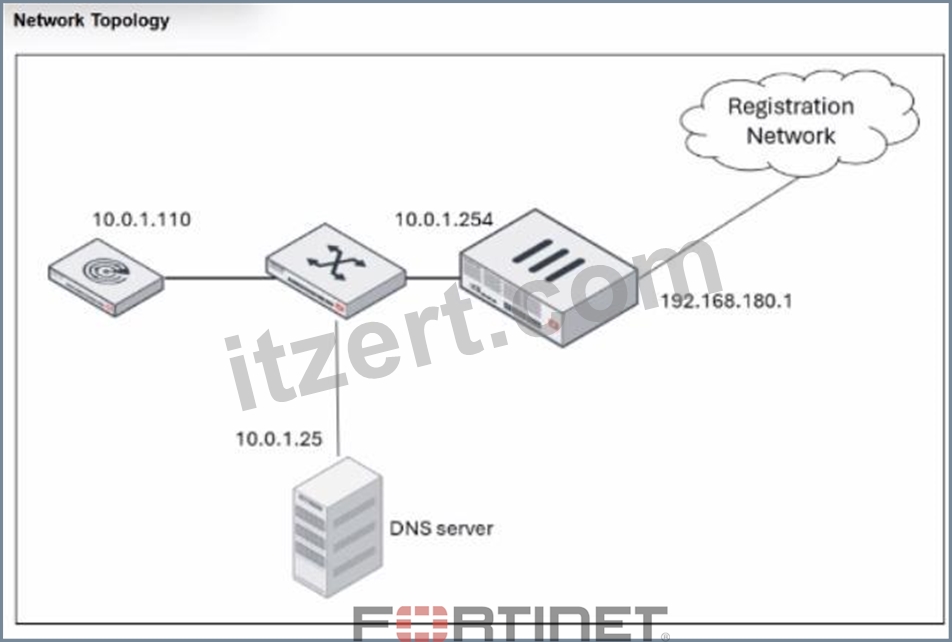

As shown in the "Network Topology" exhibit, the Registration Network resides on a router interface (or sub-interface) with the IP address 192.168.180.1. This address represents the default gateway for any host placed into the Registration VLAN. However, the "DHCP configuration" exhibit shows the scope "REG-ScopeOne" configured with a Gateway of
10.0.1.254. This 10.0.1.254 address belongs to the management/service network (port2 of FortiNAC), not the registration subnet. If a host in the Registration VLAN receives this incorrect gateway via DHCP, it will attempt to send all off-link traffic to an unreachable IP, preventing it from loading the Captive Portal or communicating with the FortiNAC server.
According to the FortiNAC-F Configuration Wizard Reference, when defining a Layer 3 network scope, the "Gateway" field must contain the IP address of the router interface that acts as the gateway for that specific isolation VLAN. The FortiNAC appliance itself usually sits on a different subnet, and traffic is directed to it via the router's DHCP Relay (IP Helper) and DNS redirection.
"When configuring scopes for a Layer 3 network, the Gateway value must be the IP address of the router interface for that subnet. This allows the host to reach its local gateway to route traffic.
If the gateway is misconfigured, the host will be unable to reach the FortiNAC eth1/port2 interface for registration... Ensure the Gateway matches the network topology for the isolation VLAN."
27. Frage
When FortiNAC-F is managing VPN clients connecting through FortiGate, why must the clients run a FortiNAC-F agent?
Antwort: C
Begründung:
When FortiNAC-F manages VPN clients through a FortiGate, the agent plays a fundamental role in device identification that standard network protocols cannot provide on their own. In a standard VPN connection, the FortiGate establishes a Layer 3 tunnel and assigns a virtual IP address to the client. While the FortiGate sends a syslog message to FortiNAC-F containing the username and this assigned IP address, it typically does not provide the hardware (MAC) address of the remote endpoint ' s physical or virtual adapter.
FortiNAC-F relies on theMAC addressas the primary unique identifier for all host records in its database.
Without the MAC address, FortiNAC-F cannot correlate the incoming VPN session with an existing host record to apply specific policies or track the device ' s history. By running either a Persistent or Dissolvable Agent, the endpoint retrieves its own MAC address and communicates it directly to the FortiNAC-F service interface. This allows the " IP to MAC " mapping to occur. Once FortiNAC-F has both the IP and the MAC, it can successfully identify the device, verify its status, and send the appropriateFSSO tagsor group information back to the FortiGate to lift network restrictions.
Furthermore, while the agent can also perform compliance checks (Option D), the architectural requirement for the agent in a managed VPN environment is primarily driven by the need for session data correlation- specifically the collection of the IP and MAC address pairing.
" Session Data Components: * User ID (collected via RADIUS, syslog and API from the FortiGate). * Remote IP address for the remote user connection (collected via syslog and API from the FortiGate and from the FortiNAC agent). *Device IP and MAC address (collected via FortiNAC agent).... The Agent is used to provide the MAC address of the connecting VPN user (IP to MAC). " -FortiNAC-F FortiGate VPN Integration Guide: How it Works Section.
28. Frage
......
