Want to crack the Juniper JN0-683 certification test in record time? Look no further than Exam4Tests! Our updated JN0-683 Dumps questions are designed to help you prepare for the exam quickly and effectively. With study materials available in three different formats, you can choose the format that works best for you. Trust Exam4Tests to help you pass the Juniper JN0-683 Certification test with ease.
| Certification Vendor: | Juniper |
|---|---|
| Exam Name: | Data Center, Professional (JNCIP-DC) |
| Exam Number: | JN0-683 |
| Available Languages: | English |
| Exam Format: | Multiple-choice |
| Exam Duration: | 90 minutes |
| Real Exam Qty: | 65 |
| Certificate Validity Period: | 3 years |
| Exam Price: | $400 USD |
| Passing Score: | Scaled (Approx. 650/1000) |
| Related Certifications: | Juniper Networks Certified Professional Data Center (JNCIP-DC) |
| Sample Questions: | Juniper JN0-683 Sample Questions |
| Exam Way: | Online-proctored or Pearson VUE testing center |
| Pre Condition: | JNCIS-DC (JN0-481) is recommended/preferred. |
| Official Syllabus URL: | https://www.juniper.net/us/en/training/certification/tracks/data-center/jncip-dc.html |
We provide 3 versions for the client to choose and free update. Different version boosts different advantage and please read the introduction of each version carefully before your purchase. The language of our JN0-683 study materials are easy to be understood and we compile the JN0-683 Exam Torrent according to the latest development situation in the theory and the practice. You only need little time to prepare for our exam. So it is worthy for you to buy our JN0-683 questions torrent.
| Topic | Details |
|---|---|
| Topic 1 |
|
| Topic 2 |
|
| Topic 3 |
|
| Topic 4 |
|
| Topic 5 |
|
NEW QUESTION # 105

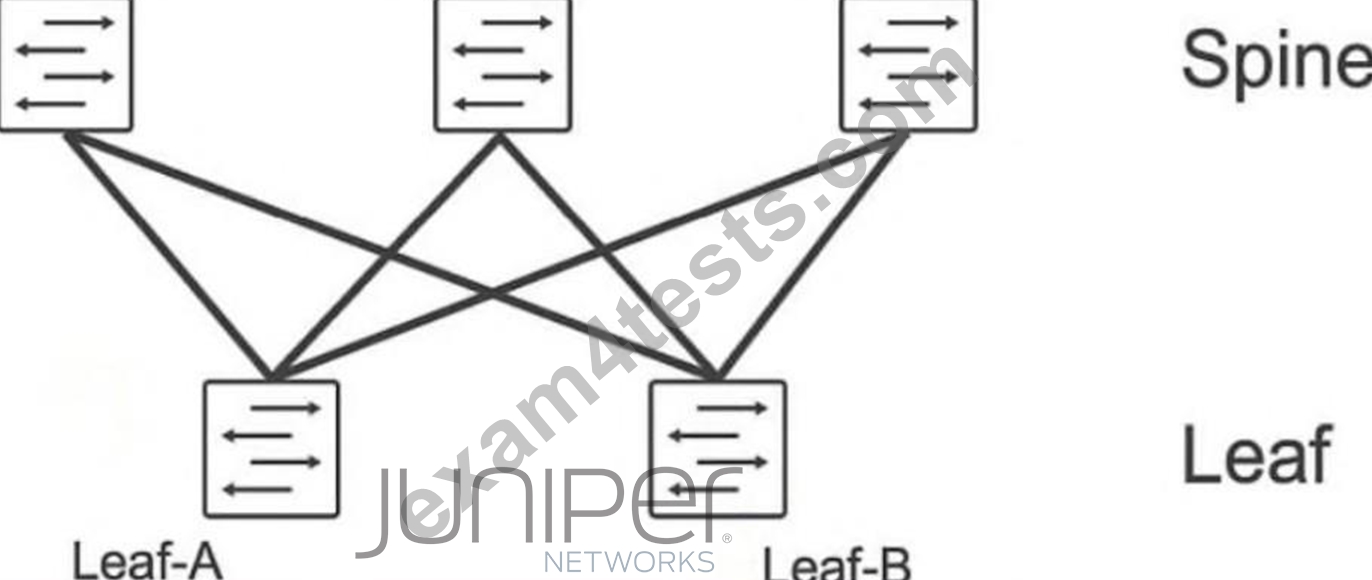

Click the Exhibit Button. Which number of potential paths would traffic entering Leaf-A with a destination connected to Leaf-B have over the referenced IP fabric?
Answer: B
Explanation:
In a leaf-spine IP fabric, traffic between two leaves is typically load-balanced using ECMP across all available spine nodes that connect to both leaves. Since Leaf-A and Leaf-B are each connected to three spines, there are three equal-cost next hops available, resulting in three potential paths.
NEW QUESTION # 106

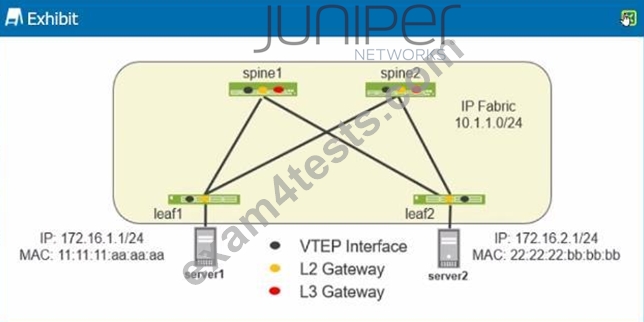

Exhibit.
You have implemented an EVPN-VXLAN data center. Device served must be able to communicate with device server2.
Referring to the exhibit, which two statements are correct? (Choose two.)
Answer: B,D
Explanation:
* Understanding the Exhibit Setup:
* The network diagram shows an EVPN-VXLAN setup, a common design for modern data centers enabling Layer 2 and Layer 3 services over an IP fabric.
* Leaf1 and Leaf2 are the leaf switches connected to Server1 and Server2, respectively, with each server in a different subnet (172.16.1.0/24 and 172.16.2.0/24).
* Spine1 and Spine2 are part of the IP fabric, interconnecting the leaf switches.
* EVPN-VXLAN Basics:
* EVPN (Ethernet VPN) provides Layer 2 and Layer 3 VPN services using MP-BGP.
* VXLAN (Virtual Extensible LAN) encapsulates Layer 2 frames into Layer 3 packets for transmission across an IP network.
* VTEP (VXLAN Tunnel Endpoint) interfaces on leaf devices handle VXLAN encapsulation and decapsulation.
* Integrated Routing and Bridging (IRB):
* IRB interfaces are required on leaf1 and leaf2 (where the endpoints are directly connected) to route between different subnets (in this case, between 172.16.1.0/24 and 172.16.2.0/24).
* The IRB interfaces provide the necessary L3 gateway functions for inter-subnet communication.
* Traffic Flow Analysis:
* Traffic from Server1 (172.16.1.1) destined for Server2 (172.16.2.1) must traverse from leaf1 to leaf2.
* The traffic will be VXLAN encapsulated on leaf1, sent over the IP fabric, and decapsulated on leaf2.
* Since the communication is between different subnets, the IRB interfaces on leaf1 and leaf2 are crucial for routing the traffic correctly.
* Correct Statements:
* C. An IRB Interface must be configured on leaf1 and leaf2:This is necessary to perform the inter-subnet routing for traffic between Server1 and Server2.
* D. Traffic from server1 to server2 will transit the VXLAN tunnel between leaf1 and leaf2:
This describes the correct VXLAN operation where the traffic is encapsulated by leaf1 and decapsulated by leaf2.
Data Center References:
* In EVPN-VXLAN architectures, the leaf switches often handle both Layer 2 switching and Layer 3 routing via IRB interfaces. This allows for efficient routing within the data center fabric without the need to involve the spine switches for every routing decision.
* The described traffic flow aligns with standard EVPN-VXLAN designs, where direct VXLAN tunnels between leaf switches enable seamless and scalable communication across a data center network.
NEW QUESTION # 107
Which parameter is used to associate a received route with a local VPN route table?
Answer: D
Explanation:
route-target community: The route-target community is used to associate a received route with a local VPN route table in an EVPN or MPLS VPN environment. It acts as an import and export policy for routes, ensuring that only the relevant routes are imported into a particular VRF (Virtual Routing and Forwarding instance) based on the matching route-target.
NEW QUESTION # 108
In an EVPN-VXLAN fabric, which statement describes the purpose of an EVPN Type 5 route?
Answer: B
Explanation:
EVPN Type 5 routes, also known as IP Prefix routes, are used to advertise Layer 3 reachability information for subnets or host routes across VXLAN domains. This allows inter-subnet routing between different VNIs or between data centers without requiring the destination MAC address to be known, which is especially useful for DCI scenarios and route summarization.
NEW QUESTION # 109

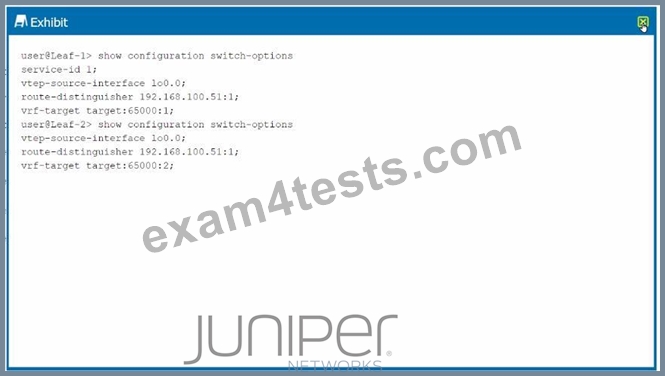

Exhibit.
Connections between hosts connected to Leaf-1 and Leaf-2 are not working correctly.
Answer: B,C
Explanation:
* Issue Analysis:
* The problem in the exhibit suggests a mismatch in configuration parameters between Leaf-1 and Leaf-2, leading to communication issues between hosts connected to these leaf devices.
* Configuration Mismatches:
* Service-ID:Leaf-1 has service-id 1 configured, while Leaf-2 does not have this parameter. For consistency and proper operation, the service-id should be the same across both leaf devices.
* VRF Target:Leaf-1 is configured with vrf-target target:65000:1, while Leaf-2 is configured with vrf-target target:65000:2. To allow proper VRF import/export between the two leafs, these should match.
* Corrective Actions:
* C. Configure the set switch-options vrf-target target:65000:1 parameter on Leaf-2:This aligns the VRF targets between the two leaf devices, ensuring they can correctly import and export routes.
* E. Configure the set switch-options service-id 1 parameter on Leaf-2:This ensures that both Leaf-1 and Leaf-2 use the same service ID, which is necessary for consistency in the EVPN- VXLAN setup.
Data Center References:
* Correct configuration of VRF targets and service IDs is critical in EVPN-VXLAN setups to ensure that routes and services are correctly shared and recognized between different devices in the network fabric.
NEW QUESTION # 110
......
